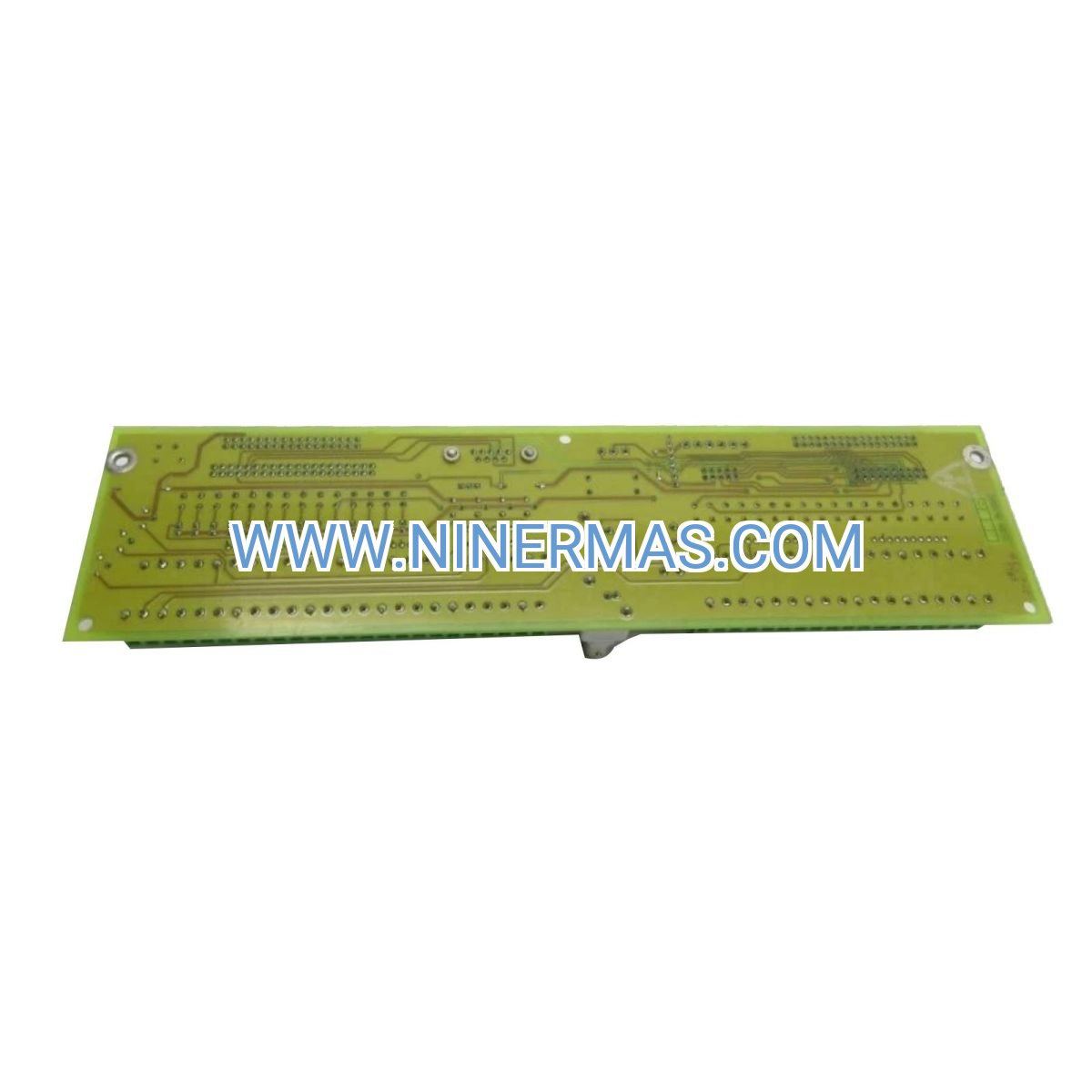

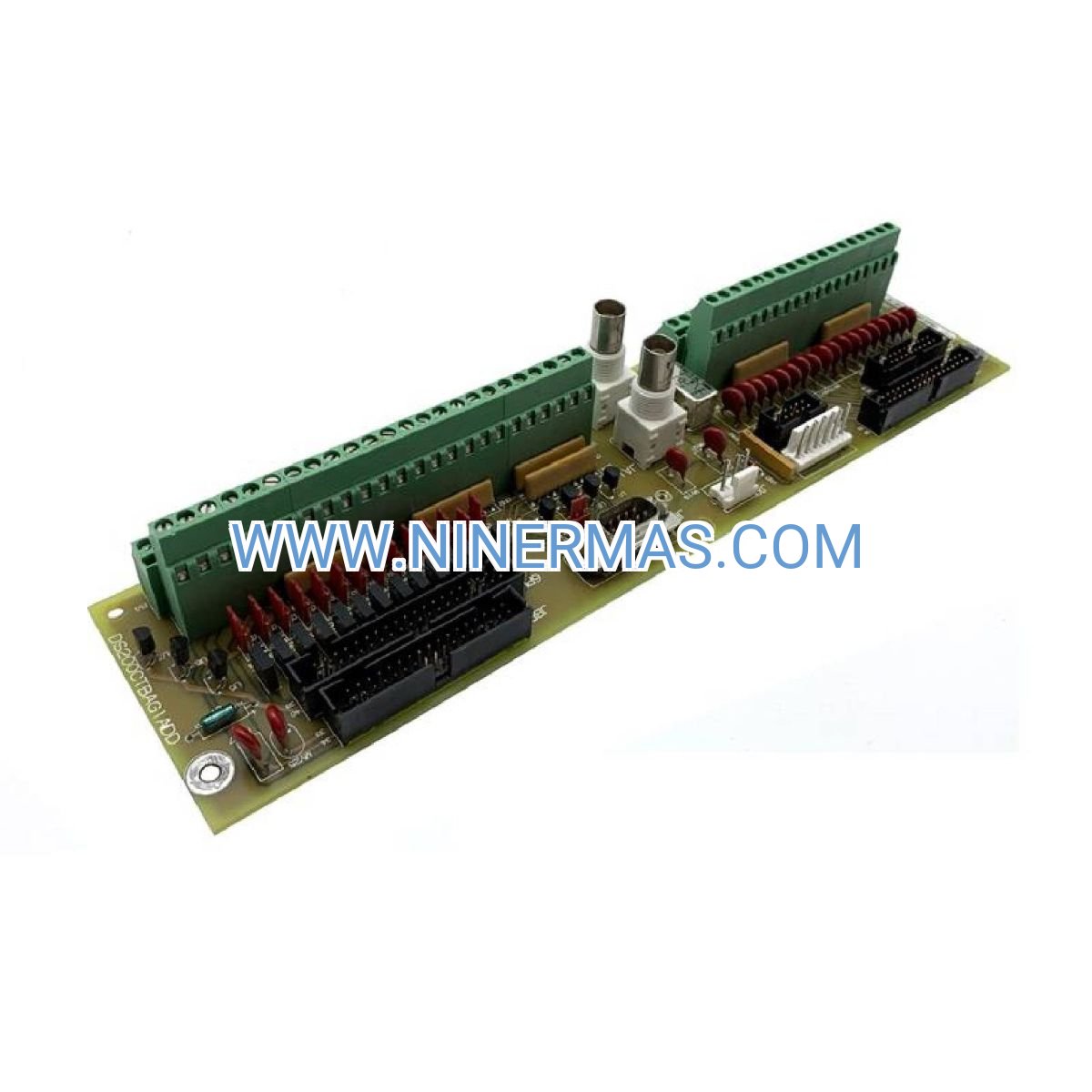

DS200CTBAG1ADD Terminal Board – Industrial Signal Termination for Mark V Speedtronic Systems

The DS200CTBAG1ADD is a precision-engineered common terminal board designed for General Electric Mark V Speedtronic turbine control platforms. Through industrial-grade screw-clamp terminations and robust circuit protection, this module delivers reliable field signal routing between control processors and instrumentation devices in gas turbine, steam turbine, and combined-cycle power generation environments.

Suitable for power plants, oil & gas facilities, industrial cogeneration systems, and process manufacturing applications, the DS200CTBAG1ADD addresses critical challenges including signal integrity degradation, vibration-induced connection failures, harsh environmental exposure, and maintenance complexity in 24/7 turbine operations.

Built on proven GE Speedtronic architecture with standardized mounting and optional conformal coating, this terminal board offers secure connectivity, environmental resilience, and simplified troubleshooting. Ideal for plant engineers, control system integrators, OEM partners, and maintenance teams requiring dependable termination solutions. Contact our application engineers for system-specific configuration guidance and technical documentation.

Core Functions & Advantages

Industrial-Grade Signal Termination
Features heavy-duty screw-clamp terminals rated for 12-22 AWG conductors, ensuring gas-tight connections that resist loosening under continuous vibration and thermal cycling common in turbine environments.

Mark V System Integration
Seamlessly interfaces with GE Speedtronic control processors, I/O modules, and protection boards through standardized pinout configurations, reducing commissioning time and minimizing wiring errors during installation or retrofit projects.

Enhanced Environmental Protection
Optional conformal coating shields circuitry against moisture ingress, airborne contaminants, and chemical exposure in coastal installations, offshore platforms, and industrial process areas with aggressive atmospheres.

Vibration-Resistant Construction
Engineered with reinforced terminal blocks and secure PCB mounting to maintain electrical continuity in high-vibration turbine enclosures, preventing intermittent faults and false alarms during normal operation.

Maintenance-Friendly Design
Clear terminal labeling, accessible connection points, and modular architecture enable rapid field wiring verification, accelerated troubleshooting, and reduced mean-time-to-repair during scheduled outages or emergency interventions.

Wide Operating Range
Qualified for -30°C to +65°C ambient temperatures and 5-95% non-condensing humidity, supporting deployment across diverse climatic zones from arctic facilities to tropical power stations without derating.

Typical Application Scenarios

The DS200CTBAG1ADD terminal board serves as the critical field wiring interface in turbine control systems where signal reliability, environmental durability, and maintenance efficiency directly impact plant availability:

Combined-Cycle Power Plants
In CCGT facilities, this terminal board connects turbine vibration sensors, flame detectors, and pressure transmitters to Mark V control cabinets, enabling real-time condition monitoring and coordinated sequencing between gas turbines and heat recovery steam generators.

Offshore Oil & Gas Platforms
Marine environments demand corrosion-resistant termination solutions. The DS200CTBAG1ADD with conformal coating protects against salt spray and humidity while maintaining signal integrity for emergency shutdown systems and production optimization controls.

Industrial Cogeneration Systems
Manufacturing plants utilizing turbine-driven cogeneration integrate this board to route process steam pressure signals, electrical load feedback, and synchronization inputs, ensuring stable power quality and thermal energy delivery to production lines.

District Heating & Municipal Power
Utility-scale steam turbines in district heating networks rely on precise temperature and flow control. The DS200CTBAG1ADD facilitates accurate signal transmission from field instruments to control logic, optimizing fuel efficiency and emissions compliance.

Petrochemical Process Control
Refineries and chemical plants deploy this terminal board in turbine-driven compressor trains and pump systems, where continuous operation and rapid fault detection prevent costly process upsets and safety incidents.

Technical Parameters & Selection Guide

To support engineering design and procurement decisions, we provide comprehensive specifications for the DS200CTBAG1ADD terminal board:

Selection Considerations
When specifying the DS200CTBAG1ADD for your turbine control project, evaluate these key factors: existing Mark V cabinet configuration, number of field I/O points requiring termination, environmental conditions (temperature extremes, humidity, chemical exposure), mounting space constraints, and integration with companion boards such as analog I/O modules, relay outputs, or power supplies. For custom configurations or multi-board systems, provide our engineering team with control cabinet layout drawings, I/O point lists, and environmental classification data for optimized recommendations.

System Integration & Companion Modules

The DS200CTBAG1ADD functions as part of a comprehensive Mark V Speedtronic control architecture. Typical system configurations pair this terminal board with:

• Analog I/O Boards: Process sensor signals (4-20mA, RTD, thermocouple) before routing through terminal connections
• Digital I/O Modules: Interface discrete field devices (limit switches, solenoid valves, status indicators) via terminal block connections
• Power Supply Units: Distribute regulated DC power to field transmitters and control circuits through dedicated terminal channels
• Relay Output Boards: Drive high-current loads (contactors, motor starters) with isolated terminal connections for safety and noise immunity
• Communication Gateways: Enable SCADA integration and remote monitoring through terminal-based serial or Ethernet interfaces

For complete turbine control system upgrades, modernization projects, or capacity expansions, consult our application engineers to design integrated solutions combining the DS200CTBAG1ADD with appropriate processor boards, I/O expansion modules, and redundancy configurations.

Delivery, Service & Quality Assurance

Lead Times & Availability
Standard DS200CTBAG1ADD units typically ship within 3-5 business days from our regional distribution centers. Custom configurations with conformal coating or special testing requirements require 7-10 business days. Expedited shipping options available for critical outage support and emergency replacements.

Warranty & Support
All terminal boards include a comprehensive 12-month warranty covering manufacturing defects and component failures under normal operating conditions. Technical support encompasses remote troubleshooting assistance, installation guidance, and compatibility verification with existing Mark V systems.

Documentation Package
Each DS200CTBAG1ADD ships with complete technical documentation including dimensional drawings, terminal wiring diagrams, electrical specifications, installation procedures, and maintenance recommendations. Digital copies available in PDF format for engineering archives and maintenance management systems.

Quality Testing
Prior to shipment, every terminal board undergoes factory testing protocols verifying electrical continuity across all terminal positions, insulation resistance measurements, mechanical integrity inspection, and functional validation per GE Speedtronic standards.

Frequently Asked Questions

Q: Can the DS200CTBAG1ADD terminal board be used in Mark VI Speedtronic systems?
A: This board is specifically engineered for Mark V Speedtronic platforms. Mark VI systems utilize different terminal board designs with updated connector standards and enhanced diagnostic capabilities. Contact our team to identify the appropriate Mark VI-compatible termination modules for your application.

Q: What is the maximum number of terminal boards that can be installed in a single Mark V control cabinet?
A: Cabinet capacity depends on the specific Mark V configuration, available rack space, and power budget. Typical installations accommodate 4-8 terminal boards per cabinet. Provide your cabinet model and current module inventory for precise expansion capacity assessment.

Q: How does conformal coating affect field wiring and maintenance procedures?
A: Conformal coating protects circuitry without impeding terminal access. Standard wiring practices apply, though technicians should avoid scratching the coating during wire insertion. Coating does not require removal for routine maintenance or troubleshooting activities.

Q: Is the DS200CTBAG1ADD compatible with third-party I/O modules or only GE components?
A: While designed for GE Mark V ecosystems, the terminal board can interface with third-party field devices (sensors, transmitters, actuators) that meet standard industrial signal specifications (4-20mA, 0-10VDC, dry contact). Integration with non-GE control modules requires careful signal level and grounding verification.

Q: What troubleshooting tools are recommended for diagnosing terminal board connection issues?
A: Essential diagnostic equipment includes digital multimeters for continuity and voltage checks, insulation resistance testers (megger) for ground fault detection, and terminal torque wrenches to verify proper connection tightness per manufacturer specifications (typically 0.5-0.6 Nm for screw terminals).

Q: Can I retrofit a DS200CTBAG1ADD into an existing Mark V system without full system shutdown?
A: Terminal board replacement typically requires de-energizing the affected control cabinet section to ensure personnel safety and prevent equipment damage. Hot-swap capability is not supported. Plan installations during scheduled maintenance windows with appropriate lockout/tagout procedures.

Request Technical Support & Quotation

For detailed application engineering assistance, custom configuration recommendations, or project-specific pricing, please provide our team with the following information:

• Project name and turbine control system overview
• Current Mark V cabinet configuration and available rack space
• Number of field I/O points requiring termination
• Environmental conditions (temperature range, humidity, chemical exposure)
• Delivery timeline and installation schedule
• Existing GE module inventory and system documentation

Our application engineers will respond within 24 hours with tailored recommendations, compatibility verification, and comprehensive quotations including technical documentation and delivery options.
