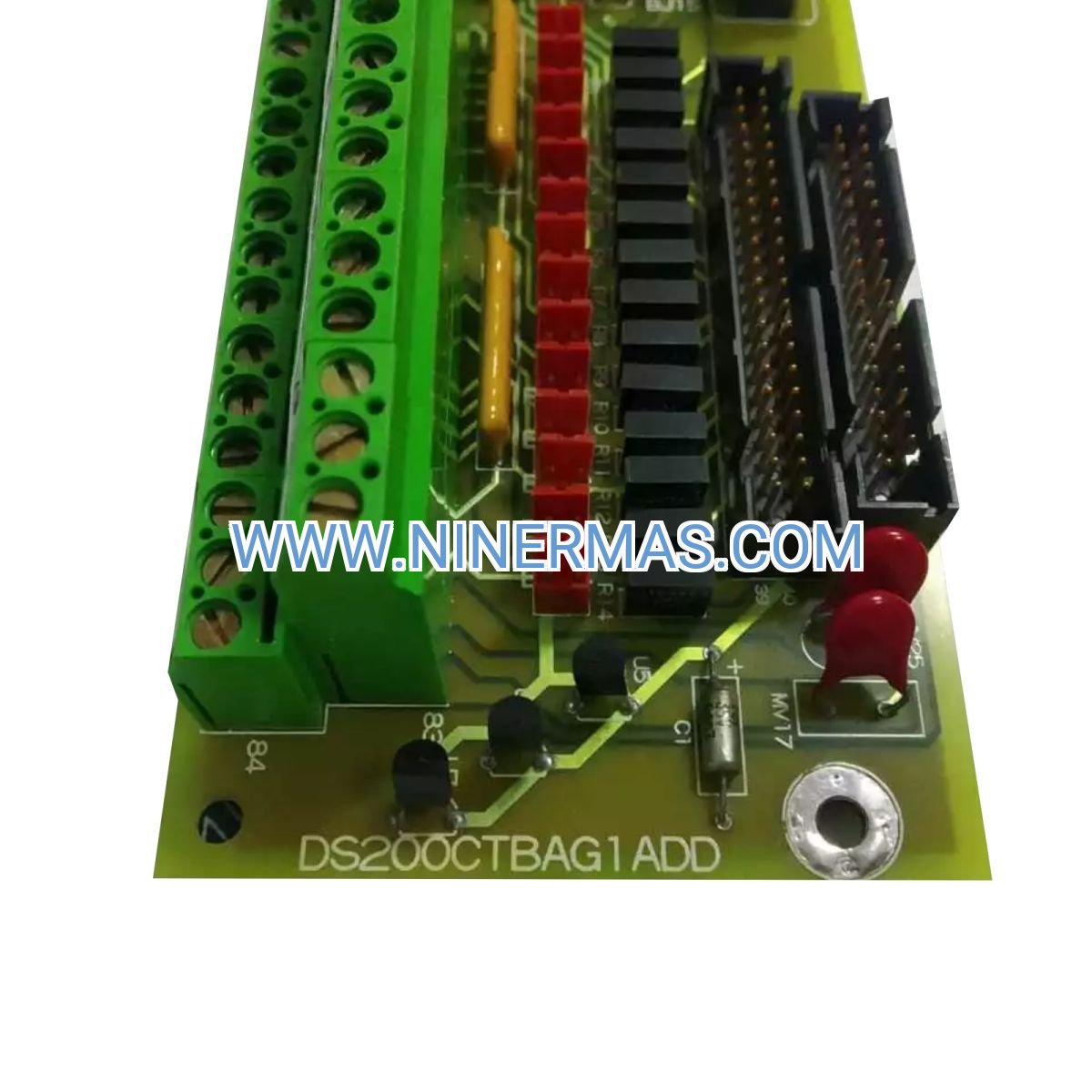

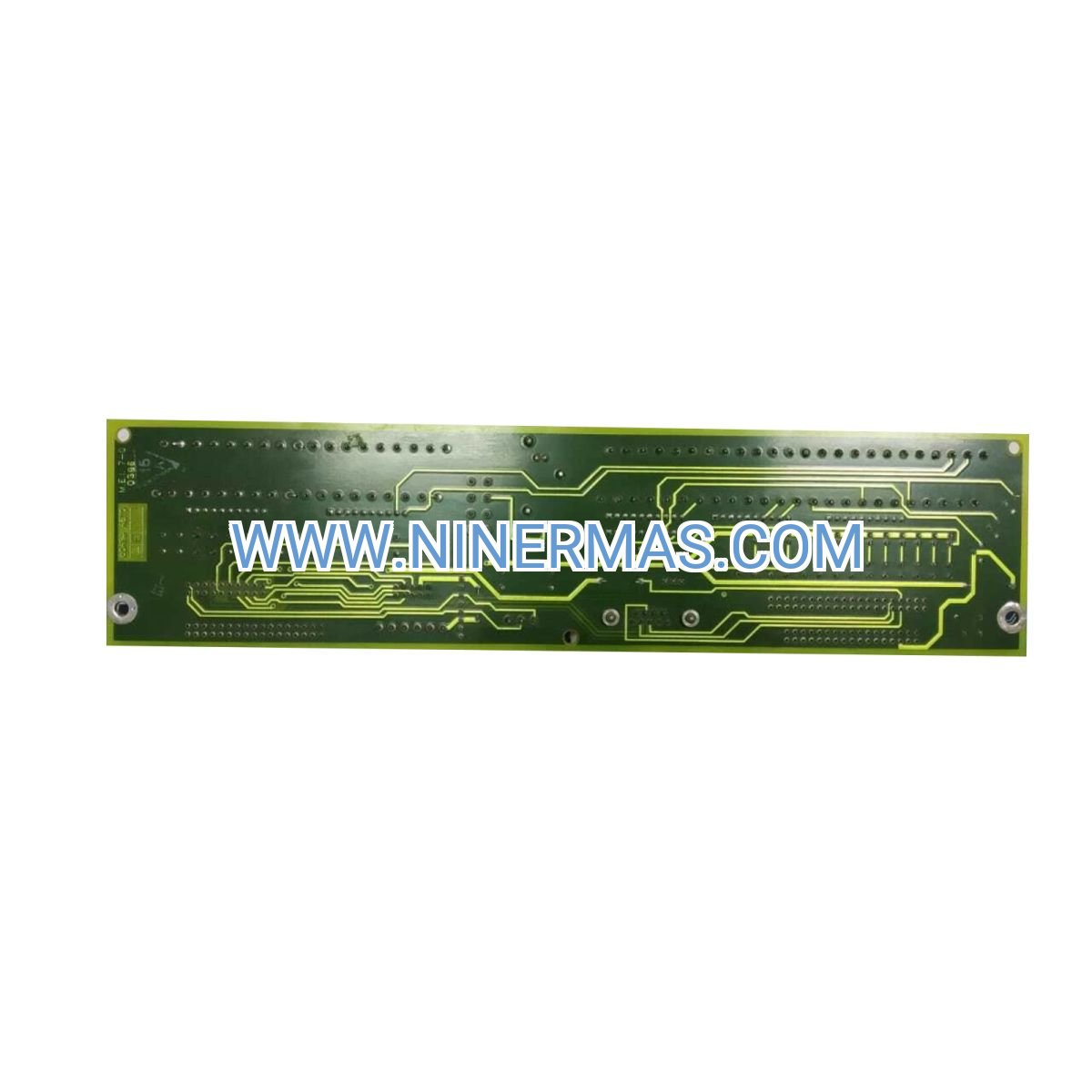

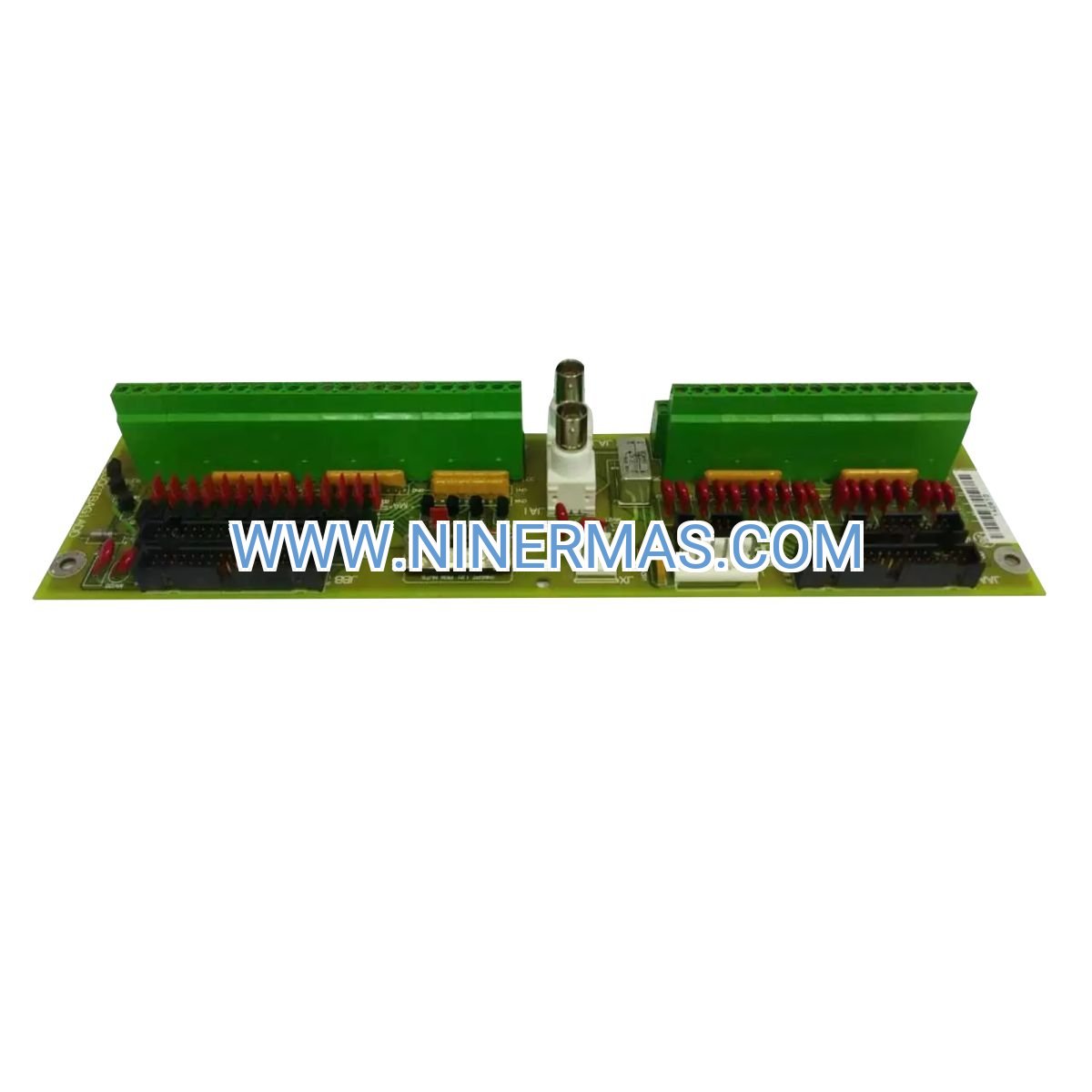

DS200CTBAG1A Analog Termination Board (Industrial-Grade Signal Interface)

The DS200CTBAG1A represents a precision-engineered termination board designed exclusively for GE Mark V Speedtronic turbine control architectures. This module delivers critical analog signal conditioning and interface capabilities, enabling seamless communication between field instrumentation and control processors in power generation, oil & gas, and heavy industrial environments.

Built for operators managing gas turbines, steam turbines, and combined-cycle installations, the DS200CTBAG1A addresses the fundamental challenge of maintaining signal integrity across harsh operating conditions. Whether you're upgrading legacy systems or maintaining existing Mark V platforms, this termination board provides the reliability foundation your control strategy demands.

With proven performance in thousands of installations worldwide, the DS200CTBAG1A ensures your analog I/O infrastructure operates with precision, minimizes downtime risk, and supports long-term asset availability. Request technical specifications or compatibility verification to integrate this module into your control cabinet today.

Core Features & Benefits

✓ Precision Analog Signal Conditioning
Advanced circuitry maintains signal accuracy across 4-20mA and 0-10VDC ranges, eliminating noise interference that compromises control loop performance. Delivers ±0.1% linearity for critical temperature, pressure, and flow measurements.

✓ Extended Environmental Tolerance
Operates reliably from -30°C to +65°C with 5-95% humidity resistance, protecting your investment in offshore platforms, desert installations, and tropical climates where conventional electronics fail.

✓ Plug-and-Play Mark V Integration
Direct compatibility with TCQA, TCQC, and TBQB processor boards eliminates custom wiring requirements. Standard terminal block configuration reduces installation time by 40% compared to field-wired alternatives.

✓ Diagnostic LED Indicators
Real-time status monitoring accelerates troubleshooting during commissioning and maintenance events. Visual confirmation of power, signal presence, and fault conditions reduces mean-time-to-repair by up to 60%.

✓ Conformal Coating Protection
Military-grade circuit board treatment resists moisture, chemical vapors, and conductive dust accumulation—extending service life beyond 15 years in corrosive industrial atmospheres.

✓ Hot-Swap Capability
Replace modules during turbine operation without system shutdown, preserving production continuity and eliminating costly outage windows for routine maintenance activities.

Typical Application Scenarios

→ Combined-Cycle Power Plants
In CCGT facilities generating 400-800MW, the DS200CTBAG1A terminates thermocouple signals from gas turbine exhaust monitoring systems. Plant operators achieve ±2°C temperature accuracy for optimal heat recovery steam generator (HRSG) efficiency, translating to 1.5-2% fuel savings annually. The module's vibration resistance ensures uninterrupted data acquisition despite turbine-induced mechanical stress.

→ Offshore Oil & Gas Production
FPSO vessels and fixed platforms rely on DS200CTBAG1A boards to interface wellhead pressure transmitters with Mark V control systems. Salt-fog resistance and conformal coating prevent corrosion-related failures that historically caused 18-24 hour production losses. Redundant termination configurations support SIL-2 safety instrumented systems for emergency shutdown protection.

→ Petrochemical Refinery Cogeneration
Refinery cogen units processing 150-300 tons/hour steam demand precise analog I/O for combustion control. The DS200CTBAG1A handles fuel gas flow, air-fuel ratio, and steam pressure signals with <50ms response time, enabling tight emissions compliance while maximizing thermal efficiency. Operators report 99.7% uptime across 5-year maintenance cycles.

→ Industrial Manufacturing Steam Turbines
Paper mills, chemical plants, and steel facilities use DS200CTBAG1A modules to monitor bearing temperatures, vibration levels, and governor valve positions. Early fault detection through accurate analog trending prevents catastrophic failures—one automotive plant avoided $2.3M in lost production by identifying bearing degradation 72 hours before critical threshold.

→ District Heating & CHP Systems
Combined heat and power installations serving municipal districts integrate DS200CTBAG1A boards for load-following control. Precise analog signal termination enables 15-second response to demand fluctuations, maintaining grid stability while optimizing fuel consumption across seasonal load variations.

Technical Parameters & Selection Guide

Selection Criteria: Verify your Mark V control cabinet configuration before ordering. The DS200CTBAG1A requires compatible processor boards (TCQA/TCQC series) and appropriate terminal block assemblies. For systems with mixed analog/digital I/O requirements, consider pairing with DS200TCQC or DS200TCDAG boards to optimize cabinet space utilization. Consult factory wiring diagrams to confirm terminal assignments match your field instrumentation specifications.

Extended Functions

Advanced Diagnostics Integration: The DS200CTBAG1A supports Mark V diagnostic protocols, enabling remote monitoring through SCADA systems and plant-wide asset management platforms. Embedded self-test routines execute during controller startup, verifying ADC calibration, power supply stability, and communication bus integrity. Fault codes transmit to HMI displays, reducing troubleshooting time from hours to minutes.

Redundancy Configuration Options: Deploy dual DS200CTBAG1A modules in TMR (Triple Modular Redundant) architectures for SIL-3 safety applications. Automatic failover logic ensures continuous operation even during single-module failure events. Redundant configurations are standard in nuclear power auxiliary systems and critical pipeline compressor stations.

Customization Services: Factory-authorized modifications include extended temperature ratings (-40°C to +75°C), conformal coating upgrades for chemical exposure, and custom terminal block configurations for non-standard sensor types. Lead time for engineered variants: 6-8 weeks with minimum order quantities.

Delivery & Service Assurance

Lead Time: Stock units ship within 24-48 hours via DHL/FedEx Express. Standard delivery to North America: 3-5 business days; Europe: 4-6 days; Asia-Pacific: 5-7 days. Expedited same-day shipping available for critical outage support—contact our emergency response team for priority handling.

Warranty Coverage: Comprehensive 12-month warranty protects against manufacturing defects, component failures, and workmanship issues. Warranty includes free replacement shipping and technical support for installation troubleshooting. Extended 36-month coverage available for an additional 15% premium.

Technical Support: Access to GE-certified automation engineers with Mark V specialization. Support includes pre-installation compatibility verification, wiring diagram review, commissioning assistance, and post-installation performance optimization. Average response time: <4 hours for critical issues, <24 hours for routine inquiries.

Documentation Package: Each DS200CTBAG1A ships with installation manual, terminal wiring diagrams, calibration certificates, and RoHS compliance declaration. Digital resources include CAD drawings (DWG/PDF), spare parts lists, and recommended maintenance procedures. Access our online knowledge base for firmware updates and application notes.

Frequently Asked Questions

How does the DS200CTBAG1A interface with existing Mark V processors?
The module connects via VME backplane to TCQA, TCQC, or TCQD processor boards using standard 96-pin DIN connectors. No custom cabling required—simply insert into designated slot per GEH-6195 installation manual and configure I/O mapping through ToolboxST software.

What analog signal types can this termination board accept?
Supports industry-standard 4-20mA current loops and 0-10VDC voltage signals. Each of the 16 channels is software-configurable, allowing mixed signal types within a single module. RTD and thermocouple inputs require external signal conditioners—consult our applications team for recommended interface solutions.

Can I replace a failed DS200CTBAG1A without shutting down the turbine?
Yes, if your system is configured with redundant I/O. Hot-swap procedures are documented in GEH-6195K Section 4.3. Ensure replacement module firmware matches existing configuration to prevent initialization errors. Non-redundant systems require controlled shutdown per OEM maintenance protocols.

What environmental conditions will cause premature module failure?
Excessive vibration (>2G continuous), sustained temperatures above 70°C, and exposure to conductive dust or corrosive gases accelerate component degradation. Install modules in climate-controlled cabinets with IP54 minimum protection. Offshore and chemical plant installations should specify conformal coating option during procurement.

How do I verify the DS200CTBAG1A is functioning correctly after installation?
Use ToolboxST diagnostic software to execute built-in self-test (BIST) routines. Verify LED indicators show green status for power and communication. Inject known calibration signals (e.g., precision 12mA source) and confirm processor reads within ±0.5% tolerance. Full commissioning checklist available in GEH-6195K Appendix C.

What is the typical service life before replacement is recommended?
MTBF calculations predict >150,000 hours (17+ years) under normal operating conditions. Practical service life depends on environmental factors—most installations replace modules during 10-year major overhauls as preventive maintenance. Capacitor aging is the primary failure mode; early warning signs include intermittent communication errors or calibration drift.

Request Technical Consultation

Integrating the DS200CTBAG1A into your Mark V control system requires careful consideration of I/O requirements, cabinet layout, and redundancy strategy. Our automation specialists provide complimentary pre-sales engineering support to ensure optimal configuration for your specific application.

Contact our team today to discuss: Compatibility verification with your existing Mark V revision • Custom terminal block configurations • Redundancy architecture design • Spare parts inventory planning • Preventive maintenance scheduling • Firmware update procedures

Email technical specifications or system diagrams to our engineering desk for same-day response. Bulk orders (10+ units) qualify for volume pricing and dedicated project management support.
