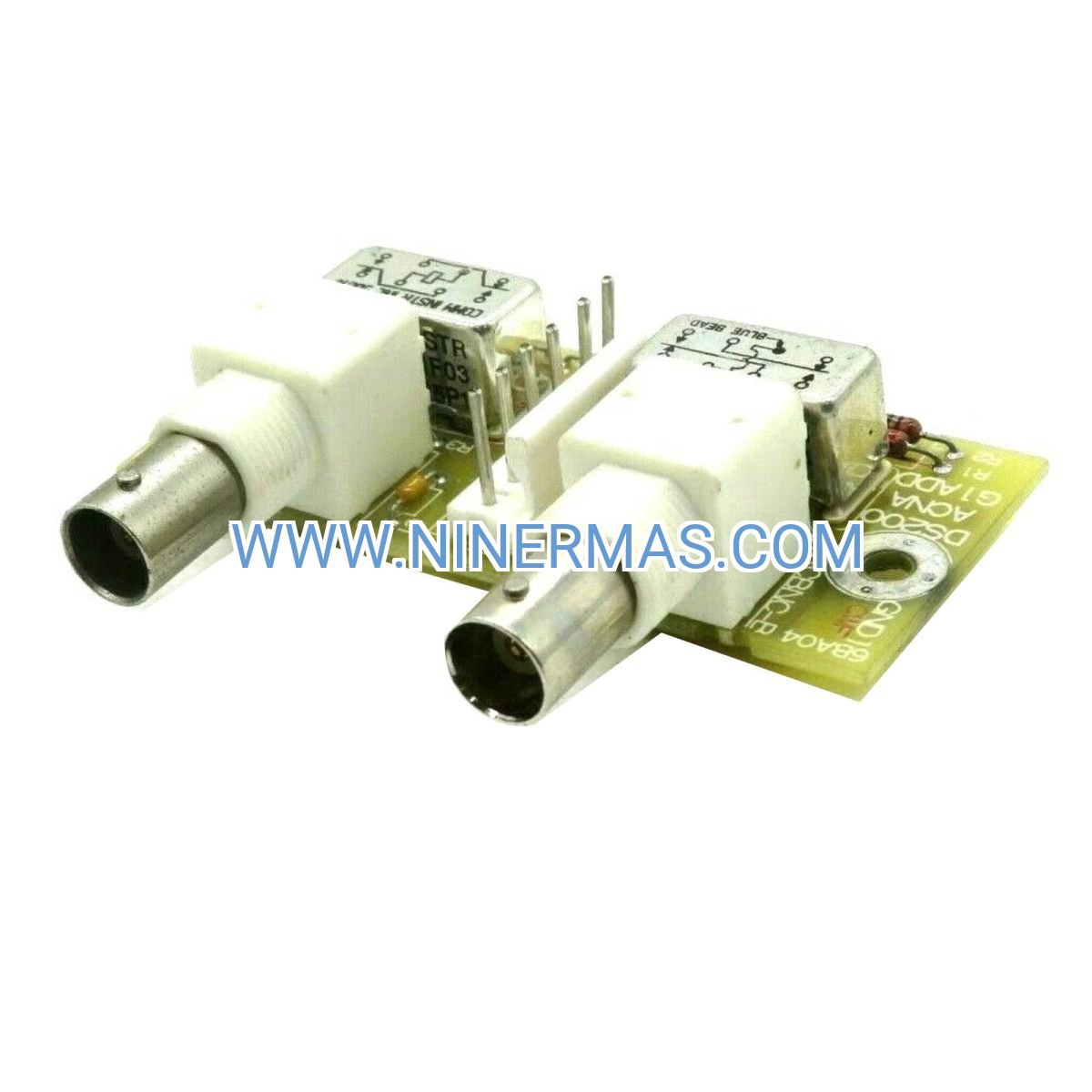

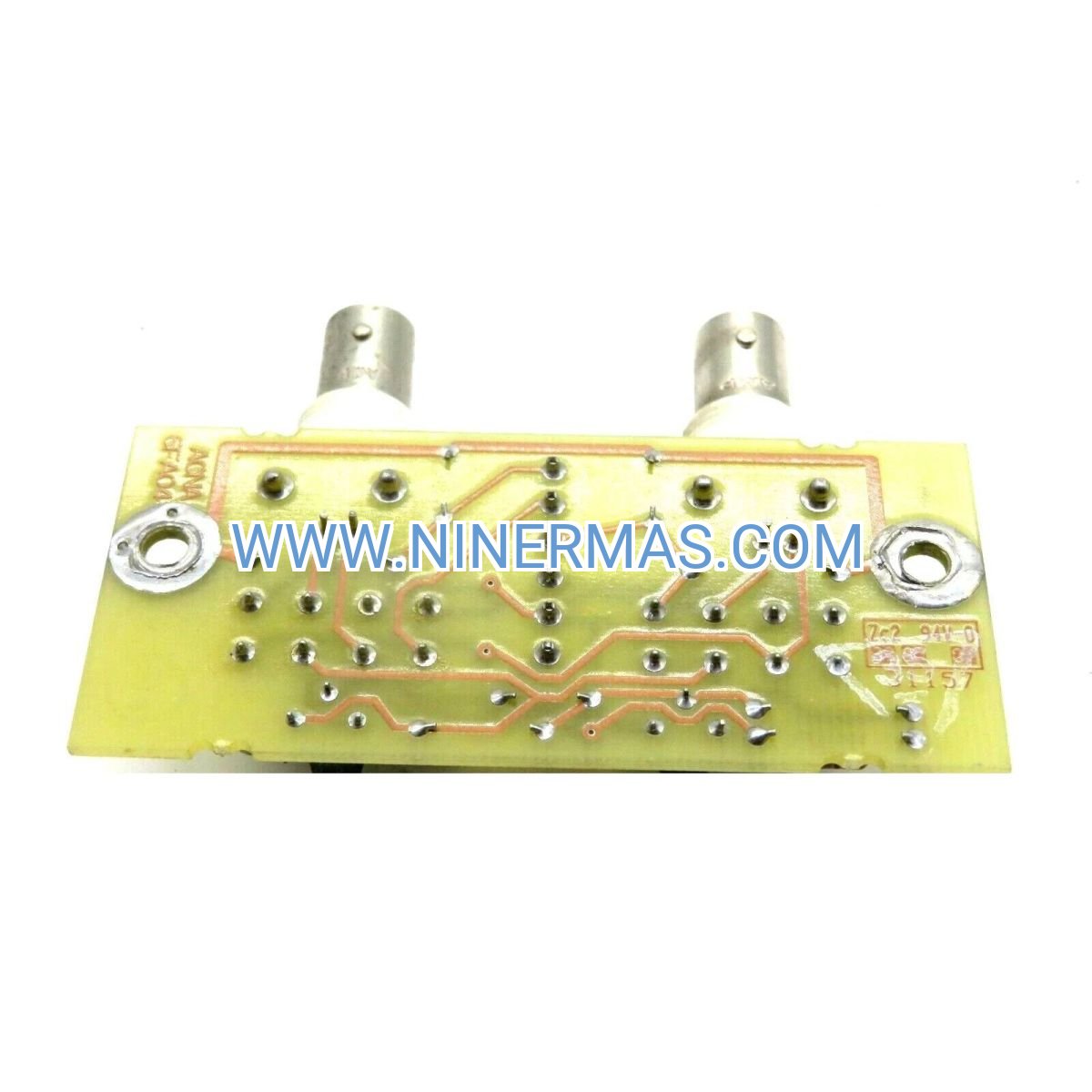

DS200ACNAG1ADD Network Communication Module (Industrial ARCNET Interface for Mark V Control)

Reliable network connectivity forms the foundation of modern turbine control architecture. The DS200ACNAG1ADD serves as a dedicated ARCNET communication interface engineered specifically for GE Mark V Speedtronic platforms, delivering deterministic data exchange across distributed control nodes in power generation environments. This industrial-grade LAN module addresses the critical need for real-time coordination between protection circuits, I/O subsystems, and supervisory workstations in gas and steam turbine installations.

Power plant operators face mounting pressure to maintain 99.9%+ availability while managing aging control infrastructure. The DS200ACNAG1ADD solves network reliability challenges through proven ARCNET protocol implementation, supporting both primary and backup communication paths for fault-tolerant operation. Designed for continuous duty in high-EMI environments ranging from -40°C to +70°C, this module ensures uninterrupted data flow even under extreme thermal cycling and vibration conditions typical of turbine halls.

Whether upgrading legacy Mark V installations or maintaining existing systems, the DS200ACNAG1ADD provides plug-compatible network connectivity with comprehensive diagnostic capabilities. Onboard status indicators enable rapid troubleshooting, while CE/UL/CSA certifications guarantee compliance with international safety standards for critical infrastructure applications.

Core Capabilities & Technical Advantages

→ Deterministic Communication Protocol
ARCNET token-passing architecture eliminates network collisions, guaranteeing predictable response times essential for turbine protection logic. Supports data rates up to 2.5 Mbps with sub-millisecond latency for time-critical control loops.

→ Dual-Network Redundancy Architecture
Enables primary/backup LAN configurations with automatic failover, maintaining control system integrity during cable faults or hub failures. Reduces single-point-of-failure risks in mission-critical power generation assets.

→ Extended Environmental Tolerance
Mil-spec component selection and conformal coating withstand -40°C to +70°C operation, 5-95% humidity, and sustained vibration exposure. Proven reliability in desert, arctic, and offshore installations worldwide.

✓ Plug-and-Play Mark V Integration
Direct compatibility with VCMI, TCQA, and PDMP control processors eliminates custom configuration. Standard card-edge connector fits existing Mark V backplanes without mechanical modifications or firmware updates.

✓ Real-Time Diagnostic Monitoring
Multi-color LED array provides instant visibility into link status, data activity, and fault conditions. Simplifies commissioning and reduces mean-time-to-repair during network troubleshooting scenarios.

✓ Multi-Cabinet Scalability
Supports star, bus, and hybrid topologies across distributed control architectures. Enables expansion to 255 network nodes for large combined-cycle facilities with multiple turbine-generator sets.

Industry Applications & Use Cases

Combined-Cycle Power Plants
In CCGT facilities, the DS200ACNAG1ADD interconnects gas turbine Mark V controllers with HRSG monitoring systems and steam turbine protection modules. Coordinates startup sequencing, load ramping, and emergency shutdown across multiple generation units while maintaining deterministic communication timing for protective relay coordination.

Petrochemical Mechanical Drive Systems
Compressor and pump drive applications demand continuous process control without network-induced delays. This ARCNET card enables real-time data exchange between anti-surge controllers, vibration monitors, and turbine speed governors, preventing costly process upsets in ethylene crackers and LNG liquefaction trains.

Cogeneration & District Heating
Industrial cogeneration plants require tight integration between electrical generation and thermal load management. The DS200ACNAG1ADD facilitates communication between turbine controls, heat recovery systems, and building automation networks, optimizing fuel efficiency across variable demand profiles.

Offshore Platform Power Generation
Marine environments subject control electronics to salt fog, temperature extremes, and constant vibration. This module's ruggedized construction maintains network integrity on FPSO vessels and fixed platforms, supporting remote monitoring and predictive maintenance programs in harsh offshore conditions.

Utility Peaking & Black Start Units
Rapid-response peaker plants depend on instantaneous communication during grid disturbances. The DS200ACNAG1ADD's deterministic protocol ensures protective relays receive trip signals within guaranteed timeframes, meeting NERC/FERC reliability standards for emergency generation assets.

Technical Parameters & Selection Criteria

Selection Guidelines: Verify Mark V system firmware revision compatibility before ordering. Systems running R-series or S-series software require matching ARCNET driver versions. For installations exceeding 1000 meters between cabinets, specify fiber optic media converters. Redundant network configurations require two DS200ACNAG1ADD cards per controller with separate cable routing per NFPA 850 guidelines.

Advanced Integration & Customization Options

SCADA & Historian Connectivity
When paired with Ethernet gateway modules, the DS200ACNAG1ADD enables seamless data flow to plant-wide SCADA systems and OSIsoft PI historians. Supports Modbus TCP, OPC DA/UA, and DNP3 protocol conversion for enterprise-level monitoring and analytics platforms.

Cybersecurity Hardening
Though ARCNET operates as an isolated control network, defense-in-depth strategies may require network segmentation. Compatible with unidirectional gateways and data diodes for compliance with NERC CIP-005 and IEC 62443 industrial cybersecurity frameworks.

Predictive Maintenance Integration
Network performance metrics (packet loss, retry rates, error counters) can be exported to condition monitoring systems. Enables early detection of cable degradation, connector corrosion, or hub failures before they impact turbine availability.

Custom Cable Assemblies
Standard RG-62 coaxial cables may not suit all installation geometries. We offer factory-terminated cable assemblies with BNC or TNC connectors in lengths from 1m to 100m, tested to 1GΩ insulation resistance and 75Ω impedance specifications.

Delivery Timeline & Service Commitments

Stock Availability: In-stock units ship within 24-48 hours via DHL/FedEx Express. Custom cable assemblies add 3-5 business days to lead time.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and workmanship issues. Extended 36-month coverage available for critical spares inventory programs.

Technical Support: Our Mark V specialists provide pre-sales application engineering, installation guidance, and post-deployment troubleshooting. Remote diagnostic support available 24/7 for emergency outages.

Documentation Package: Each module ships with installation manual, network topology guidelines, LED diagnostic chart, and RoHS/REACH compliance certificates. CAD drawings and IGES models available upon request for panel layout planning.

Frequently Asked Questions

How does ARCNET compare to modern Ethernet for turbine control applications?
ARCNET's token-passing protocol provides deterministic timing guarantees that standard Ethernet cannot match without expensive managed switches and QoS configuration. For Mark V systems designed around ARCNET architecture, maintaining the original network technology ensures predictable performance without costly re-engineering.

Can I mix DS200ACNAG1ADD cards with older DS200ACNAG1A versions on the same network?
Yes, the "ADD" suffix indicates a manufacturing revision with improved component sourcing but maintains full backward compatibility. Mixed installations operate normally, though we recommend standardizing on the latest revision for long-term spare parts consistency.

What is the maximum cable distance between network nodes?
Using RG-62 coaxial cable, maximum segment length is 600 meters (2000 feet) in bus topology or 300 meters (1000 feet) per star topology branch. Fiber optic media converters extend distances to 2 kilometers for multi-building installations.

Does this card support hot-swap replacement during turbine operation?
Mark V control architecture does not support hot-swappable network cards. Replacement requires controlled shutdown of the affected controller, following GE's maintenance procedures to prevent data corruption. Redundant network configurations allow maintenance on backup paths without turbine trip.

Are firmware updates required after installing a replacement card?
The DS200ACNAG1ADD contains embedded firmware that must match the Mark V system software version. Cards ship with the most common firmware revision, but verify compatibility with your specific VCMI/TCQA processor version before installation. Firmware update tools are available through GE service channels if version mismatch occurs.

What diagnostic steps should I take if network communication fails?
Start with LED indicator analysis: solid green indicates normal operation, flashing red signals network errors, and no illumination suggests power supply issues. Check cable continuity, verify hub/active star functionality, and use Mark V HMI diagnostics to identify node addresses with excessive retries or timeouts.

Get Your DS200ACNAG1ADD Network Module Today

Minimize turbine control downtime with fast delivery of genuine GE DS200ACNAG1ADD ARCNET cards. Our quality assurance process includes functional testing, firmware verification, and traceability documentation to ensure authentic components for your critical power generation assets. Contact our technical sales team for volume pricing, custom cable assemblies, or application-specific configuration guidance.

Request a quote now: Email sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance with your Mark V network upgrade or replacement requirements.
