24V DC Discrete Input Module for Industrial Automation (GE Series 90-30 Compatible)

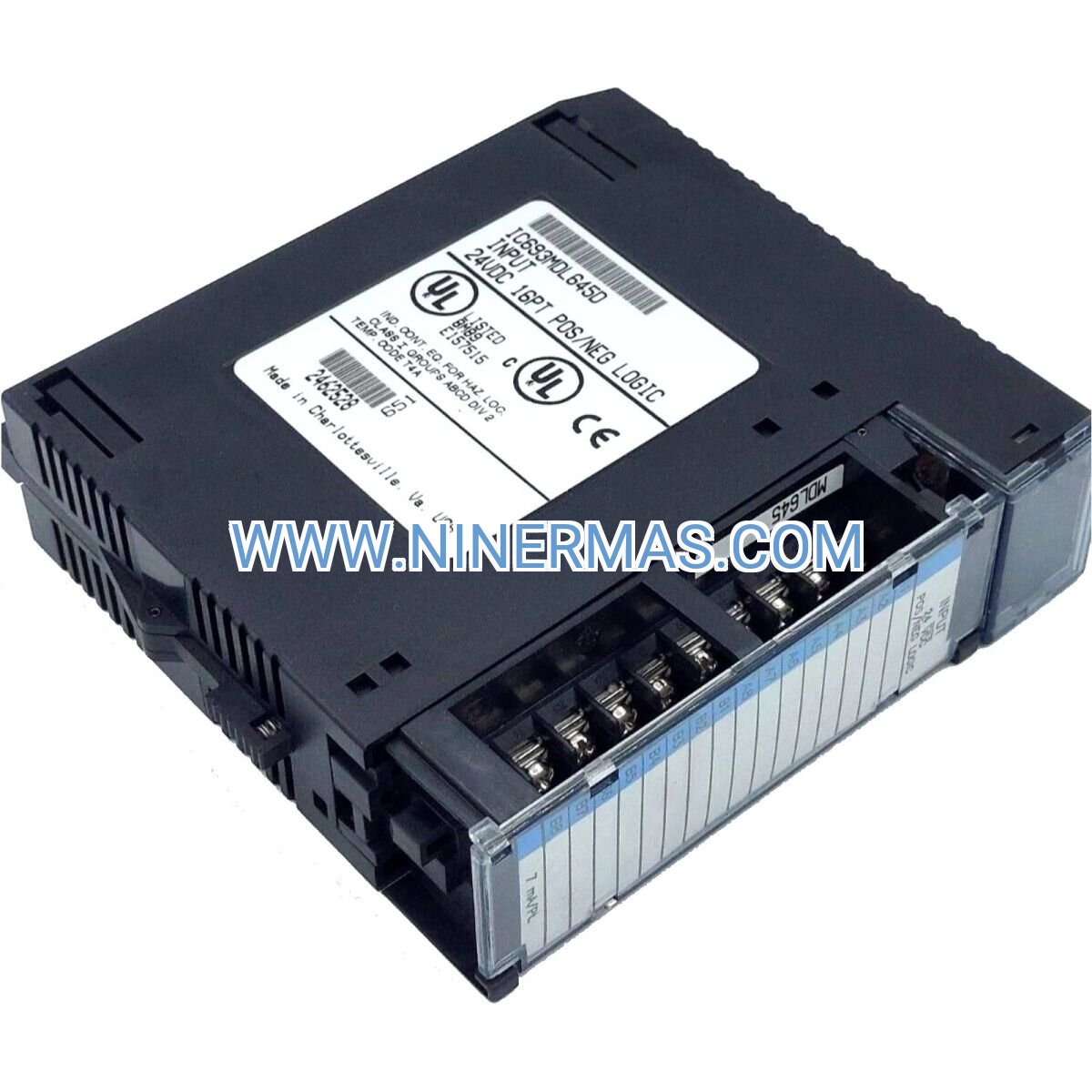

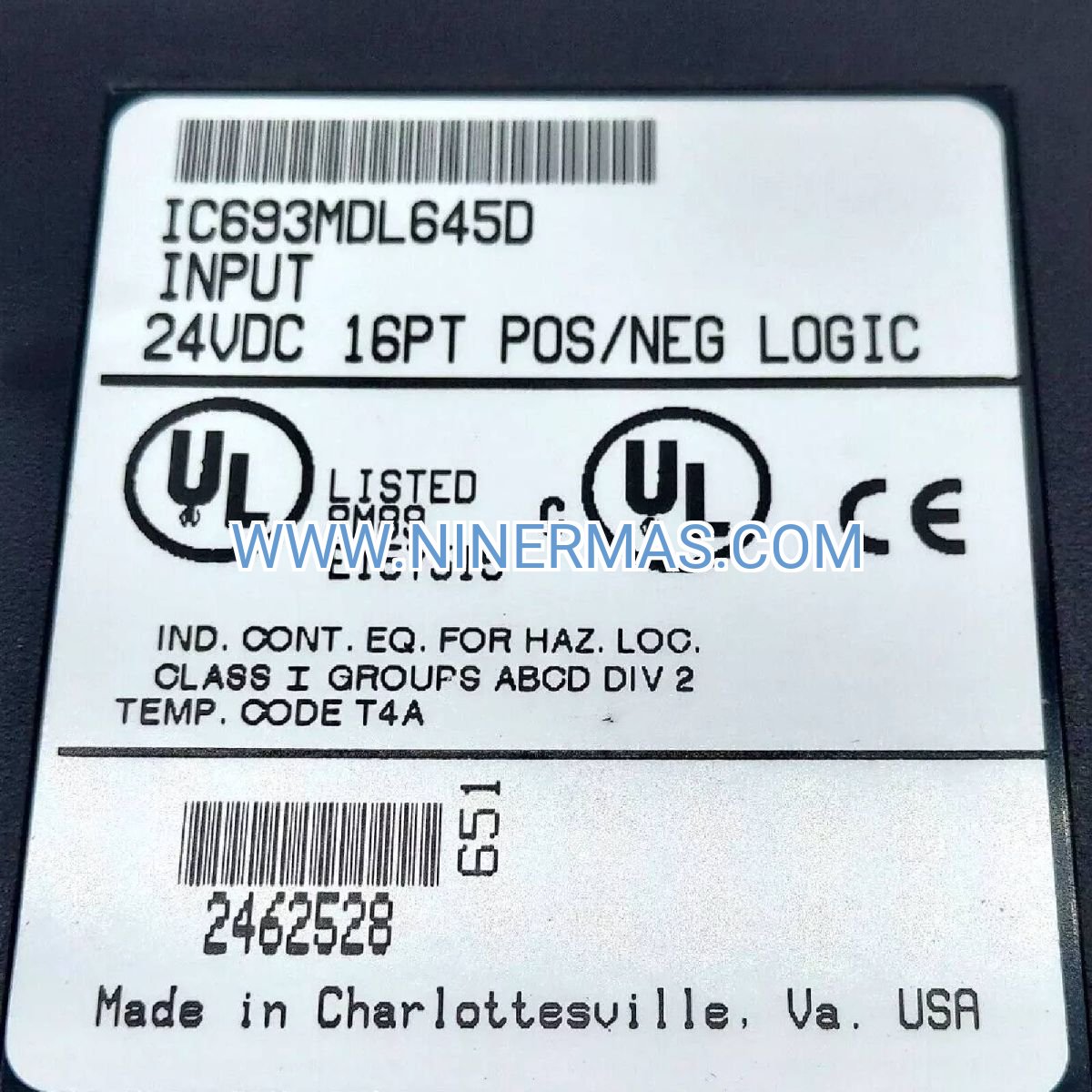

The C693MDL645D Discrete Input Module is a professional-grade digital signal acquisition device designed for GE Fanuc Series 90-30 programmable logic controller platforms. Utilizing advanced optical isolation technology and multi-channel parallel processing architecture, this module delivers precise 24V DC discrete signal monitoring with sub-10ms response time, ensuring real-time data integrity for mission-critical industrial control systems.

Engineered for demanding manufacturing environments, this 16-point input card addresses common challenges including signal noise interference, voltage fluctuation sensitivity, and system downtime during maintenance. Ideal for production facilities, process automation plants, building management systems, and OEM machine builders requiring reliable digital input acquisition with proven compatibility across legacy and modern control architectures.

Through field-proven design and modular construction, the C693MDL645D offers rapid installation, hot-swap serviceability, and comprehensive diagnostic capabilities. Suitable for system integrators, control panel manufacturers, plant maintenance teams, and automation engineers seeking scalable I/O expansion with minimal configuration complexity. Contact our application engineers for customized system design consultation and technical specifications tailored to your project requirements.

Core Features & Technical Advantages

High-Density Signal Acquisition
Provides 16 independent input channels in a compact single-slot form factor, maximizing I/O density while reducing panel space requirements and installation costs for multi-point monitoring applications.

Robust Electrical Isolation
Incorporates 1500V AC optical isolation between field signals and backplane circuitry, protecting sensitive PLC components from ground loops, voltage spikes, and electromagnetic interference common in industrial power distribution environments.

Rapid Signal Processing
Achieves typical response times under 10 milliseconds from input state change to PLC data table update, enabling precise event detection for high-speed packaging lines, material handling conveyors, and safety interlock systems.

Flexible Logic Configuration
Supports both positive and negative logic input modes through hardware jumper selection, accommodating diverse sensor types including NPN/PNP proximity switches, dry contact relays, and solid-state output devices without external signal conditioning.

Comprehensive Diagnostic Visibility

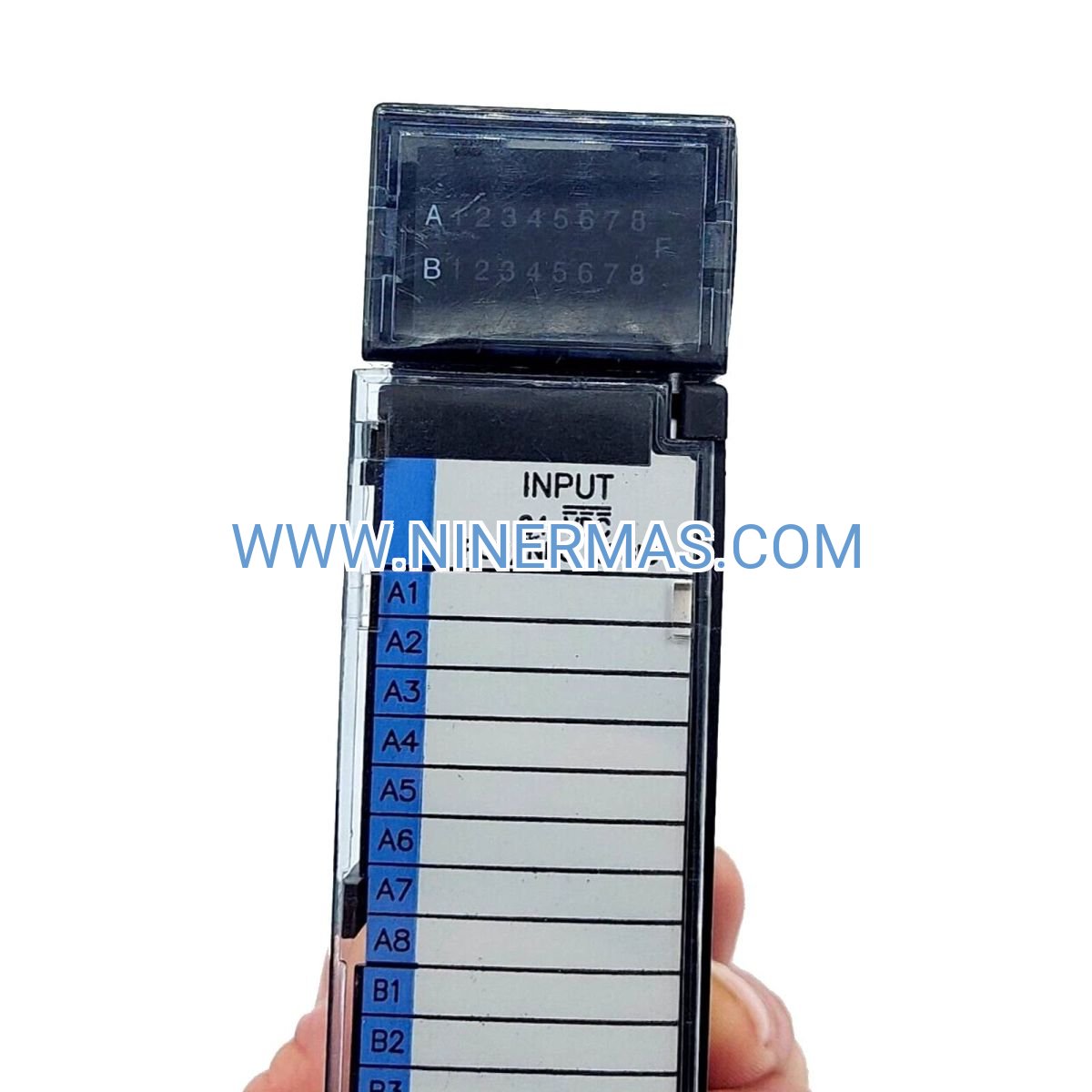

Features per-channel LED status indicators providing instant visual confirmation of input states, accelerating troubleshooting during commissioning and reducing mean time to repair during production operations.

Hot-Swap Maintenance Capability
Enables module replacement during system operation when paired with compatible Series 90-30 CPU firmware, minimizing unplanned downtime and supporting predictive maintenance strategies in 24/7 production environments.

Typical Application Scenarios

This discrete input module serves industries and applications demanding reliable digital signal monitoring with proven industrial-grade performance:

Automated Manufacturing & Assembly Lines
Monitors limit switches, part presence sensors, and safety gate interlocks across robotic work cells, CNC machining centers, and automated assembly stations. Integrates seamlessly with quality inspection systems and production tracking networks.

Material Handling & Logistics Systems
Processes signals from photoelectric sensors, inductive proximity detectors, and conveyor position switches in warehouse automation, sortation systems, and packaging equipment. Supports zone control logic and accumulation conveyor management.

Process Control & Batch Manufacturing
Acquires status feedback from valve position indicators, motor auxiliary contacts, and level switch transmitters in chemical processing, food & beverage production, pharmaceutical manufacturing, and water treatment facilities.

Building Automation & HVAC Control
Interfaces with occupancy sensors, door/window contacts, fire alarm dry contacts, and equipment status relays in commercial building management systems, ensuring coordinated control of lighting, climate, and security subsystems.

Energy & Utilities Infrastructure
Collects discrete status signals from circuit breaker auxiliary contacts, pump run feedback, alarm panel outputs, and remote terminal unit (RTU) digital outputs in power distribution, water/wastewater, and oil & gas applications.

Technical Specifications & Selection Guide

To facilitate accurate system design and component selection, the following specifications define the operational parameters and physical characteristics of the C693MDL645D module:

Selection Considerations for System Design

When specifying the C693MDL645D for your automation project, evaluate the following factors to ensure optimal performance and compatibility:

• Signal Voltage Compatibility: Verify that field devices provide 24V DC output signals within the 10-30V operating range. For 12V or 48V systems, consider appropriate signal conditioning or alternative module variants.
• Input Point Density: Calculate total discrete input requirements across all control zones. Each C693MDL645D provides 16 points; multiple modules can be installed on standard or expansion baseplates for systems requiring 32, 48, or more input channels.
• Sensor Output Type: Confirm sensor/switch output configuration (NPN sinking, PNP sourcing, or dry contact). Configure module logic jumpers accordingly, or specify complementary output modules for mixed-logic applications.
• Environmental Conditions: Assess ambient temperature, humidity, and vibration levels at installation location. For harsh environments exceeding standard ratings, consider conformal coating options or NEMA-rated enclosures.
• Cable Distance & Noise: For input wiring exceeding 100 meters or installations near high-power equipment, use shielded twisted-pair cable and verify proper grounding practices to maintain signal integrity.
• System Expansion Planning: Reserve adequate baseplate slots for future I/O growth. Series 90-30 systems support local and remote expansion racks via dedicated communication modules.

For application-specific guidance, our automation specialists can review your system architecture, I/O schedules, and environmental parameters to recommend optimized module configurations and complementary components. Submit your project details including point counts, signal types, and installation conditions for personalized technical consultation.

System Integration & Complementary Components

The C693MDL645D discrete input module functions as part of a comprehensive Series 90-30 control system. Consider these complementary components for complete automation solutions:

Central Processing Units: Pair with GE Series 90-30 CPU modules offering appropriate memory capacity and processing speed for your application logic complexity. Select models with Ethernet, serial, or fieldbus communication based on network architecture requirements.

Power Supply Modules: Ensure adequate backplane power capacity by selecting appropriately rated 24V DC or 120/240V AC power supply modules. Calculate total current draw including CPU, I/O modules, and communication interfaces.

Output Modules: Combine with discrete output modules (relay, transistor, or triac types) to create complete input/output control loops for solenoid valves, motor contactors, indicator lamps, and other field devices.

Analog I/O Modules: Expand system capability with analog input modules for 4-20mA sensors and analog output modules for variable speed drives, control valves, and process instrumentation in mixed-signal applications.

Communication Modules: Integrate Ethernet, DeviceNet, Profibus, or serial communication modules for distributed control, SCADA connectivity, and enterprise-level data exchange with MES/ERP systems.

Specialty Modules: Enhance functionality with high-speed counter modules, motion control cards, thermocouple input modules, or intelligent co-processor modules for advanced control algorithms.

Baseplate & Accessories: Select appropriate baseplate configurations (5-slot, 10-slot, or expansion racks) along with terminal block kits, cable assemblies, and battery backup modules for memory retention.

Delivery, Service & Technical Support

Product Availability & Lead Time
Standard catalog items including the C693MDL645D are typically maintained in stock for immediate shipment. Current inventory status and delivery estimates are provided upon order confirmation. For quantity requirements exceeding standard stock levels or discontinued/legacy part numbers, lead times range from 2-8 weeks depending on manufacturer availability and regional logistics.

Quality Assurance & Warranty Coverage
All discrete input modules undergo comprehensive functional testing and visual inspection prior to shipment, including power-up verification, input threshold testing, and isolation voltage validation. Products are covered by a standard 12-month warranty against manufacturing defects and workmanship issues from date of delivery. Extended warranty programs and advance replacement options are available for critical applications.

Technical Documentation & Resources
Each module shipment includes or provides access to complete technical documentation: installation quick-start guide, detailed user manual with wiring diagrams, terminal block layout drawings, and configuration specifications. Additional resources including PLC programming examples, troubleshooting flowcharts, and CAD drawings are available through our technical support portal.

Installation & Commissioning Assistance
Our application engineering team provides remote technical guidance for installation planning, wiring verification, and system commissioning via phone and email support. For complex projects or multi-site deployments, on-site startup assistance and training services can be arranged based on project scope and geographic location.

Lifecycle Support & Obsolescence Management
We maintain extensive inventory of current-production and legacy automation components to support long-term system maintenance and expansion requirements. For products approaching end-of-life, we provide proactive obsolescence notifications and migration planning assistance to ensure continuity of operations.

Frequently Asked Questions (FAQ)

Q: Is the C693MDL645D discrete input module compatible with all Series 90-30 baseplate configurations?
A: Yes, this module is fully compatible with all standard GE Fanuc Series 90-30 baseplates including 5-slot and 10-slot main racks as well as expansion baseplate assemblies. The module occupies one slot and connects to the backplane via the standard edge connector interface. Verify that your power supply provides adequate current capacity when adding modules to existing systems.

Q: What is the maximum recommended cable length for 24V DC input wiring to maintain signal integrity?
A: For typical industrial environments with moderate electrical noise, maximum cable runs of 300 meters (approximately 1000 feet) are achievable using shielded twisted-pair wire with proper grounding techniques. In high-noise environments near VFDs, welders, or high-power switching equipment, limit cable lengths to 100-150 meters and ensure continuous shield grounding at the module end only to prevent ground loops.

Q: Does the C693MDL645D support hot-swap replacement without shutting down the entire PLC system?
A: Hot-swap capability is supported when the Series 90-30 CPU is running firmware version 9.0 or later and the system is configured for hot-swap operation in the PLC programming software. This feature allows module replacement during operation without halting the CPU or disrupting other I/O modules, minimizing production downtime during maintenance activities. Always follow proper ESD precautions and verify configuration settings before attempting hot-swap procedures.

Q: How do I configure the module for positive versus negative logic input operation?
A: Logic polarity is determined by hardware jumper settings located on the module circuit board. Consult the installation manual for jumper position diagrams specific to your application requirements. Positive logic configuration is standard for PNP (sourcing) sensors where the input sees +24V DC in the ON state. Negative logic is used with NPN (sinking) sensors where the input is pulled to common/ground in the ON state. Incorrect jumper settings will result in inverted input states in the PLC program.

Q: What diagnostic capabilities are available for troubleshooting input signal issues?
A: Each of the 16 input channels features an individual green LED indicator on the module faceplate that illuminates when the corresponding input is in the ON state, providing immediate visual feedback without requiring PLC programming software. Additionally, the module reports diagnostic information to the CPU including module health status and configuration data, accessible through programming software for advanced troubleshooting. For intermittent signal issues, use the PLC's data logging or trending functions to capture input state changes over time.

Q: Can I mix different input voltage levels on the same C693MDL645D module?
A: No, all 16 input channels on a single module share a common voltage reference and are designed for the same nominal input voltage (24V DC with 10-30V operating range). Mixing significantly different voltage levels (e.g., 12V and 24V signals) on the same module is not recommended and may result in unreliable operation or damage. For applications requiring multiple input voltage levels, use separate discrete input modules rated for each voltage range and install them in different baseplate slots.

Request Technical Consultation & Quotation

To receive detailed system design recommendations, product availability confirmation, and project-specific pricing, please provide the following information to our automation specialists:

• Project Overview: Application type, industry sector, and control objectives
• I/O Requirements: Total discrete input point count, signal voltage levels, and sensor types
• System Architecture: Existing PLC platform (if retrofit/expansion) or new system specifications
• Environmental Conditions: Operating temperature range, enclosure type, and installation location
• Quantity & Timeline: Module quantities required and project commissioning schedule
• Additional Components: Related items needed (CPU, power supply, output modules, communication interfaces)

Our engineering team will respond within one business day with customized recommendations, technical documentation, and commercial quotation tailored to your automation project requirements.
