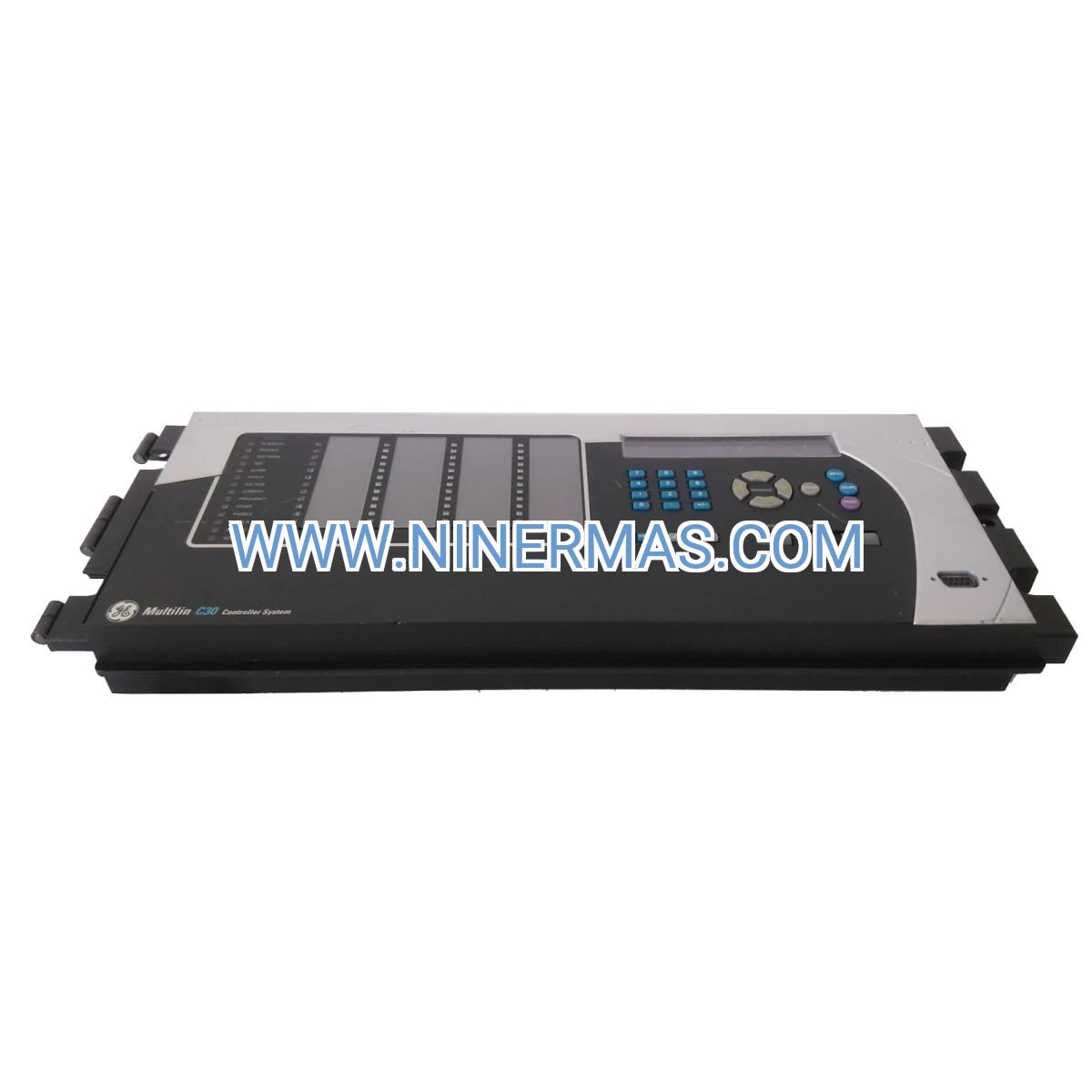

GE C30 UR Series Substation Automation Controller (Industrial-Grade Protection & Control System)

The GE C30 UR Series Substation Automation Controller is an industrial-grade control and protection device designed for mission-critical power distribution networks. Through advanced microprocessor-based control architecture, integrated IEC 61850 communication protocols, and modular I/O expansion capabilities, it delivers comprehensive substation automation, real-time fault detection, intelligent load management, and seamless SCADA integration.

Ideal for utility substations, industrial power distribution centers, renewable energy integration facilities, and critical infrastructure projects, this controller addresses challenges including voltage fluctuations, protection coordination complexity, communication protocol incompatibility, insufficient fault diagnostics, and manual operation dependencies that lead to extended downtime and safety risks.

Leveraging standardized design with customizable configuration options, the C30 controller offers superior reliability, cybersecurity compliance (NERC CIP), future-proof scalability, multi-protocol interoperability, and predictive maintenance capabilities—making it the preferred choice for consulting engineers, EPC contractors, system integrators, and facility operators. Contact our application engineers for tailored system architecture recommendations and competitive quotations.

Core Functions & Advantages

Comprehensive Multi-Function Protection
Integrates overcurrent (50/51), differential (87), distance (21), frequency/voltage (81/27/59), and directional protection elements in a single platform, eliminating the need for multiple discrete relays and reducing panel space requirements by up to 40%.

Advanced Substation Automation Capabilities
Supports IEC 61850 Edition 2.0 with GOOSE messaging (≤4ms response time), enabling high-speed peer-to-peer communication for breaker interlocking, automatic transfer schemes, and distributed protection logic without centralized controllers.

Modular I/O Architecture for Scalability
Hot-swappable expansion modules accommodate up to 512 digital inputs/outputs and 128 analog channels, allowing system capacity growth without equipment replacement or extended outages—critical for phased project deployments.

Multi-Protocol Communication Flexibility
Native support for Modbus RTU/TCP, DNP3 Serial/LAN, IEC 61850 MMS, Ethernet/IP, and Profibus DP ensures seamless integration with legacy SCADA systems, modern substation automation platforms, and third-party intelligent electronic devices (IEDs).

Enhanced Cybersecurity Framework
Complies with NERC CIP-005/007 standards through role-based access control (RBAC), TLS 1.2 encrypted communications, comprehensive event logging with tamper detection, and configurable password policies—protecting critical infrastructure from cyber threats.

Intuitive Engineering & Commissioning Tools
Graphical LCD HMI with context-sensitive menus, PC-based EnerVista UR Setup software for offline configuration, built-in oscillography (64 samples/cycle), and sequence-of-events recording (1ms resolution) accelerate installation and troubleshooting processes.

Proven Reliability in Harsh Environments
Operates continuously across -40°C to +85°C temperature range, withstands IEC 61000-4 EMC test levels, features conformal-coated PCBs for humidity/contamination resistance, and maintains ≥100,000 hours MTBF for uninterrupted service in demanding industrial conditions.

Typical Application Scenarios

This controller excels in environments demanding uncompromising protection reliability, operational continuity, and advanced automation intelligence, particularly:

Utility Transmission & Distribution Substations
Serves as the primary protection and control platform for 33kV to 500kV substations, coordinating transformer differential protection, bus protection schemes, line distance protection, and automatic reclosing sequences while providing real-time data to utility control centers via DNP3 or IEC 61850.

Industrial Power Distribution & Cogeneration Facilities
Manages complex electrical networks in petrochemical plants, steel mills, mining operations, and manufacturing complexes—coordinating generator synchronization, load shedding priorities, power quality monitoring, and emergency shutdown sequences to prevent production losses exceeding $50,000/hour.

Renewable Energy Integration & Microgrid Control
Enables grid-connected and islanded operation of solar farms, wind parks, and battery energy storage systems through advanced anti-islanding protection, power factor control, voltage regulation, and seamless transfer between grid-tied and autonomous modes per IEEE 1547 standards.

Critical Infrastructure & Data Center Power Systems
Ensures 99.999% uptime for hospitals, airports, telecommunications hubs, and Tier III/IV data centers through redundant protection schemes, automatic transfer between utility and generator sources, load prioritization, and predictive maintenance analytics that identify potential failures 30-90 days in advance.

Railway Traction Power & Metro Systems
Protects AC/DC traction substations serving high-speed rail and urban transit networks, managing regenerative braking energy, catenary voltage regulation, and fault isolation to maintain service continuity for passenger safety and schedule adherence.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment specification, we provide standardized configuration options with extensive customization capabilities to match specific project requirements.

Selection Recommendations: When specifying the C30 controller, consider the following critical parameters: maximum fault current levels (for CT ratio selection), system voltage class, required protection functions per application standards (e.g., IEEE C37.91 for transformer protection), communication protocol requirements of existing SCADA infrastructure, environmental conditions (temperature extremes, altitude >2000m, seismic zones), available panel space, and future expansion needs. For complex applications involving generator protection, motor control integration, or custom automation sequences, provide single-line diagrams, protection coordination studies, and operational logic descriptions. Our application engineers will recommend optimal hardware configuration, firmware version, and I/O module combinations—typically responding within 24-48 hours with detailed technical proposals.

Advanced Integration Capabilities

Programmable Logic & Automation
Built-in FlexLogic™ engine with 512 logic gates enables custom protection schemes, automatic switching sequences, demand response programs, and equipment interlocking without external PLCs—reducing system complexity and points of failure.

Synchrophasor Measurement (PMU)
Optional IEEE C37.118 phasor measurement unit functionality provides GPS-synchronized voltage/current phasors at 50/60 frames per second for wide-area monitoring, oscillation detection, and post-disturbance analysis in transmission networks.

Power Quality Monitoring
Continuous tracking of harmonics (up to 63rd order), voltage sags/swells, flicker, unbalance, and transient disturbances per IEC 61000-4-30 Class A—identifying power quality issues that degrade sensitive equipment performance or violate utility interconnection agreements.

Predictive Maintenance Analytics
Trend analysis of breaker operation counters, contact wear indicators, insulation resistance, and thermal loading patterns generates maintenance alerts 30-90 days before predicted failures—enabling condition-based maintenance strategies that reduce costs by 25-40% versus time-based schedules.

Redundancy & High Availability
Supports dual-primary protection architectures with automatic failover, redundant communication paths, and hot-standby configurations achieving 99.99%+ availability for applications where single-point failures are unacceptable.

Delivery, Service & Quality Assurance

Lead Times: Standard catalog configurations ship within 5-7 business days from regional distribution centers. Custom-configured systems with specialized I/O modules, communication cards, or firmware modifications require 15-25 business days for factory assembly and testing. Expedited production available for critical outage replacements (consult for availability).

Warranty Coverage: All C30 controllers include a comprehensive 24-month manufacturer warranty covering defects in materials, workmanship, and firmware. Warranty encompasses free firmware updates, technical support via phone/email, and advance replacement for confirmed hardware failures (subject to failure analysis).

Commissioning Support: Our field service engineers provide on-site or remote commissioning assistance including relay settings verification, protection coordination validation, communication testing, SCADA integration checkout, and operator training. Services available globally with regional language support (English, Spanish, Mandarin, Arabic).

Technical Documentation: Each controller ships with complete electrical schematics, terminal block wiring diagrams, protection settings worksheets, communication configuration guides, and troubleshooting flowcharts in PDF format. CAD drawings (AutoCAD DWG, STEP 3D models) available upon request for panel design integration.

Compliance Certifications: Products carry UL/cUL, CE, RoHS, and REACH certifications. Test reports for IEC 61850 conformance, EMC immunity, seismic qualification (IEEE 693), and environmental stress screening available to support project specifications and regulatory approvals.

Frequently Asked Questions (FAQ)

Q: How does the GE C30 UR Series controller integrate with existing Modbus-based SCADA systems?
A: The C30 features native Modbus RTU (RS-485) and Modbus TCP (Ethernet) support with configurable register mapping. You can map any measured value, status point, or control command to standard Modbus addresses. Configuration is performed via EnerVista UR Setup software with built-in Modbus simulator for pre-commissioning testing. Typical integration requires defining slave ID, baud rate (9600-115200), and register assignments—our engineers provide pre-configured templates for common SCADA platforms (Wonderware, iFIX, Ignition).

Q: What is the maximum number of protection zones one C30 controller can manage simultaneously?
A: A single C30 unit can execute protection logic for 3-6 independent zones depending on complexity. For example: one transformer differential (87T), two feeder overcurrent (50/51), one bus differential (87B), and one motor protection (49/50) can operate concurrently. For larger substations requiring 10+ protection zones, deploy multiple C30 controllers with IEC 61850 GOOSE peer-to-peer communication for coordinated tripping and interlocking.

Q: Can I expand digital I/O capacity after initial installation without system downtime?
A: Yes, the C30's modular architecture supports hot-swappable I/O expansion modules. Simply insert additional digital input/output cards into available slots while the controller remains energized and operational. The system auto-detects new modules and updates I/O mapping within 2-3 seconds. This capability is critical for phased project expansions or adding monitoring points to existing installations without scheduling outages.

Q: What cybersecurity measures protect the C30 controller from unauthorized access and cyber attacks?
A: The controller implements multiple security layers: (1) Role-based access control with up to 16 user privilege levels, (2) TLS 1.2 encryption for all Ethernet communications, (3) Password complexity enforcement (minimum 8 characters, alphanumeric + special), (4) Automatic account lockout after failed login attempts, (5) Comprehensive event logging with tamper detection, (6) Firmware digital signatures to prevent unauthorized code execution. These features align with NERC CIP-005, CIP-007, and IEC 62351 standards for critical infrastructure protection.

Q: Does the C30 support IEC 61850 Edition 2.1 and what are the benefits over Edition 1?
A: Current C30 firmware supports IEC 61850 Edition 2.0 with backward compatibility to Edition 1. Edition 2.0 provides enhanced data models for distributed energy resources (DER), improved cybersecurity through IEC 62351, sampled values for process bus applications, and refined GOOSE/MMS services. Edition 2.1 support is planned for Q3 2026 firmware release, adding condition monitoring extensions and advanced synchrophasor capabilities.

Q: What technical support is available for configuration, troubleshooting, and firmware updates?
A: We provide multi-tier technical support: (1) Email/phone support (8AM-6PM local time, 24-hour response guarantee), (2) Remote desktop assistance for configuration and diagnostics, (3) On-site field service engineers for commissioning and emergency troubleshooting (quoted separately), (4) Access to online knowledge base with 500+ application notes and configuration examples, (5) Free firmware updates for warranty period including bug fixes and feature enhancements. Annual support contracts available for extended coverage and priority response.

Q: Can the C30 controller operate in extreme temperature environments such as desert substations or arctic facilities?
A: Yes, the C30 is rated for -40°C to +85°C continuous operation without derating. For extreme environments, we recommend: (1) Conformal coating option for humidity/salt fog resistance, (2) Extended temperature testing certification (available upon request), (3) Thermal management considerations such as forced ventilation for enclosed panels in >50°C ambient, (4) Cold temperature battery backup for real-time clock in <-20°C applications. Units have been successfully deployed in Saudi Arabian desert substations (+55°C) and Canadian arctic facilities (-45°C).

Contact for Custom Solutions

To receive detailed application engineering support, customized system architecture proposals, or competitive quotations, please provide the following project information: Project name and location, Application type (transmission substation, industrial distribution, renewable integration, etc.), System voltage levels and fault current ratings, Required protection functions (per ANSI/IEC standards), Number of feeders/transformers/generators to protect, Existing SCADA communication protocols, Environmental conditions (temperature range, altitude, seismic zone), Panel space constraints and mounting preferences, Project timeline and delivery requirements.

Our application engineers will respond within 24-48 hours with tailored recommendations including hardware configuration, I/O module selection, communication interface options, protection settings templates, and comprehensive pricing. For urgent replacement requirements or critical outage support, contact our 24/7 emergency hotline.
