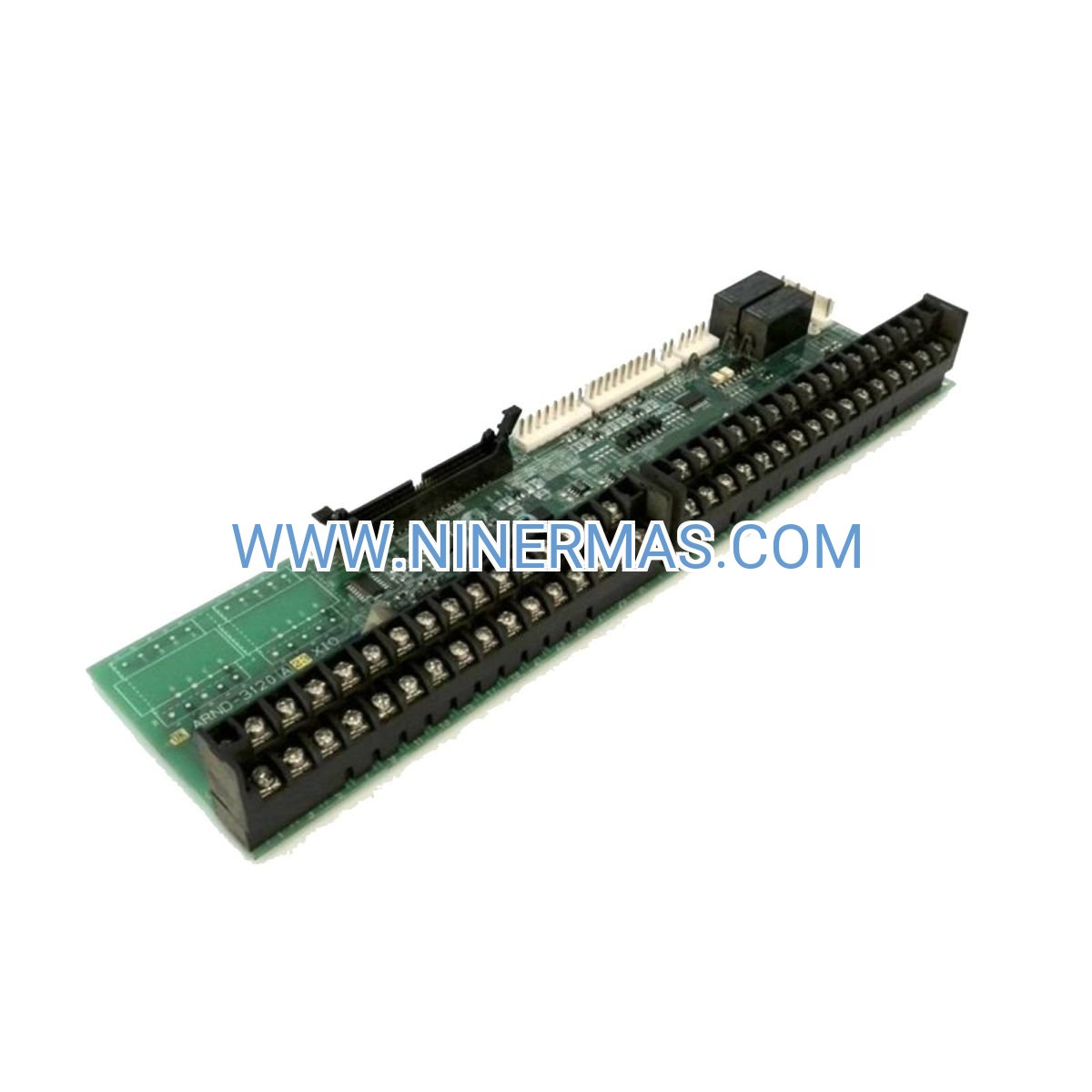

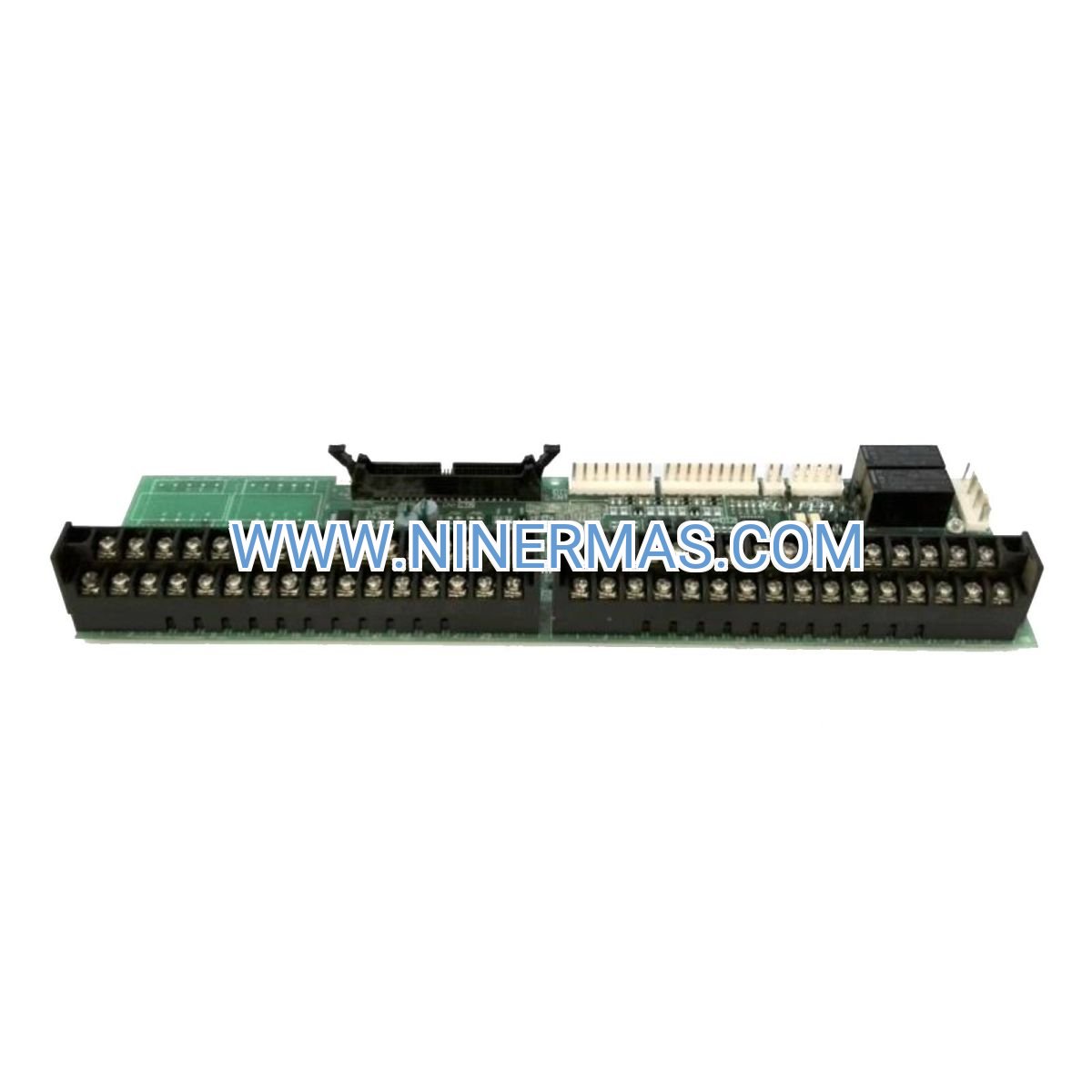

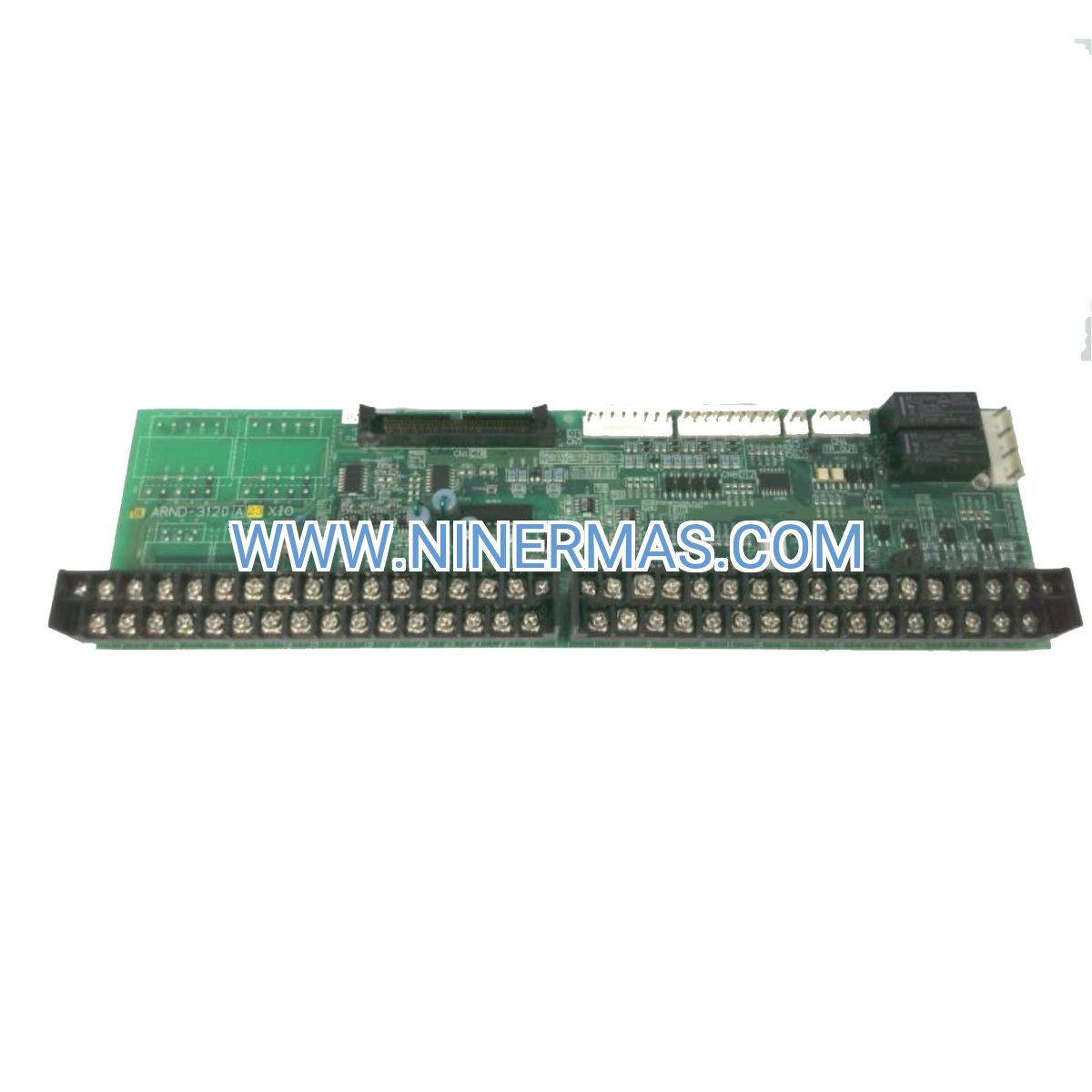

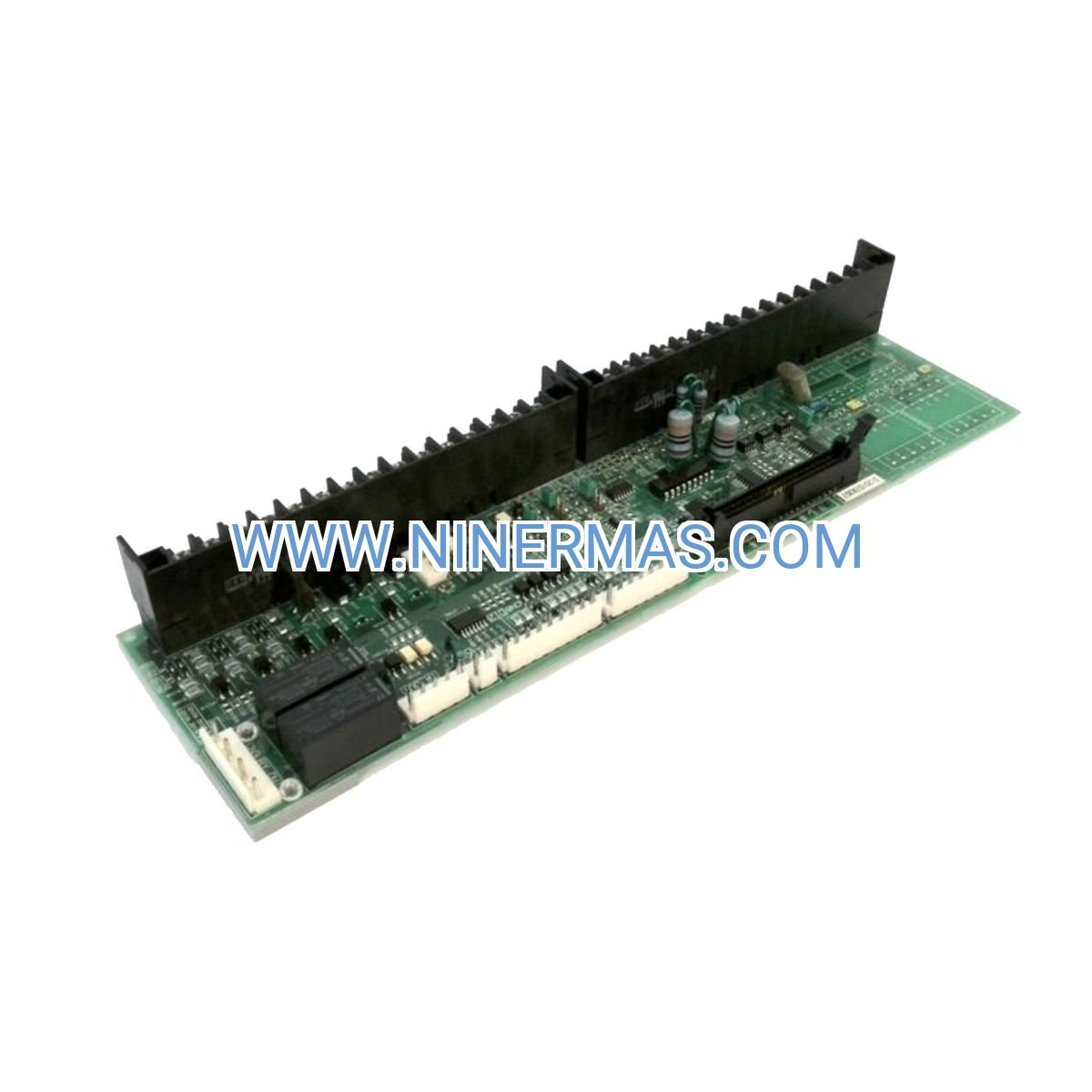

ARND-3120 Ethernet Global Data Module (Industrial-Grade TMDC Interface)

The ARND-3120 represents a specialized networking solution engineered for thyristor motor drive controller (TMDC) environments requiring deterministic Ethernet Global Data (EGD) communication. This industrial interface module establishes high-speed data pathways between legacy drive systems and contemporary automation networks, enabling PLC integration, SCADA visibility, and distributed control coordination across manufacturing and process control installations.

Designed for facilities modernizing aging drive infrastructure without complete system replacement, the ARND-3120 bridges operational technology gaps by providing standards-based Ethernet connectivity to equipment originally deployed with proprietary serial protocols. Industrial operators gain real-time access to drive parameters, fault diagnostics, and performance metrics through unified network architectures.

With proven reliability in harsh industrial conditions—including temperature extremes, electrical noise, and vibration—this communication module delivers the uptime and data integrity required for mission-critical motor control applications in metals processing, water treatment, material handling, and heavy manufacturing sectors.

Core Capabilities & Technical Advantages

→ Deterministic EGD Protocol Implementation
Real-time data exchange with configurable refresh intervals ensures synchronized operation across multi-drive systems. Supports up to 256 concurrent EGD exchanges for complex automation topologies.

→ Dual-Speed Ethernet Compatibility
Auto-negotiating 10/100 Mbps interface adapts to existing network infrastructure while providing upgrade path for higher-bandwidth applications. Reduces installation complexity in mixed-speed environments.

→ Wide Voltage Input Tolerance
24V DC ±10% operating range accommodates voltage fluctuations common in industrial power distribution systems. Low 5W power consumption minimizes heat generation in enclosed panels.

✓ Integrated Diagnostic Indicators
Multi-color LED arrays provide instant visual confirmation of power status, network activity, and communication faults. Accelerates troubleshooting during commissioning and maintenance operations.

✓ Flexible Mounting Options
DIN rail and panel-mount configurations support diverse cabinet layouts. Compact 120×80×45mm footprint conserves valuable enclosure space in retrofit applications.

✓ Extended Environmental Ratings
0°C to 60°C operational range with -40°C to 85°C storage capability. 5-95% humidity tolerance (non-condensing) ensures reliable performance in demanding industrial atmospheres.

Industrial Application Scenarios

Metals & Mining Operations
Coordinate multiple TMDC-controlled rolling mill drives through centralized PLC systems. The ARND-3120 enables synchronized speed references and torque distribution across tandem drive configurations, eliminating mechanical stress and improving product quality in steel, aluminum, and copper processing lines.

Water & Wastewater Management
Integrate legacy pump drives into modern SCADA networks for remote monitoring and control. Facilities gain real-time visibility into flow rates, energy consumption, and equipment health across distributed pumping stations without replacing functional drive hardware.

Cement & Aggregate Production
Network kiln drives, crusher motors, and conveyor systems for coordinated process control. The module's robust EMI/RFI immunity maintains communication integrity in electrically noisy environments with high-power motor loads and frequent switching transients.

Chemical Processing Plants
Connect reactor agitators, centrifuge drives, and material transfer systems to DCS platforms. Enables precise process variable control and automated batch sequencing while maintaining compliance with safety instrumented system (SIS) requirements.

Paper & Pulp Manufacturing
Synchronize section drives in continuous paper machines for tension control and speed matching. Real-time EGD communication supports the microsecond-level coordination required for quality production at high line speeds.

Technical Specifications & Selection Criteria

Selection Guidelines: Verify TMDC drive firmware compatibility before ordering. Systems requiring redundant communication paths should implement dual-module configurations with managed Ethernet switches. For applications exceeding 256 EGD exchanges, consider network segmentation or alternative protocol gateways.

Advanced Integration Features

Multi-Vendor Interoperability
While optimized for GE TMDC drives, the ARND-3120's standards-based EGD protocol enables integration with third-party controllers supporting custom Ethernet messaging. Gateway devices can bridge to Modbus TCP, EtherNet/IP, and PROFINET networks for heterogeneous automation environments.

Web-Based Configuration Interface
Embedded HTTP server allows parameter adjustment via standard browsers without specialized software installation. Simplifies commissioning in facilities with IT security policies restricting executable applications on engineering workstations.

SNMP Monitoring Support
Simple Network Management Protocol capabilities enable integration with enterprise network monitoring systems. IT departments can track module health, bandwidth utilization, and communication errors through existing infrastructure management platforms.

Firmware Update Capability
Field-upgradeable firmware extends product lifecycle by adding protocol enhancements and security patches. Updates deploy via Ethernet connection without module removal or production interruption.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock units ship within 1-2 business days. Custom-configured modules with pre-loaded parameters require 5-7 business days for preparation and testing.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Warranty includes advance replacement service to minimize downtime during failure events.

Technical Support: Pre-sales application engineering assistance available for system architecture planning and compatibility verification. Post-installation support includes configuration guidance, troubleshooting protocols, and integration consulting.

Documentation Package: Each module ships with installation manual, quick-start guide, EGD configuration templates, and wiring diagrams. CAD drawings and 3D STEP models available for panel design integration.

Frequently Asked Questions

How does the ARND-3120 compare to newer Ethernet/IP communication modules?
The ARND-3120 uses the EGD protocol specifically designed for GE drive systems, offering optimized performance for TMDC applications. While Ethernet/IP provides broader industry adoption, EGD delivers lower latency and simpler configuration for GE-centric installations. For mixed-vendor environments, consider protocol gateway solutions.

What network infrastructure requirements exist for reliable operation?
Managed Ethernet switches with Quality of Service (QoS) capabilities are recommended for networks carrying both EGD traffic and general IT data. Dedicated VLANs for automation traffic prevent interference from non-deterministic network loads. Gigabit backbone switches accommodate future expansion while maintaining microsecond-level timing precision.

Can multiple ARND-3120 modules share a single Ethernet network segment?
Yes, the EGD protocol supports multi-drop configurations with up to 256 devices per network segment. Proper IP address planning and subnet masking prevent conflicts. Broadcast storm protection on network switches maintains performance during fault conditions.

What cybersecurity measures protect industrial networks using this module?
Implement network segmentation using industrial firewalls to isolate automation networks from enterprise IT systems. The ARND-3120 supports MAC address filtering and can operate on isolated subnets. Regular firmware updates address emerging vulnerabilities. For critical infrastructure, consider implementing IEC 62443 security frameworks.

How do I troubleshoot communication failures between the module and PLC systems?
Begin with LED indicator analysis—solid green confirms power and network link. Use network packet analyzers to verify EGD message transmission. Check IP address conflicts using ping tests. Validate firewall rules permit UDP traffic on configured EGD ports. GE's DriveView software provides detailed diagnostic logs for protocol-level troubleshooting.

Are replacement parts available for long-term maintenance planning?
The ARND-3120 features solid-state construction with no user-serviceable internal components. Maintain spare modules for critical applications to enable rapid replacement during failures. Extended availability programs ensure parts support for 10+ years beyond product discontinuation.

Get Expert Assistance

Modernizing legacy drive systems requires careful planning to balance performance, cost, and operational continuity. Our application engineers provide complimentary consultation services to evaluate your existing infrastructure, recommend optimal communication architectures, and develop migration strategies that minimize production disruption.

Contact our technical team to discuss your TMDC networking requirements, request compatibility verification for your specific drive models, or schedule a remote configuration session to accelerate project deployment.
