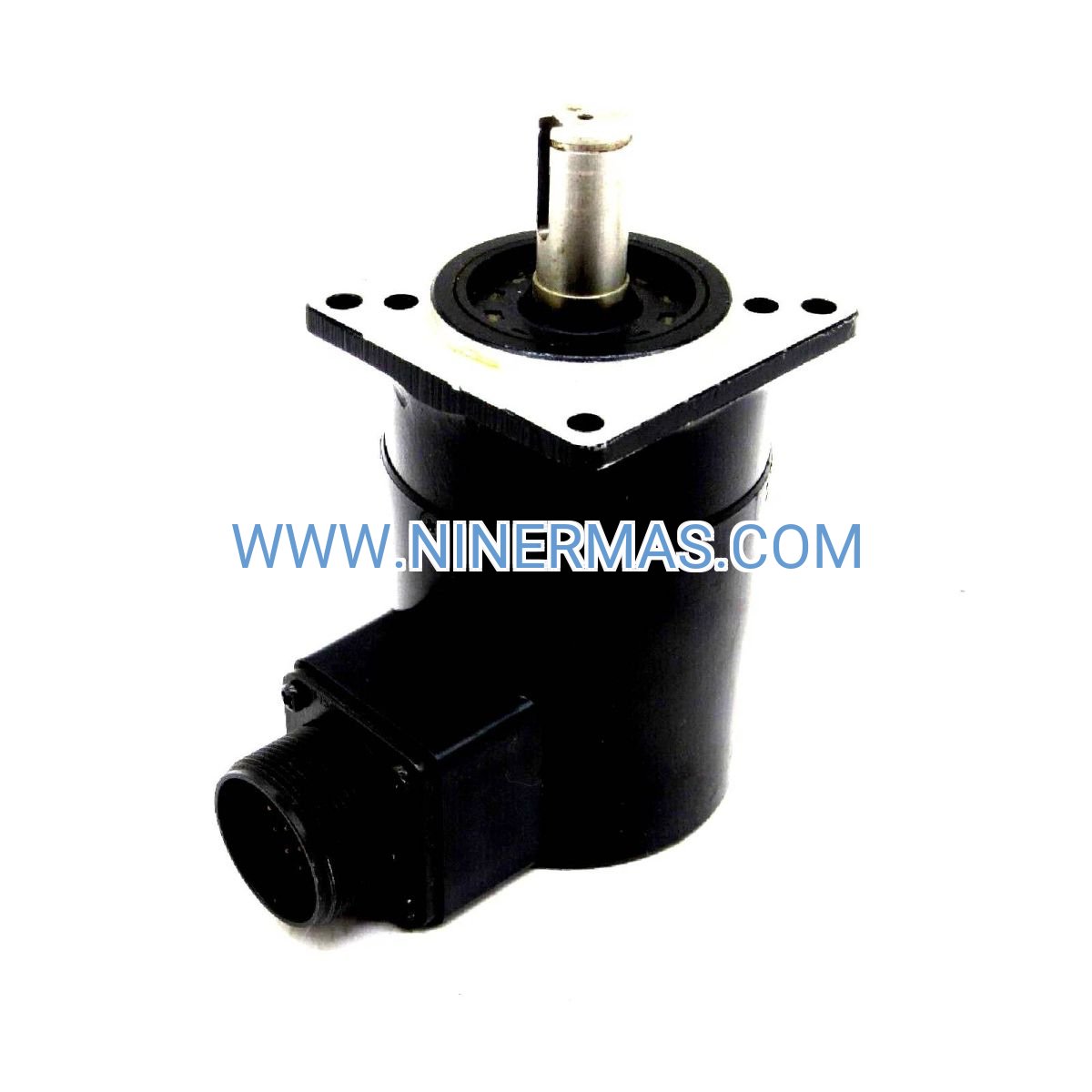

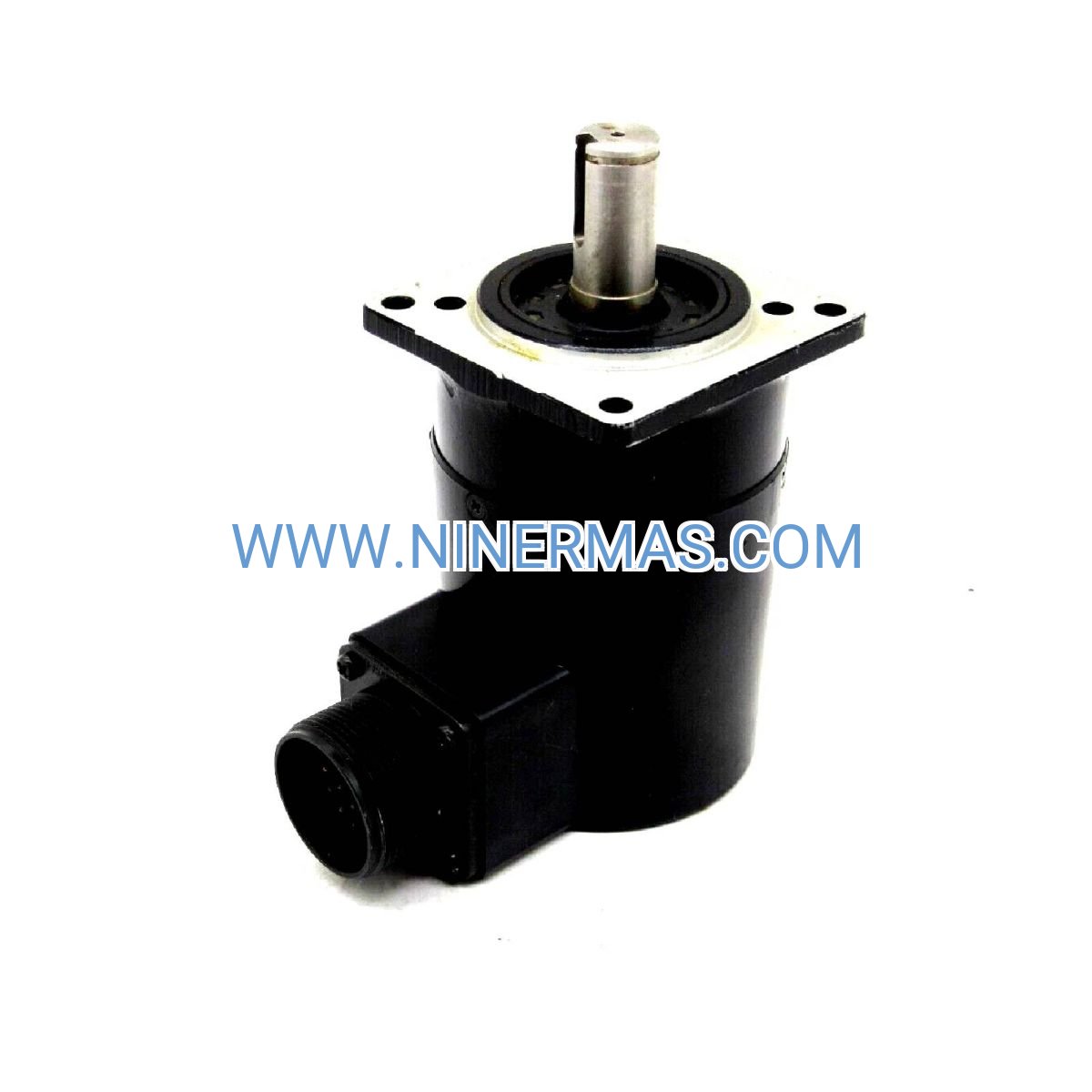

GE A860-0309-T352 Spindle Encoder – Industrial-Grade Rotary Position Feedback for CNC Machining Systems

The GE A860-0309-T352 Spindle Encoder is a high-precision optical rotary feedback device engineered for demanding CNC machining applications. Through advanced incremental encoding technology and differential signal transmission, it delivers real-time spindle angular position data critical for synchronized multi-axis operations, rigid tapping cycles, and precision thread generation in automated manufacturing environments.

Designed for integration with GE Fanuc control platforms and compatible third-party CNC systems, this encoder addresses common challenges in modern machining: spindle orientation accuracy, high-speed signal stability, electromagnetic interference immunity, and maintenance-free operation. It serves design engineers, system integrators, OEM machine builders, and plant maintenance teams seeking reliable position feedback solutions for mission-critical production equipment.

Our technical team provides comprehensive selection guidance, wiring diagrams, parameter configuration support, and system integration consulting. Contact our application engineers with your spindle specifications, operating speed range, environmental conditions, and control platform details for customized recommendations and quotations.

Core Capabilities & Performance Advantages

Optical Incremental Technology with Quadrature Output
Utilizes non-contact optical sensing to generate A/B phase quadrature signals plus index pulse (Z-channel). This configuration enables bidirectional position tracking, speed calculation, and absolute reference establishment without mechanical wear components, ensuring consistent accuracy over millions of operating cycles.

High-Speed Operation with Signal Integrity
Validated for continuous operation at spindle speeds exceeding 15,000 RPM with minimal phase jitter and edge distortion. Differential line driver outputs (TTL/HTL compatible) maintain signal quality across cable runs up to 100 meters, critical for large machine tool installations and retrofit applications.

Industrial Environmental Protection
IP64-rated housing with IP67 shaft seal protects internal optics from coolant mist, metal chips, and airborne contaminants common in machining environments. Operating temperature range of -10°C to +60°C accommodates unheated workshops and thermally demanding applications without performance degradation.

Electromagnetic Noise Immunity
Differential signal architecture rejects common-mode interference from variable frequency drives, servo amplifiers, and welding equipment. Shielded cable compatibility and proper grounding practices ensure reliable operation in electrically noisy industrial settings where single-ended encoders may fail.

Flexible Mounting & Mechanical Interface
Available in hollow-shaft and solid-shaft configurations to accommodate diverse spindle designs. Multiple flange mounting options and adjustable coupling systems simplify installation on new machines and enable straightforward replacement of legacy encoders during equipment upgrades.

Maintenance-Free Sealed Bearing Design
Factory-lubricated precision bearings and contactless optical sensing eliminate periodic maintenance requirements. This design reduces total cost of ownership by minimizing scheduled downtime and extending mean time between failures (MTBF) beyond 50,000 operating hours under normal conditions.

Industrial Application Scenarios

This encoder addresses position feedback requirements across multiple machining disciplines and production strategies:

Vertical & Horizontal Machining Centers
Provides spindle orientation control for automatic tool changers (ATC) and rigid tapping operations. In high-mix low-volume job shops, the encoder enables rapid changeover between drilling, milling, and tapping cycles without manual intervention, reducing setup time by 30-50% compared to non-oriented spindle systems.

Multi-Spindle Transfer Machines
Synchronizes multiple cutting stations in automotive and aerospace component production lines. Position feedback coordinates simultaneous operations across 4-12 spindles, maintaining phase relationships critical for balanced material removal and consistent part quality in high-volume manufacturing.

Precision Grinding Equipment
Monitors grinding wheel speed stability for surface finish control in cylindrical, centerless, and surface grinding applications. The encoder's high-resolution feedback enables closed-loop speed regulation, compensating for wheel wear and load variations to maintain Ra values below 0.4 μm in precision bearing and seal production.

Gear Manufacturing Systems
Supports hobbing, shaping, and grinding operations requiring precise angular indexing. The Z-channel index pulse establishes absolute reference for tooth positioning, enabling AGMA Class 8-10 gear quality in transmission, gearbox, and differential manufacturing for automotive and industrial drive applications.

Thread Cutting & Form Tapping
Enables electronic gearing between spindle rotation and Z-axis feed for thread production without tapping heads. This capability reduces cycle time by 40-60% in high-volume fastener manufacturing and eliminates tap breakage risks associated with mechanical synchronization methods.

Technical Specifications & Selection Parameters

To facilitate system design and component selection, we provide standardized electrical, mechanical, and environmental specifications. Custom configurations are available for specialized applications requiring non-standard voltage levels, cable lengths, or environmental protection ratings.

Selection Guidance & System Design Considerations

When specifying this encoder for your application, consider the following critical parameters: maximum spindle speed and acceleration rates, ambient temperature extremes and thermal cycling, coolant type and exposure intensity, available mounting space and shaft access, control system voltage levels and input impedance, cable routing distance and EMI environment.

For optimal performance, we recommend consulting with our application engineering team. Provide your machine specifications, operating conditions, and control platform details to receive customized wiring diagrams, parameter settings, and integration recommendations. Our engineers can assist with encoder selection, signal conditioning requirements, and troubleshooting support throughout the installation process.

System Architecture & Component Integration

Building a complete CNC motion control solution requires careful selection of compatible servo drives, control boards, I/O modules, and network interfaces. The A860-0309-T352 encoder integrates seamlessly within GE Fanuc control architectures and can interface with third-party systems supporting standard differential encoder inputs.

Servo Motor & Drive Pairing
For matched performance characteristics and simplified commissioning, pair this encoder with GE Fanuc AC servo motors such as the A06B-0212-B300 AiS2/5000 series. Proper motor-encoder matching ensures optimal torque response, position accuracy, and system stability across the full speed range.

CNC Control Platform
The encoder is fully compatible with Fanuc 0i-F, 30i, 31i, 32i, and 35i series controllers. Central processing is typically handled by CPU boards like the A16B-3200-0210/02B for 15i systems, while servo coordination is managed through dedicated servo control boards such as the A20B-2101-039 digital servo interface.

I/O Expansion & Signal Distribution
Expand system capabilities with modular I/O components including relay output modules (A03B-0819-C161 16-point relay), analog output modules (A03B-0819-C052 12-bit DAC), and digital input cards for sensor integration and machine interlocking functions.

Network Connectivity
Integrate with plant-level automation systems using Industrial Ethernet interfaces such as the A20B-8101-0930 Profinet board, enabling real-time data exchange with SCADA systems, MES platforms, and predictive maintenance applications.

Data Storage & Program Management
Maintain CNC programs, parameter backups, and configuration files using Compact Flash memory cards (A87L-0001-0173) or serial memory boards (A16B-2201-0101 32-bit) for reliable long-term data retention and rapid program recovery.

Frequently Asked Questions

Q: How does the A860-0309-T352 differ from earlier T00 series encoders?
A: The T352 variant incorporates enhanced signal processing circuitry and improved electromagnetic interference rejection compared to legacy T00 models. While both maintain backward compatibility with proper parameter configuration, the T352 is recommended for new installations and offers superior performance in electrically noisy environments with multiple VFDs and servo drives.

Q: Can this encoder interface with non-Fanuc CNC control systems?
A: Yes, the encoder outputs standard TTL differential signals compatible with most industrial controllers accepting incremental encoder inputs. However, optimal performance and full feature utilization require Fanuc-compatible control platforms. Third-party integration may require custom parameter configuration and signal conditioning depending on the controller's input specifications.

Q: What installation verification procedures are recommended?
A: After mechanical installation and electrical connection, use the CNC diagnostic screens to monitor encoder pulse counts during manual spindle rotation. Verify that A/B phase signals increment and decrement smoothly with direction changes, the Z-channel index pulse appears once per revolution, and signal voltage levels meet TTL specifications (0-5V differential). Check for proper cable shielding continuity and verify ground connections to minimize noise coupling.

Q: What cable specifications are required for reliable signal transmission?
A: Use shielded twisted-pair cable with 120Ω characteristic impedance for differential signal pairs. Maximum recommended cable length is 100 meters for standard installations; longer distances may require signal amplifiers or fiber optic converters. Maintain separation from high-voltage power cables and route encoder cables through dedicated conduit or cable trays to minimize electromagnetic interference.

Q: Is the encoder compatible with Fanuc 0i-F and 30i/31i/32i controller generations?
A: Yes, the A860-0309-T352 is fully compatible with Fanuc 0i-F, 30i, 31i, 32i, and 35i series controllers. Parameter settings and configuration procedures may vary between controller generations; consult the specific controller parameter manual (section on spindle encoder setup) for proper initialization and calibration procedures.

Q: What maintenance is required during the encoder's operational life?
A: The encoder is designed for maintenance-free operation under normal conditions. Recommended periodic inspections include: visual examination of cable connections for damage or loosening (quarterly), verification of mounting hardware torque (semi-annually), and cleaning of encoder housing exterior to prevent debris accumulation (as needed). Avoid using aggressive solvents that may damage seals or optical windows.

Q: How does the encoder withstand coolant exposure in machining environments?
A: The IP64 housing rating and IP67 shaft seal provide protection against coolant splash, mist, and incidental contact typical in CNC machining operations. However, direct high-pressure coolant jets should be avoided. For extreme coolant exposure applications (flood coolant systems, high-pressure through-spindle coolant), additional protective covers, bellows, or air purge systems are recommended to extend encoder service life.

Q: What is the expected service life and failure modes?
A: Under normal operating conditions (proper installation, appropriate environmental protection, operation within specified temperature and speed ranges), the encoder typically achieves 50,000+ hours MTBF. Common failure modes include bearing wear from excessive vibration or shock loading, optical contamination from seal degradation, and cable damage from improper routing or mechanical stress. Proper installation and periodic inspection minimize these risks.

Delivery, Warranty & Technical Support

Lead Times & Availability
Standard A860-0309-T352 encoders are typically available from stock with 3-5 business day shipping for domestic orders. Custom configurations (non-standard cable lengths, special connectors, modified mounting) require 2-4 weeks manufacturing lead time depending on specification complexity and current production schedule.

Warranty Coverage
Every encoder is protected by our comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues under normal operating conditions. Warranty service includes replacement unit shipment, technical diagnosis support, and failure analysis to identify root causes and prevent recurrence.

Technical Support Services
Our application engineering team provides pre-sale selection guidance, installation support, parameter configuration assistance, and post-installation troubleshooting. Services include wiring diagram review, signal quality verification, controller parameter optimization, and system integration consulting to ensure optimal performance and minimize commissioning time.

Documentation Package
Each encoder ships with complete technical documentation including dimensional drawings, electrical connection diagrams, parameter configuration guidelines, and installation instructions. Additional resources such as controller-specific parameter tables, cable specification sheets, and troubleshooting flowcharts are available upon request.

Request Technical Consultation & Quotation

To receive customized selection recommendations, detailed quotations, or technical support for your specific application, please provide the following information to our engineering team:

• Project name and application description (machine type, production requirements)
• Spindle specifications (maximum speed, acceleration rate, motor power)
• Operating environment (temperature range, coolant type, vibration levels)
• Control system platform (Fanuc series, third-party controller model)
• Electrical requirements (available supply voltage, cable length needed)
• Mounting constraints (available space, shaft access, coupling type)
• Quantity required and desired delivery schedule

Our application engineers will respond within 24 hours with tailored recommendations, integration guidance, and competitive pricing for your project requirements.
