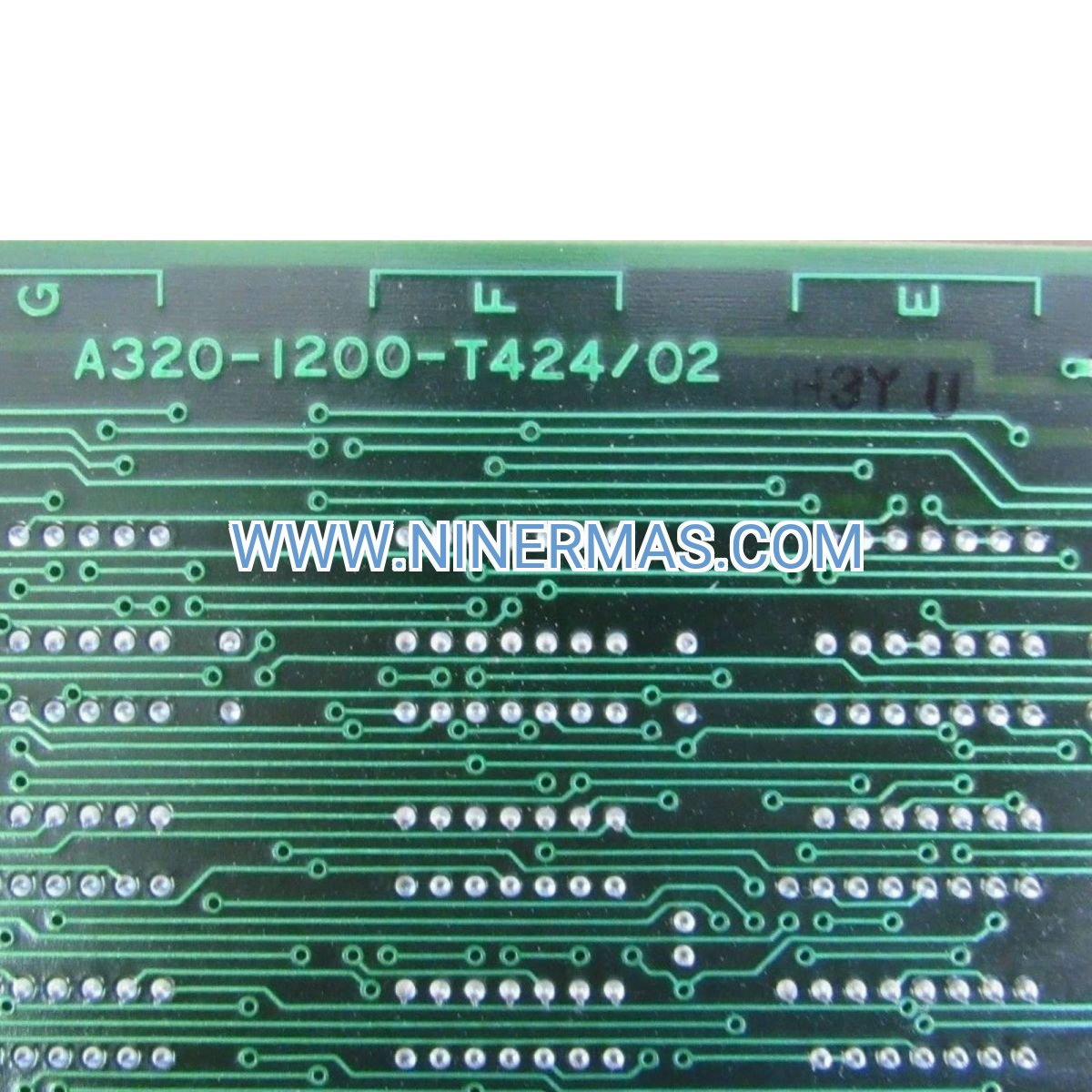

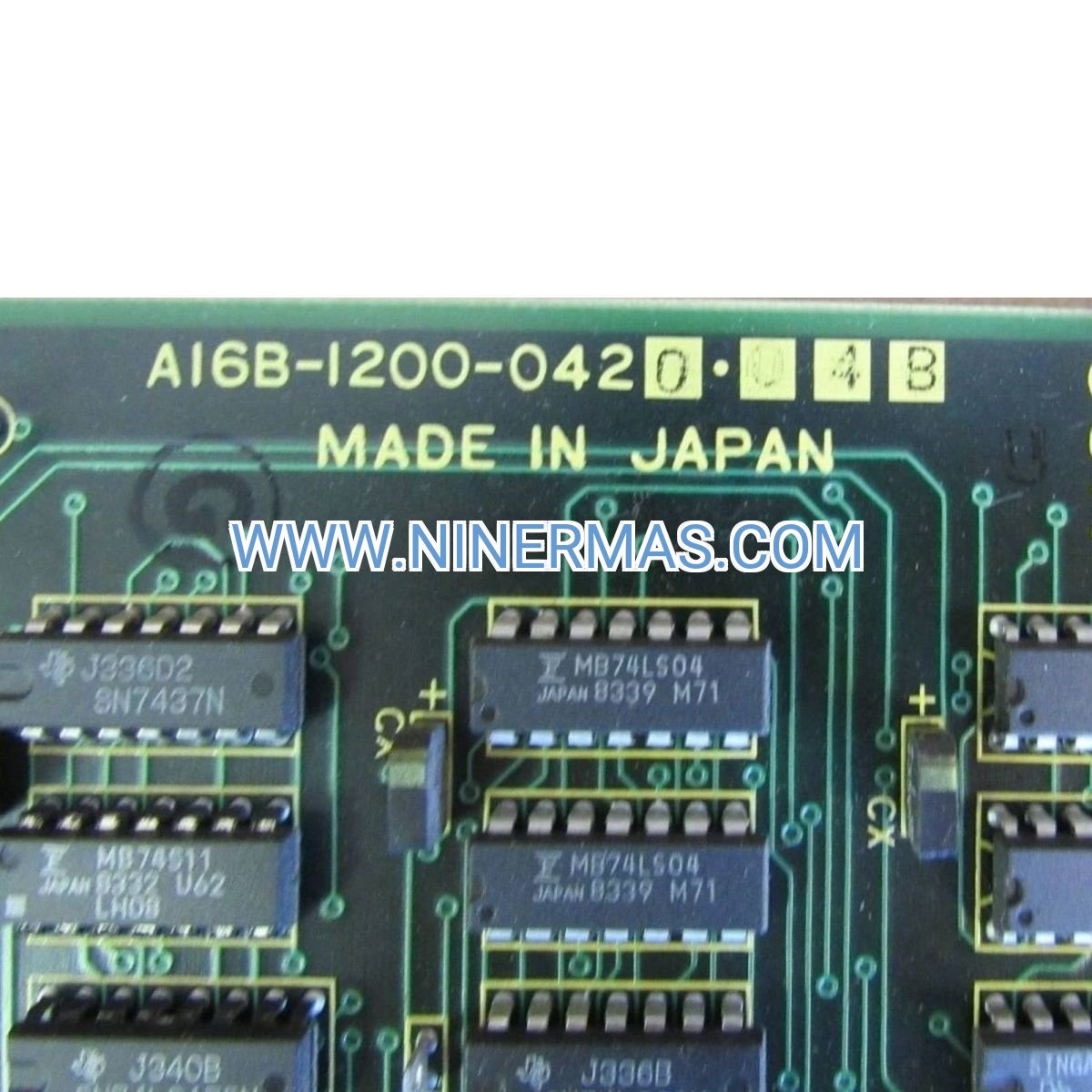

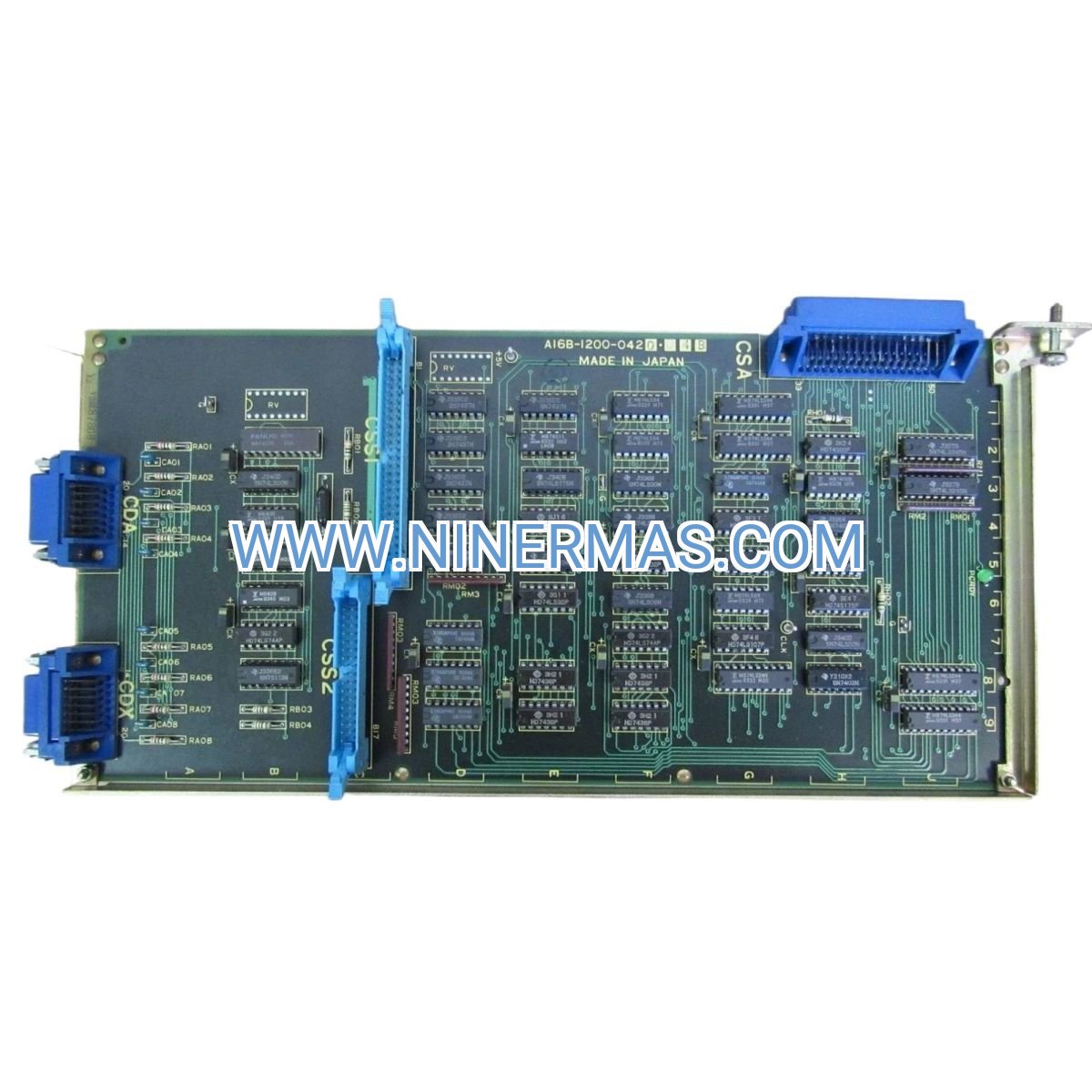

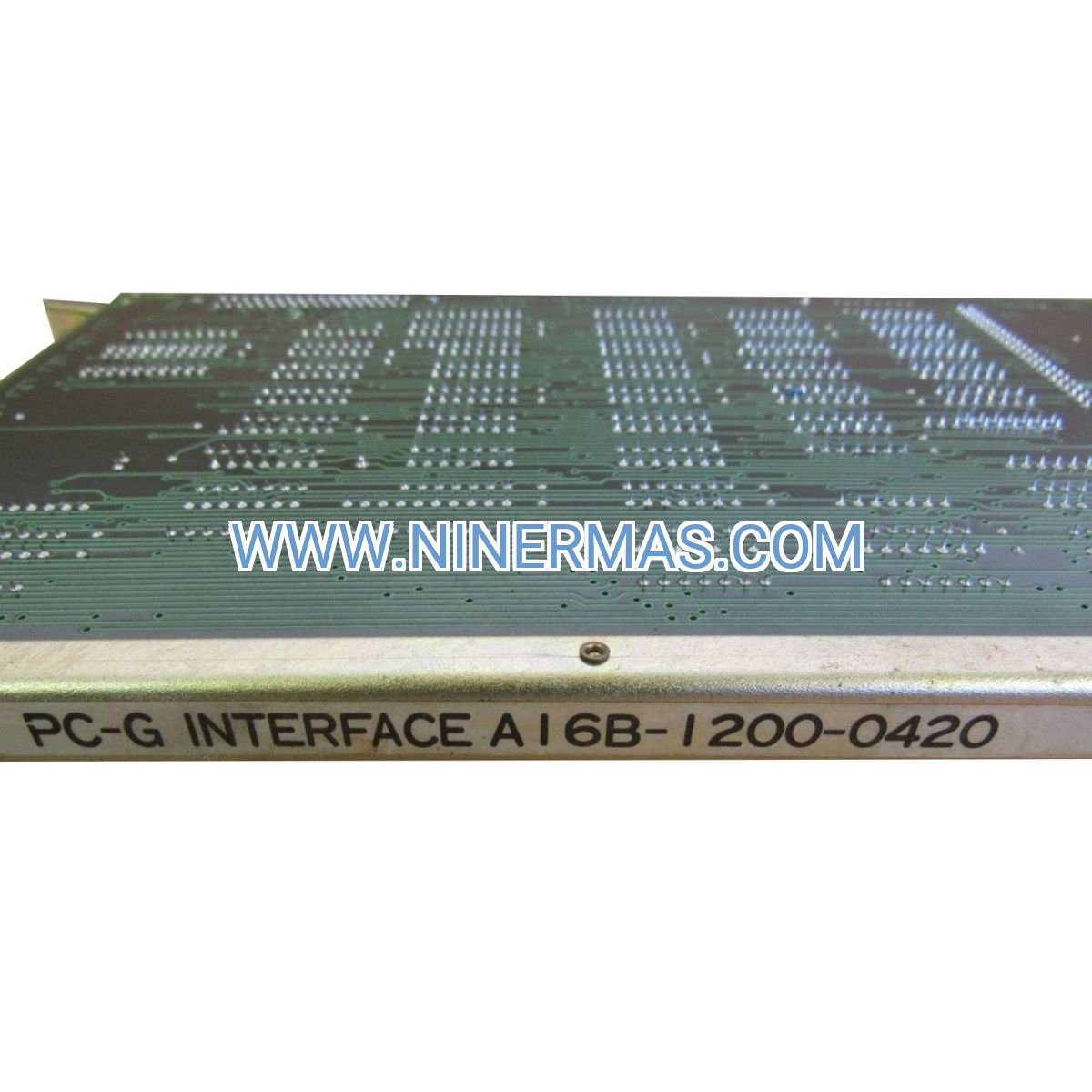

GE Fanuc A16B-1200-0420 PC-G Interface Card (Industrial-Grade CNC Communication Solution)

The GE Fanuc A16B-1200-0420 PC-G Interface Card is an industrial-grade communication module designed for seamless data exchange between personal computers and Fanuc CNC control systems. Through RS-232/485 serial interface technology and PC-G (Personal Computer - Graphics) protocol implementation, this interface card enables real-time data transfer, program upload/download, and system integration for precision machining applications.

Ideal for machine tool workshops, CNC retrofit projects, manufacturing automation systems, and industrial equipment integration scenarios, this interface card addresses critical challenges including slow manual program input, lack of remote monitoring capability, incompatible communication protocols, and limited production data collection. It serves as the essential bridge between modern PC-based control systems and legacy Fanuc CNC hardware.

Featuring standardized design with flexible configuration options, the A16B-1200-0420 interface card delivers reliable connectivity, broad CNC compatibility, simplified installation procedures, and robust industrial-grade construction. It is particularly suited for machine tool OEMs, system integrators, automation engineers, and manufacturing facilities seeking to modernize their CNC communication infrastructure. Contact our technical team for application-specific configuration guidance and quotation.

Core Features & Technical Advantages

Seamless PC-CNC Communication
Utilizes RS-232/485 serial interface with PC-G protocol to establish bidirectional data flow between personal computers and Fanuc CNC controllers, enabling program transfer, parameter backup, and diagnostic data retrieval without manual intervention.

Wide CNC System Compatibility
Natively supports GE Fanuc Series 0i, 16i, 18i, 21i CNC controls, Power Mate i systems, and related I/O expansion modules, ensuring drop-in replacement capability across multiple machine tool platforms and reducing spare parts inventory complexity.

Enhanced Data Transfer Efficiency
Compared to traditional DNC (Direct Numerical Control) methods, this interface card reduces program loading time by approximately 60-75%, minimizes machine downtime during setup changes, and supports batch file operations for high-mix production environments.

Comprehensive Protection Mechanisms
Incorporates overvoltage protection, ESD (electrostatic discharge) safeguards, thermal management circuitry, and communication error detection algorithms to ensure stable operation in electrically noisy industrial environments and extend service life.

Intuitive Integration Process
Standard Eurocard form factor (100 mm × 160 mm) with clearly labeled connectors and comprehensive wiring diagrams simplifies installation procedures, while Windows-compatible driver software and configuration utilities enable rapid commissioning by technicians with basic CNC knowledge.

Typical Application Scenarios

This interface card is engineered for applications demanding reliable CNC communication, continuous production data flow, and flexible program management capabilities, particularly in:

Machine Tool Manufacturing & Retrofit Projects
Enables OEMs and retrofit specialists to integrate modern PC-based HMI (Human-Machine Interface) systems with existing Fanuc CNC platforms, facilitating touchscreen operation, advanced visualization, and centralized program libraries while preserving proven motion control hardware.

Job Shop & Contract Manufacturing Operations
Supports rapid program changeover for high-mix, low-volume production by allowing operators to transfer NC programs directly from CAM workstations to machine tools, eliminating manual G-code entry errors and reducing setup time between different part runs.

Production Monitoring & MES Integration
Facilitates real-time data collection from CNC controllers for Manufacturing Execution Systems (MES), enabling production tracking, cycle time analysis, alarm history logging, and predictive maintenance scheduling across networked machine tool fleets in automotive, aerospace, and precision component manufacturing sectors.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement decisions, we provide comprehensive technical parameters for the A16B-1200-0420 interface card. Custom configurations are available to meet specific project requirements.

Selection Recommendations: When specifying this interface card, consider the following factors: existing CNC control series and software version, required communication speed (baud rate), PC operating system compatibility (Windows 7/10/11 driver availability), available mounting space within the CNC control cabinet, and environmental conditions (temperature extremes, vibration levels). For applications requiring Ethernet connectivity or wireless communication, consult our engineering team regarding alternative interface solutions or protocol converter options.

Extended Functionality & Integration Options

Multi-Machine Networking Capability
When combined with RS-485 multi-drop configuration and appropriate communication software, a single PC can manage program distribution and data collection across up to 32 CNC machines simultaneously, ideal for cellular manufacturing layouts and lights-out production environments.

CAM/CAD System Integration
Direct interface with leading CAM software packages (Mastercam, EdgeCAM, GibbsCAM, etc.) enables post-processed NC programs to be transmitted directly to machine tools without intermediate file transfer steps, streamlining the digital manufacturing workflow.

Remote Diagnostics & Technical Support
Supports remote connection via VPN or secure internet gateway, allowing equipment manufacturers and service providers to perform diagnostic troubleshooting, parameter adjustment, and software updates without on-site visits, reducing downtime and service costs.

Delivery, Service & Quality Assurance

Standard catalog items are typically available from stock with 3-5 business day shipping; custom-configured solutions or quantity orders require 10-15 business days lead time. All interface cards are covered by a comprehensive 12-month warranty against manufacturing defects, with optional extended service agreements available.

Technical support includes remote installation guidance, driver software and configuration utilities (downloadable from our technical portal), complete electrical schematics and connector pinout diagrams, and multilingual operation manuals. On-site commissioning assistance and training services are available for major projects (subject to geographic location and scope of work).

Each unit undergoes rigorous factory testing including communication protocol verification, electrical safety inspection, thermal cycling, and compatibility validation with reference CNC systems before shipment, ensuring reliable performance in demanding industrial applications.

Frequently Asked Questions (FAQ)

Q: How do I connect the A16B-1200-0420 PC-G interface card to my existing Fanuc CNC system?
A: The interface card installs into a dedicated slot within the Fanuc control unit's circuit board rack. Connection requires identifying the correct slot position (typically labeled "PC-G" or "I/O"), securing the card with mounting screws, and connecting the RS-232 cable between the card's DB-9 connector and your PC's serial port (or USB-to-serial adapter). Detailed installation diagrams are provided with each unit, and our technical team can provide remote guidance during initial setup.

Q: What is the maximum data transfer speed supported by this interface card?
A: The A16B-1200-0420 supports baud rates up to 19,200 bps (bits per second) for RS-232 communication, which is sufficient for transferring typical NC programs (50-500 KB) within 30-90 seconds. For applications requiring faster transfer speeds, consider our Ethernet-based interface solutions that support 10/100 Mbps communication.

Q: Is this interface card compatible with non-Fanuc CNC controls such as Siemens or Mitsubishi?
A: No, the A16B-1200-0420 is specifically designed for GE Fanuc CNC systems and uses proprietary PC-G protocol. For Siemens (Sinumerik), Mitsubishi, Heidenhain, or other CNC brands, different interface hardware and communication protocols are required. Contact us with your specific CNC model information for appropriate interface recommendations.

Q: Can I use this interface card for DNC (drip-feed) operation to run programs larger than the CNC's memory capacity?
A: Yes, the PC-G interface supports DNC mode, allowing the PC to stream NC program data to the CNC controller in real-time during machining operations. This is particularly useful for complex 3D surface machining programs that exceed the CNC's internal program storage capacity (typically 512 KB to 2 MB depending on control model).

Q: What software is required on the PC side to communicate with the CNC through this interface card?
A: Basic communication can be established using terminal emulation software (such as Tera Term or PuTTY) configured for the appropriate baud rate and protocol settings. For advanced functionality including graphical program management, we recommend dedicated DNC software packages such as Predator DNC, Cimco DNC-Max, or similar industrial communication platforms. Driver installation files and configuration guides are included with each interface card.

Q: Does the interface card require external power supply, or is it powered by the CNC control unit?
A: The A16B-1200-0420 draws its operating power (24 VDC) directly from the Fanuc CNC control unit's internal power supply through the backplane connector, eliminating the need for external power adapters or additional wiring. Ensure that your CNC control unit has sufficient power budget to support the interface card (typically < 5 W additional load).

Request Technical Support & Quotation

To receive detailed application engineering support, product quotation, or custom configuration recommendations, please provide the following information: project name and application description, existing CNC control model and software version (e.g., "Fanuc 0i-MD, version 8.5"), number of machines requiring interface cards, PC operating system and communication software preferences, and any special environmental or regulatory requirements.

Our application engineers will respond within 24 business hours with tailored recommendations, compatibility verification, pricing information, and delivery timeline estimates.
