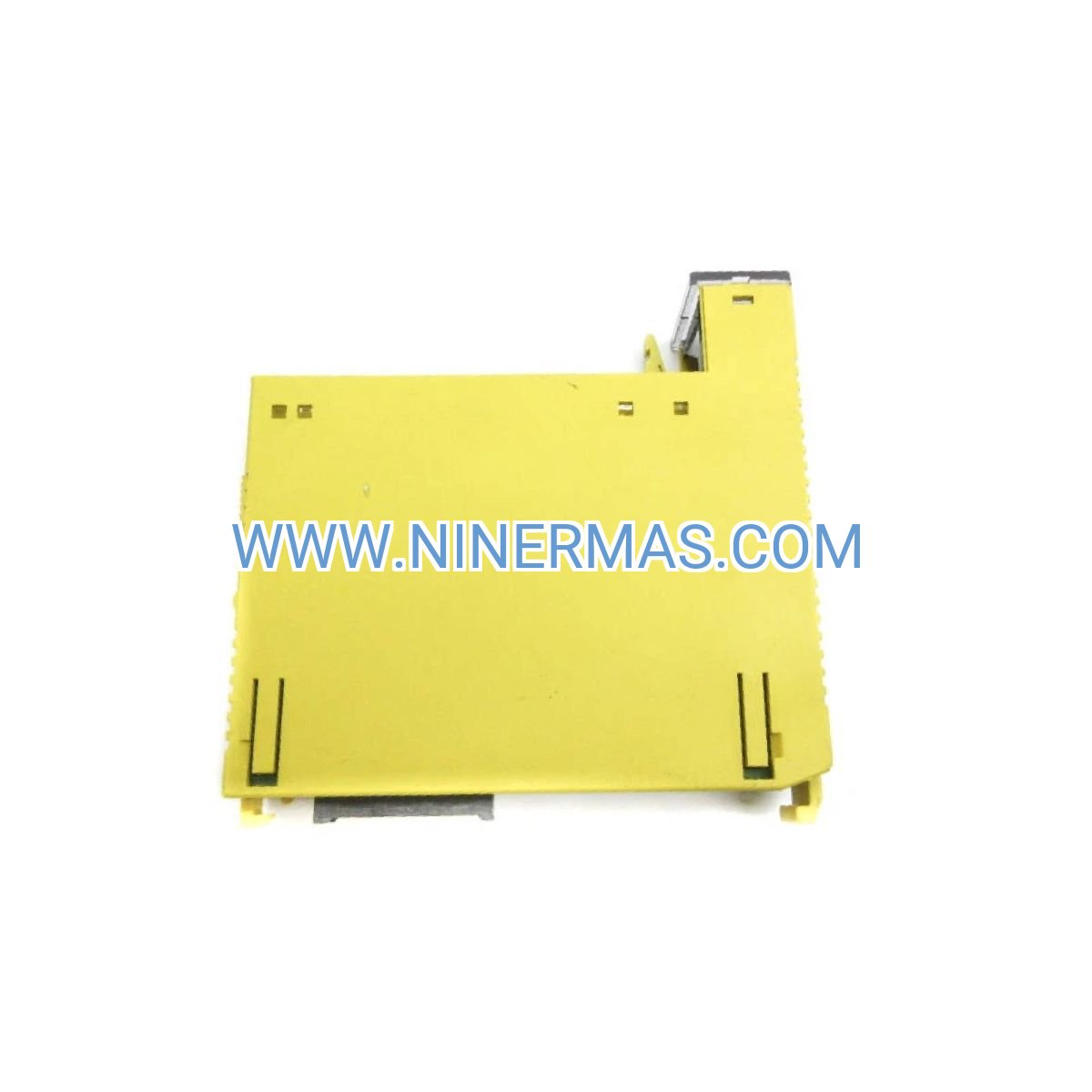

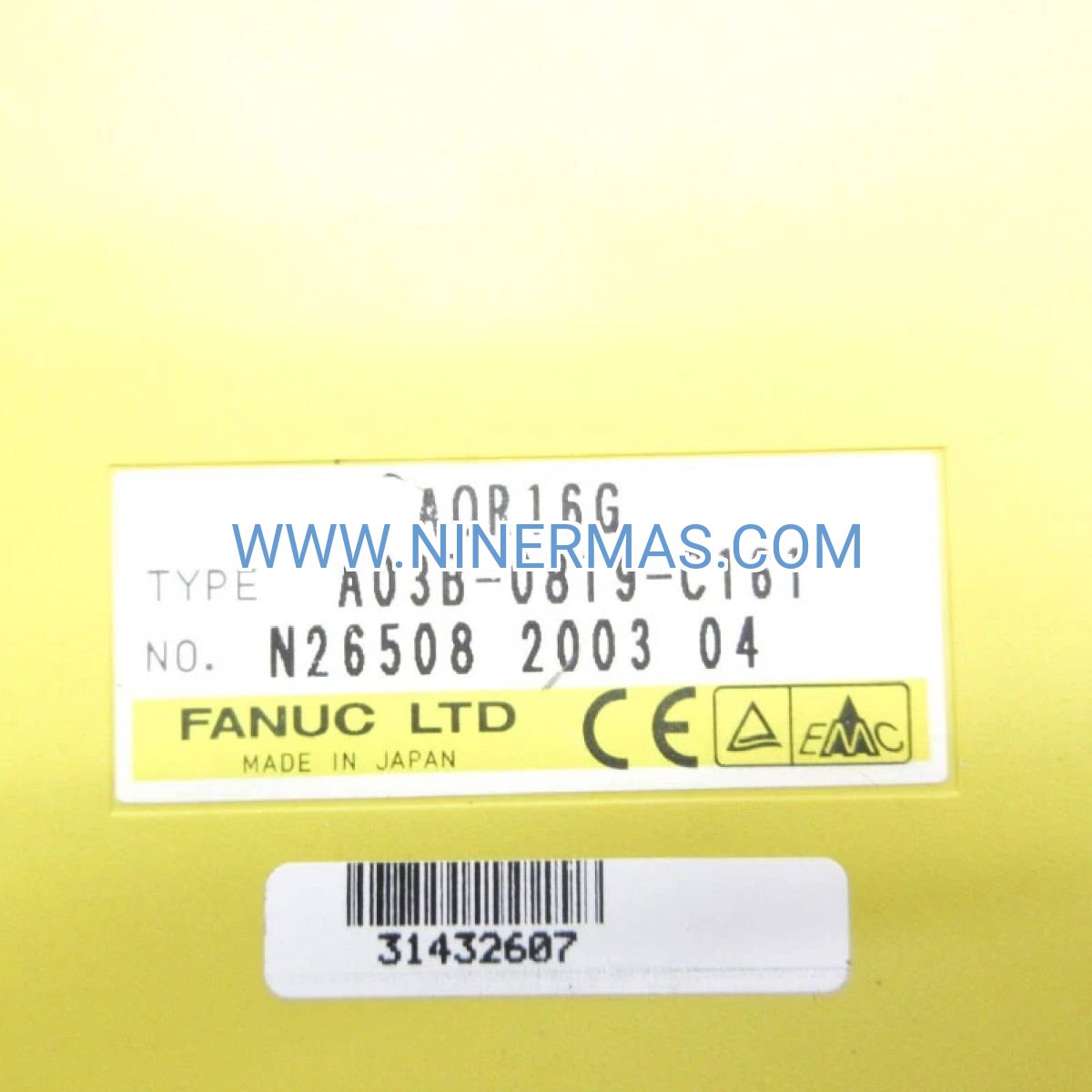

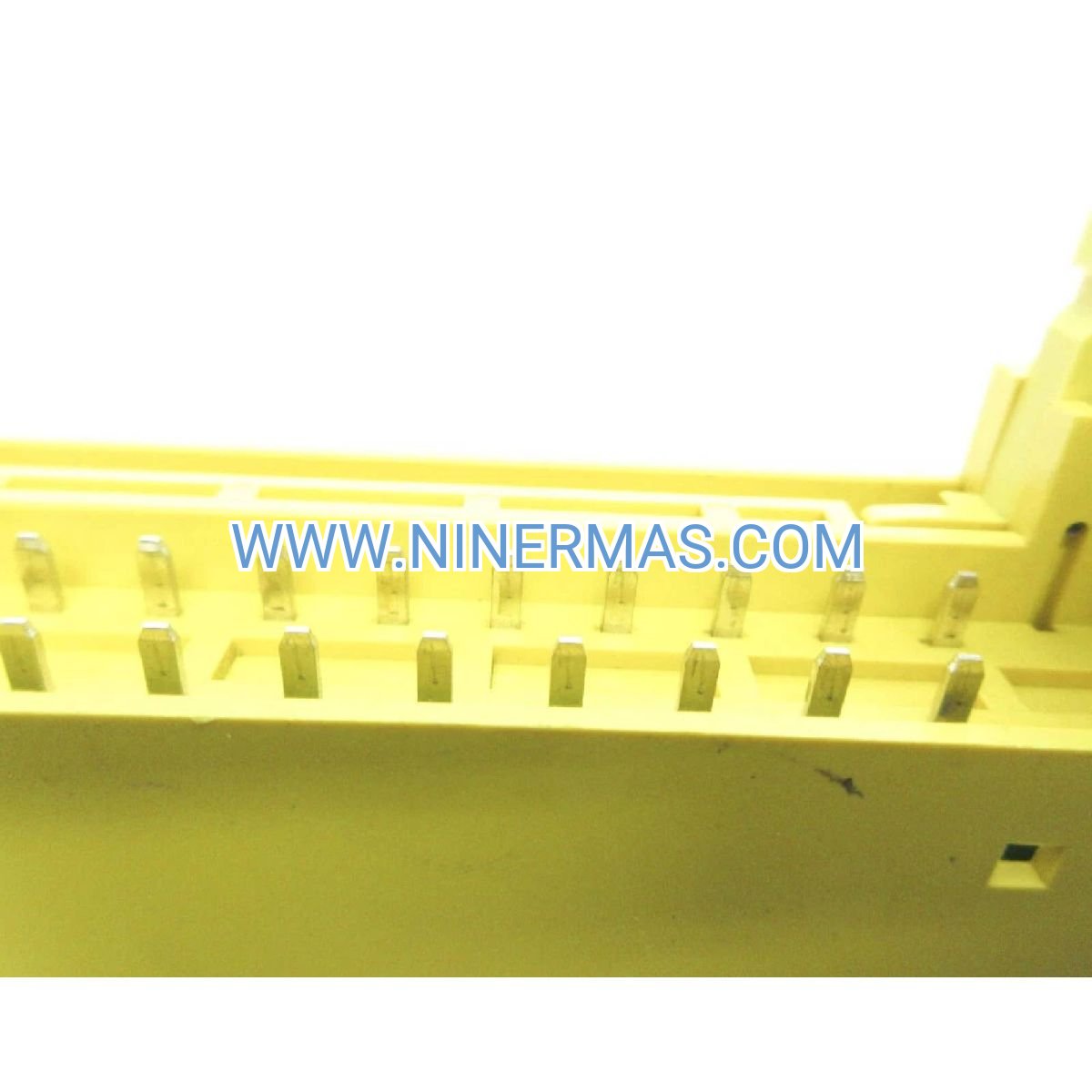

A03B-0819-C161 Relay Output Module (Industrial-Grade 16-Channel Control Interface)

The A03B-0819-C161 represents a proven solution for expanding relay-based control capabilities in Fanuc CNC environments. This 16-channel output module bridges programmable logic with high-current field devices, enabling machine builders and retrofit specialists to interface CNC controllers with solenoid valves, contactors, indicator lamps, and auxiliary equipment across Series 0i, 16i, 18i, and 21i platforms.

Designed for continuous operation in industrial settings, the module addresses common challenges in machine tool automation: electrical noise immunity through galvanic isolation, space-efficient I/O density for compact control panels, and plug-and-play compatibility with existing Fanuc I/O Link architectures. Whether you're commissioning new machining centers or modernizing legacy equipment, this relay interface delivers the switching performance and diagnostic visibility required for mission-critical production systems.

With LED status indicators per channel, screw-terminal field connections, and DIN-rail mounting flexibility, the A03B-0819-C161 simplifies installation while reducing troubleshooting time. Its 1500VAC isolation barrier protects sensitive CNC electronics from voltage transients common in industrial power distribution, while 2A contact ratings accommodate a wide range of actuators and pilot devices without external amplification.

Application Scenarios

→ Machining Center Auxiliary Control
Coordinate coolant pumps, chip conveyors, tool changers, and pallet shuttles on vertical/horizontal machining centers. The module's relay outputs handle inductive loads from AC contactors and DC solenoids, while isolation prevents ground loops between CNC logic and 3-phase power circuits. Typical installations control 8-12 auxiliary functions per machine, with remaining channels reserved for alarm annunciators and safety interlocks.

→ Turning Center Process Integration
Manage bar feeders, part catchers, tailstock actuators, and hydraulic chuck systems on CNC lathes. Relay outputs synchronize with spindle orientation and turret indexing commands, enabling automated loading/unloading cycles. The module's 10ms response time supports rapid sequencing of pneumatic grippers and ejector mechanisms without compromising cycle time.

→ Automated Production Cell Orchestration
Interface CNC controllers with conveyor systems, robotic load/unload stations, quality inspection gates, and material handling equipment. Relay outputs trigger external PLCs, vision systems, and SCADA interfaces, creating cohesive manufacturing workflows. Isolation voltage ratings ensure reliable operation in electrically noisy environments with multiple motor drives and welding equipment.

→ Legacy System Modernization
Replace obsolete relay I/O cards in aging Fanuc controls while maintaining compatibility with existing field wiring and panel layouts. The A03B-0819-C161's standard form factor and terminal arrangement minimize retrofit labor, allowing drop-in replacement without rewiring. This approach extends equipment service life while preserving operator familiarity and reducing capital expenditure.

Core Features & Benefits

✓ 16 Independent Relay Channels – High-density output configuration maximizes control points per rack slot, reducing panel footprint and backplane consumption in space-constrained installations
✓ 2A @ 250VAC / 30VDC Contact Rating – Direct switching of solenoid valves, pilot relays, and indicator lamps eliminates need for external interposing relays in most applications
✓ 1500VAC Optical Isolation – Galvanic separation between CNC logic ground and field device commons prevents electrical noise coupling and protects controller circuitry from voltage surges
✓ Per-Channel LED Diagnostics – Visual output status indication accelerates fault diagnosis during commissioning and production troubleshooting, reducing mean time to repair
✓ Universal Fanuc Platform Support – Certified compatibility across 0i-MD/MF/TD/TF, 16i-MB/TB, 18i-MB/TB, and 21i-MB/TB control generations ensures consistent performance in mixed-vintage machine fleets
✓ Industrial Temperature Range – 0°C to 55°C operating specification accommodates non-climate-controlled shop floors and enclosed control cabinets with limited ventilation

Technical Parameters & Selection Guide

Selection Criteria: Choose relay outputs when interfacing with AC-powered devices (110/220VAC solenoids, contactors), pilot lamps requiring galvanic isolation, or legacy equipment with existing relay-based control logic. For DC logic-level signals (24VDC sensors, solid-state inputs), consider transistor output modules. When controlling high-current loads (>2A), use module outputs to drive intermediate power relays or motor starters.

Extended Functions

Diagnostic Integration: Output status data integrates with Fanuc ladder logic and PMC diagnostics, enabling automated fault detection and predictive maintenance routines. Relay coil current monitoring (where supported by controller firmware) can identify degraded contacts before failure.

Safety Circuit Interfacing: While not safety-rated per IEC 61508, relay outputs can trigger external safety relays and E-stop circuits when configured with appropriate redundancy and monitoring. Consult safety system integrators for compliant architectures.

Custom Configuration Services: Factory pre-wiring, terminal block labeling, and application-specific testing available for OEM and high-volume projects. Contact technical sales for lead times and minimum order quantities.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units (Asia-Pacific region), 7-10 days for international shipments. Expedited delivery available for critical downtime situations.
Warranty Coverage: 12-month manufacturer defect warranty from date of shipment, covering component failures under normal operating conditions.
Technical Support: Application engineering assistance for I/O configuration, wiring diagrams, and PMC ladder integration. Email/phone support during business hours (GMT+8).
Documentation Package: Installation manual, wiring schematics, dimensional drawings, and compliance certificates (CE, RoHS) included with each shipment.

Frequently Asked Questions

Q: What is the maximum wire gauge for screw terminal connections on the A03B-0819-C161?
A: Terminals accept 12-24 AWG (0.5-2.5mm²) stranded or solid copper wire. Use ferrules for stranded conductors to prevent strand breakage during tightening.

Q: Can this relay module switch three-phase motor starters directly?
A: No. Use relay outputs to energize starter coils (typically 110/220VAC, <1A), not to switch motor power circuits. Contact ratings are insufficient for direct motor load switching.

Q: How do I identify failed relay contacts during troubleshooting?
A: LED indicators show commanded output state. If LED illuminates but field device doesn't activate, suspect open relay contact, wiring fault, or device failure. Measure voltage across output terminals with load disconnected to verify contact closure.

Q: Is the module compatible with Fanuc 30i/31i/32i control series?
A: The A03B-0819-C161 is designed for 0i/16i/18i/21i platforms. For 30i-series controls, verify I/O Link compatibility with Fanuc technical documentation or consult factory representatives.

Q: What is the recommended fuse rating for output circuit protection?
A: Install 2A fast-blow fuses or circuit breakers on field device supply circuits to protect relay contacts from overcurrent damage. Coordinate fuse ratings with load inrush characteristics.

Q: Can I mix relay and transistor output modules in the same I/O rack?
A: Yes. Fanuc I/O Link systems support heterogeneous module configurations. Assign addresses according to rack position and configure PMC parameters to match installed module types.

Order Your A03B-0819-C161 Relay Module Today

Ensure uninterrupted CNC operation with genuine Fanuc I/O components backed by expert technical support. Our inventory management system maintains stock availability for immediate shipment, while quality verification processes guarantee authentic parts with full traceability. Whether you're stocking maintenance spares or building new automation systems, we deliver the reliability your production schedule demands.

Request a quote now or contact our application engineers to discuss your specific I/O requirements and system integration challenges.
