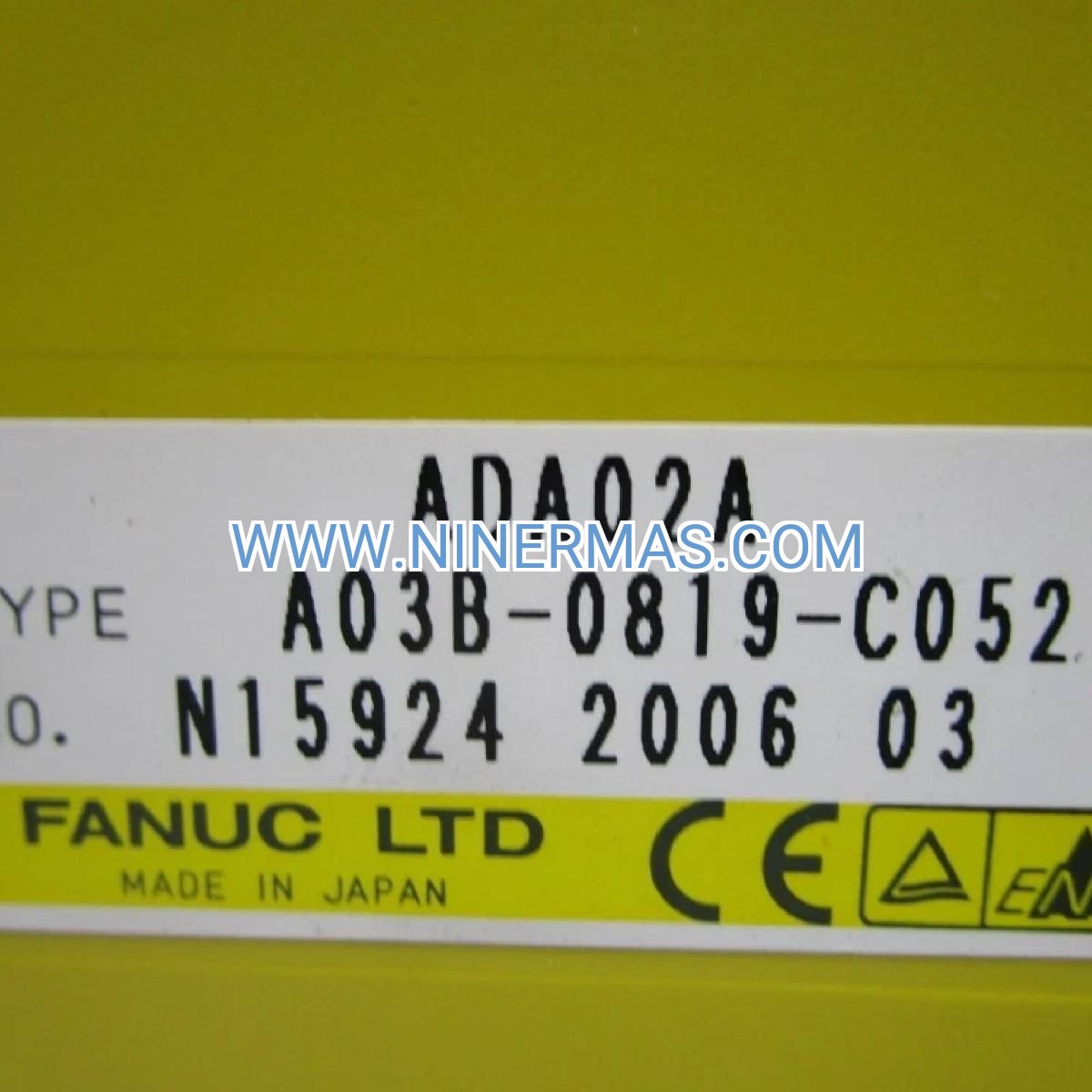

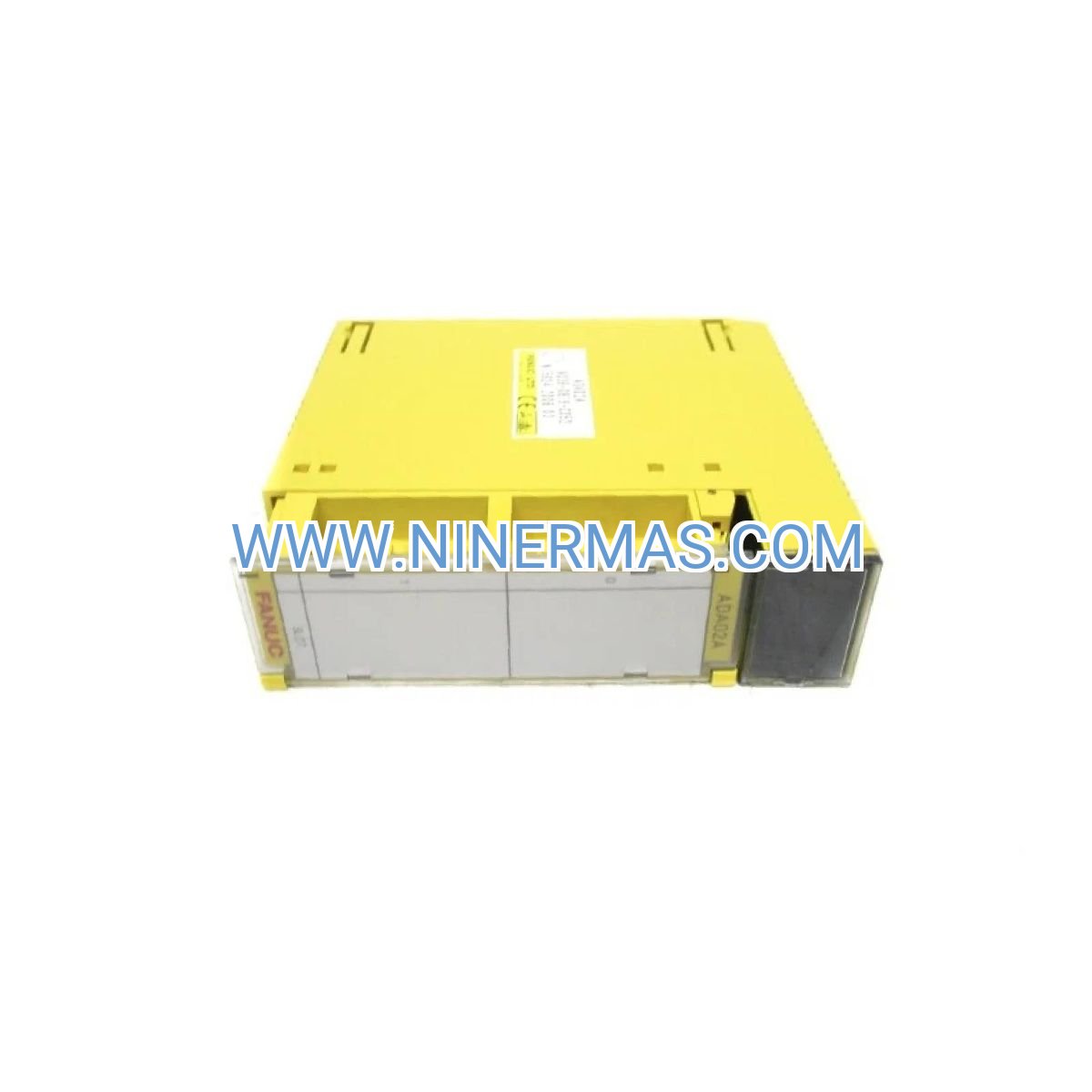

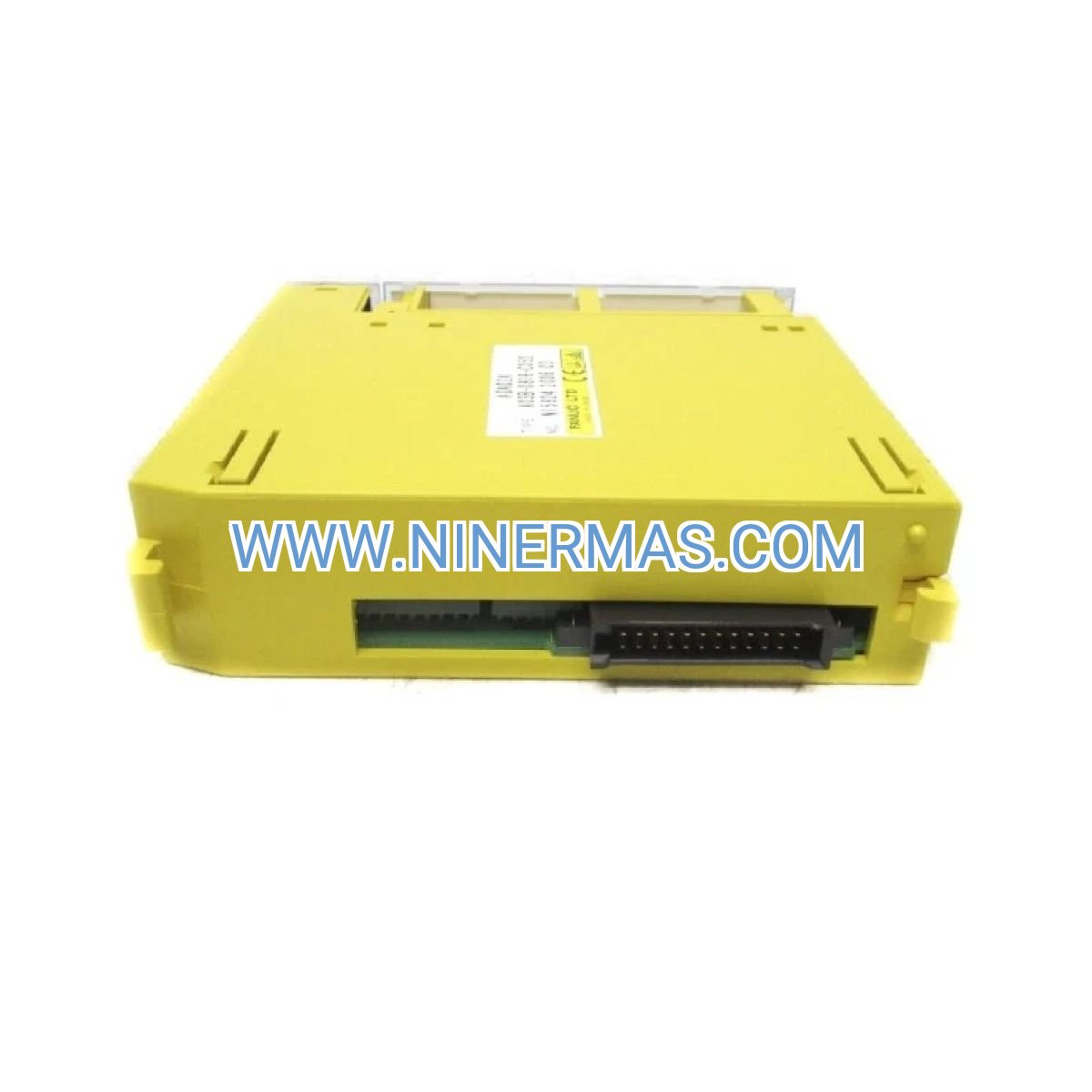

A03B-0819-C052 Analog Output Module (Industrial-Grade Precision Control)

The GE A03B-0819-C052 represents a professional-tier analog output solution engineered specifically for Fanuc CNC control architectures and demanding industrial automation environments. This 4-channel module leverages 12-bit digital-to-analog conversion technology to deliver precise voltage and current signals essential for controlling servo drives, proportional valves, variable frequency drives, and process instrumentation. Designed to withstand harsh manufacturing conditions while maintaining exceptional accuracy, this module serves as a critical interface between digital control logic and analog field devices across machine tool automation, robotics integration, and precision motion control applications.

Core Capabilities & Technical Advantages

→ Multi-Channel Precision Output: Four independent analog channels provide simultaneous control of multiple devices with 12-bit resolution (4096 discrete levels), eliminating visible stepping in servo speed control and proportional valve positioning.

→ Flexible Signal Configuration: Each channel supports both voltage mode (0-10V DC) and current loop mode (4-20mA), allowing mixed-mode operation within a single module to accommodate diverse field device requirements without additional signal conditioning.

→ Superior Measurement Accuracy: Factory-calibrated to ±0.1% full-scale accuracy at 25°C with ±0.05% linearity ensures reliable control of critical process parameters including temperature, pressure, flow rate, and positioning.

→ Rapid Response Performance: 1-millisecond update rate per channel enables real-time control of dynamic processes such as spindle speed regulation, feed rate adjustment, and closed-loop positioning systems.

→ Industrial-Hardened Design: Operates reliably across 0°C to 55°C temperature range with 95% humidity tolerance, featuring 1500V AC channel-to-bus isolation to protect sensitive CNC electronics from electrical noise and ground loop interference.

✓ Broad Platform Compatibility: Seamlessly integrates with Fanuc Series 0i, 15i, 16i, 18i, 21i, 30i, 31i, and 32i CNC control systems through standard I/O rack mounting and PMC ladder logic programming.

Industrial Application Scenarios

CNC Machining Centers – Servo Drive Command Generation:
In precision milling and turning operations, the A03B-0819-C052 generates analog velocity commands for servo amplifiers controlling spindle motors and axis feed drives. The 12-bit resolution ensures smooth acceleration profiles and eliminates mechanical vibration caused by coarse digital steps. Manufacturing facilities report 15-20% improvement in surface finish quality when upgrading from 8-bit to 12-bit analog output modules. The module's fast 1ms update rate maintains tight synchronization in multi-axis contouring operations where coordinated motion is critical.

Hydraulic Press Systems – Proportional Valve Control:
Press brake and stamping operations demand precise hydraulic pressure regulation to achieve consistent bend angles and forming depths. This analog output module drives proportional pressure-reducing valves and flow control valves with stepless resolution, enabling operators to fine-tune tonnage settings within ±0.5% tolerance. The 4-20mA current loop output provides noise immunity over 50-meter cable runs typical in large press installations, while the module's isolation prevents ground-referenced hydraulic sensors from introducing electrical interference into the CNC control system.

Thermal Processing Equipment – Temperature Regulation:
Heat treatment furnaces, plastic extruders, and injection molding machines require stable temperature control to maintain product quality and process repeatability. The A03B-0819-C052 interfaces with SCR power controllers and solid-state relays to modulate heating element power based on PID control algorithms executed in the Fanuc PMC. Users achieve ±1°C temperature stability in 800°C furnace applications by combining this module's accuracy with proper tuning. The current output mode supports long-distance signal transmission to remote heating zones without voltage drop degradation.

Automated Assembly Lines – Variable Speed Drive Control:
Conveyor systems, pick-and-place robots, and material handling equipment utilize variable frequency drives (VFDs) for speed regulation and soft-start functionality. This analog output module provides 0-10V speed reference signals that enable smooth acceleration ramps, preventing product damage during transport and reducing mechanical stress on drive components. Integration with Fanuc robot controllers allows synchronized motion between robotic manipulators and conveyor systems, optimizing cycle time in high-throughput assembly operations.

Quality Inspection Systems – Instrumentation Interface:
Manufacturing quality control stations employ analog outputs to drive chart recorders, panel meters, and data acquisition systems that monitor machine performance metrics. The module outputs real-time signals proportional to cutting force, spindle load, vibration amplitude, and power consumption, enabling predictive maintenance programs and statistical process control. Engineers use these analog signals to establish baseline performance signatures and detect tool wear, bearing degradation, and alignment issues before catastrophic failures occur.

Technical Parameters & Selection Guide

Selection Criteria: Choose voltage output mode (0-10V) for short-distance connections (<10 meters) to high-impedance loads such as servo amplifier analog inputs and VFD speed references. Select current loop mode (4-20mA) for long cable runs (>10 meters), noisy electrical environments, or when interfacing with process instrumentation and distributed control systems. The 12-bit resolution is appropriate for applications requiring better than 0.1% control precision; consider 16-bit modules for ultra-precision applications such as laser power control or analytical instrumentation.

Extended Functionality & Integration Options

IoT Connectivity & Remote Monitoring: When paired with Ethernet-enabled I/O gateways or Fanuc's MT-LINKi interface, analog output values can be monitored and adjusted remotely via SCADA systems, MES platforms, or cloud-based analytics dashboards. This enables predictive maintenance programs that correlate analog output command signals with machine performance metrics to detect degradation trends before failures occur.

Advanced Control Algorithms: The module supports implementation of sophisticated control strategies including cascade control loops, feedforward compensation, and adaptive tuning algorithms executed within the Fanuc PMC ladder logic environment. Engineers can develop custom function blocks that automatically adjust analog outputs based on real-time feedback from sensors, optimizing process efficiency and product quality.

Customization & OEM Integration: For machine builders and system integrators, we offer pre-configured modules with custom calibration tables, application-specific firmware settings, and documentation packages tailored to your equipment specifications. Volume pricing and technical co-development support are available for OEM partnerships requiring hundreds of modules annually.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock modules ship within 24-48 hours via express courier service (DHL, FedEx, UPS) with tracking information provided at dispatch. Typical delivery time to major industrial centers: North America 3-5 business days, Europe 4-6 business days, Asia-Pacific 2-4 business days.

Customized Solutions: Modules requiring special calibration, extended temperature range testing, or custom labeling ship within 5-7 business days following order confirmation and specification approval.

Warranty Coverage: All A03B-0819-C052 modules include a comprehensive 12-month warranty covering manufacturing defects, component failures, and calibration drift under normal operating conditions. Warranty service includes free replacement, return shipping labels, and technical support to minimize downtime.

Technical Support Services: Our application engineering team provides complimentary pre-sales consultation, wiring diagram review, PMC programming examples, and post-installation troubleshooting assistance. Support is available via email, phone, and remote desktop sessions during business hours (GMT+8), with emergency support available for critical production issues.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, PMC programming examples, and calibration certificates. Complete technical manuals, CAD drawings, and compliance documentation are available for download from our technical library.

Frequently Asked Questions

Q: How do I configure each channel for voltage versus current output mode?
A: Output mode configuration is performed through jumper settings on the module circuit board or via PMC parameter settings depending on your Fanuc CNC series. Consult the installation manual for your specific control model, as the configuration method varies between Series 0i (jumper-based) and Series 30i/31i (software-based) platforms. Our technical team can provide step-by-step configuration guidance for your specific application.

Q: What maximum cable distance is supported for 4-20mA current loop outputs?
A: Current loop outputs reliably drive loads up to 1000 meters (3280 feet) using standard 18-22 AWG twisted-pair instrumentation cable with proper shielding and grounding practices. For installations exceeding 500 meters, we recommend using shielded cable with drain wire connected to earth ground at the module end only to minimize electromagnetic interference pickup.

Q: Can this module replace older A03B-0819-C051 or C053 variants in existing systems?
A: The A03B-0819-C052 is electrically and mechanically compatible with C051 and C053 variants, sharing identical backplane pinouts and mounting dimensions. However, verify that your PMC ladder logic addresses match the new module's I/O mapping, as some variants use different base addresses. Contact our technical team with your current module part number and CNC series for compatibility verification.

Q: What calibration procedures are required after installation?
A: The module ships with factory calibration stored in non-volatile memory, providing specified accuracy without field calibration for most applications. If your process requires calibration verification, use a precision digital multimeter (minimum 4.5-digit resolution) to measure output voltage/current while commanding full-scale values via PMC. Calibration adjustment is performed through PMC parameters or DIP switch settings depending on your CNC model. Detailed calibration procedures are included in the technical manual.

Q: Is this module suitable for safety-critical control functions?
A: The A03B-0819-C052 is designed for standard industrial control applications and is not certified for safety-rated functions per ISO 13849 or IEC 62061 standards. For safety-critical analog control such as safe speed monitoring, safe torque-off, or emergency stop interlocks, use dedicated safety-rated analog modules or safety PLCs with certified analog I/O. This module is appropriate for process control, quality monitoring, and productivity optimization functions.

Q: Does the module support hot-swap replacement during operation?
A: No, the A03B-0819-C052 does not support hot-swap functionality. Always power down the I/O rack and disconnect field wiring before installing or removing modules to prevent damage to backplane circuitry, connected field devices, and potential safety hazards. For applications requiring high availability, consider implementing redundant I/O configurations with automatic failover capability.

Request Technical Consultation

Uncertain whether the A03B-0819-C052 meets your specific application requirements? Our application engineering team offers complimentary technical consultations to evaluate your control system architecture, recommend optimal module configurations, and provide integration guidance. Contact us with your project details including CNC model, controlled devices, signal ranges, and environmental conditions for personalized recommendations.
