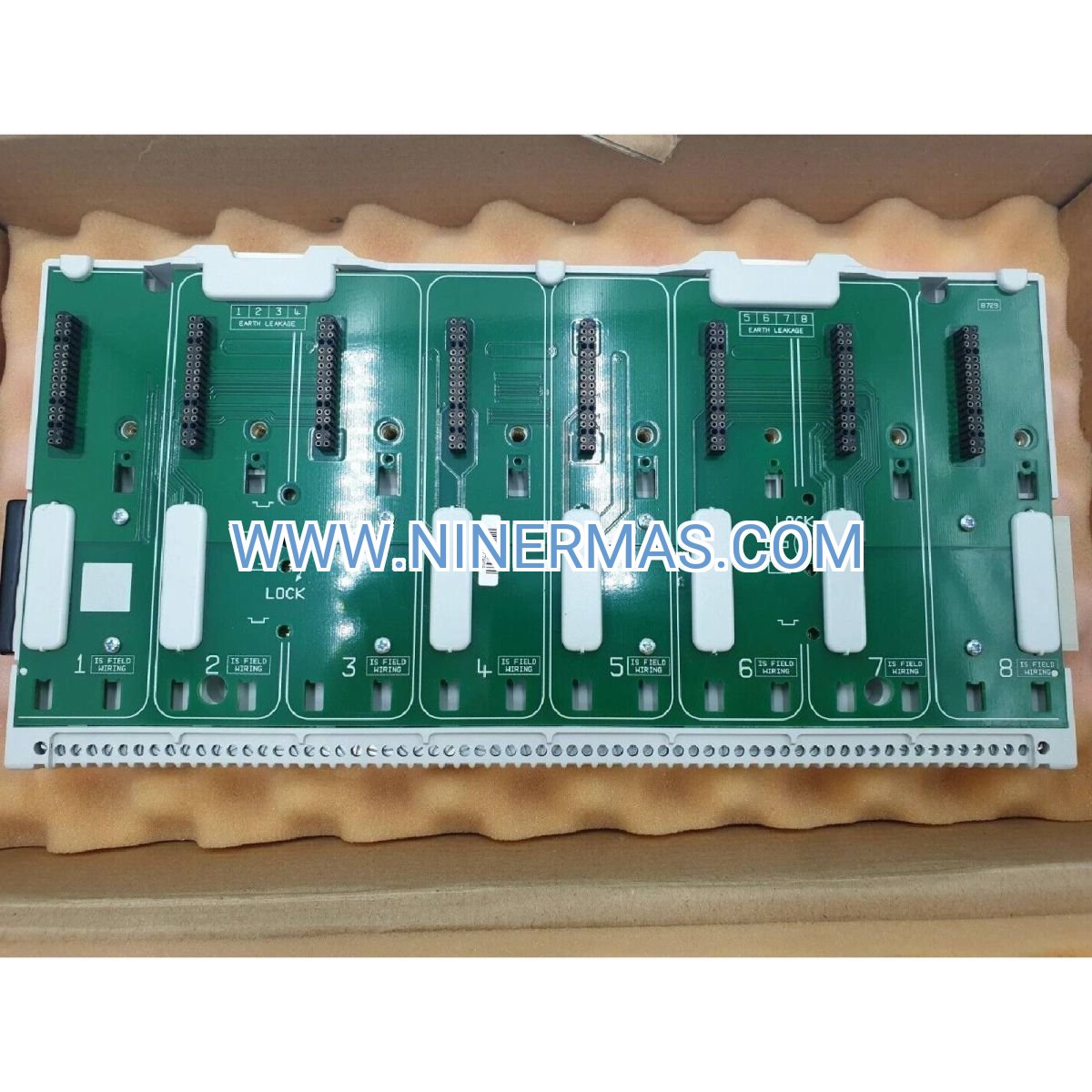

8-Slot Intrinsically Safe I/O Carrier for PAC8000 Distributed Control Systems

The GE 8729-CA-08 is an industrial-grade intrinsically safe carrier engineered for PAC8000 distributed control platforms, delivering reliable I/O expansion through advanced backplane communication and modular architecture. By integrating hot-swappable module technology with redundant power design, this carrier ensures continuous operation in oil & gas facilities, chemical plants, power generation stations, and other process-critical environments where system uptime directly impacts production efficiency and safety compliance.

Designed for installations requiring Class I Division 2 hazardous area certification, the 8729-CA-08 addresses common challenges including explosive atmosphere protection, limited cabinet space, frequent configuration changes, and the need for maintenance without production interruption. It serves design engineers, system integrators, plant maintenance teams, and automation contractors who demand proven reliability in demanding industrial applications.

Through standardized slot configuration and flexible module compatibility, this carrier offers scalable I/O density, simplified wiring architecture, and reduced installation time compared to traditional hardwired solutions. Engineering teams can specify exact I/O configurations, while end users benefit from intuitive module replacement procedures and comprehensive diagnostic capabilities. Contact our application engineers with your process requirements, hazardous area classification, and I/O count for customized system architecture recommendations and competitive quotations.

Core Features & Technical Advantages

Intrinsically Safe Design for Hazardous Locations
Certified for Class I Division 2, Groups A-D environments, this carrier enables safe operation in areas where flammable gases or vapors may be present under abnormal conditions. The intrinsically safe barrier design limits energy levels to prevent ignition sources, meeting stringent safety standards including UL, CSA, ATEX, and IECEx certifications for global deployment.

Hot-Swap Module Replacement Without System Shutdown
Patented hot-swap circuitry allows technicians to install, remove, or replace any I/O module while the system remains energized and operational. This capability eliminates costly production downtime during routine maintenance, module upgrades, or emergency repairs, reducing mean time to repair (MTTR) by up to 75% compared to systems requiring full shutdown.

Redundant Power Architecture for Maximum Uptime
Dual 24V DC power inputs with automatic failover switching ensure continuous carrier operation even during single power supply failure. Independent power monitoring circuits provide early warning of voltage anomalies, while load-sharing algorithms balance current draw across both supplies to extend component lifespan and improve thermal management.

8-Slot Modular Expansion with Mixed I/O Support
Accommodates any combination of digital input, digital output, analog input, analog output, and specialty modules across eight backplane slots. This flexibility enables right-sized system configurations that match exact process requirements without over-provisioning, reducing initial capital costs while preserving future expansion capacity.

Extended Temperature Range for Harsh Environments
Operates reliably across -40°C to +70°C (-40°F to +158°F) ambient temperature range without derating or forced cooling requirements. Conformal-coated circuit boards and sealed connectors provide additional protection against humidity, dust, and corrosive atmospheres common in offshore platforms and heavy industrial facilities.

Comprehensive Diagnostic & Status Indication
Front-panel LED arrays display real-time power status, communication health, and individual module operational states. Integrated diagnostic registers accessible via controller interface enable predictive maintenance strategies by tracking module insertion cycles, power quality metrics, and communication error statistics.

Typical Application Scenarios

This intrinsically safe carrier excels in industrial automation environments demanding certified hazardous area protection, high availability, and flexible I/O architecture:

Offshore Oil & Gas Production Platforms
Deploy in wellhead control panels, separator skid automation, and flare system monitoring where Class I Division 2 certification is mandatory. The carrier's corrosion-resistant construction and extended temperature rating withstand marine environments, while hot-swap capability enables module replacement during continuous production operations without platform shutdown.

Chemical Processing & Petrochemical Refineries
Integrate into reactor control systems, distillation column automation, and batch processing units requiring intrinsically safe I/O in Zone 2 classified areas. Mixed analog and digital I/O configurations support complex process control loops, while redundant power ensures uninterrupted operation during critical batch sequences that cannot tolerate controller failures.

Power Generation & Substation Automation
Implement in turbine control systems, generator protection panels, and switchgear monitoring applications where reliability directly impacts grid stability. The carrier's wide temperature range accommodates outdoor switchyard installations, while diagnostic capabilities support condition-based maintenance programs that reduce unplanned outages.

Water Treatment & Municipal Infrastructure
Utilize in pump station control, chemical dosing systems, and SCADA remote terminal units where long-term reliability and ease of maintenance are paramount. The standardized module interface simplifies spare parts inventory, while hot-swap functionality allows maintenance during off-peak hours without service interruption to critical municipal services.

Mining & Mineral Processing Operations
Apply in conveyor control systems, crusher automation, and flotation circuit monitoring where dusty, high-vibration environments challenge conventional I/O systems. Robust mechanical construction and conformal coating protect against particulate ingress, while modular architecture enables phased system expansion as processing capacity increases.

Technical Specifications & Selection Guide

To facilitate accurate system design and procurement, the following specifications define the carrier's electrical, mechanical, and environmental characteristics. Custom configurations are available to meet specific project requirements.

Selection Considerations & Engineering Guidelines

When specifying the GE 8729-CA-08 carrier for your application, consider the following system design factors to ensure optimal performance and long-term reliability:

I/O Module Selection: Calculate total I/O point requirements including 20% spare capacity for future expansion. Verify that selected module types are compatible with PAC8000 backplane protocol and meet your hazardous area classification requirements. For mixed analog/digital applications, distribute high-speed analog modules across multiple slots to optimize scan time performance.

Power Budget Analysis: Sum the maximum current draw of all installed modules plus carrier base consumption (typically 500mA). Ensure your 24V DC power supply can deliver 150% of calculated load to accommodate inrush currents during hot-swap operations. For redundant power configurations, each supply must independently support full system load.

Environmental Protection: While the carrier is rated IP20, installations in dusty or wet environments require NEMA 4X or IP65-rated enclosures with adequate ventilation. Calculate internal heat dissipation (carrier + modules) and specify forced cooling if ambient temperature exceeds 50°C or enclosure size limits natural convection.

Hazardous Area Compliance: Verify that your installation location's hazardous area classification matches the carrier's Class I Division 2 rating. For Zone 1 or Division 1 applications, consult factory engineering for intrinsically safe barrier configurations or consider alternative carrier models with enhanced certifications.

Communication Architecture: The PAC8000 backplane supports daisy-chain configurations with up to 32 carriers per controller segment. Plan cable routing to minimize electromagnetic interference, maintain maximum 100-meter distances between carriers, and provide proper cable shielding in high-noise industrial environments.

For application-specific selection assistance, please provide our engineering team with: project scope and industry sector, hazardous area classification and zone definitions, total I/O point count by signal type (DI/DO/AI/AO), required scan rate and control loop timing, ambient temperature range and enclosure specifications, power supply voltage and redundancy requirements. Our specialists will recommend optimized carrier configurations, compatible module selections, and complete bill of materials with competitive pricing.

System Integration & Expansion Options

Controller Integration
The 8729-CA-08 carrier connects seamlessly to PAC8000 series controllers via high-speed backplane communication, supporting distributed I/O architectures that scale from small machine control to plant-wide automation systems. Pair with redundant controller configurations for SIL-rated safety applications requiring fault-tolerant operation.

SCADA & HMI Connectivity
Integrate with supervisory control systems through standard industrial protocols including Modbus RTU/TCP, DNP3, and OPC UA. Real-time I/O data, diagnostic information, and alarm status are accessible to operator workstations, enabling centralized monitoring and data logging for compliance reporting and process optimization.

Safety System Architecture
For applications requiring functional safety certification (IEC 61508, IEC 61511), combine this carrier with SIL-rated I/O modules and certified safety controllers to build complete Safety Instrumented Systems (SIS). The carrier's diagnostic capabilities support required proof test procedures and systematic capability verification.

Compact Alternative Solutions
For applications requiring fewer I/O points, consider the 4-slot carrier variant (model 8710-CA-04) which offers identical functionality in a smaller footprint. For high-density installations, the 12-slot extended carrier (model 8740-CA-12) maximizes I/O concentration while maintaining hot-swap capability across all positions.

Frequently Asked Questions (FAQ)

Q: Can I mix different types of I/O modules in the same 8729-CA-08 carrier?
A: Yes, the universal backplane design supports any combination of compatible PAC8000 I/O modules including digital inputs, digital outputs, analog inputs, analog outputs, and specialty modules such as RTD/thermocouple inputs or high-speed counters. Module types can be mixed freely across all eight slots without configuration restrictions.

Q: What is the maximum cable distance between the carrier and the PAC8000 controller?
A: The PAC8000 backplane communication supports distances up to 100 meters (328 feet) using standard shielded twisted-pair cable. For extended distances beyond 100 meters, fiber optic communication modules are available that extend range to 2 kilometers while maintaining full hot-swap and diagnostic capabilities.

Q: How do I perform hot-swap module replacement without causing I/O faults?
A: The carrier's hot-swap circuitry automatically manages module insertion and removal sequences. Before removing a module, place the associated I/O points in a safe state through your controller program. Extract the module using the front-panel release lever, then insert the replacement module firmly until the retention clips engage. The controller automatically detects the new module and resumes normal operation within 2-3 scan cycles.

Q: Is the GE 8729-CA-08 compatible with legacy PAC systems or only PAC8000 series?
A: This carrier is specifically designed for PAC8000 series modules and controllers. It is not backward-compatible with earlier PAC generations due to differences in backplane communication protocols and power distribution architecture. For legacy system integration, consult factory engineering regarding protocol gateway solutions or system migration strategies.

Q: What redundancy options are available for critical applications?
A: The carrier features dual redundant 24V DC power inputs with automatic failover. For complete I/O redundancy, deploy paired carriers with redundant I/O modules connected to redundant controllers. The PAC8000 architecture supports 1oo2 (one-out-of-two) and 2oo3 (two-out-of-three) voting configurations for SIL 2 and SIL 3 safety applications.

Q: Can this carrier be used in outdoor installations or extreme environments?
A: Yes, when installed in appropriate NEMA 4X or IP65-rated enclosures with environmental sealing and temperature management. The carrier's -40°C to +70°C operating range accommodates most outdoor conditions including arctic and desert climates. For marine environments, specify conformal coating options and stainless steel mounting hardware to resist salt spray corrosion.

Q: What diagnostic capabilities does the carrier provide for predictive maintenance?
A: The carrier continuously monitors and logs power supply voltage levels, backplane communication integrity, individual module health status, and insertion/removal event history. These diagnostics are accessible via controller registers and can trigger automated alarms or maintenance notifications when parameters exceed defined thresholds, enabling condition-based maintenance strategies that reduce unplanned downtime.

Delivery, Warranty & Technical Support

Standard stock items ship within 3-5 business days from our regional distribution centers. Custom-configured carriers with pre-installed module assemblies typically require 10-15 business days for factory integration and testing. Expedited shipping options are available for emergency replacement requirements.

Comprehensive 18-month warranty covers all manufacturing defects and component failures under normal operating conditions. Warranty includes free replacement parts, technical support, and return shipping. Extended warranty programs up to 5 years are available for critical infrastructure applications requiring long-term protection.

Technical documentation package includes detailed installation manual, electrical schematics, backplane pinout diagrams, module compatibility matrix, and troubleshooting flowcharts. CAD drawings in DXF and STEP formats are provided for panel layout design. Certified dimensional drawings and material certifications are available upon request for compliance documentation.

Application engineering support is available throughout project lifecycle including pre-sales system architecture consultation, installation guidance, commissioning assistance, and post-installation optimization. Our technical team provides remote diagnostic support and on-site field service (subject to geographic availability and service agreement terms).

Request Custom Configuration & Quotation

To receive detailed selection recommendations, technical specifications, and competitive pricing tailored to your specific application, please provide the following project information:

• Project name and industry sector (oil & gas, chemical, power, water/wastewater, etc.)
• Application description (process control, safety system, SCADA RTU, machine automation)
• Hazardous area classification (Class/Division/Group or Zone/Gas Group)
• Total I/O requirements (quantity of digital inputs, digital outputs, analog inputs, analog outputs)
• Signal specifications (voltage levels, current ranges, sensor types)
• Environmental conditions (ambient temperature range, humidity, enclosure rating)
• Power supply details (available DC voltage, redundancy requirements)
• Quantity required (initial order and estimated annual volume)
• Delivery timeline (project schedule and required ship date)

Our application engineers will respond within 24 business hours with customized system architecture recommendations, complete bill of materials, and competitive quotations. For urgent requirements, contact our technical sales team directly for immediate assistance.
