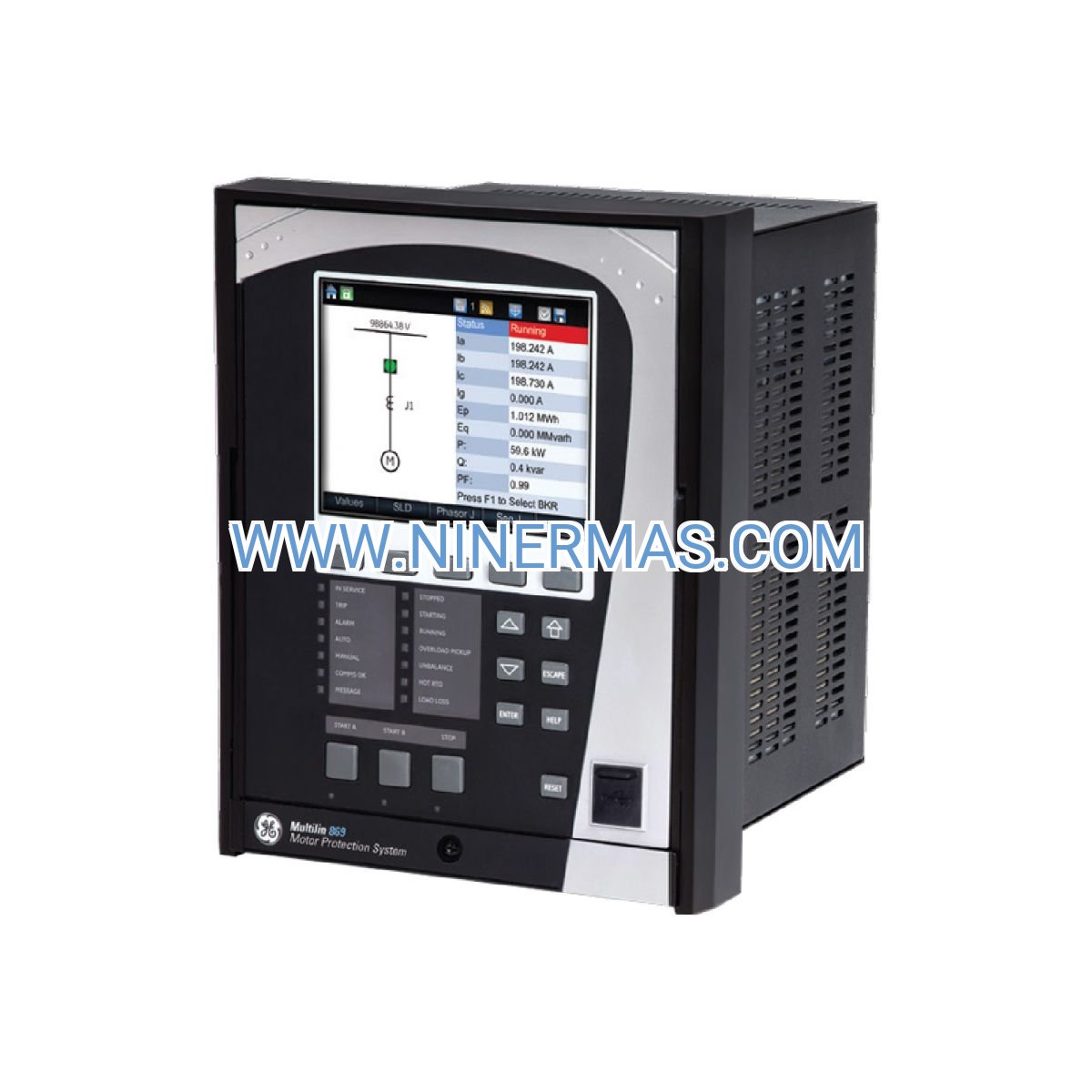

GE Multilin 869-E-P5 Motor Protection Relay (Industrial-Grade Motor Management System)

The GE Multilin 869-E-P5 Motor Protection Relay is an industrial-grade protection device designed for comprehensive motor monitoring and fault prevention in medium to large motor applications. Through advanced thermal modeling algorithms, multi-function protection logic, and real-time diagnostic capabilities, it delivers reliable safeguarding for critical motor assets while minimizing unplanned downtime and maintenance costs.

Ideal for facilities requiring continuous motor operation across manufacturing, petrochemical, water treatment, mining, and power generation sectors, this relay addresses common challenges including thermal overload, phase imbalance, ground faults, locked rotor conditions, and bearing wear. It helps prevent catastrophic motor failures, reduces energy waste from inefficient operation, and eliminates the need for constant manual monitoring through intelligent alarm and trip functions.

Built on GE's proven protection platform with standardized configuration tools and customizable protection settings, the 869-E-P5 Motor Protection Relay offers significant advantages: precision thermal tracking extends motor lifespan by 20-30%, multi-protocol communication enables seamless SCADA integration, comprehensive event logging simplifies troubleshooting, and modular design ensures compatibility with existing motor control centers. Suitable for design engineers, system integrators, maintenance teams, and plant operators seeking reliable motor protection solutions. Contact our application engineers for customized protection schemes and technical specifications.

Core Functions & Advantages

Advanced Thermal Overload Protection
Utilizes sophisticated thermal modeling algorithms that accurately track motor winding temperature based on load current, ambient conditions, and cooling efficiency. Prevents thermal damage while allowing safe short-term overload operation, reducing nuisance trips by up to 40% compared to conventional bimetallic overloads.

Comprehensive Electrical Fault Detection
Monitors phase loss, voltage unbalance, current unbalance, ground fault, and phase reversal conditions in real-time. Multi-stage alarm and trip thresholds provide early warning before critical failures occur, protecting motors valued at $50,000-$500,000+ from catastrophic damage.

Intelligent Starting & Locked Rotor Protection
Differentiates between normal starting inrush and locked rotor conditions using time-current characteristics. Adjustable starting time limits and locked rotor current thresholds accommodate various motor types from standard induction to high-inertia loads, preventing winding burnout during abnormal starting events.

Multi-Protocol Industrial Communication
Supports Modbus RTU, DNP 3.0, and IEC 61850 protocols for integration with Allen-Bradley, Siemens, Schneider Electric, and ABB control systems. Dual communication ports enable redundant network architectures, ensuring continuous monitoring even during network maintenance or failures.

Predictive Maintenance Capabilities
Tracks motor operating hours, start counts, thermal capacity usage, and fault history. Trending data identifies degrading performance patterns weeks before failure, enabling scheduled maintenance during planned outages rather than emergency shutdowns that cost $10,000-$100,000+ per incident.

Intuitive Configuration & Diagnostics
Backlit LCD display with multi-language support (English/Chinese/Spanish) provides clear status indication and alarm information. Front-panel keypad or PC-based software (EnerVista 869 Setup) enables rapid configuration, with typical setup completed in 15-25 minutes including communication parameters.

Typical Application Scenarios

The GE 869-E-P5 Motor Protection Relay excels in demanding industrial environments where motor reliability directly impacts production continuity and safety, particularly in:

Petrochemical & Refining Operations
Protects critical pump motors (crude transfer, product circulation, cooling water), compressor drives, and agitator motors in continuous process units. Prevents unplanned shutdowns that can cost $500,000-$2M+ per day, while ensuring compliance with API 541/API 546 motor protection standards for hazardous area applications.

Water & Wastewater Treatment Facilities
Safeguards high-service pump motors, aeration blower drives, and clarifier mechanisms in municipal and industrial treatment plants. Maintains regulatory compliance for continuous treatment operations, with ground fault protection meeting NEC Article 430 requirements for wet location motor installations.

Mining & Mineral Processing
Monitors conveyor drive motors, crusher motors, grinding mill drives, and slurry pump motors in harsh environments with temperature extremes (-40°C to +70°C operating range). Dust-resistant panel mounting and vibration-resistant construction ensure reliable operation in high-vibration applications.

Manufacturing & Production Lines
Protects injection molding machine motors, extrusion line drives, conveyor systems, and HVAC equipment motors. Integration with plant SCADA systems enables centralized monitoring of 50-500+ motors from a single operator interface, reducing staffing requirements and response time to motor faults.

Power Generation & Cogeneration Plants
Provides protection for auxiliary motors including boiler feed pumps, condensate pumps, cooling tower fans, and fuel handling equipment. IEC 61850 compliance enables integration with modern substation automation systems and compliance with NERC reliability standards.

Technical Parameters & Selection Guide

To facilitate engineering design and product selection, we provide standardized configuration options with extensive customization capabilities for project-specific requirements:

Selection Recommendations:
When selecting the appropriate 869-E-P5 Motor Protection Relay configuration, consider the following critical parameters:

• Motor nameplate data: Full load current (FLA), service factor, starting time, locked rotor current (LRA), and thermal time constant
• Current transformer specifications: Primary/secondary ratio, accuracy class (0.5 or 1.0 recommended), and burden rating
• Control system integration: Required communication protocol (Modbus RTU for legacy systems, IEC 61850 for modern substations)
• Environmental conditions: Ambient temperature range, altitude (derating above 2000m), and enclosure type
• Protection requirements: Ground fault sensitivity (high-resistance grounding systems require 50G/51G functions), RTD inputs for direct winding temperature monitoring

For application assistance, please provide: motor nameplate photo or specifications, single-line electrical diagram, existing protection relay model (if retrofit), and control system communication requirements. Our application engineers will recommend the optimal configuration and provide detailed connection diagrams within 24-48 hours.

Extended Capabilities & System Integration

RTD Temperature Monitoring
Optional RTD (Resistance Temperature Detector) inputs enable direct measurement of motor winding, bearing, or ambient temperatures. When combined with thermal model protection, this dual-layer approach provides the highest level of motor thermal protection, particularly valuable for motors operating in variable ambient conditions or with compromised cooling systems.

Metering & Power Quality Analysis
Built-in metering functions display real-time values for current (per phase and average), voltage (line-to-line and line-to-neutral), power factor, active/reactive power, and energy consumption. Power quality monitoring detects voltage sags, swells, and harmonic distortion that can reduce motor efficiency and lifespan.

Sequential Event Recording
High-resolution event recorder (1ms resolution) captures the sequence of events leading to motor trips, invaluable for troubleshooting intermittent faults, coordination verification, and root cause analysis. Stores up to 512 events with date/time stamps and pre-fault/fault/post-fault current waveforms.

Programmable Logic Functions
Integrated logic engine allows creation of custom protection schemes, interlocks, and control sequences without external PLCs. Examples include pump alternation logic, anti-condensation heater control, and automatic restart after transient faults—reducing system complexity and cost.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard catalog configurations (869-E-P5 with Modbus RTU, 5A CT input, 120V AC control power) typically ship within 3-5 business days from stock. Custom configurations with IEC 61850 communication, special voltage ratings, or additional I/O modules require 2-3 weeks for factory assembly and testing. Expedited processing available for critical outage situations (contact for emergency support).

Warranty Coverage
All GE Multilin 869-E-P5 Motor Protection Relays include a comprehensive 24-month manufacturer warranty covering defects in materials and workmanship. Warranty includes free firmware updates, technical support via phone/email, and advance replacement service (subject to credit approval). Extended warranty programs available for critical applications requiring 5-year coverage.

Commissioning & Technical Support
Remote commissioning assistance provided at no charge, including parameter verification, communication setup, and functional testing guidance via video call. On-site commissioning services available in major industrial regions (quoted separately based on location and scope). All units ship with comprehensive documentation package including:

• Installation & wiring diagrams (AutoCAD DWG format available)
• Quick start guide with typical settings for common motor types
• EnerVista 869 Setup software (Windows-based configuration tool)
• Modbus/DNP3/IEC 61850 register maps and communication setup guides
• Factory test report with calibration certificates (traceable to NIST standards)

Training & Documentation
Complimentary access to GE Digital Energy University online training modules covering 869 relay operation, protection principles, and troubleshooting techniques. On-site training workshops available for facilities deploying multiple units (minimum 5 relays, contact for scheduling and pricing).

Frequently Asked Questions (FAQ)

Q: How does the GE 869-E-P5 motor protection relay differ from thermal overload relays?
A: Unlike simple thermal overload relays that use bimetallic elements or basic I²t calculations, the 869-E-P5 Motor Protection Relay employs sophisticated thermal modeling that accounts for motor cooling characteristics, ambient temperature, service factor, and load history. This results in 30-40% more accurate thermal protection, preventing both nuisance trips during legitimate overloads and allowing safe operation closer to motor thermal limits. Additionally, the 869-E-P5 provides 15+ protection functions beyond thermal (phase loss, ground fault, locked rotor, etc.) that basic overloads cannot detect.

Q: Can the 869-E-P5 protect multiple motors or only single motors?
A: Each 869-E-P5 Motor Protection Relay is designed to protect a single motor. For facilities with multiple motors, we recommend individual relays per motor for optimal protection selectivity and diagnostic capability. However, for non-critical applications with identical motors operating in parallel, a single relay can monitor the combined current—though this approach sacrifices individual motor diagnostics and is not recommended for motors above 200 HP.

Q: What communication protocols does the 869-E-P5 support and can I change protocols later?
A: The relay supports Modbus RTU, DNP 3.0, and IEC 61850 protocols. The communication protocol is hardware-dependent and selected during ordering (via model code suffix). Protocol cannot be changed in the field—if you require multiple protocols or are uncertain about future requirements, consider ordering units with IEC 61850 Ethernet capability, which often supports multiple protocols simultaneously. For existing installations requiring protocol conversion, external gateways are available.

Q: How long does configuration and commissioning typically take?
A: For experienced technicians familiar with motor protection principles, basic configuration using the front panel takes 15-25 minutes per relay (motor parameters, CT/PT ratios, basic protection setpoints). Comprehensive setup including communication configuration, custom logic programming, and integration testing typically requires 1-2 hours. First-time users should allocate 2-4 hours and utilize the EnerVista 869 Setup PC software, which provides guided configuration wizards and parameter validation.

Q: Does the 869-E-P5 require periodic calibration or maintenance?
A: The GE 869-E-P5 Motor Protection Relay uses digital measurement technology with no mechanical components requiring calibration. GE recommends functional verification every 2-3 years (test trip circuits, verify CT inputs, check communication) but does not require routine calibration. The relay performs continuous self-diagnostics and will alarm if internal faults are detected. Battery backup (for real-time clock) should be replaced every 5-7 years if equipped.

Q: Can I retrofit the 869-E-P5 into existing motor control centers with older protection relays?
A: Yes, the 869-E-P5 Motor Protection Relay features a standard 1/4 DIN panel cutout (92mm × 92mm) compatible with most existing motor protection relay installations. The relay accepts standard CT inputs (1A or 5A secondary) and provides Form-C relay contacts for trip/alarm outputs, ensuring compatibility with existing motor starter control circuits. Wiring adapters may be required for some legacy installations—consult factory drawings or contact technical support for retrofit guidance.

Q: What is the difference between the 869-E-P5 and other GE Multilin 869 models?
A: The 869 series offers multiple models with varying I/O configurations, communication options, and protection functions. The "E-P5" designation indicates specific hardware configuration (number of digital inputs/outputs, communication ports, RTD inputs). The full model code (e.g., 869-E-P5-P5-B5-H-SN...) specifies exact configuration details. Contact our application engineers with your protection requirements, and we'll recommend the optimal 869 model variant for your application.

Q: Is remote monitoring and control supported, and what cybersecurity features are included?
A: Yes, the 869-E-P5 Motor Protection Relay supports remote monitoring via Modbus RTU, DNP 3.0, or IEC 61850 protocols, enabling integration with SCADA systems, plant historians, and cloud-based analytics platforms. Cybersecurity features include role-based access control (multiple password levels), event logging of all configuration changes, and support for secure communication protocols when using IEC 61850 over Ethernet. For critical infrastructure applications, deploy relays behind industrial firewalls and implement network segmentation per IEC 62443 guidelines.

Contact for Selection Assistance & Quotation

To receive detailed selection recommendations, pricing quotation, or technical support for your motor protection application, please provide the following information to our engineering team:

• Project overview: Facility type, application description, number of motors requiring protection
• Motor specifications: Nameplate data (HP/kW, voltage, FLA, service factor, starting method), or motor model numbers
• Electrical system: Voltage level, grounding method (solidly grounded, high-resistance grounded, ungrounded), available CT ratios
• Control system integration: Existing SCADA/DCS system, required communication protocol, network architecture
• Environmental conditions: Indoor/outdoor installation, ambient temperature range, altitude, enclosure type (NEMA 1/12/4X)
• Special requirements: Hazardous area classification (if applicable), seismic qualification, specific certifications required

Our application engineers will respond within 24 business hours with customized recommendations, connection diagrams, and detailed quotations. For urgent requirements or emergency replacement situations, contact our technical hotline for immediate assistance.
