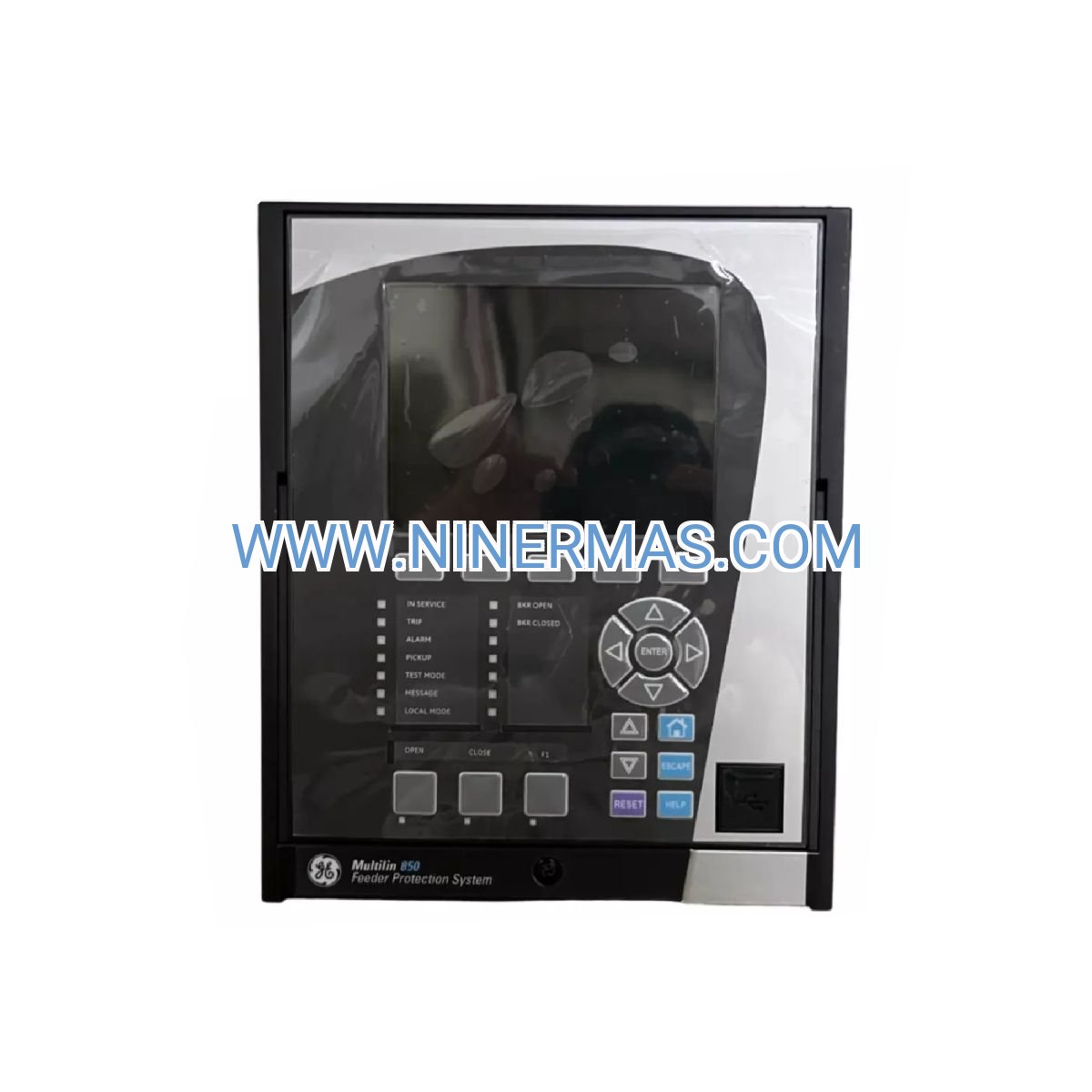

Industrial-Grade Feeder Protection Relay (GE Multilin 850 Series)

Engineered for mission-critical power distribution networks, the GE 850-E-P5-NN-G5-H-N-N-A-A-N-M-M-P-C-B-1E-T-C-N-A delivers comprehensive feeder protection combining advanced overcurrent detection, earth fault monitoring, and real-time voltage surveillance. This relay serves as the backbone of reliable electrical infrastructure in utility substations, manufacturing facilities, and commercial power installations where downtime translates directly to revenue loss.

Built on GE's proven Multilin platform, this protection relay addresses the fundamental challenge facing electrical engineers: maintaining selective coordination while ensuring rapid fault clearing. Whether protecting 4.16kV distribution feeders in industrial plants or 34.5kV circuits in utility networks, the 850 relay provides the intelligence and speed required to minimize equipment damage and maximize system availability.

With integrated communication protocols including IEC 61850, Modbus RTU, and DNP3, this relay seamlessly integrates into modern substation automation architectures while maintaining compatibility with legacy SCADA systems. The result is a future-proof protection solution that evolves with your infrastructure.

Protection Functions & Technical Advantages

→ Multi-Function Protection Architecture
Combines ANSI 50/51 phase overcurrent, 50N/51N ground fault, 27/59 voltage monitoring, 81 frequency protection, and 79 automatic reclosing in a single compact unit, eliminating the need for multiple discrete relays and reducing panel space requirements by up to 60%.

→ High-Speed Fault Detection
Trip decision times as fast as 16 milliseconds significantly reduce arc flash incident energy, protecting personnel and minimizing equipment damage during fault conditions—critical for compliance with NFPA 70E arc flash safety standards.

→ Precision Metering & Power Quality Analysis
Continuous monitoring of voltage, current, real/reactive power, energy consumption, power factor, and harmonic distortion up to the 63rd harmonic provides comprehensive visibility into feeder performance and early warning of developing problems.

→ Advanced Event Recording
Captures detailed fault records with sequence-of-events time-stamped to 1ms resolution and oscillography data for post-incident analysis, accelerating troubleshooting and reducing mean time to repair by 40-50%.

→ Flexible I/O Configuration
8 programmable digital inputs and 6 Form-C relay outputs enable custom control logic, remote trip/close commands, and integration with auxiliary equipment such as circuit breakers, disconnects, and alarm systems.

→ Multi-Protocol Communication
Native support for IEC 61850, Modbus RTU, and DNP3.0 ensures compatibility with virtually any SCADA platform, from legacy systems to cutting-edge substation automation networks, protecting your technology investment.

Application Scenarios Across Industries

Utility Distribution Substations
Electric utilities deploy the GE 850 to protect medium-voltage distribution feeders ranging from 4.16kV to 34.5kV. The relay coordinates with upstream transformer protection and downstream reclosers to provide selective fault isolation, maintaining service to unaffected portions of the network. Integration with IEC 61850-compliant substation automation systems enables centralized monitoring and control across multiple substations, reducing operational costs and improving response times to system disturbances.

Manufacturing & Process Industries
Chemical plants, automotive factories, and food processing facilities rely on the 850 relay to protect critical feeder circuits supplying production lines. Unplanned outages in these environments can cost $50,000-$250,000 per hour in lost production. The relay's advanced metering capabilities detect developing issues such as load imbalance or harmonic distortion before they cause equipment failure, enabling predictive maintenance strategies that reduce unplanned downtime by 30-40%.

Oil, Gas & Mining Operations
Remote extraction and processing facilities face unique challenges including harsh environmental conditions, limited maintenance access, and high reliability requirements. The 850 relay's extended temperature range (-40°C to +70°C) and rugged construction ensure reliable operation in extreme conditions. DNP3 communication enables remote monitoring and configuration, reducing the need for costly site visits while maintaining comprehensive protection coverage.

Commercial Real Estate & Data Centers
Mission-critical facilities such as hospitals, data centers, and financial institutions cannot tolerate power interruptions. The 850 relay's high-speed protection functions minimize fault duration, while detailed power quality monitoring identifies issues such as voltage sags, swells, and harmonic distortion that can damage sensitive electronic equipment. Integration with building management systems provides facility managers with real-time visibility into electrical system performance.

Renewable Energy Installations
Solar farms and wind power facilities utilize the 850 relay for collector feeder protection, safeguarding the circuits that aggregate power from multiple generation sources. The relay's IEC 61850 capability enables seamless integration into multi-vendor protection schemes, while advanced metering functions support revenue-grade energy measurement and power quality compliance with grid interconnection requirements.

Technical Parameters & Selection Criteria

Selection Guidelines: When specifying the GE 850 relay, consider the following factors: (1) System voltage and current levels to ensure proper CT/VT ratios, (2) Required protection functions based on feeder characteristics and coordination requirements, (3) Communication protocol compatibility with existing SCADA infrastructure, (4) Environmental conditions including temperature extremes and exposure to dust/moisture, (5) Future expansion needs for additional I/O or communication capabilities.

Extended Capabilities & System Integration

SCADA Integration & Remote Access
The 850 relay's multi-protocol communication architecture enables seamless integration with supervisory control and data acquisition (SCADA) systems from all major vendors. IEC 61850 support provides object-oriented data modeling and high-speed peer-to-peer communication for advanced substation automation applications including interlocking, automatic transfer schemes, and distributed protection logic.

Cybersecurity Features
Role-based access control, password protection, and event logging provide multiple layers of security to prevent unauthorized configuration changes. Compliance with NERC CIP requirements ensures suitability for critical infrastructure protection applications in utility environments.

Customizable Logic & Control
Integrated programmable logic enables implementation of custom control schemes without external PLCs. Applications include automatic load transfer, generator synchronization interlocking, and complex alarm management—reducing system complexity and improving reliability.

Power Quality Monitoring
Continuous harmonic analysis up to the 63rd harmonic identifies power quality issues caused by non-linear loads such as variable frequency drives, UPS systems, and LED lighting. Early detection of harmonic distortion prevents transformer overheating, capacitor bank failure, and nuisance tripping of sensitive equipment.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 1-2 business days via express courier with full tracking. Typical delivery time to major cities worldwide is 3-7 business days.

Custom Configuration: Factory-configured units with specific protection settings, communication parameters, or special I/O requirements ship within 2-3 weeks from order confirmation.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for critical applications requiring 3-5 year coverage.

Technical Support: Unlimited access to application engineering support for relay selection, protection coordination studies, and commissioning assistance. Remote configuration support available via secure VPN connection.

Documentation Package: Every relay ships with complete technical manuals, quick-start guides, protection setting worksheets, and CAD drawings for panel integration. EnerVista configuration software included at no additional charge.

Frequently Asked Questions

How does the GE 850 relay compare to electromechanical protection devices?
Digital relays like the 850 offer significant advantages over electromechanical devices: (1) Multiple protection functions in a single unit versus separate overcurrent, voltage, and frequency relays, (2) Precise, repeatable settings versus mechanical adjustment drift, (3) Comprehensive metering and event recording versus no data logging capability, (4) Remote monitoring and configuration versus manual site visits, (5) Self-diagnostics and continuous self-testing versus periodic manual testing. Most facilities achieve 50-70% reduction in protection panel space and 40-60% reduction in commissioning time when migrating from electromechanical to digital protection.

What configuration software is required for the 850 relay?
GE's EnerVista Launchpad software suite provides comprehensive configuration, monitoring, and analysis tools for the 850 relay. The software is available as a free download from GE's website and runs on Windows operating systems. EnerVista enables offline relay configuration, real-time metering display, event record retrieval, and oscillography analysis. For large installations with multiple relays, EnerVista UR Setup enables batch configuration and settings management across an entire fleet of devices.

Can the 850 relay interface with legacy RTUs and SCADA systems?
Yes, the 850's Modbus RTU and DNP3.0 protocol support ensures compatibility with virtually all legacy SCADA systems and remote terminal units (RTUs). The relay can simultaneously support multiple communication protocols, enabling gradual migration from legacy systems to modern IEC 61850-based architectures without disrupting existing monitoring and control infrastructure.

What is the typical setting calculation process for feeder protection?
Feeder protection settings require coordination with upstream and downstream protective devices to ensure selective fault isolation. The process involves: (1) Determining maximum load current and minimum fault current levels, (2) Selecting phase overcurrent pickup settings at 125-150% of maximum load, (3) Coordinating time-current curves with upstream transformer protection and downstream reclosers/fuses, (4) Setting ground fault protection based on system grounding method and sensitivity requirements, (5) Configuring voltage and frequency elements based on acceptable operating ranges. GE provides protection coordination software and application engineering support to assist with settings calculations.

Does the relay support automatic reclosing for overhead distribution lines?
Yes, the 850 relay includes ANSI 79 automatic reclosing functionality with configurable shot sequences (up to 4 reclose attempts), dead times, and reset timers. The reclosing function can be supervised by voltage, frequency, and synchronism checks to prevent reclosing into faults or out-of-phase conditions. This capability is essential for overhead distribution systems where 70-80% of faults are temporary and can be cleared by momentary de-energization.

What maintenance is required for the GE 850 relay?
Digital relays require minimal maintenance compared to electromechanical devices. Recommended maintenance includes: (1) Annual verification of protection settings and firmware version, (2) Periodic testing of output contacts and input circuits (typically every 3-5 years), (3) Review of event records and self-diagnostic alarms, (4) Battery replacement for real-time clock backup (every 5-7 years). The relay's continuous self-monitoring detects internal faults and component degradation, alerting operators to potential issues before they impact protection performance.

Request Technical Consultation

Selecting the optimal feeder protection solution requires careful analysis of your specific application requirements, system characteristics, and coordination constraints. Our application engineering team provides complimentary consultation services including:

✓ Protection scheme design and relay selection
✓ Time-current coordination studies
✓ Arc flash hazard analysis and mitigation strategies
✓ Communication architecture planning for SCADA integration
✓ Migration planning from legacy to modern protection systems

Contact our technical team today to discuss your feeder protection requirements and receive a customized solution proposal tailored to your facility's unique needs.
