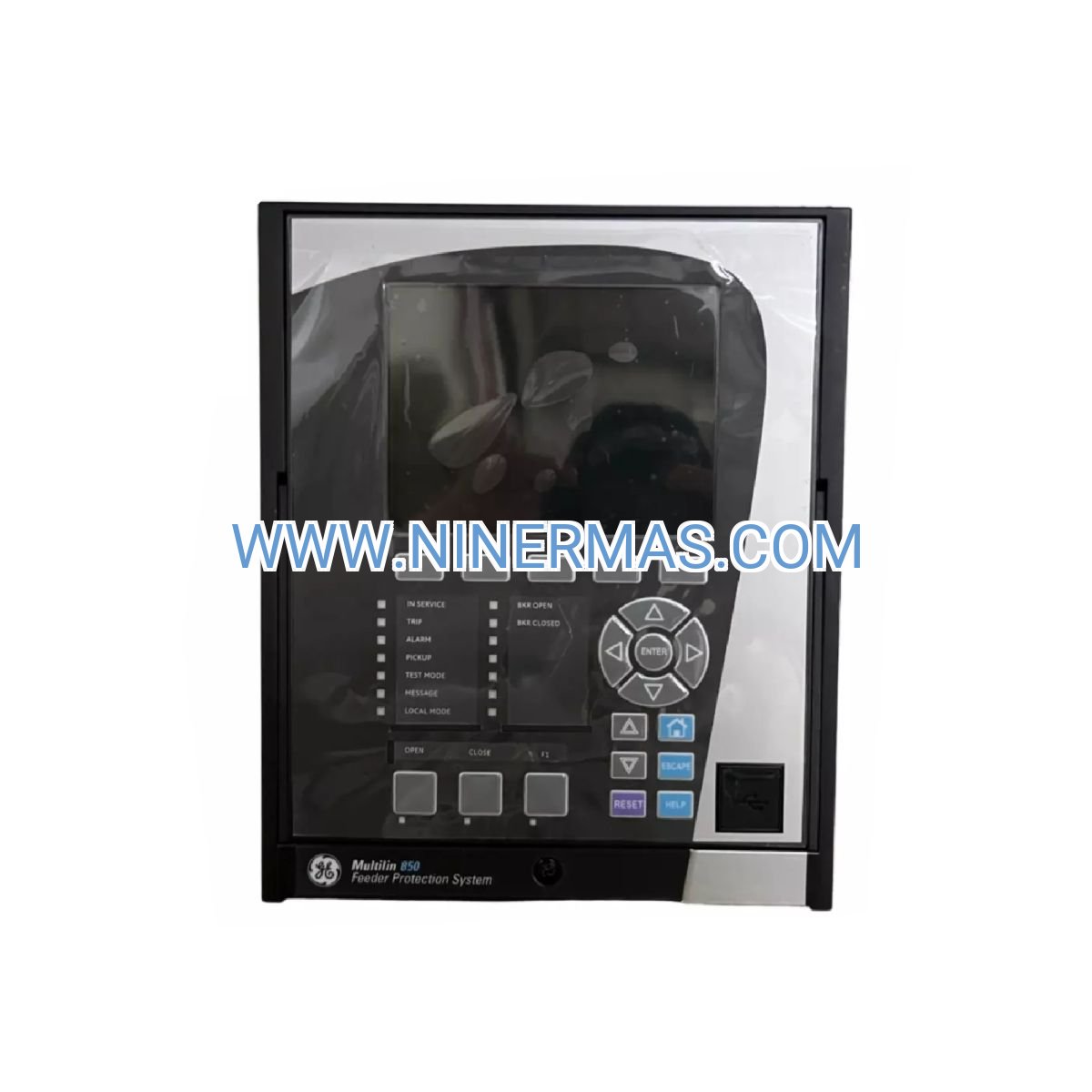

GE Multilin 850 Feeder Protection Relay (Industrial-Grade Distribution Control System)

The GE Multilin 850 Feeder Protection Relay is an industrial-grade microprocessor-based protection and control device designed for comprehensive management of underground and overhead medium-voltage distribution feeders. Through advanced digital protection algorithms, programmable logic control, and multi-protocol communication capabilities, it delivers real-time monitoring, fault detection, and automated switching for critical power distribution infrastructure.

Suitable for utility substations, industrial plants, commercial buildings, mining operations, and renewable energy facilities, this relay addresses common challenges including undetected ground faults, voltage sag events, coordination failures between protective devices, inadequate fault diagnostics, and limited remote monitoring capabilities in legacy systems.

Engineered with standardized configuration templates and field-customizable I/O modules, the 850 series offers rapid commissioning, flexible integration with SCADA systems, comprehensive event recording, and proven reliability in harsh industrial environments. Ideal for protection engineers, system integrators, electrical contractors, and facility maintenance teams. Contact our application engineers for configuration assistance, protection coordination studies, and technical specifications.

Core Functions & Advantages

Comprehensive Multi-Function Protection
Integrates phase and ground overcurrent (50/51), directional overcurrent (67), over/under voltage (27/59), over/under frequency (81), breaker failure (50BF), thermal overload (49), and negative sequence protection in a single platform, eliminating the need for multiple discrete relays and reducing panel space requirements.

Advanced Metering & Power Quality Analysis
Provides high-accuracy measurement of RMS current, voltage, real/reactive/apparent power, energy consumption, power factor, frequency, and harmonic distortion up to the 63rd order, enabling predictive maintenance and power quality troubleshooting without additional instrumentation.

Flexible Communication Architecture
Supports simultaneous Ethernet (Modbus TCP/IP, DNP3.0, IEC 60870-5-104) and RS485 (Modbus RTU, DNP3.0) protocols with dual communication ports, ensuring seamless integration with legacy RTUs, modern SCADA platforms, and IEC 61850-compliant substation automation systems.

Programmable Logic & Automation
Features built-in FlexLogic™ engine with customizable logic equations, timers, and counters, allowing implementation of complex control schemes such as automatic transfer switching, load shedding, capacitor bank control, and interlocking sequences without external PLCs.

Comprehensive Event & Fault Recording
Captures high-resolution oscillography (up to 256 samples per cycle), sequence-of-events recording with 1 ms time-stamping, and data logging of min/max/average values, providing forensic-quality data for post-fault analysis, protection scheme validation, and regulatory compliance reporting.

Robust Design for Harsh Environments
Meets IEC 60255 standards for electromagnetic compatibility, surge withstand, and environmental conditions; operates reliably from -40°C to +60°C with optional conformal coating for high-humidity or corrosive atmospheres, ensuring long-term performance in mining, marine, and heavy industrial applications.

Intuitive Local & Remote Interface
Equipped with backlit LCD display, navigation keypad, and three programmable pushbuttons for local operation; front-panel USB port and web-based HMI enable rapid commissioning, setpoint adjustment, and real-time monitoring without opening the panel door.

Typical Application Scenarios

This relay is engineered for installations requiring high reliability, precise protection coordination, and comprehensive system visibility, particularly in:

Utility Distribution Substations
Protects medium-voltage feeders (4.16 kV to 34.5 kV) in radial and loop distribution networks, coordinating with upstream reclosers and downstream fuses to minimize outage duration and improve service reliability indices (SAIDI/SAIFI). Supports automated fault location and remote sectionalizing for faster restoration.

Industrial Power Distribution Systems
Safeguards critical process feeders in manufacturing plants, refineries, chemical facilities, and data centers where unplanned shutdowns result in production losses or safety hazards. Thermal overload protection prevents motor and transformer damage, while load profiling supports energy management initiatives.

Renewable Energy & Microgrid Applications
Manages bidirectional power flow in solar farms, wind plants, and battery energy storage systems; implements anti-islanding protection, synchronization control, and grid code compliance (IEEE 1547, IEC 61727) for distributed generation interconnections.

Mining & Heavy Industry
Withstands extreme temperature fluctuations, vibration, and electrical noise in underground mines, cement plants, steel mills, and offshore platforms; arc flash detection inputs (optional) enable high-speed tripping to protect personnel and equipment.

Commercial Buildings & Campuses
Provides selective coordination for main-tie-main switchgear configurations, emergency generator paralleling, and automatic transfer schemes in hospitals, universities, airports, and high-rise buildings where code compliance and life safety are paramount.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we offer standardized configurations with field-selectable options. The following table outlines key specifications for model 850-E-P5-NN-G5-H-N-N-A-A-N-A-A-S-F-B-1E-C-N-B-4:

Selection Considerations:
When specifying a relay, consider the following system parameters: nominal voltage and current ratings, CT/PT ratios, available control power voltage, required number of digital inputs and output contacts, communication protocol requirements (SCADA integration), environmental conditions (temperature, humidity, altitude), and panel cutout dimensions. For complex applications involving directional protection, synchrophasor measurement, or IEC 61850 GOOSE messaging, consult with our protection engineers to identify the optimal model variant and firmware version.

Extended Capabilities

Cybersecurity Features: Role-based access control with password protection, event logging of configuration changes, and support for encrypted communication protocols to meet NERC CIP compliance requirements in critical infrastructure applications.

Integration with Asset Management Systems: Exports operational data, maintenance records, and diagnostic alerts in standard formats (COMTRADE, CSV, XML) for integration with enterprise asset management (EAM) and computerized maintenance management systems (CMMS).

Firmware Upgradability: Field-upgradable firmware via USB or Ethernet enables deployment of new protection functions, protocol enhancements, and cybersecurity patches without hardware replacement, protecting long-term investment.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog models ship within 3-5 business days; custom-configured units with specialized I/O modules or firmware require 2-3 weeks for factory programming and testing.

Warranty: Backed by a 2-year manufacturer's warranty covering defects in materials and workmanship; extended warranty and advance replacement programs available for critical applications.

Technical Support: Complimentary pre-sales application engineering assistance including protection coordination studies, settings calculation, and communication architecture design; post-sales support includes remote commissioning guidance, firmware updates, and troubleshooting via phone/email.

Documentation Package: Each relay ships with comprehensive technical documentation including installation manual, settings reference guide, communication protocol implementation guide, AutoCAD panel cutout drawings, and sample logic diagrams to streamline commissioning and reduce installation errors.

Frequently Asked Questions (FAQ)

Q: How does the GE Multilin 850 feeder protection relay integrate with existing SCADA systems?
A: The relay supports industry-standard protocols including Modbus TCP/IP, Modbus RTU, DNP3.0 (Level 2), and IEC 60870-5-104, ensuring compatibility with virtually all SCADA platforms. Dual communication ports allow simultaneous connection to local HMI and remote master station. Protocol mapping tables and sample SCADA point lists are provided in the communication manual to accelerate integration.

Q: What is the maximum number of feeders that can be protected with a single relay?
A: Each 850 relay is designed to protect one three-phase feeder circuit. For multi-feeder applications, deploy one relay per feeder to ensure selective coordination and independent fault clearing. Relays can share common time synchronization (IRIG-B, SNTP) and communicate via peer-to-peer GOOSE messaging for interlocking and transfer schemes.

Q: What energy savings can be achieved, and under what conditions?
A: While the relay itself is a protection device (not an energy-saving device), its comprehensive metering and power quality analysis capabilities enable identification of inefficient loads, power factor issues, and harmonic sources. Customers have reported 5-15% energy cost reductions after implementing corrective actions based on relay data, such as capacitor bank optimization, transformer load balancing, and demand response strategies.

Q: What are the environmental requirements for installation? What is the IP rating?
A: The relay is rated for indoor installation in controlled environments per IEC 60255-27 (Class C). Operating temperature range is -40°C to +60°C; relative humidity up to 95% non-condensing. The front panel meets IP52 (dust protected, drip proof) when properly mounted; rear terminals are IP20. For outdoor or harsh environments, install in NEMA 4X or IP65-rated enclosures with climate control.

Q: Can the relay be remotely monitored and configured? Which protocols are supported?
A: Yes, full remote access is supported via Ethernet using embedded web server (HTTP/HTTPS), EnerVista software over Modbus TCP, or DNP3.0 file transfer. Real-time data, event logs, oscillography files, and setpoint groups can be retrieved remotely. Configuration changes require password authentication and are logged for audit trail. Secure protocols (TLS, SSH) are supported in firmware version 7.x and later.

Q: Is the relay compatible with arc flash detection systems?
A: This specific model (850-E-P5-NN-G5...) does not include arc flash detection inputs (indicated by "NN" in the model code). For arc flash protection, specify model variants with "AF" option, which provide dedicated high-speed optical sensor inputs and sub-cycle tripping capability (<2 ms) to mitigate arc flash hazards in accordance with IEEE 1584 and NFPA 70E standards.

Request Engineering Support

To receive a customized protection scheme design, relay settings calculation, or budget quotation, please provide the following project information: application type (utility/industrial/commercial), system voltage and fault current levels, feeder configuration (radial/loop/networked), CT/PT ratios, desired protection functions, SCADA protocol requirements, and environmental conditions. Our protection engineers will respond within 1 business day with tailored recommendations and technical documentation.
