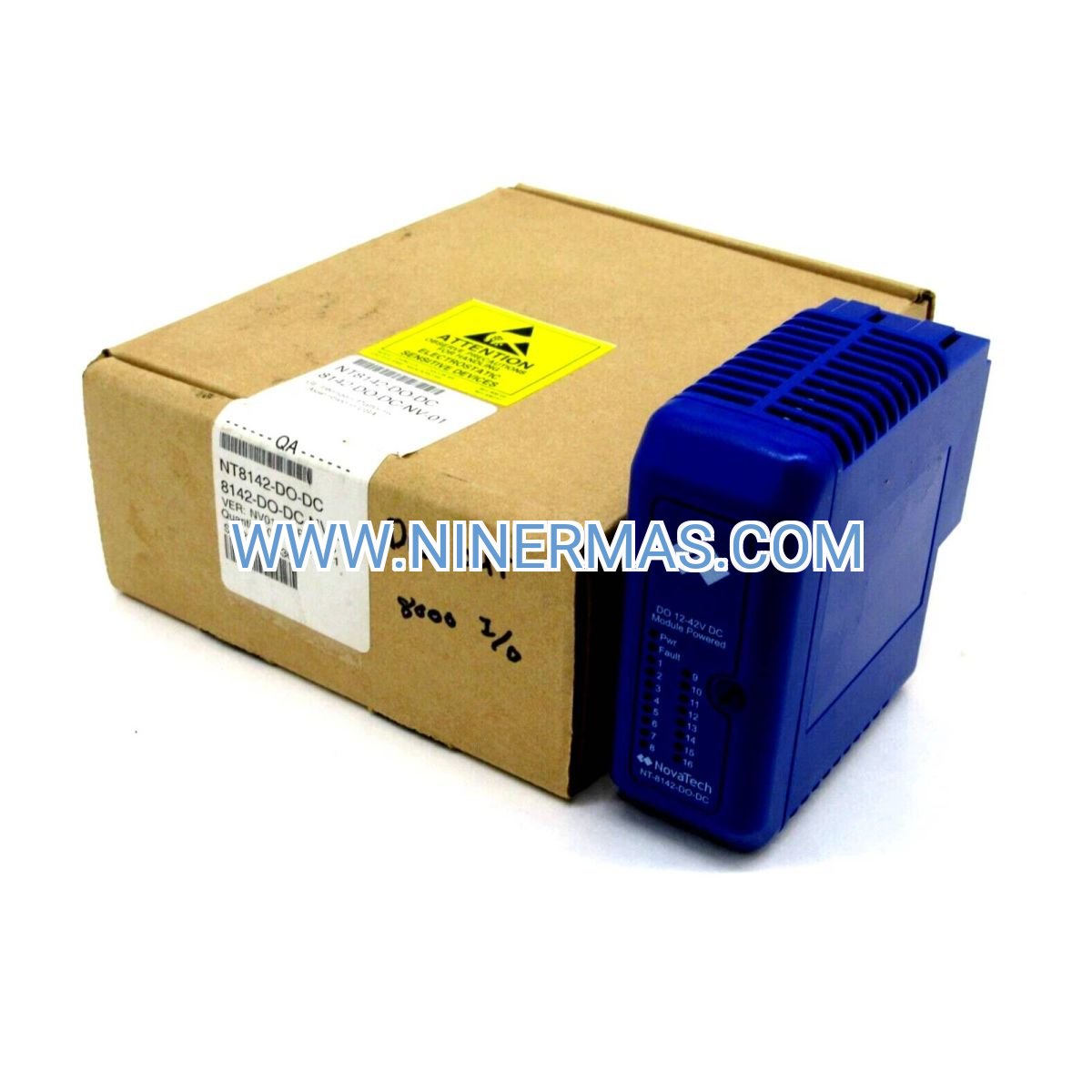

GE 8142-DO-DC Digital Output Module – Industrial-Grade Control for PAC8000 Systems

The GE 8142-DO-DC is a professional 16-channel digital output module engineered for demanding industrial control applications within the PAC8000 distributed control ecosystem. Through isolated DC output architecture and intelligent channel management, this module delivers precise switching control for solenoid valves, motor contactors, indicator panels, and relay-driven field devices across process industries, manufacturing facilities, and critical infrastructure installations.

Designed for integration engineers, system integrators, and plant automation teams managing complex control networks, the 8142-DO-DC addresses common challenges including electrical noise interference, cabinet space constraints, maintenance downtime, and field device protection requirements. Its galvanically isolated output design prevents ground loop formation while maintaining signal integrity in electrically harsh environments.

Built on proven PAC8000 platform standards with hot-swap capability, diagnostic LED arrays, and multi-carrier compatibility, this module combines operational reliability with maintenance flexibility. Engineering teams benefit from reduced commissioning time, simplified troubleshooting workflows, and seamless integration with existing PAC infrastructure. Contact our application engineers for system architecture consultation and technical specification matching.

Core Capabilities & Engineering Advantages

High-Density Output Architecture
Delivers 16 independent switching channels within a single module footprint, optimizing panel real estate utilization and reducing wiring complexity. Each output operates independently with dedicated protection circuitry, enabling mixed-load applications without cross-channel interference.

Comprehensive Electrical Isolation
Galvanic isolation barriers between individual channels and system backplane eliminate ground potential differences and block transient voltage spikes. This protection architecture extends equipment lifespan and maintains control signal accuracy in installations with distributed grounding systems or high electromagnetic interference environments.

Extended Environmental Operating Range
Qualified for continuous operation from -40°C to +70°C ambient temperature, supporting deployment in outdoor enclosures, non-climate-controlled facilities, and extreme-climate regions. Conformal coating and industrial-grade component selection ensure reliable performance across temperature cycling and humidity variations.

Intelligent Fault Management
Integrated short-circuit detection and overload protection on every channel prevents cascading failures and protects downstream field equipment. Real-time diagnostic data transmits through the PAC backplane, enabling predictive maintenance strategies and rapid fault localization.

Hot-Swap Service Capability
Field-replaceable design allows module extraction and installation during live system operation when mounted in compatible carriers. This capability eliminates scheduled downtime for routine maintenance, supports phased system upgrades, and enables rapid response to component failures in 24/7 production environments.

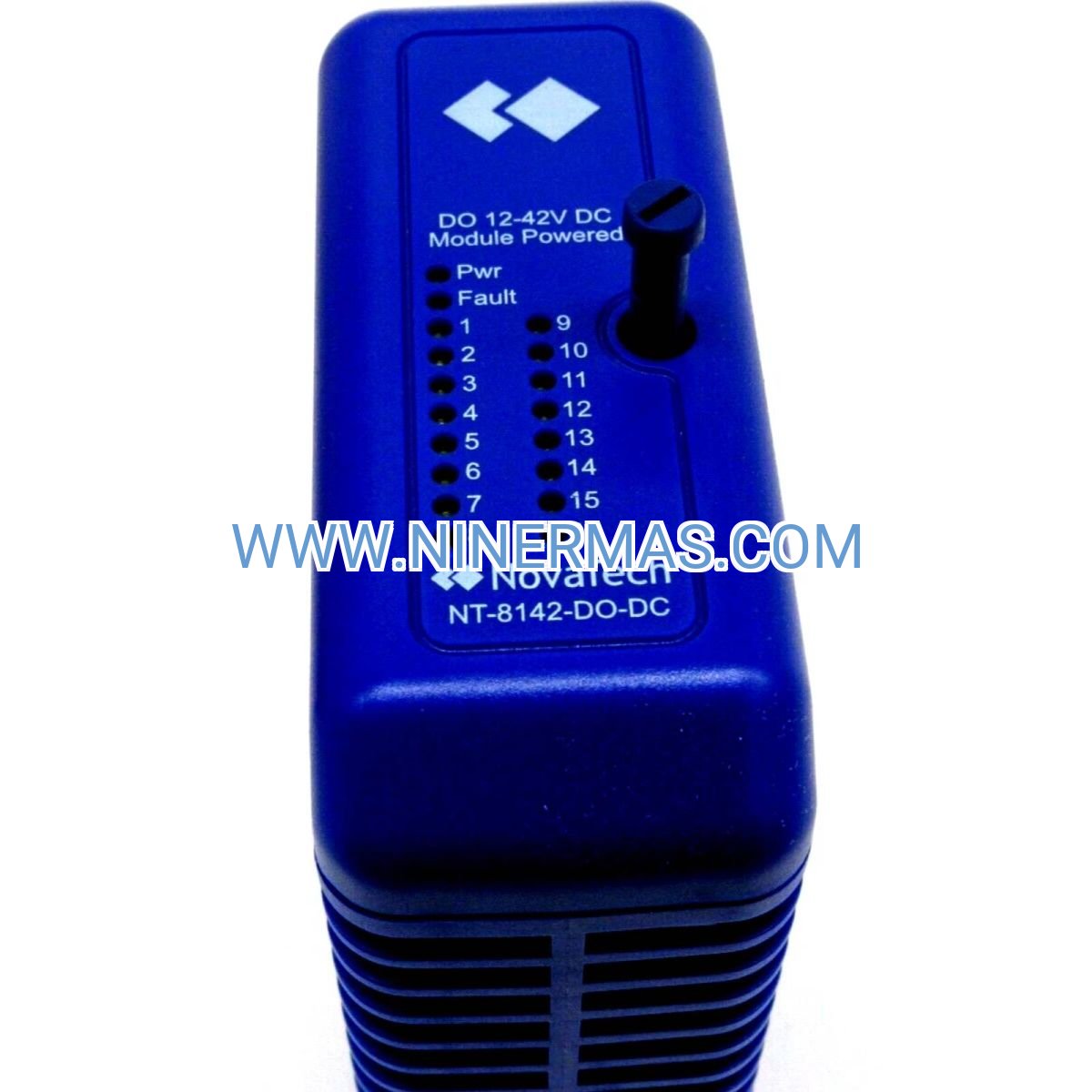

Visual Diagnostic Interface
Dedicated LED indicators for each output channel provide immediate visual confirmation of switching states and fault conditions. Technicians can verify output status without measurement equipment, accelerating commissioning validation and troubleshooting procedures.

Industrial Application Environments

The GE 8142-DO-DC module serves as a critical control interface across multiple industrial sectors requiring reliable digital switching:

Chemical & Petrochemical Processing
Controls pneumatic valve actuators, pump motor starters, and process alarm annunciators in continuous process operations. Isolation protection prevents electrical faults from propagating between hazardous area field devices and control room equipment, supporting compliance with electrical safety standards.

Water & Wastewater Treatment Systems
Manages chemical dosing pump activation, clarifier drive controls, and filtration system sequencing in municipal and industrial treatment facilities. The module's environmental rating supports installation in outdoor pump stations and wet well control panels subject to temperature extremes and humidity exposure.

Power Generation & Substation Automation
Operates circuit breaker trip circuits, switchgear position indicators, and protective relay interfaces in generation plants and electrical distribution substations. Channel isolation meets utility industry requirements for control circuit separation and fault containment.

Manufacturing & Assembly Operations
Drives conveyor system controls, robotic cell interlocks, and material handling equipment in discrete manufacturing environments. High-density I/O configuration reduces panel footprint in space-constrained production areas while supporting complex sequencing logic.

Building Infrastructure & HVAC Systems
Activates damper actuators, fan starter circuits, and lighting control relays in commercial facility automation. Integration with building management protocols enables centralized monitoring and energy optimization strategies.

Technical Specifications & Selection Parameters

Engineering teams should evaluate the following technical characteristics when specifying the 8142-DO-DC for control system designs:

Selection Guidance for System Designers
When configuring PAC8000 I/O architectures, consider total output current requirements across all channels, field device voltage compatibility, and carrier slot availability. For applications requiring more than 16 outputs, multiple 8142-DO-DC modules can be installed across available carrier positions. Field wiring should utilize shielded twisted-pair cable with maximum recommended lengths of 300 meters to maintain signal integrity and noise immunity. Consult with our engineering team to receive customized I/O mapping recommendations and carrier selection guidance based on your specific control point count, environmental conditions, and system redundancy requirements.

System Integration & Configuration Workflow

The 8142-DO-DC module integrates into PAC8000 control architectures through a straightforward installation and commissioning process. Physical installation involves inserting the module into an available slot on a compatible PAC carrier until the backplane connector fully engages. The module automatically receives power and communication from the carrier backplane, eliminating separate power wiring requirements.

Configuration is performed through GE's Control System Toolbox software environment, where engineers define output channel assignments, switching behavior parameters, and fault response actions. The software automatically detects newly installed modules and presents configuration templates specific to the 8142-DO-DC hardware. Output channels can be configured for sinking or sourcing operation to match field device requirements, with individual channel enable/disable control for commissioning flexibility.

Field wiring terminates at removable screw-terminal blocks, allowing pre-wiring of terminal assemblies before module installation. Each output provides dedicated common and switched terminals, supporting both individual return wiring and grouped common configurations. Terminal block labeling corresponds to software channel numbering, simplifying installation verification and reducing wiring errors.

Diagnostic capabilities include real-time monitoring of output states, load current measurement, and fault condition reporting through the PAC system interface. Maintenance personnel can force individual outputs on or off for testing purposes without modifying control logic, facilitating commissioning validation and troubleshooting procedures.

Frequently Asked Questions

Q: Can the GE 8142-DO-DC module interface with 12V DC field devices?
A: While the module is optimized for 24V DC nominal operation, it can control 12V devices when supplied with appropriate field power. However, verify that the reduced voltage falls within the module's 18-30V operating range specification, or use external voltage conversion for 12V applications.

Q: What is the maximum switching frequency for the digital outputs?
A: The module supports switching frequencies up to 10 Hz per channel under typical load conditions. For high-frequency pulse applications or PWM control, consult technical specifications for duty cycle limitations and thermal derating requirements.

Q: Is the 8142-DO-DC suitable for direct motor starter coil control?
A: Yes, the module can directly drive motor starter coils and contactor coils rated within the 0.5A per channel current limit. For inductive loads, ensure proper suppression components (flyback diodes or RC snubbers) are installed at the load to protect output transistors from voltage transients.

Q: How do I determine carrier compatibility for my existing PAC8000 system?
A: The 8142-DO-DC is compatible with all standard PAC8000 carrier models including 4-slot, 8-slot, and intrinsically safe variants. Verify available slot positions and backplane voltage compatibility through your system documentation, or contact our technical support team with your carrier model number for confirmation.

Q: What diagnostic information is available when an output fault occurs?
A: The module reports short-circuit conditions, overload states, and open-load detection (when enabled) through both local LED indicators and system-level diagnostic messages. Fault data includes affected channel identification, fault type classification, and timestamp information for maintenance logging.

Q: Can I mix the 8142-DO-DC with other I/O module types on the same carrier?
A: Yes, PAC8000 carriers support heterogeneous module configurations, allowing digital input, analog I/O, and specialty modules to coexist with digital output modules. The system automatically recognizes each module type and allocates appropriate backplane resources.

Delivery, Technical Support & Quality Assurance

Product Availability & Lead Times
Standard catalog items typically ship within 3-5 business days from order confirmation. For quantity orders exceeding 10 units or projects requiring specific firmware revisions, delivery timelines extend to 2-3 weeks. Expedited shipping options are available for critical replacement scenarios and emergency outage situations.

Warranty Coverage
All GE 8142-DO-DC modules include a comprehensive 12-month manufacturer warranty covering material defects, component failures, and workmanship issues under normal operating conditions. Warranty service includes advance replacement options to minimize system downtime, with return shipping provided for defective units.

Technical Documentation Package
Each module ships with complete technical documentation including installation quick-start guide, detailed user manual, electrical connection diagrams, and configuration software references. CAD drawings in multiple formats (DWG, PDF) are available for panel design integration, and certified dimensional drawings support compliance documentation requirements.

Engineering Support Services
Our application engineering team provides pre-sales consultation for system architecture design, I/O point optimization, and carrier selection guidance. Post-installation support includes configuration assistance, troubleshooting consultation, and integration guidance for complex control strategies. Remote diagnostic support and on-site commissioning services are available based on project scope and geographic location.

Quality Certifications
All products undergo factory acceptance testing including output current verification, isolation voltage testing, and environmental stress screening. Traceability documentation and certificates of conformity are available upon request for projects requiring quality system compliance or regulatory submissions.

Common Technical Questions

Q: How does the 8142-DO-DC digital output module integrate with PAC8000 control logic?
A: Output channels are mapped to controller memory addresses during system configuration, allowing direct control from ladder logic, function block diagrams, or structured text programs. The Control System Toolbox automatically generates I/O mapping tables and provides symbolic naming for intuitive programming.

Q: What cable specifications are recommended for field wiring connections?
A: Use 18-22 AWG stranded copper wire with 300V minimum insulation rating. For installations in electrically noisy environments or cable runs exceeding 50 meters, specify shielded twisted-pair cable with shield grounded at the control panel end only to prevent ground loop formation.

Q: Can the module operate in hazardous area classifications?
A: When installed in GE's intrinsically safe carrier models (such as the 8729-CA-08), the 8142-DO-DC can be deployed in Class I Division 2 / Zone 2 hazardous locations. For Division 1 / Zone 1 applications, consult factory application engineering for barrier interface requirements and certification documentation.

Q: What is the expected service life of the output switching components?
A: Solid-state output transistors provide mechanical-wear-free operation with expected lifetimes exceeding 100,000 operating hours under rated load conditions. Actual service life varies based on switching frequency, load characteristics, and ambient temperature exposure.

Q: How do I obtain replacement terminal blocks for field wiring modifications?
A: Removable terminal blocks are available as separate spare parts using GE part numbering. Contact our parts department with your module serial number to ensure terminal block compatibility, or reference the module user manual for specific terminal block part numbers.

Q: Is firmware updating required for the 8142-DO-DC module?
A: The module contains embedded firmware that is field-upgradable through the PAC system backplane. Firmware updates are released periodically to address functional enhancements or compatibility improvements. Current firmware versions and update procedures are available through GE's technical support portal.

Request Technical Consultation & Quotation

For detailed system design assistance, application-specific configuration guidance, or project quotations, please provide our engineering team with the following information:

• Project name and application industry sector
• Total digital output point count and load type distribution (resistive, inductive, lamp loads)
• Field device voltage and current specifications
• Existing PAC8000 carrier model numbers and available slot positions
• Environmental conditions (temperature range, enclosure type, hazardous area classification if applicable)
• Required delivery timeline and installation support needs

Our application specialists will respond within one business day with tailored recommendations, system architecture diagrams, and comprehensive pricing including volume discounts for multi-module orders.
