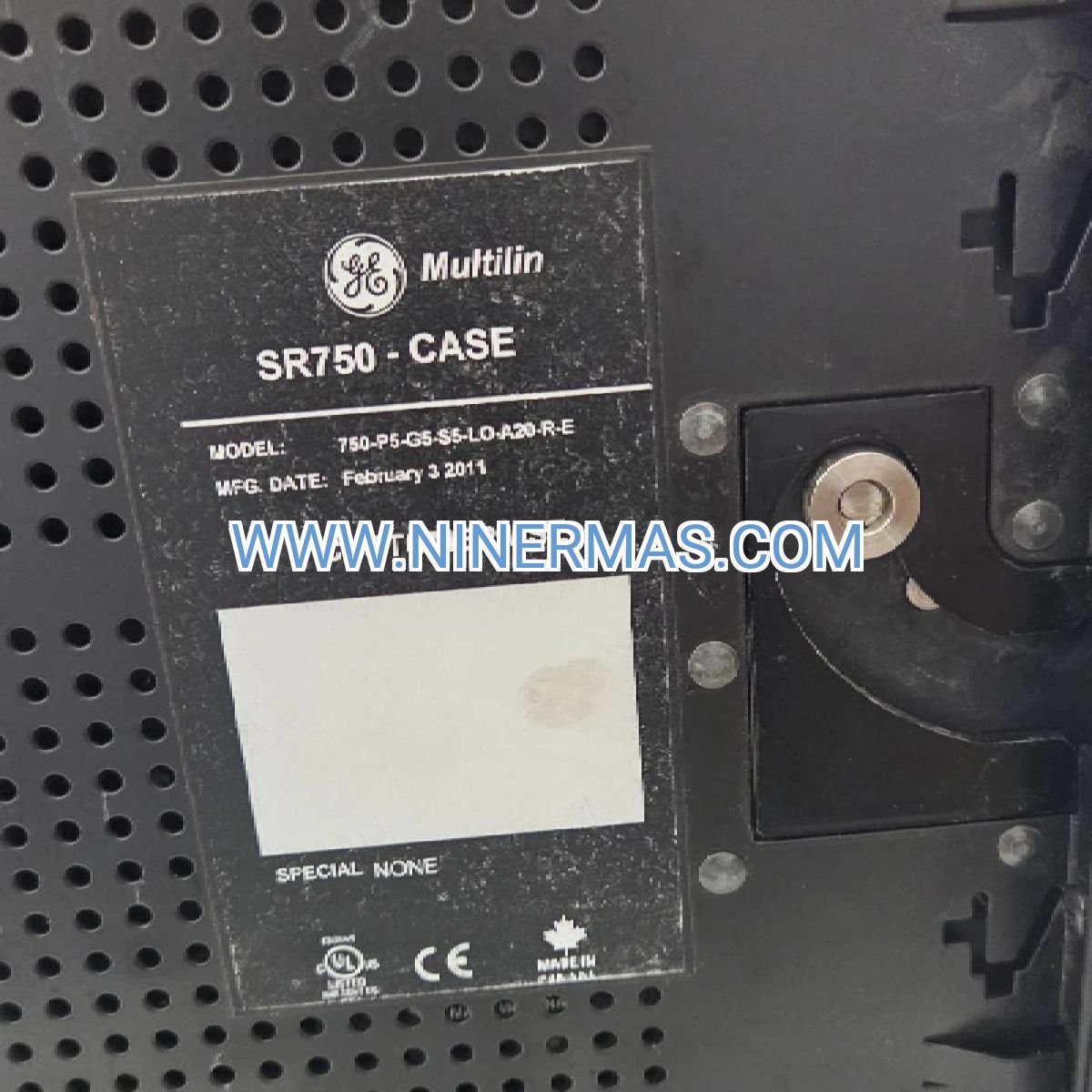

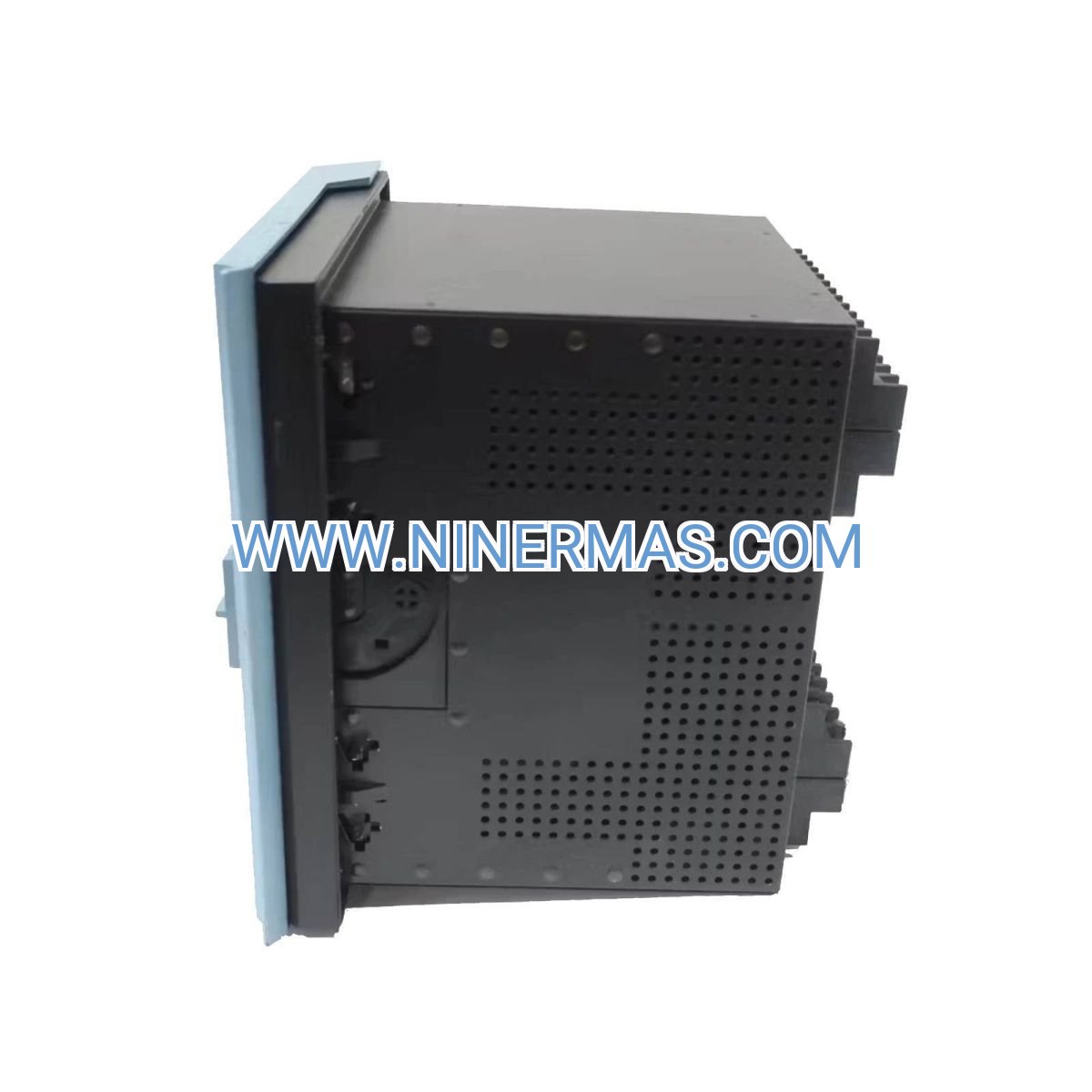

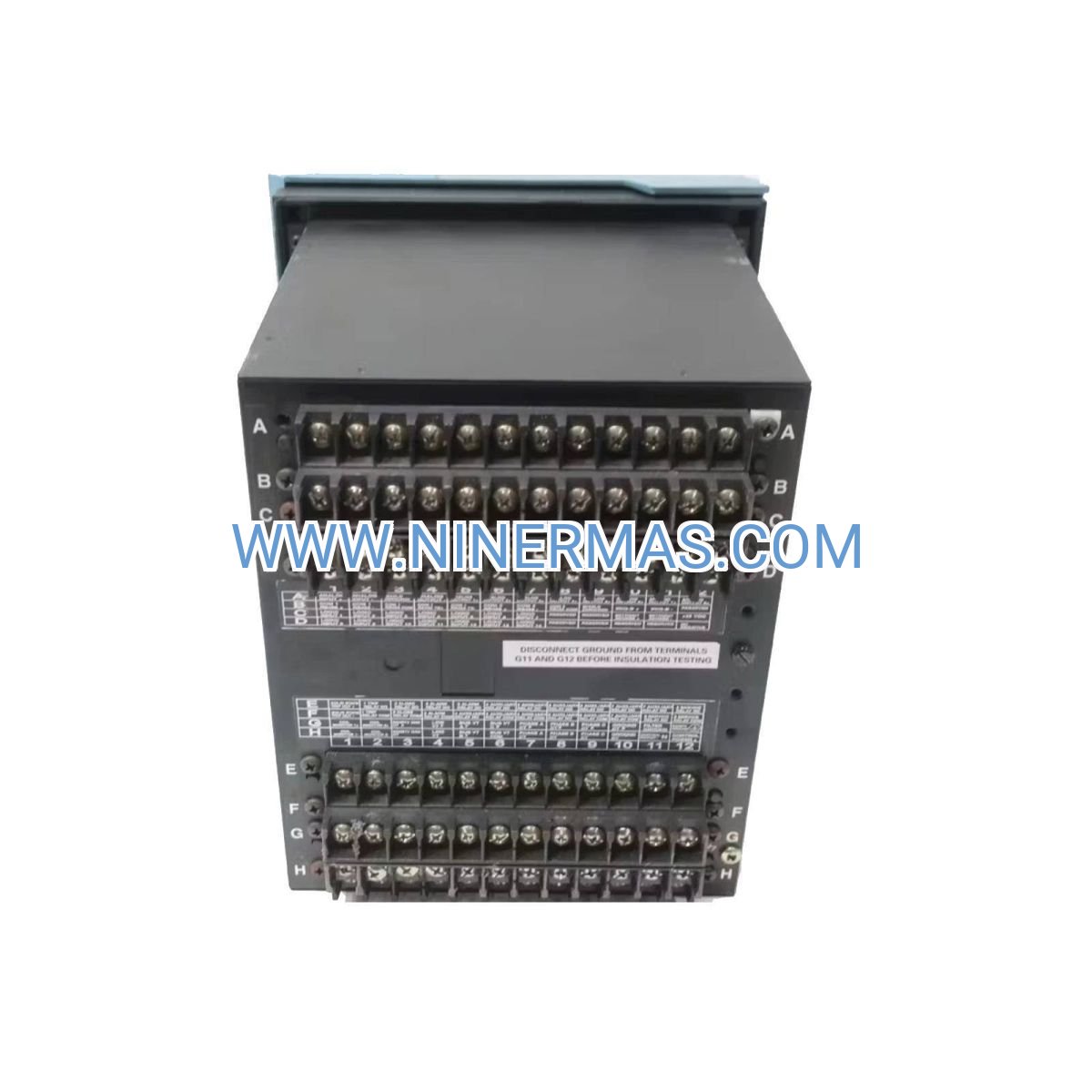

GE 750 Feeder Protection Relay – Industrial-Grade Power Distribution Control System

The GE 750-P5-G5-S5-LO-A20-R-E Feeder Protection Relay is an industrial-grade protective device engineered for medium-voltage feeder circuits in utility substations, manufacturing plants, and commercial power distribution networks. Through integrated overcurrent detection, directional sensitivity, and real-time metering, this relay delivers comprehensive fault isolation, system monitoring, and automated control—reducing downtime, preventing equipment damage, and ensuring continuous power availability.

Designed for electrical engineers, system integrators, and facility managers, the GE 750 relay addresses critical challenges including delayed fault response, inadequate protection coordination, limited visibility into power quality events, and complex integration with legacy SCADA infrastructure. Its modular architecture supports both standalone operation and networked deployment across multi-feeder distribution systems.

Built on proven GE Multilin technology with field-tested reliability across thousands of installations worldwide, this relay combines standardized protection functions with flexible configuration options. Whether you're upgrading aging electromechanical relays, designing new substations, or implementing IEC 61850-compliant automation schemes, the GE 750 provides the performance, accuracy, and interoperability required for mission-critical power systems. Contact our application engineers for customized protection coordination studies and system integration guidance.

Core Functions & Technical Advantages

Multi-Element Overcurrent Protection
Integrates phase overcurrent (ANSI 50/51), ground fault (50N/51N), and negative sequence (46) protection elements with independent pickup settings, time-delay curves (IEC/IEEE standard curves plus user-defined), and directional control. This eliminates nuisance tripping while ensuring selective coordination with upstream and downstream protective devices, maintaining service continuity during transient faults.

Precision Power Metering & Monitoring
Embedded metering functions track three-phase voltage, current, real/reactive/apparent power, power factor, frequency, and energy consumption with ±0.5% accuracy class. Continuous monitoring enables predictive maintenance, load profiling, and power quality analysis—helping identify harmonic distortion, voltage sags, and unbalanced loading before they cause equipment failures.

High-Speed Fault Recording & Event Analysis
Captures fault waveforms, sequence-of-events records, and disturbance data with sub-cycle resolution and GPS time synchronization capability. Post-fault analysis tools accelerate root-cause investigation, support protection setting validation, and provide forensic evidence for insurance claims and regulatory compliance reporting.

Flexible Communication & SCADA Integration
Standard RS485 serial port supports Modbus RTU protocol for integration with existing control systems. Optional Ethernet modules enable Modbus TCP, DNP3.0, and IEC 61850 MMS communication, facilitating remote monitoring, automated reporting, and coordinated control schemes across distributed substations.

Programmable Logic & Automation Control
Built-in logic engine with 128 programmable equations allows custom protection schemes, automatic transfer switching, load shedding sequences, and interlocking functions—reducing panel space, wiring complexity, and the need for external PLCs or auxiliary relays.

Rugged Industrial Construction
Operates reliably in harsh environments from -40°C to +85°C with immunity to electrical noise, vibration, and humidity. Conformal-coated circuit boards, sealed front panel (IP52 rating), and surge-withstand capability (IEEE C37.90.1) ensure long-term performance in demanding industrial and utility applications.

Typical Application Scenarios

The GE 750-P5-G5-S5-LO-A20-R-E relay is engineered for applications demanding high reliability, precise protection coordination, and comprehensive system visibility:

Utility Substation Feeder Protection
Provides primary or backup protection for radial and loop distribution feeders serving residential, commercial, and industrial loads. Directional overcurrent elements enable selective fault isolation in networked systems, while communication capabilities support centralized monitoring and automated fault location identification across multiple substations.

Industrial Plant Power Distribution
Protects main and tie feeders in manufacturing facilities, chemical plants, refineries, and mining operations where process continuity is critical. Integrates with motor protection relays, transformer differential relays, and arc flash detection systems to create coordinated protection architectures that minimize arc flash incident energy and comply with NFPA 70E requirements.

Commercial Building & Campus Distribution
Secures medium-voltage feeders in hospitals, data centers, universities, and large commercial complexes requiring 99.99%+ power availability. Metering functions support energy management initiatives, tenant billing, and demand response programs, while event recording aids troubleshooting of power quality complaints.

Renewable Energy & Microgrid Systems
Manages bidirectional power flow in solar farms, wind installations, and battery energy storage systems connected to utility grids or operating in islanded mode. Directional protection elements adapt to changing power flow patterns, while communication protocols enable coordination with inverter controls and energy management systems.

Infrastructure & Transportation Networks
Protects feeder circuits in railway traction power systems, airport ground power distribution, seaport crane electrification, and water/wastewater treatment facilities where equipment damage or service interruption carries high economic and safety consequences.

Technical Parameters & Selection Guide

To ensure optimal protection performance and system compatibility, the GE 750 relay offers configurable parameters across multiple dimensions:

Selection Recommendations
When specifying the GE 750 relay for your application, consider these key factors: maximum fault current levels (to verify CT adequacy and relay withstand capability), required protection coordination with upstream breakers and downstream devices, communication protocol compatibility with existing SCADA/DCS systems, environmental conditions (temperature extremes, altitude, pollution levels), and available panel space for mounting and wiring access. For complex applications involving multiple feeders, transformer banks, or generator interconnections, our protection engineers can perform coordination studies using ETAP, SKM PowerTools, or ASPEN OneLiner software to validate settings and ensure selective operation under all fault scenarios. Submit your single-line diagram, equipment ratings, and CT/PT ratios for a customized relay configuration proposal.

Advanced Integration Capabilities

Substation Automation & IEC 61850 Compliance
Optional Ethernet communication modules transform the GE 750 into an IEC 61850-compliant intelligent electronic device (IED) supporting GOOSE messaging for peer-to-peer interlocking, MMS client/server for SCADA integration, and sampled values for process bus architectures. This enables advanced applications including adaptive protection schemes, wide-area monitoring, and coordinated automatic reclosing across multiple substations.

Cybersecurity & Access Control
Multi-level password protection, encrypted communication options, and audit logging features help comply with NERC CIP requirements for critical infrastructure protection. Role-based access control restricts configuration changes to authorized personnel while allowing operators read-only access to metering and status information.

Firmware Upgrades & Lifecycle Support
Field-upgradable firmware via front USB port or network download ensures long-term compatibility with evolving communication standards and protection algorithms. GE Multilin provides ongoing technical support, replacement parts availability, and migration paths to next-generation relay platforms—protecting your capital investment over 20+ year equipment lifecycles.

Delivery, Commissioning & Technical Support

Lead Time & Availability
Standard catalog configurations ship within 3-5 business days from regional distribution centers. Custom-configured relays with specific firmware versions, communication modules, or factory testing typically require 2-3 weeks. Expedited processing available for emergency replacements and critical project deadlines.

Warranty Coverage
All GE 750 relays include a comprehensive 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs and advance replacement services available for mission-critical installations requiring maximum uptime assurance.

Commissioning & Training Services
Our field service engineers provide on-site commissioning support including CT polarity verification, protection setting validation, secondary injection testing, and SCADA communication checkout. Customized training programs cover relay operation, troubleshooting procedures, and protection coordination principles—delivered at your facility or our regional training centers.

Technical Documentation Package
Each relay ships with complete instruction manual, quick-start guide, electrical connection diagrams, Modbus register maps, and IEC 61850 ICD files. CAD drawings (DWG/DXF formats), relay setting calculation spreadsheets, and protection coordination templates available for download from our technical support portal.

Frequently Asked Questions

Q: What communication protocols does the GE 750-P5-G5-S5-LO-A20-R-E support for SCADA integration?
A: The standard configuration includes RS485 serial communication with Modbus RTU protocol at baud rates up to 38.4 kbps. Optional Ethernet modules add support for Modbus TCP, DNP3.0 (Level 2), and IEC 61850 Edition 1/2 with MMS and GOOSE services. Protocol selection is configured via relay settings without hardware changes.

Q: Can this relay provide both phase and ground fault protection with independent settings?
A: Yes, the GE 750 includes separate protection elements for phase overcurrent (ANSI 50/51) and ground fault (50N/51N) with independent pickup thresholds, time-delay characteristics, and curve types. You can configure instantaneous-only, time-delayed-only, or combined instantaneous + time-delayed protection for each element. Ground fault detection supports residual current calculation or dedicated ground CT input.

Q: How does directional overcurrent protection work in loop or networked distribution systems?
A: Directional elements use voltage and current phase angle relationships to determine fault direction. The relay compares measured power flow direction against configured forward/reverse thresholds and blocks tripping for reverse faults. This enables selective coordination in ring bus, parallel feeder, and spot network configurations where fault current can flow from multiple sources. Proper voltage transformer connections and polarization settings are critical for reliable directional operation.

Q: What is the difference between the GE 750 and GE SR750 relay models?
A: The 750 series represents the enhanced platform with expanded metering accuracy (0.5% vs 1.0% class), additional programmable logic capacity (128 vs 64 equations), faster sampling rates for improved transient detection, and support for IEC 61850 communication. The SR750 is the legacy model suitable for basic feeder protection applications without advanced automation requirements. Both share similar protection algorithms and panel dimensions for retrofit compatibility.

Q: Is the relay suitable for generator or transformer protection applications?
A: While primarily optimized for feeder circuits, the GE 750 can provide backup overcurrent protection for small generators (under 5 MVA) or distribution transformers when combined with dedicated protection relays. For primary generator protection requiring reverse power (32), loss-of-field (40), or differential (87G) elements, specify GE G60 or G30 generator relays. For transformer applications needing differential, restricted earth fault, or through-fault protection, use GE T60 or 745/750 transformer relays.

Q: Does the relay include arc flash reduction features to comply with NFPA 70E?
A: The GE 750 supports arc flash mitigation through high-speed instantaneous overcurrent elements (50/50N) with pickup settings as low as 0.5× CT rating and operating times under 50 milliseconds. When coordinated with arc-resistant switchgear or light-based arc flash detection systems, the relay can initiate rapid fault clearing to reduce incident energy levels. For comprehensive arc flash risk assessment, use relay time-current curves in arc flash calculation software (SKM, ETAP, EasyPower) to determine PPE categories and equipment labeling requirements per IEEE 1584 standards.

Q: Can I retrofit this relay into existing panels designed for electromechanical relays?
A: Yes, the GE 750 uses a standard 1/4 DIN panel cutout (138mm × 152mm) compatible with most legacy relay panels. Adapter plates are available for larger cutouts. The universal control voltage input (90-300V AC/DC) eliminates the need for separate auxiliary transformers in many retrofits. However, verify that existing CT and PT circuits meet relay burden requirements and that output contact ratings match connected trip coil and alarm circuits.

Request Technical Consultation & Quotation

To receive a customized protection coordination study, relay configuration proposal, or project quotation, please provide the following information to our application engineering team:

• Project name and location (for applicable standards and delivery logistics)
• Single-line diagram showing feeder configuration, transformer ratings, and fault current levels
• Current transformer (CT) and potential transformer (PT) ratios
• Upstream and downstream protective device characteristics (breaker ratings, fuse curves, existing relay settings)
• Required communication protocols and SCADA system details
• Environmental conditions (indoor/outdoor, temperature range, altitude, pollution level)
• Quantity required and desired delivery schedule

Our protection specialists will respond within 24 hours with technical recommendations, coordination study results, and commercial pricing. For urgent inquiries or emergency replacement requirements, contact our technical support hotline for immediate assistance.
