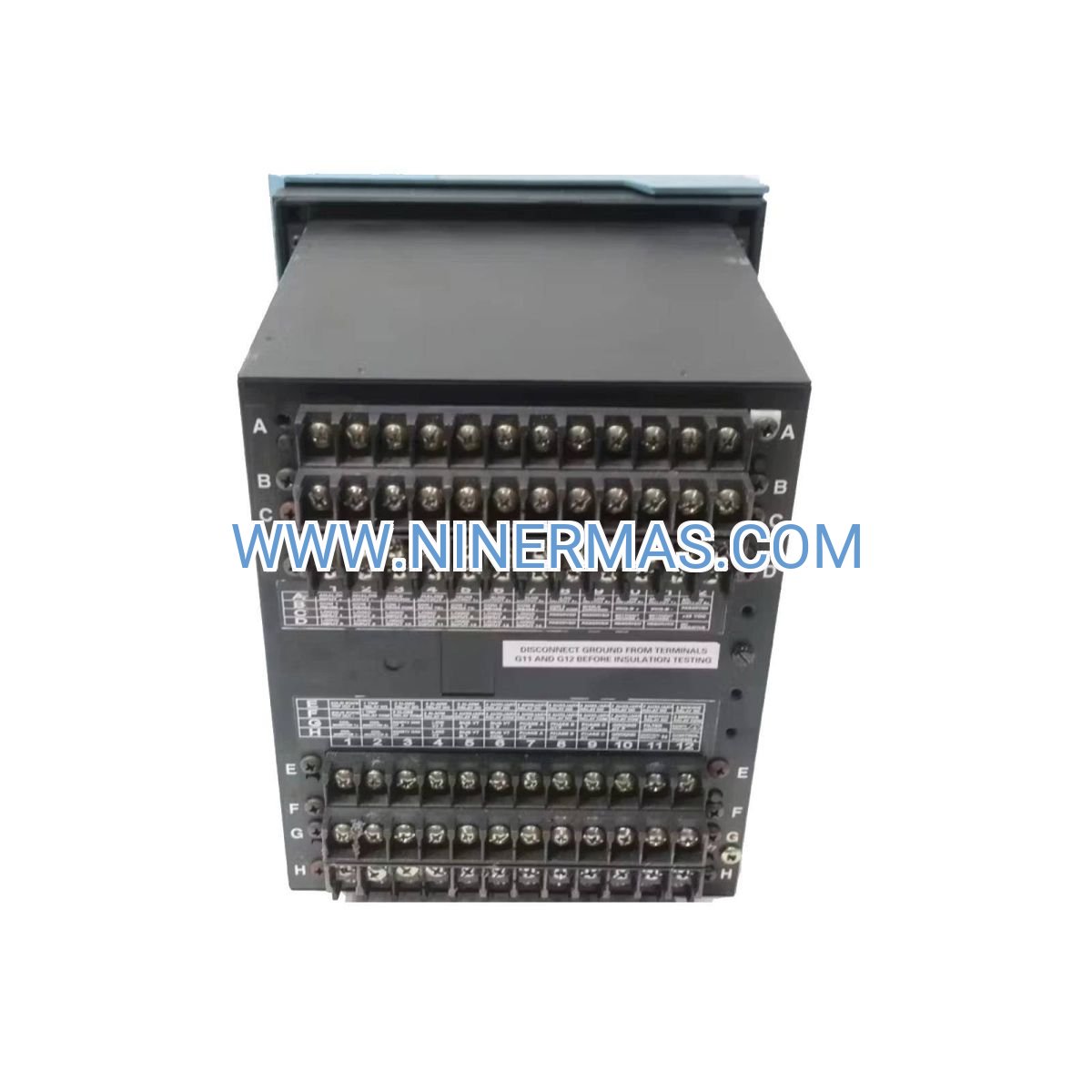

GE 750 Feeder Management Relay – Industrial-Grade Overcurrent Protection & Power Monitoring System

The GE 750-P5-G5-S5-HI-A20-R-T-H is a professional feeder management relay designed for comprehensive electrical distribution protection in industrial, utility, and commercial power systems. Through advanced digital protection algorithms, programmable logic control, and multi-protocol communication, this relay delivers precise overcurrent detection, directional fault discrimination, and real-time power quality monitoring to safeguard critical electrical infrastructure.

Ideal for substations, manufacturing plants, data centers, and renewable energy facilities, the GE 750 relay addresses common challenges including pressure fluctuations in power distribution, high energy consumption from uncoordinated protection schemes, excessive manual monitoring requirements, and delayed fault alarm response. With standardized design and customizable configuration options, this relay is suitable for design institutes, engineering contractors, system integrators, and end-user industrial facilities. Contact our engineers for application-specific selection guidance and quotations.

Core Functions & Advantages

Intelligent Overcurrent Protection
Employs time-overcurrent (TOC), instantaneous overcurrent (IOC), and ground fault protection with closed-loop monitoring via current transformers. Real-time adjustment of protection curves maintains system stability while reducing equipment stress and nuisance tripping.

Significant Energy Optimization
Compared to conventional electromechanical relays, the GE 750 enables coordinated protection schemes that reduce arc flash incident energy by up to 40%, lowering operational costs and improving personnel safety in continuously operating distribution systems.

Multi-Feeder Coordination & Backup
Supports selective coordination with upstream and downstream protective devices, automatic load transfer on fault conditions, and backup protection activation. Extends equipment service life and enhances overall system reliability.

Comprehensive Protection Suite
Integrated safeguards include phase overcurrent, ground overcurrent, undervoltage, overvoltage, underfrequency, overfrequency, reverse power, and phase unbalance protection—minimizing downtime and maintenance expenses.

Intuitive Human-Machine Interface
Features a 40-character backlit LCD display with bilingual menu navigation (English/Chinese configurable via EnerVista software). Operating status, metering values, and fault diagnostics are clearly presented for rapid troubleshooting.

Typical Application Scenarios

This relay is engineered for power distribution systems requiring high pressure stability, supply continuity, and adaptive protection coordination, particularly in:

Manufacturing Facilities & Industrial Plants
Protects main distribution feeders supplying production lines, process equipment, and motor control centers. Resolves issues of inconsistent voltage regulation, excessive fault clearing times, and inadequate backup protection. Suitable for automotive, pharmaceutical, food processing, and heavy manufacturing sectors.

Utility Substations & Secondary Distribution
Adapts to fluctuating grid conditions through programmable protection curves and directional elements. Reduces mechanical stress on switchgear and circuit breakers while improving service reliability for residential and commercial customers. Applicable to municipal power networks, rural electrification projects, and urban distribution substations.

Data Centers & Mission-Critical Facilities
Ensures stable operating voltage for IT infrastructure, HVAC systems, and uninterruptible power supplies. Minimizes risk of cascading failures through selective tripping and rapid fault isolation. Ideal for colocation facilities, telecommunications hubs, financial data centers, and healthcare institutions.

Renewable Energy & Hybrid Power Systems
Monitors and protects solar inverter feeders, wind turbine circuits, and battery energy storage systems with adaptive settings for bidirectional power flow. Coordinates with generator protection relays and power conversion equipment in microgrids, solar farms, and wind parks.

Oil, Gas & Petrochemical Operations
Delivers robust protection in hazardous environments with extended temperature ratings (-40°C to +85°C) and optional conformal coating. Coordinates with motor protection relays for comprehensive pump-feeder protection in upstream extraction, midstream processing, and downstream refining facilities.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment selection, we provide standardized electrical ratings, I/O configurations, and communication options. Custom configurations are available based on project-specific requirements.

Selection Recommendations: When specifying the GE 750 relay, consider maximum/minimum load current, system voltage level, required protection functions, available CT/PT ratios, existing SCADA infrastructure, panel space constraints, and environmental conditions. For application assistance, provide system one-line diagram, short-circuit study results, coordination study requirements, and communication network architecture. Our engineering team will recommend optimal configuration and provide detailed connection drawings.

Advanced Configuration & Integration Capabilities

Programmable Logic Engine
Built-in logic processor supports custom automation sequences using Boolean equations, timers, and counters. Create interlocking schemes, automatic transfer sequences, load shedding programs, and demand response strategies without external PLCs.

Power Quality Monitoring
Continuous tracking of total harmonic distortion (THD), individual harmonic components up to 31st order, voltage sags/swells, and transient events. Data logging enables predictive maintenance and compliance with IEEE 519 power quality standards.

SCADA Integration
Seamless connectivity to supervisory control systems via Modbus RTU or DNP 3.0 protocols. Supports remote setpoint adjustment, real-time metering data retrieval, event log download, and waveform capture transfer for centralized monitoring and analysis.

Cybersecurity Features
Multi-level password protection, role-based access control, and audit trail logging ensure secure configuration management and prevent unauthorized modifications in critical infrastructure applications.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog models ship within 3-5 business days from stock. Custom-configured units with specialized I/O, communication modules, or conformal coating require 2-3 weeks for factory programming and testing.

Warranty Coverage: All GE 750 relays include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs up to 36 months are available for mission-critical applications.

Technical Support: Our application engineers provide pre-sales consultation, protection coordination studies, relay setting calculations, and commissioning assistance. Remote configuration support and on-site startup services are available based on project location and scope.

Documentation Package: Each relay ships with complete technical documentation including installation manual, operation guide, protection settings worksheet, communication protocol reference, electrical connection diagrams, and dimensional drawings. EnerVista 750 Setup software is available for free download from GE Digital Energy's support portal.

Compliance Certification: Factory-tested to IEC 60255-27 (product safety), IEC 61000-4 (EMC immunity), IEEE C37.90 (surge withstand), and UL 508 (industrial control equipment). Test reports and certificates of conformity provided upon request.

Frequently Asked Questions (FAQ)

Q: How does the GE 750 feeder management relay integrate with existing switchgear and circuit breakers?
A: The relay connects via industry-standard current transformers (1A or 5A secondary) and voltage transformers (phase-to-phase or phase-to-neutral). Trip output contacts interface directly with circuit breaker trip coils (shunt or undervoltage types). Digital inputs monitor breaker auxiliary contacts (52a/52b), disconnect switch position, and external alarm signals. Detailed wiring diagrams are provided in the installation manual for common breaker manufacturers including ABB, Schneider Electric, Siemens, and Eaton.

Q: What is the maximum number of feeders that can be monitored with a single relay?
A: The GE 750 is designed as a single-feeder protection device with three-phase current and voltage monitoring. For multi-feeder applications, deploy one relay per feeder with coordinated settings. For centralized monitoring of multiple feeders, integrate relays into a SCADA system via Modbus RTU or DNP 3.0 communication networks.

Q: What energy savings can be achieved compared to electromechanical relays?
A: While the relay itself consumes minimal power (typically <10W), the primary energy benefit comes from optimized protection coordination that reduces arc flash incident energy, minimizes equipment damage during faults, and enables faster restoration of service. Coordinated protection schemes can reduce arc flash hazard categories by 1-2 levels, lowering PPE requirements and improving worker safety. Quantitative savings depend on system configuration, fault current levels, and coordination study results.

Q: What are the environmental requirements for installation? What is the enclosure protection rating?
A: The relay operates reliably in ambient temperatures from -40°C to +85°C with relative humidity up to 95% non-condensing. Standard enclosure rating is IP20 (front panel) and IP10 (rear terminals), suitable for indoor switchgear and control panel mounting. For harsh environments, specify conformal coating option (suffix -C) for enhanced moisture and contaminant resistance. Altitude rating is up to 2000m without derating; consult factory for high-altitude applications.

Q: Does the relay support remote monitoring and data acquisition? Which communication protocols are compatible?
A: Yes, the GE 750 features dual serial communication ports supporting Modbus RTU (RS-485) and DNP 3.0 protocols. Baud rates are configurable from 300 to 19,200 bps with selectable parity and stop bits. The relay can function as a Modbus slave or DNP 3.0 outstation, providing real-time metering data, protection status, event logs, and waveform records to SCADA master stations. Ethernet communication is available via optional communication gateway modules for IEC 61850 or Modbus TCP/IP networks.

Q: Can protection settings be modified remotely, or must changes be made locally?
A: Protection settings can be modified through three methods: (1) Front-panel LCD interface using navigation keys, (2) Local PC connection via RS-232 port using EnerVista 750 Setup software, or (3) Remote access through Modbus RTU or DNP 3.0 communication with appropriate security credentials. For critical applications, we recommend implementing password protection and change logging to maintain configuration integrity and audit compliance.

Q: What accessories are required for complete installation?
A: Essential accessories include panel-mount bezel kit (for flush mounting), CT shorting terminal blocks (to prevent dangerous open-circuit voltages), communication cables (shielded twisted-pair for RS-485), and appropriate fuses or circuit breakers for control power supply. Optional accessories include rack-mount adapter kits, rear-panel terminal covers, communication protocol converters, and test plug assemblies for relay testing without disconnecting field wiring.

Request Technical Consultation & Quotation

To receive detailed application engineering support, customized protection coordination studies, and competitive pricing for your project, please provide the following information to our technical sales team:

• Project name and application type (substation, industrial plant, data center, etc.)
• System voltage level and fault current magnitude
• Number of feeders requiring protection and their rated current
• Current transformer (CT) and potential transformer (PT) ratios
• Required communication protocol and SCADA system compatibility
• Environmental conditions (temperature range, altitude, humidity)
• Delivery timeline and quantity requirements

Our protection relay specialists will provide one-on-one consultation, recommend optimal relay configuration, prepare protection setting calculations, and deliver comprehensive technical proposals within 24-48 hours.
