GE 745-W2-WP5-G5-HI Multilin Transformer Protection Relay - Advanced Two-Winding Differential Protection System

The GE 745-W2-WP5-G5-HI Transformer Protection Relay delivers comprehensive protection and monitoring for two-winding power transformers in utility substations, industrial facilities, and power generation plants. This microprocessor-based relay from the renowned GE Multilin 745 series combines differential protection, overcurrent protection, thermal overload monitoring, and advanced diagnostics in a single, compact device engineered for mission-critical power system applications.

Technical Specifications

Advanced Protection Features

• Percentage Differential Protection (87T): High-speed transformer differential with second and fifth harmonic restraint to prevent false tripping during inrush conditions
• Restricted Earth Fault (REF): Sensitive ground fault detection for winding protection
• Overcurrent Protection (50/51): Phase and ground instantaneous and time-delayed overcurrent elements
• Thermal Overload Protection (49): Real-time thermal model prevents insulation degradation from sustained overloads
• Voltage Protection (27/59): Under-voltage and over-voltage monitoring with programmable time delays
• Frequency Protection (81): Under-frequency and over-frequency detection
• Breaker Failure Protection (50BF): Backup protection for circuit breaker failure scenarios
• Load Tap Changer Monitoring: Integrated LTC supervision and control capabilities

Application Scenarios

Utility Substation Transformers: The 745-W2-WP5-G5-HI excels in protecting distribution and transmission transformers ranging from 5MVA to 100MVA. Deploy alongside GE T60 Multilin transformer protection relays for comprehensive substation automation or integrate with GE 745-W2-P5-G5-HI relays in multi-transformer installations.

Industrial Power Distribution: Safeguard critical manufacturing facility transformers feeding motor control centers, process equipment, and production lines. Coordinate protection schemes with GE SR469 motor protection relays and GE F650 feeder protection relays for complete facility protection architecture.

Power Generation Plants: Protect generator step-up transformers and auxiliary transformers in thermal, hydro, and renewable energy facilities. Integrate with GE G60 generator protection relays for coordinated generator-transformer protection strategies.

Renewable Energy Installations: Essential for wind farm and solar plant collector transformers where rapid fault clearing prevents cascading failures. Works seamlessly with modern SCADA systems through Modbus and DNP protocols.

Complete Protection System Solutions

Build robust transformer protection architectures by combining the 745-W2-WP5-G5-HI with complementary GE Multilin devices. For three-winding transformer applications, upgrade to the GE T35 transformer protection system or GE T60-N11 Multilin relay featuring expanded differential zones and advanced analytics.

Enhance monitoring capabilities with GE HYDRAN M2 dissolved gas analysis systems for early fault detection through oil quality monitoring. For comprehensive substation control, integrate with GE Multilin Universal Relay modules including GE UR9AH CPU modules, GE UR8AH CT/VT modules, and GE UR6NH digital I/O modules for modular protection schemes.

Communication & Integration Capabilities

The G5 communication package provides multi-protocol support for seamless integration into existing substation automation systems. Modbus RTU enables connectivity with legacy SCADA platforms, while DNP 3.0 and IEC 60870-5-103 protocols ensure compatibility with modern utility communication infrastructures. The relay supports remote configuration, real-time monitoring, event retrieval, and firmware updates through standard communication interfaces.

Enhanced HMI Display Benefits

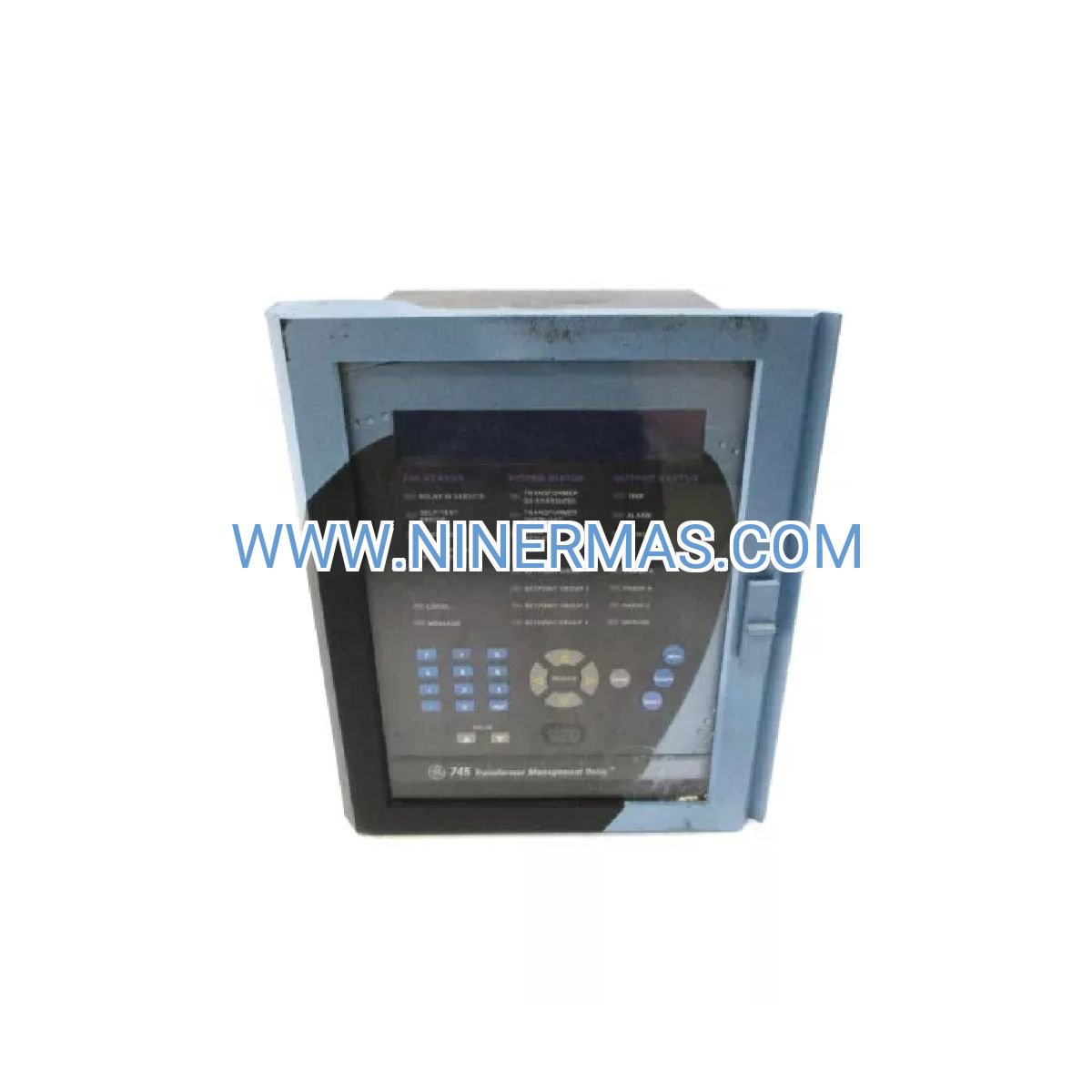

The HI-specification graphical LCD display delivers intuitive local access to protection settings, metering values, event records, and diagnostic information. Operators can view real-time current and voltage phasors, power flow measurements, harmonic content, and protection element status without requiring external software. The backlit display remains readable in all lighting conditions, critical for outdoor switchgear installations and dimly lit control rooms.

Installation & Commissioning

The 745-W2-WP5-G5-HI mounts in standard 19-inch relay panels with half-rack width footprint, conserving valuable panel space. Wide-range power supply (WP5) accepts both AC and DC station power from 70V to 300V, eliminating the need for auxiliary power converters. CT polarity verification, phase rotation checks, and differential slope testing are streamlined through built-in commissioning tools accessible via the front panel HMI or GE's 745 Setup software.

Frequently Asked Questions

Q: What transformer winding configurations does the 745-W2-WP5-G5-HI support?
A: This relay is specifically designed for two-winding transformers including delta-wye, wye-wye, delta-delta, and wye-delta configurations. For three-winding or autotransformer applications, consider the GE G60 multi-winding transformer relay or T60 series with expanded differential protection zones.

Q: Can this relay protect transformers with load tap changers (LTC)?
A: Yes, the 745 series includes integrated LTC monitoring and control functions. The relay compensates for tap position changes in differential calculations and provides LTC operation counters, blocking logic, and alarm functions for comprehensive tap changer supervision.

Q: What is the difference between the WP5 and P5 power supply options?
A: The WP5 designation indicates a wide-range universal power supply accepting 90-300V DC or 70-265V AC, while the standard P5 option accepts 90-300V DC only. The WP5 variant provides greater flexibility for installations with AC station power or varying DC voltage levels.

Q: How does harmonic restraint prevent false tripping during transformer energization?
A: The relay's differential algorithm incorporates second and fifth harmonic blocking to distinguish between magnetizing inrush currents (rich in harmonics) and internal faults (minimal harmonics). This adaptive restraint automatically adjusts sensitivity based on harmonic content, preventing nuisance trips while maintaining fast fault clearing for genuine internal faults.

Q: Is the relay compatible with existing GE Multilin protection systems?
A: Absolutely. The 745-W2-WP5-G5-HI integrates seamlessly with other GE Multilin devices including 489 generator management relays, SR750 feeder management relays, and UR series universal relays through standard communication protocols and consistent configuration software.

Q: What metering and monitoring capabilities are included?
A: The relay provides comprehensive metering including three-phase currents and voltages, real and reactive power, power factor, frequency, harmonics up to 31st order, demand values, and energy accumulation. All measurements are accessible locally via the HMI display or remotely through communication protocols.

Q: Does the relay support IEC 61850 communication?
A: The G5 communication package includes Modbus RTU, DNP 3.0, and IEC 60870-5-103 protocols. For IEC 61850 compatibility, consider the newer GE G60 transformer protection relay with native IEC 61850 support and advanced substation automation features.

Warranty & Technical Support

All GE 745-W2-WP5-G5-HI transformer protection relays from Industrial Control Hub include a comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Our certified protection engineers provide application support, settings calculation assistance, commissioning guidance, and troubleshooting expertise throughout the product lifecycle.

Why Choose Industrial Control Hub?

• Authorized distributor of genuine GE Multilin protection and control equipment
• Competitive pricing on transformer protection relays and substation automation components
• Expedited shipping with same-day dispatch for in-stock protection devices
• Expert application engineering support from power system protection specialists
• Comprehensive inventory of GE Multilin relays, modules, and accessories
• Technical documentation, settings files, and configuration software support

Protect your critical power infrastructure with proven GE Multilin transformer protection technology. The 745-W2-WP5-G5-HI delivers the reliability, performance, and advanced features your electrical systems demand.
