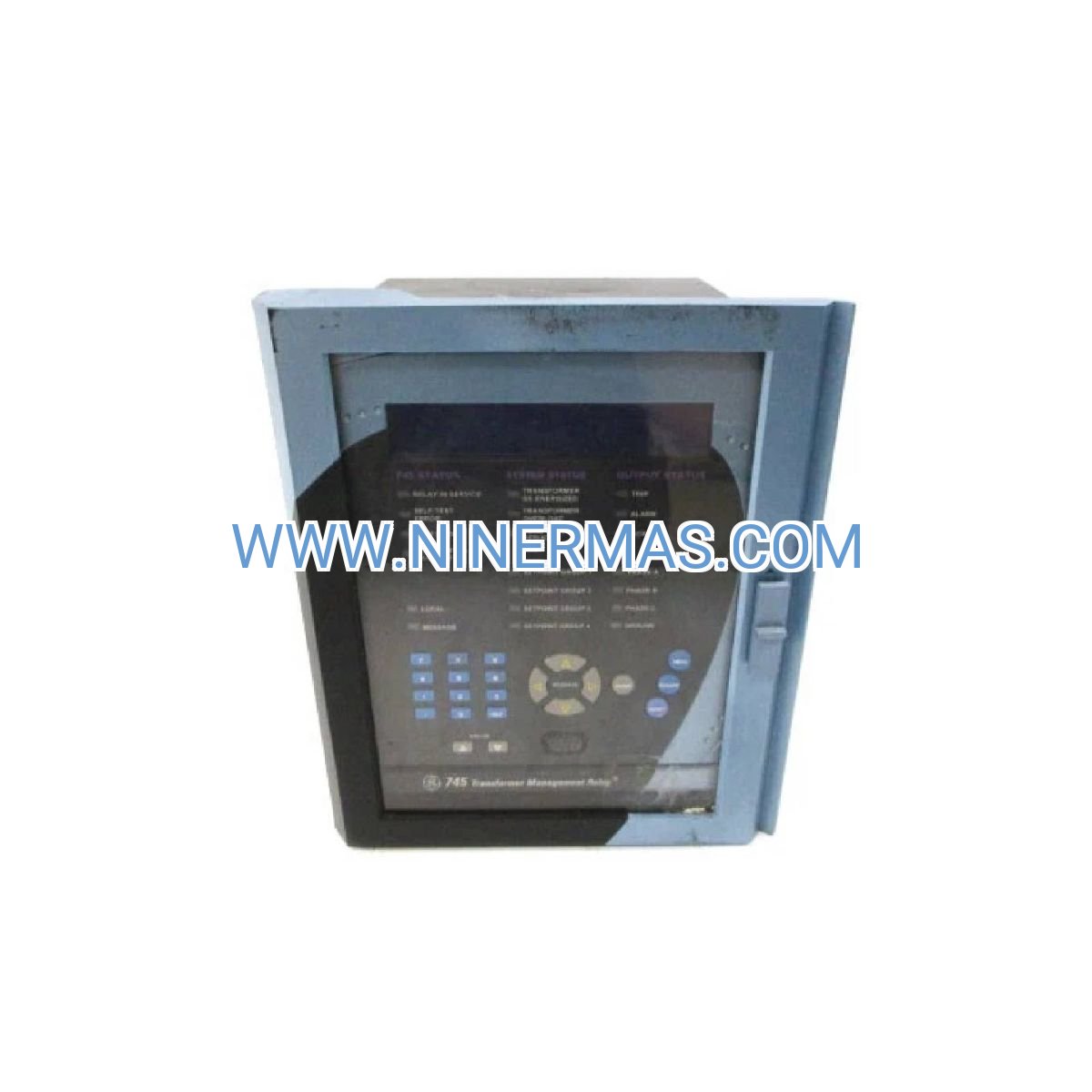

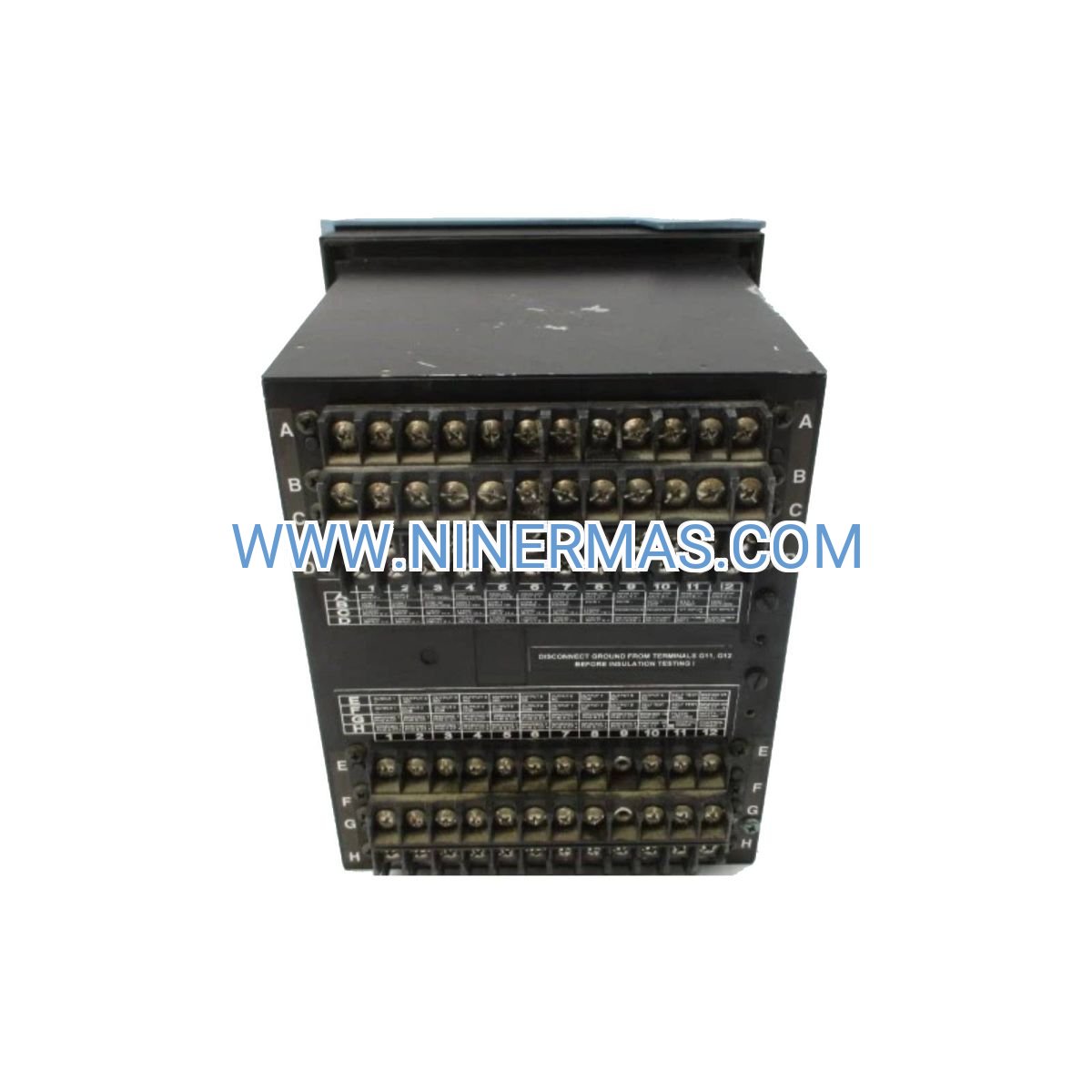

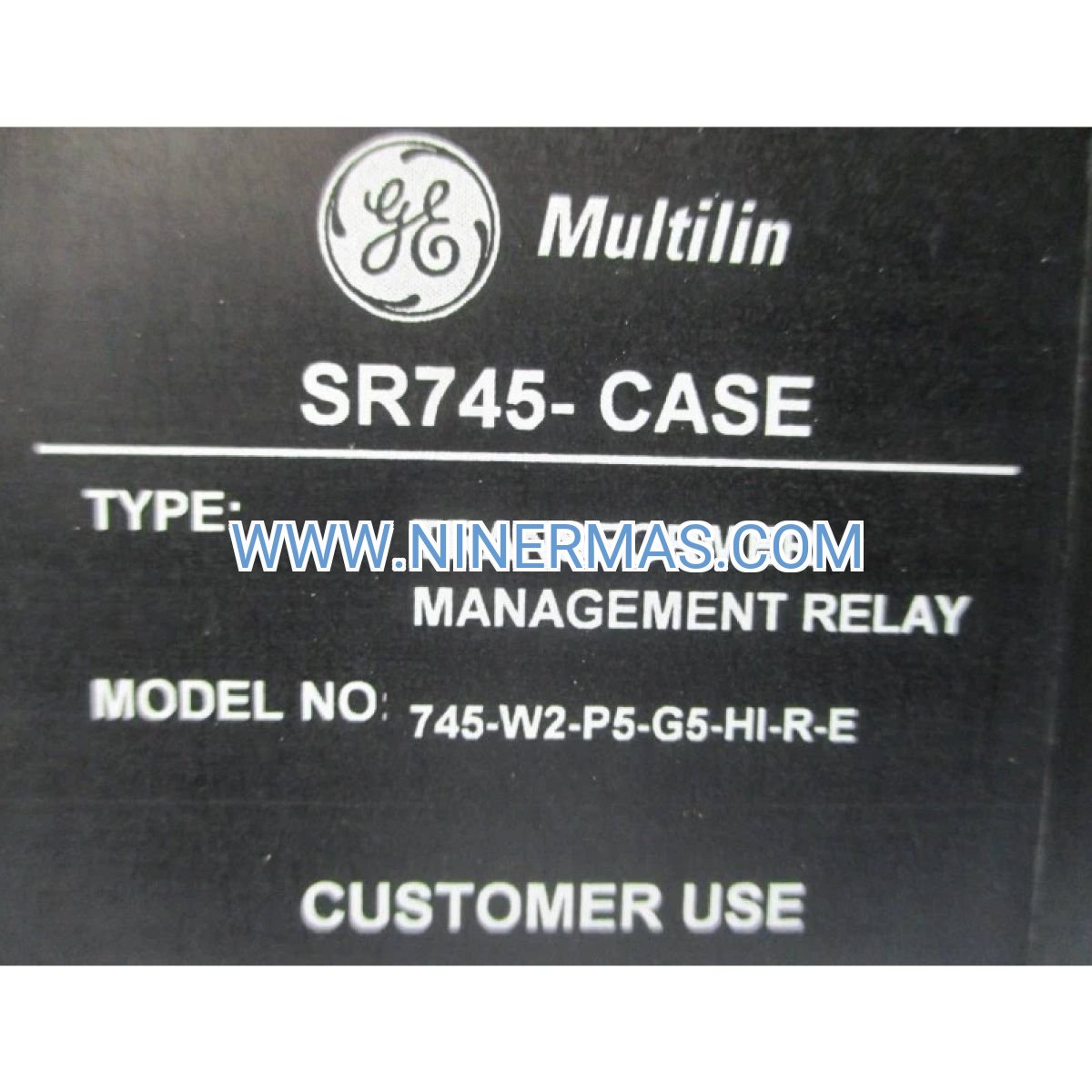

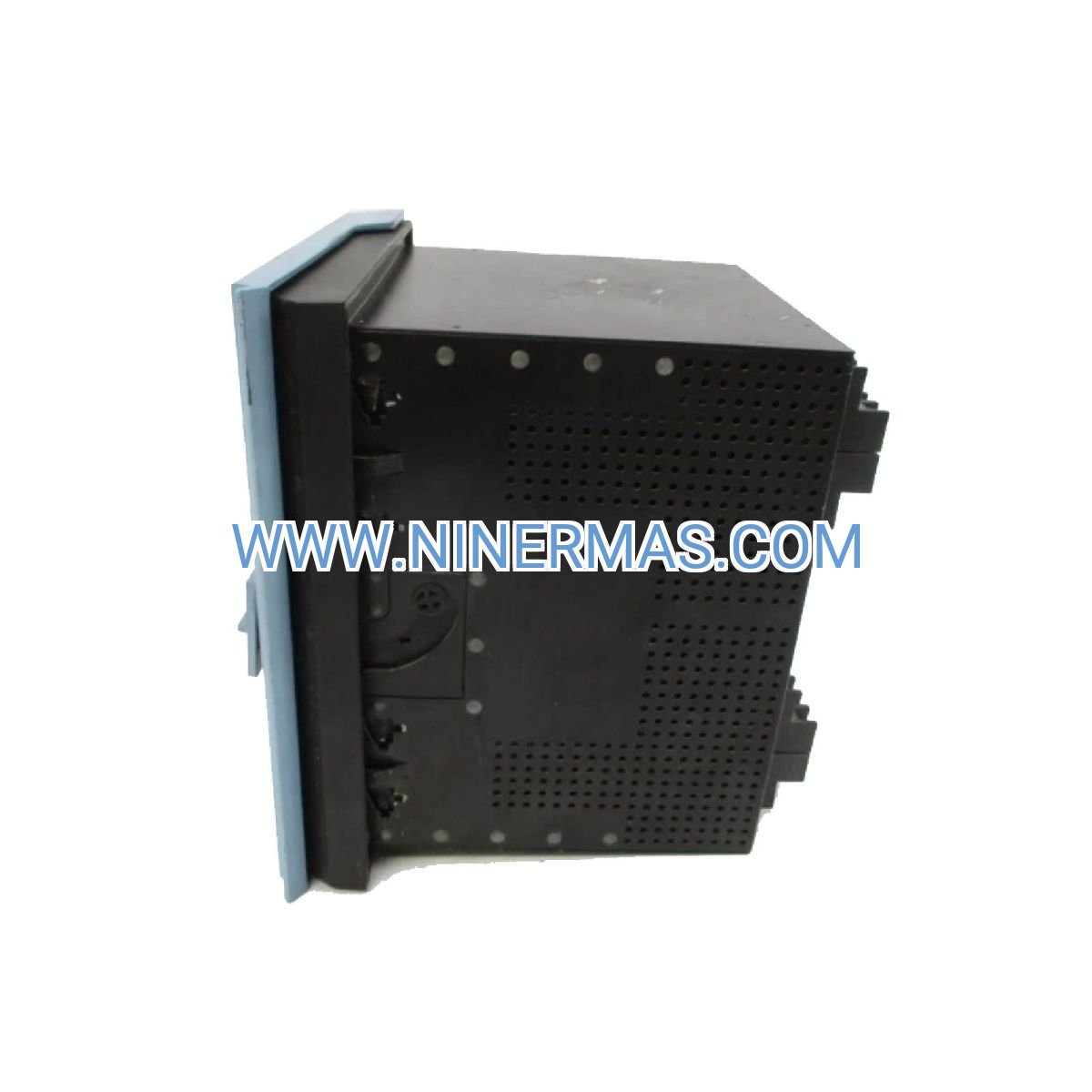

GE 745-W2-P5-G5-HI-R-E Multilin Relay (Industrial-Grade Transformer Protection)

The GE 745-W2-P5-G5-HI-R-E represents a mission-critical protection solution engineered for power transformers operating in demanding utility and industrial environments. Built on GE's proven Multilin platform, this relay combines percentage differential protection with comprehensive monitoring capabilities, delivering unmatched reliability for assets ranging from 10MVA distribution transformers to 1000MVA transmission-class units.

Designed for protection engineers and substation operators who demand precision, this relay addresses the critical challenge of detecting internal transformer faults while maintaining immunity to external disturbances. Target applications include utility transmission substations, industrial cogeneration facilities, renewable energy step-up transformers, and mission-critical data center power distribution systems.

With 12 current transformer inputs, 16 programmable relay outputs, and native IEC 61850 communication, the 745-W2-P5-G5-HI-R-E delivers enterprise-grade protection with seamless SCADA integration. Every unit ships with factory calibration certificates and comprehensive technical documentation to accelerate commissioning timelines.

Core Protection Capabilities & Business Value

→ Percentage Differential Protection (87T): Detects internal winding faults within 20ms, preventing catastrophic transformer failures that could cost $500K-$5M in equipment replacement and downtime

→ Restricted Earth Fault (REF): Provides sensitive ground fault detection for wye-connected windings, identifying faults as low as 5% of rated current that traditional overcurrent protection would miss

→ Thermal Overload Monitoring: Tracks winding temperature rise using IEEE/IEC thermal models, extending transformer lifespan by 15-25% through proactive load management

→ Multi-Protocol Communication: Supports IEC 61850 (MMS/GOOSE), DNP3.0, and Modbus simultaneously, eliminating protocol converter costs ($2K-$8K per bay) in mixed-vendor substations

✓ Enhanced HMI Display: Graphical LCD with real-time phasor diagrams reduces troubleshooting time by 40% compared to text-only interfaces

✓ Cybersecurity Compliance: Role-based access control and TLS encryption meet IEC 62351 standards, protecting critical infrastructure from unauthorized access

Proven Application Scenarios

Utility Transmission Substations
Protects 115kV-765kV power transformers in grid-critical locations where a single failure could cascade into regional blackouts. The relay's dual-slope differential characteristic adapts to transformer magnetizing inrush, preventing nuisance trips during energization while maintaining 99.97% dependability for internal faults.

Industrial Manufacturing Facilities
Safeguards process-critical transformers in steel mills, chemical plants, and automotive factories where unplanned outages cost $50K-$500K per hour. Integrated Buchholz relay interface enables gas detection monitoring without additional hardware investments.

Renewable Energy Installations
Manages step-up transformers in wind farms and solar parks, where remote locations demand autonomous protection with minimal maintenance. The -40°C to +85°C operating range ensures reliable operation in extreme climates from Arctic installations to desert environments.

Data Center Power Distribution
Provides N+1 redundancy protection for Tier III/IV facility transformers, where five-nines availability requirements (99.999% uptime) translate to less than 5 minutes of acceptable downtime annually. Event recording with 1ms resolution accelerates root cause analysis during post-incident reviews.

Mining & Extraction Operations
Withstands harsh conditions in underground substations and surface processing facilities, where dust, vibration, and temperature extremes challenge conventional protection equipment. Conformal-coated circuit boards resist moisture and contaminants in Class I Division 2 environments.

Technical Parameters & Selection Guide

Selection Recommendations: For transformers above 100MVA, specify the enhanced HMI option (HI suffix) to facilitate on-site diagnostics. Applications requiring cybersecurity compliance should verify firmware version supports IEC 62351-6. Coordinate CT ratios to maintain differential operating current between 0.2-2.0× relay rating for optimal sensitivity.

Extended Functionality & Integration Options

SCADA Integration: Native IEC 61850 Edition 2 support enables seamless integration with ABB, Siemens, SEL, and Schneider Electric substation automation platforms. Generic Object-Oriented Substation Event (GOOSE) messaging provides peer-to-peer communication for high-speed interlocking schemes without RTU intermediaries.

Condition Monitoring: Optional dissolved gas analysis (DGA) interface connects to Qualitrol, Morgan Schaffer, or Vaisala online monitors, correlating electrical protection data with chemical indicators of incipient failures. Winding temperature algorithms comply with IEEE C57.91 and IEC 60076-7 loading guides.

Customization Capabilities: FlexLogic™ programmable logic engine with 512 virtual inputs/outputs enables custom protection schemes without external PLCs. Applications include adaptive protection during maintenance configurations, load shedding coordination, and automatic voltage regulator (AVR) integration.

Cybersecurity Hardening: Supports RADIUS/TACACS+ authentication for centralized user management, syslog event forwarding for SIEM integration, and SNMPv3 for secure network monitoring. Firmware updates via secure FTP prevent unauthorized code injection.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock units via express courier with full tracking and insurance. All relays ship in anti-static packaging with shock indicators to verify transport integrity.

Custom Configuration: 7-10 business days for factory pre-programmed settings files, CT ratio configuration, and custom faceplate labeling. Expedited 48-hour service available for emergency replacements.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, component failures, and firmware issues. Extended 36-month coverage available for critical infrastructure applications.

Technical Support: Unlimited application engineering assistance including settings calculation review, protection coordination studies, and commissioning support. Remote diagnostics via secure VPN connection for post-installation troubleshooting.

Documentation Package: Includes instruction manual (745-UM-xxx), settings calculation worksheets, AutoCAD wiring diagrams, IEC 61850 ICD files, and factory test reports. Modbus/DNP3 register maps provided for third-party integration.

Frequently Asked Questions

How does the 745 relay handle transformer magnetizing inrush currents?
The relay employs second-harmonic restraint and waveform blocking algorithms that distinguish inrush (30-70% second harmonic) from internal faults (<15% second harmonic). Adjustable restraint thresholds (10-40%) accommodate various transformer designs, preventing false trips during cold-load pickup or voltage recovery scenarios.

What CT accuracy class is required for differential protection?
Class C100 or better CTs are recommended for reliable operation. The relay's dynamic CT saturation detection algorithm compensates for moderate saturation during external faults, but proper CT sizing per IEEE C37.110 ensures optimal performance. Minimum knee-point voltage should exceed 20× the maximum fault current × CT secondary burden.

Can this relay protect autotransformers with tertiary windings?
Yes, the 745 supports two-winding, three-winding, and autotransformer configurations. For autotransformers, configure the relay for zero-sequence current compensation to account for the electrical connection between HV and LV windings. Tertiary delta windings require separate REF protection elements.

Does the relay support remote firmware updates?
Firmware updates are supported via Ethernet using GE's EnerVista software suite. For cybersecurity compliance, updates require physical access to the front panel USB port or cryptographically signed files when performed remotely. Always verify compatibility with existing settings files before upgrading.

What is the typical commissioning duration for experienced technicians?
With pre-calculated settings and proper CT installation, commissioning typically requires 4-6 hours including CT polarity verification, secondary injection testing, and communication checkout. First-time installations may require 8-12 hours for protection coordination validation and operator training.

How does the relay integrate with legacy RTU-based SCADA systems?
The dual RS-485 ports support DNP3.0 Level 2 and Modbus RTU protocols for seamless integration with legacy remote terminal units (RTUs). Protocol conversion to IEC 61850 enables gradual substation modernization without forklift upgrades of existing SCADA infrastructure.

Request Technical Consultation

Our protection engineering team provides complimentary pre-sales support including settings calculation review, one-line diagram analysis, and protection coordination studies. Contact us with your transformer nameplate data, CT ratios, and system fault levels for a customized application assessment within 24 hours.

Ready to protect your critical transformer assets? Add to cart for immediate checkout, or request a formal quotation with project-specific pricing for multi-unit deployments. Volume discounts available for 5+ units.
