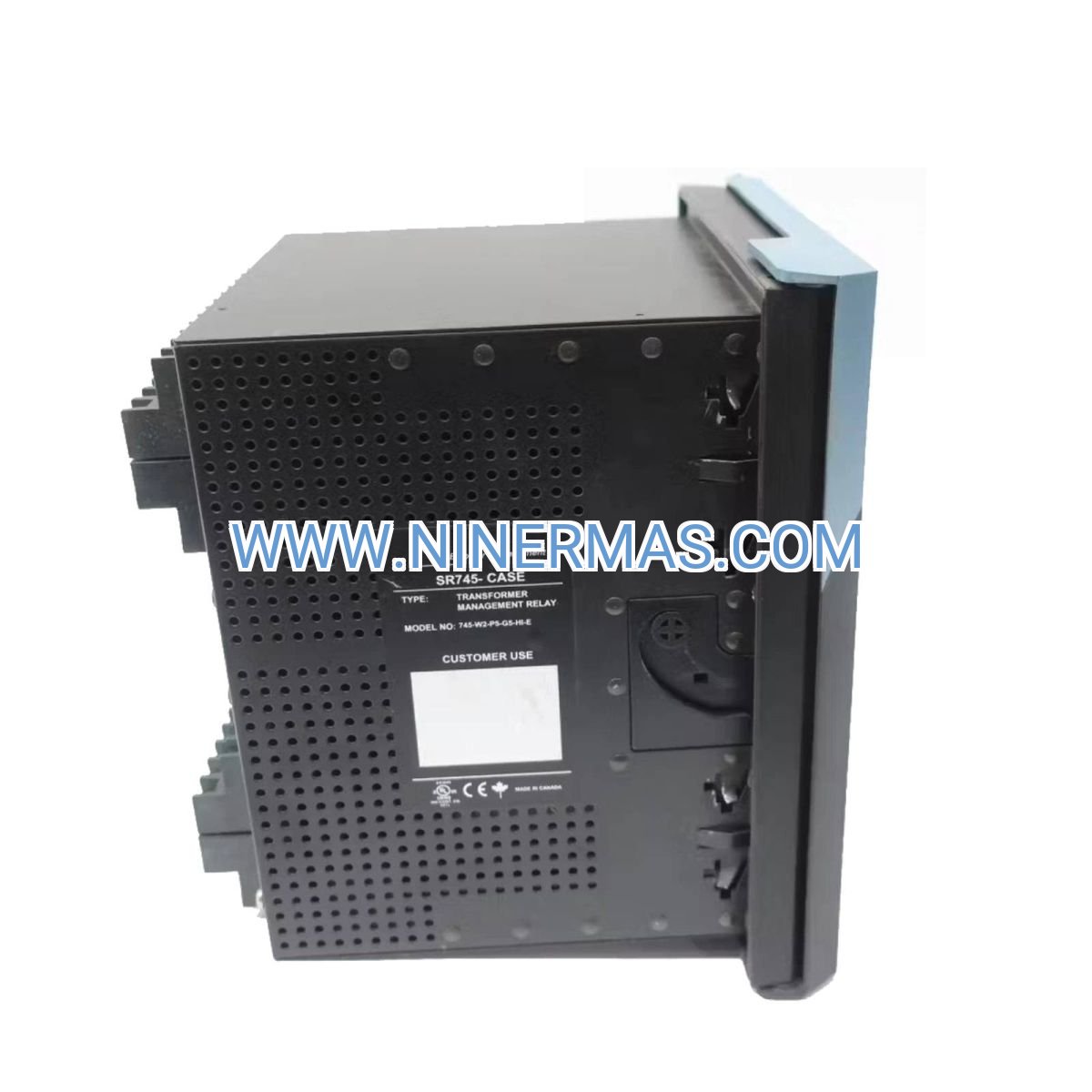

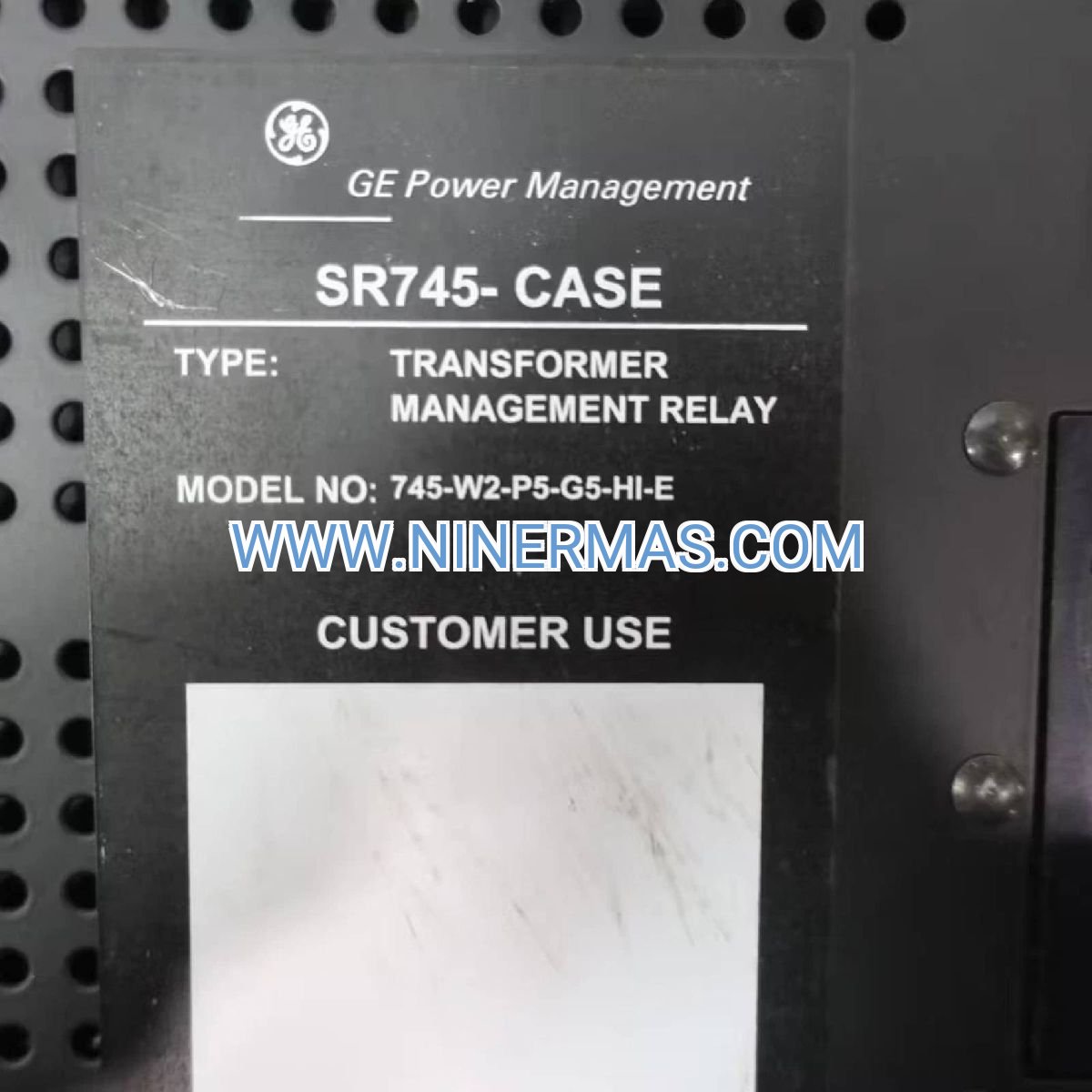

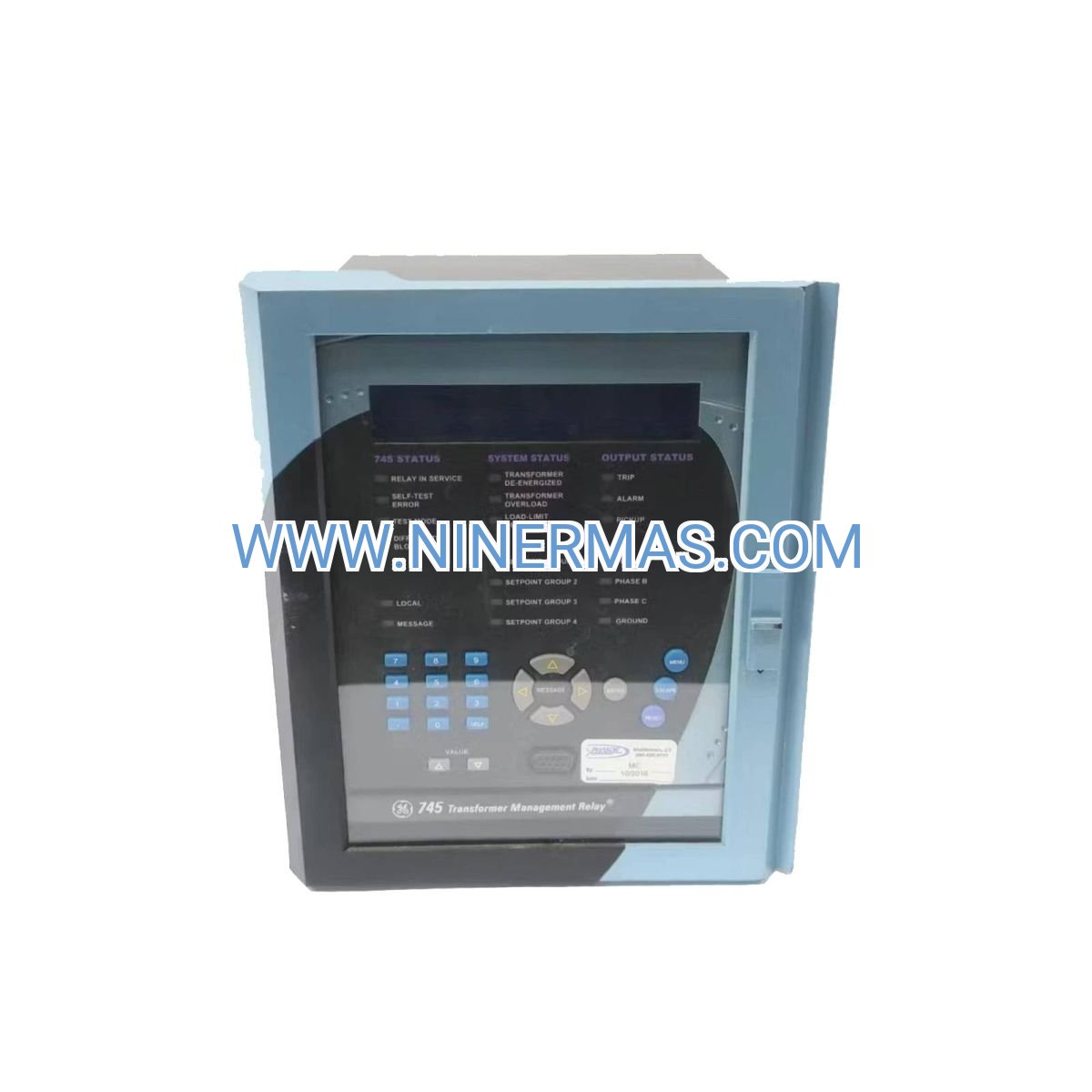

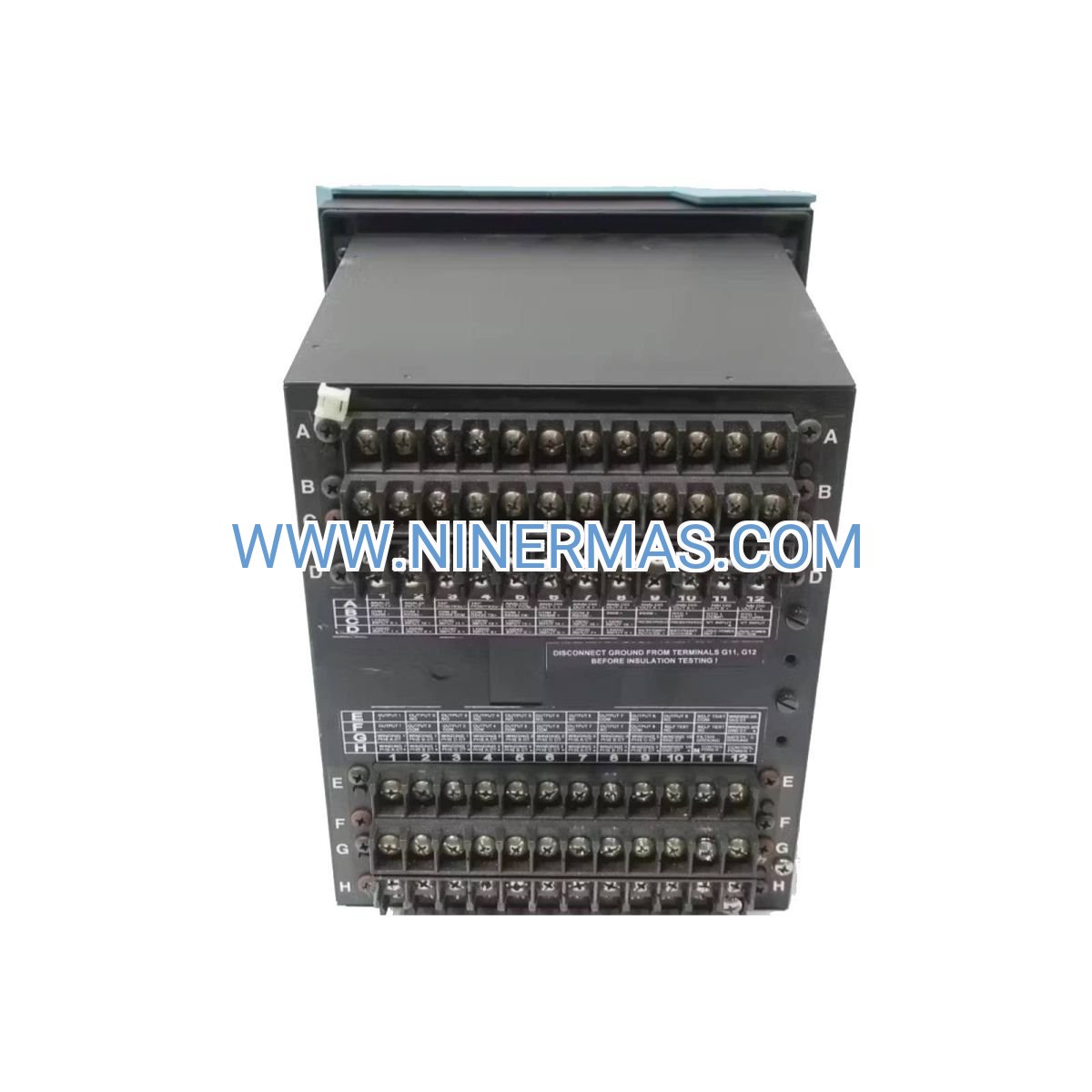

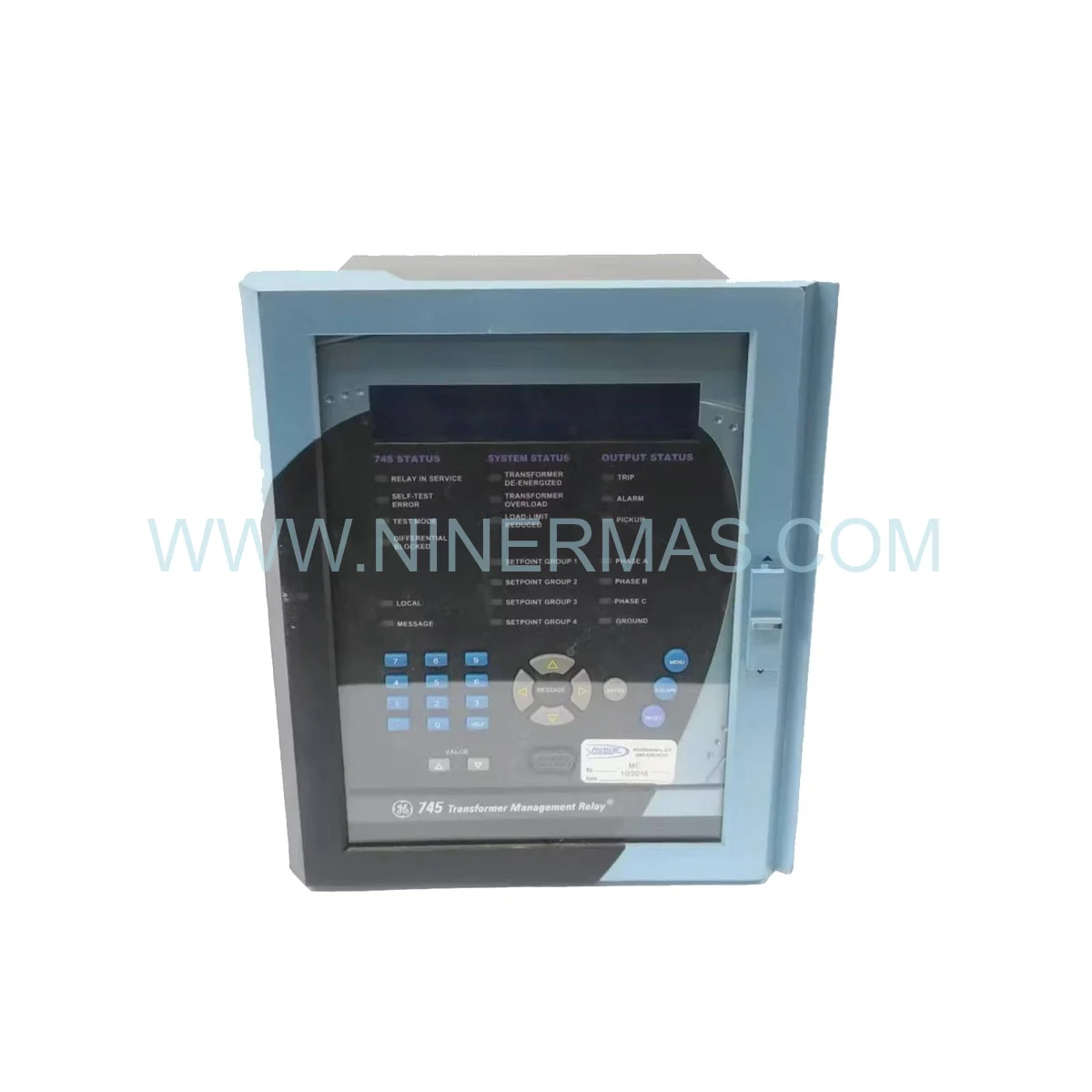

GE 745-W2-P5-G5-HI-E Transformer Differential Protection Relay (Industrial-Grade Power System Protection)

The GE 745-W2-P5-G5-HI-E is an industrial-grade transformer differential protection relay engineered for critical power distribution systems. Through advanced percentage differential algorithms (87T), multi-zone overcurrent protection, and real-time monitoring capabilities, this relay ensures rapid fault detection and isolation for two-winding power transformers in utility substations, industrial facilities, and renewable energy installations.

Designed for applications demanding high reliability and continuous operation, the 745 relay addresses common challenges including internal winding faults, through-fault discrimination, CT saturation compensation, and nuisance trip prevention. It serves utility operators, industrial plant engineers, substation integrators, and protection system designers who require proven protection technology with modern communication capabilities.

Built on GE Multilin's proven platform, this relay combines fast response time (<25ms for differential protection), comprehensive fault coverage, flexible communication protocols (IEC 61850, Modbus, DNP3), and intuitive local interface. Suitable for new installations and retrofit projects, the relay integrates seamlessly with existing SCADA infrastructure while providing future-ready digital substation compatibility. Contact our protection engineers for application-specific configuration guidance and technical specifications.

Core Functions & Advantages

High-Speed Differential Protection (87T)
Percentage differential algorithm with harmonic restraint detects internal transformer faults within 25 milliseconds, discriminating between magnetizing inrush, overexcitation, and genuine fault conditions. Adaptive slope characteristics ensure security during external faults while maintaining sensitivity for low-magnitude internal faults.

Multi-Layer Backup Protection
Integrated overcurrent (50/51), ground fault (50N/51N), overvoltage/undervoltage (59/27), and frequency protection (81O/U) provide comprehensive backup coverage. Independent protection elements operate in coordination with differential protection, ensuring fault clearance even during CT circuit failures or communication loss.

CT Saturation Immunity
Advanced signal processing algorithms detect and compensate for current transformer saturation during heavy through-faults with high DC offset components. This capability maintains protection dependability and security under the most severe system disturbances, reducing the risk of false trips or protection failure.

Transformer Health Monitoring
Continuous monitoring of winding temperature (via RTD inputs), tap changer position, load current asymmetry, and harmonic distortion provides early warning of developing problems. Trending data supports predictive maintenance strategies and extends transformer service life by identifying issues before catastrophic failure occurs.

Digital Substation Ready
Native IEC 61850 Edition 2 support enables GOOSE messaging for high-speed peer-to-peer interlocking, sampled values for process bus integration, and MMS for centralized monitoring. The relay participates fully in digital substation architectures while maintaining backward compatibility with conventional hardwired I/O and legacy protocols.

Comprehensive Event Recording
Oscillography captures 64 cycles of pre-fault and post-fault waveforms at high resolution, while sequence-of-events recording provides millisecond-accurate chronology of protection operations, breaker status changes, and alarm conditions. This data accelerates fault analysis and supports protection system performance validation.

Typical Application Scenarios

The GE 745-W2-P5-G5-HI-E excels in environments where transformer protection reliability directly impacts operational continuity and safety. Primary applications include:

Utility Transmission & Distribution Substations
Protects grid-connected power transformers (10-100 MVA range) in transmission substations and primary distribution stations. Coordinates with upstream transmission line protection and downstream feeder protection to provide selective fault isolation. Supports utility requirements for fault recording, remote monitoring, and compliance with grid code protection standards.

Industrial Power Distribution Systems
Safeguards critical plant transformers in manufacturing facilities, chemical plants, refineries, and mining operations where unplanned outages result in production losses and safety hazards. Integrates with plant DCS/SCADA systems via Modbus or DNP3, providing real-time status and alarm information to central control rooms.

Renewable Energy Generation Facilities
Protects step-up transformers in wind farms, solar parks, and battery energy storage systems where transformer failures can cause extended generation outages and revenue loss. Fast fault clearance minimizes equipment damage and supports rapid service restoration. Communication capabilities enable remote monitoring from centralized operations centers.

Commercial & Institutional Facilities
Provides reliable protection for medium-voltage transformers (1-10 MVA) serving hospitals, data centers, universities, and large commercial complexes where power quality and availability are critical. Compact design fits existing switchgear lineups, while comprehensive diagnostics support facility maintenance programs.

Retrofit & Modernization Projects
Replaces aging electromechanical or first-generation digital relays in existing substations, providing enhanced protection performance, modern communication capabilities, and improved diagnostics without requiring extensive panel modifications. Standard mounting dimensions and flexible I/O configuration simplify installation and commissioning.

Technical Parameters & Selection Guide

To ensure optimal protection performance and system compatibility, the following technical specifications and selection criteria should be considered during engineering and procurement:

Selection Considerations
When specifying the 745-W2-P5-G5-HI-E relay, engineers should evaluate: transformer MVA rating and voltage class, CT ratios and accuracy class (recommend Class C200 or better for differential protection), required communication protocols for SCADA integration, environmental conditions (temperature, humidity, altitude), available panel space and mounting configuration, and cybersecurity requirements for networked installations. For transformers with more than two windings, consider the three-winding variant (745-W3 series). For applications requiring advanced power quality monitoring or synchrophasor measurement, consult factory representatives regarding enhanced firmware options.

Advanced Features & Capabilities

Adaptive Protection Settings
The relay supports multiple setting groups (up to 6) that can be activated automatically based on system conditions or manually via local/remote commands. This enables seasonal load variations, maintenance configurations, and emergency operating modes without requiring physical access to the relay. Setting group changes are logged with timestamp and user identification for audit trail purposes.

Cybersecurity & Access Control
Role-based access control (RBAC) with up to 16 user accounts and 4 privilege levels restricts configuration changes to authorized personnel. Password policies enforce complexity requirements and expiration intervals. All configuration changes, setting modifications, and remote access sessions are recorded in tamper-proof audit logs. Optional encrypted communication (TLS/SSL) protects data integrity and confidentiality over Ethernet networks.

Self-Diagnostics & Reliability
Continuous self-monitoring verifies proper operation of analog input circuits, digital I/O, communication interfaces, power supply, and internal processing. Detected anomalies trigger local and remote alarms, ensuring protection system integrity. Battery-backed real-time clock maintains accurate time-stamping during power interruptions. Non-volatile memory preserves settings, event records, and fault data through power cycles.

Flexible I/O Mapping
Programmable logic allows custom mapping of protection elements, measurements, and external signals to output relays and communication points. This flexibility supports complex interlocking schemes, breaker failure protection, automatic transfer schemes, and integration with auxiliary equipment (cooling systems, tap changers, alarms) without external logic controllers.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard configuration relays (745-W2-P5-G5-HI-E as specified) typically ship within 4-6 weeks from order confirmation. Custom configurations with special I/O arrangements, communication modules, or firmware variants may require 8-10 weeks. Expedited delivery options available for critical outage situations and emergency replacements. Contact sales team for current inventory status and delivery scheduling.

Quality Assurance & Testing
Every relay undergoes comprehensive factory acceptance testing including protection function verification, communication protocol validation, environmental stress screening, and calibration certification. Test reports documenting performance against published specifications are provided with each unit. Relays are shipped in protective packaging designed to withstand transportation stresses and environmental exposure during storage.

Warranty Coverage
Standard 24-month manufacturer warranty covers defects in materials and workmanship under normal operating conditions. Warranty includes repair or replacement at manufacturer's discretion, return shipping costs, and technical support for warranty claim evaluation. Extended warranty programs and service contracts available for critical applications requiring guaranteed response times and spare unit availability.

Technical Support & Services
Comprehensive technical support includes pre-sales application engineering (protection coordination studies, CT sizing, communication architecture design), commissioning assistance (on-site or remote), operator training programs, and ongoing maintenance support. Complete documentation package includes installation manual, setting calculation guide, communication protocol implementation guide, and troubleshooting procedures. Firmware updates and security patches provided throughout product lifecycle.

Documentation & Deliverables
Each relay shipment includes: detailed installation and wiring manual, protection settings calculation worksheets, IEC 61850 ICD/CID files for substation configuration tools, Modbus/DNP3 register maps, CAD drawings (panel cutout dimensions, terminal layouts), calibration certificates, and factory test reports. Digital documentation available via secure download portal for registered users.

Frequently Asked Questions (FAQ)

Q: How does the GE 745-W2-P5-G5-HI-E relay handle transformer vector group compensation?
A: The relay automatically compensates for phase shifts and magnitude differences between primary and secondary windings based on configured vector group (Dyn11, YNd11, Dd0, etc.). Internal algorithms apply appropriate phase rotation and scaling to differential current calculations, eliminating the need for external auxiliary CTs or manual compensation calculations. Custom vector groups can be programmed for non-standard transformer configurations.

Q: Can this relay protect transformers with on-load tap changers (OLTC)?
A: Yes, the percentage differential characteristic automatically adapts to tap position changes without requiring setting adjustments. The relay can monitor tap changer position via digital inputs or communication links, providing alarm functions for excessive tap operations, end-of-travel conditions, and tap position discrepancies. Winding resistance compensation accounts for impedance variations across the tap range.

Q: What communication protocols are supported for SCADA integration and how are they configured?
A: The relay supports IEC 61850 (MMS client-server and GOOSE peer-to-peer), Modbus RTU (serial) and Modbus TCP (Ethernet), and DNP3.0 (serial and TCP). Multiple protocols can operate simultaneously on different communication ports. Configuration is performed via EnerVista 745 Setup software (Windows-based) which provides graphical interface for protocol parameter setup, data point mapping, and communication testing. IEC 61850 configuration uses standard SCL files (ICD/CID) compatible with substation configuration tools.

Q: How does the relay distinguish between magnetizing inrush current and internal faults?
A: Advanced harmonic restraint algorithms analyze the harmonic content of differential current. Magnetizing inrush contains high levels of second harmonic (typically 15-30% of fundamental), while internal fault currents have minimal harmonic content. The relay applies adaptive restraint based on second and fifth harmonic levels, blocking differential tripping during inrush conditions while maintaining sensitivity for genuine faults. Cross-blocking logic prevents false trips during sympathetic inrush on parallel transformers.

Q: Is the relay suitable for retrofit applications replacing older electromechanical or static relays?
A: Absolutely. The 745 relay features standard panel mounting dimensions (1/2 rack 19" format) compatible with most existing relay panels. Terminal arrangements can be configured to match legacy wiring where possible, minimizing rewiring requirements. The relay accepts wide-range CT inputs (1A or 5A nominal) and can work with existing current transformers in most cases. Migration guides and application notes are available to assist with retrofit planning and commissioning.

Q: What cybersecurity features protect the relay from unauthorized access and cyber threats?
A: The relay implements multiple security layers including role-based access control with password authentication, encrypted communication options (TLS/SSL for Ethernet protocols), audit logging of all access and configuration changes, front panel lockout to prevent unauthorized local access, and compliance with IEC 62351 security standards for power system communication. Network security is enhanced through VLAN support, MAC address filtering, and configurable port security. Regular firmware updates address emerging security vulnerabilities.

Q: Does the relay require specialized software for configuration and monitoring?
A: Configuration and advanced diagnostics utilize GE's EnerVista 745 Setup software (provided free with relay purchase), which runs on Windows operating systems and connects via Ethernet or serial port. Basic monitoring, event retrieval, and setting changes can be performed through the front panel display and keypad without external software. SCADA systems can access real-time data and perform remote control functions via standard communication protocols without proprietary software.

Contact & Ordering Information

For detailed application engineering support, custom configuration specifications, volume pricing, or technical clarification, please provide the following project information: facility type and location, transformer nameplate data (MVA, voltage ratio, vector group, impedance), existing or planned CT ratios and accuracy class, required communication protocols and SCADA system details, environmental conditions and installation constraints, and project timeline. Our protection system engineers will provide comprehensive selection guidance, protection coordination recommendations, and formal quotations within 24-48 hours.
