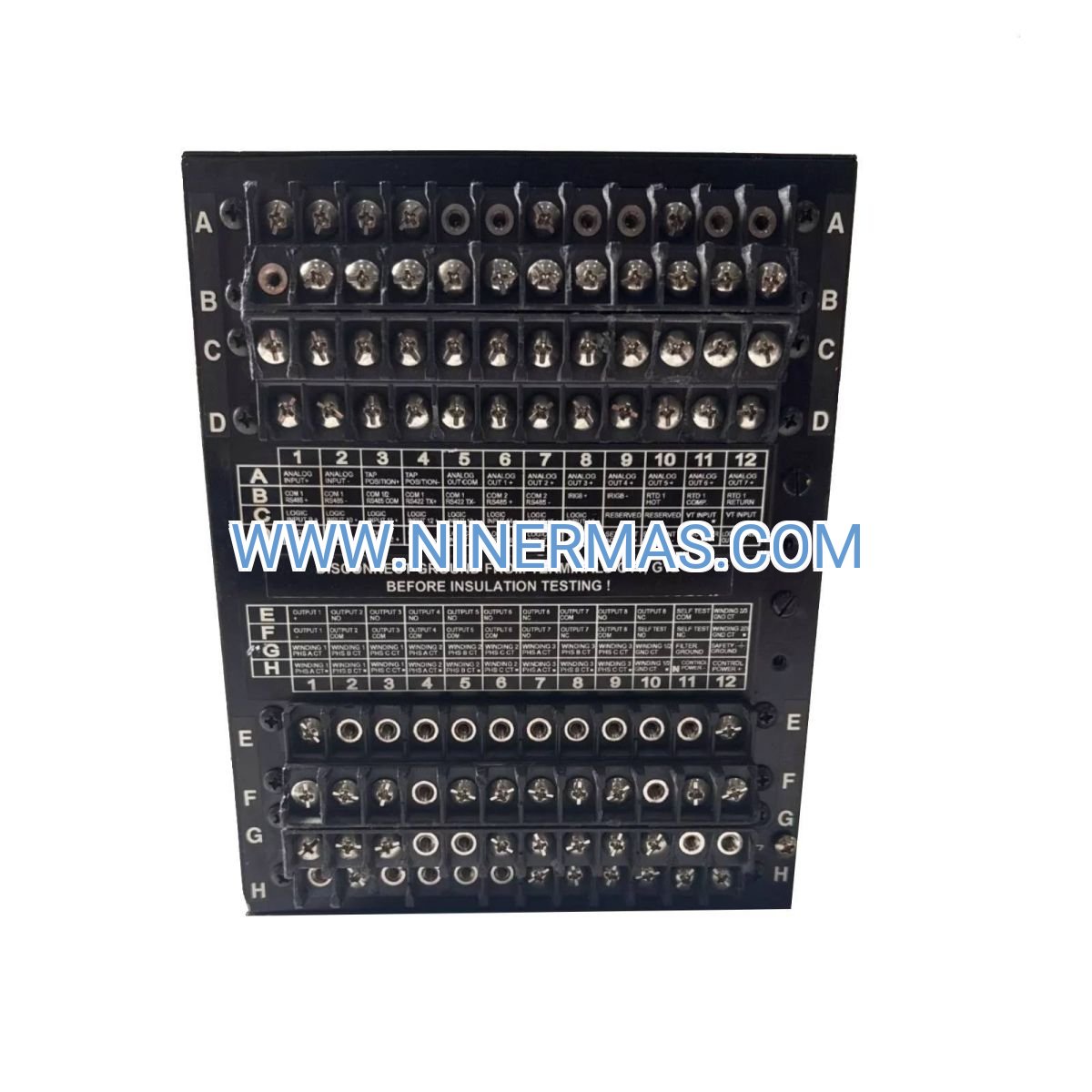

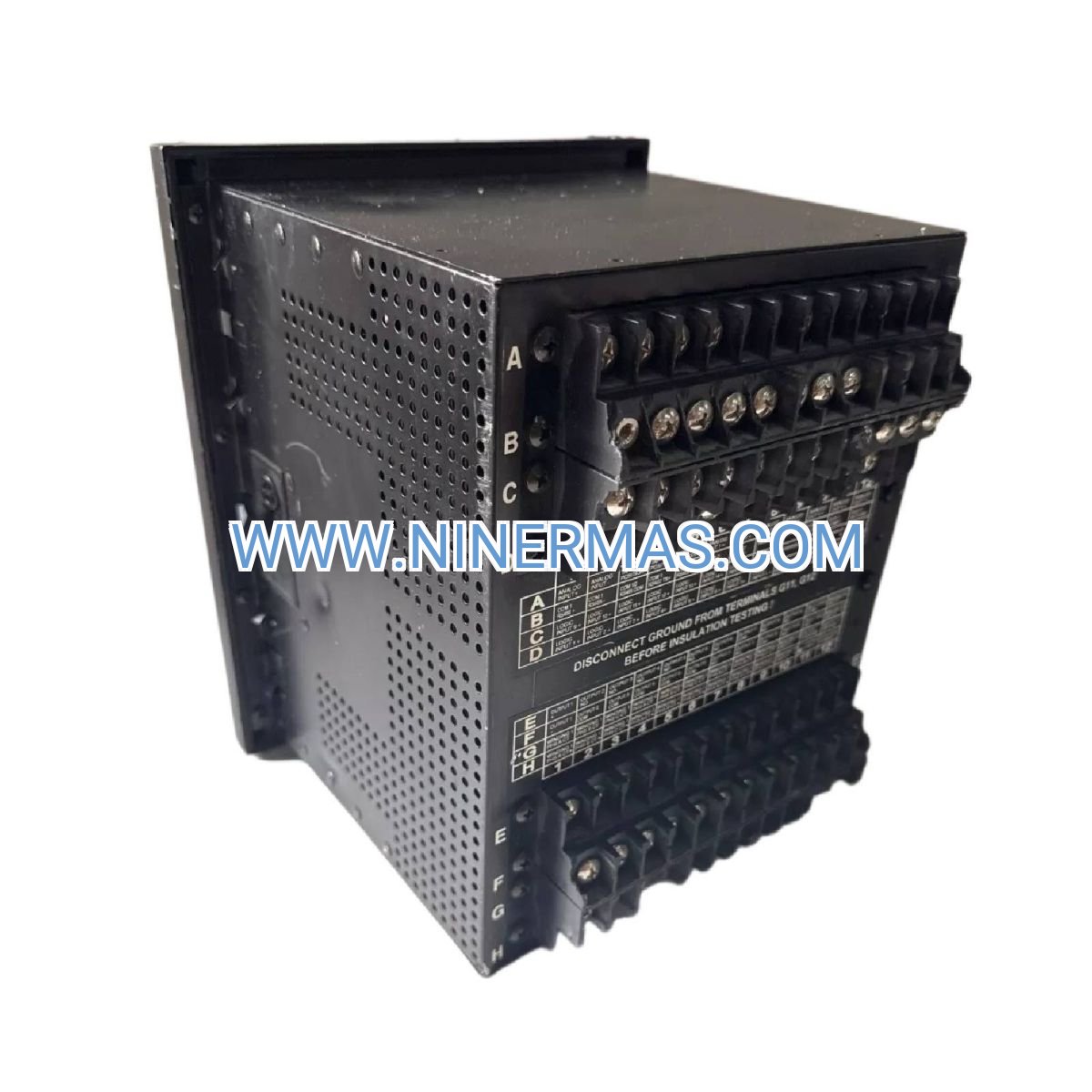

GE Multilin 745-W2-P5-G5-HI-A-L-R-E-H (Industrial-Grade Transformer Protection System)

The GE Multilin 745-W2-P5-G5-HI-A-L-R-E-H is an industrial-grade transformer protection relay engineered for mission-critical power systems. Designed to safeguard power transformers from internal faults, overloads, and abnormal operating conditions, this relay integrates percentage differential protection, thermal monitoring, and multi-protocol communication into a single robust platform. Whether deployed in utility substations, industrial plants, or renewable energy facilities, the 745 relay delivers uncompromising protection with real-time diagnostics and seamless SCADA integration.

Built for engineers and facility managers who demand reliability, the 745 relay addresses the challenges of aging transformer infrastructure, complex protection coordination, and evolving grid requirements. Its adaptive algorithms, extensive I/O capabilities, and intuitive interface make it the preferred choice for protecting transformers ranging from 1 MVA to 500+ MVA across diverse applications.

With proven performance in thousands of installations worldwide, the GE 745-W2-P5-G5-HI-A-L-R-E-H combines legacy reliability with modern connectivity—ensuring your critical assets remain protected while enabling predictive maintenance strategies that reduce downtime and extend transformer service life.

Core Features & Technical Advantages

✓ Dual-Winding Differential Protection (87T)
High-speed percentage differential algorithm with harmonic restraint and adaptive CT saturation detection. Provides selective fault isolation in under 20ms while preventing false trips during transformer energization, tap changes, or through-fault conditions.

✓ Comprehensive Thermal Monitoring (12 RTD Channels)
Real-time winding and oil temperature surveillance with configurable alarm thresholds. Enables thermal overload protection (49) and predictive maintenance by tracking temperature trends, hotspot development, and cooling system performance—reducing unplanned outages by up to 40%.

✓ Multi-Protocol Communication (P5 Enhanced Ethernet)
Native support for Modbus TCP/RTU, DNP3.0, and IEC 61850 protocols. Seamlessly integrates with legacy SCADA systems and modern substation automation architectures, enabling remote monitoring, event retrieval, and coordinated protection schemes across distributed assets.

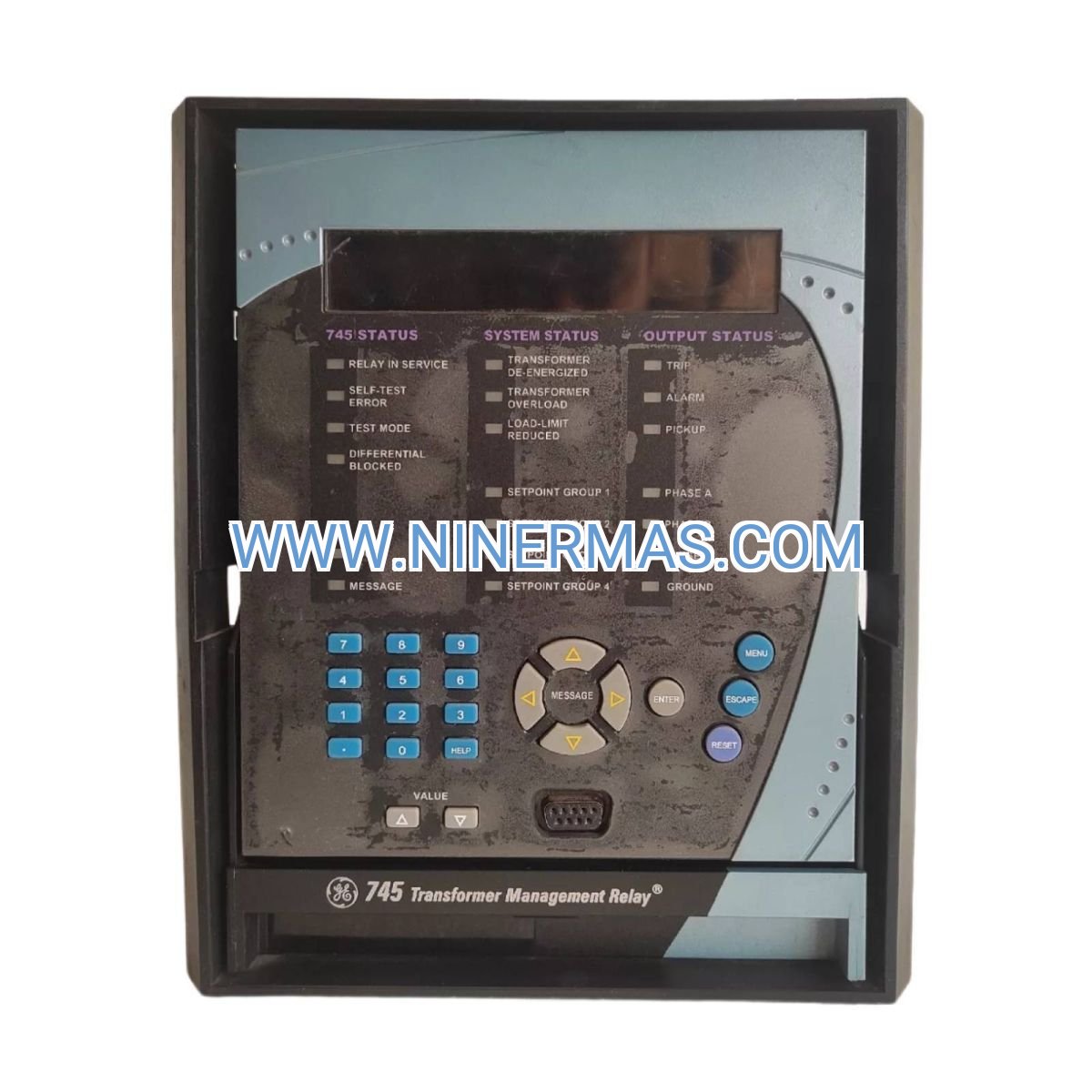

→ Enhanced Graphical Display (G5 40-Character LCD)
Intuitive local interface with real-time metering, event logs, and waveform capture. Simplifies commissioning, troubleshooting, and routine inspections—reducing on-site diagnostic time by 60% compared to text-only displays.

→ Wide-Range Power Supply (90-300V DC / 70-265V AC)
HI-rated universal input eliminates the need for auxiliary power converters in multi-voltage installations. Maintains continuous operation during station battery fluctuations or AC supply disturbances, ensuring protection availability during system emergencies.

→ Analog Output Capability (4-20mA Transducers)
Provides real-time analog signals for load current, temperature, or power factor to external meters, PLCs, or building management systems. Enables integration with plant-wide monitoring platforms without additional protocol gateways.

Application Scenarios & Industry Solutions

Utility Transmission & Distribution Substations
Protects grid-tied power transformers (69kV to 500kV class) in unmanned substations where high-speed fault clearing is critical for system stability. The relay's IEC 61850 capability enables integration with digital substation architectures, while its robust design withstands harsh outdoor environments (-40°C to +85°C operating range). Typical deployment: 100 MVA auto-transformers with OLTC, requiring coordinated backup protection and remote diagnostics.

Industrial Manufacturing & Process Plants
Safeguards plant distribution transformers (480V to 13.8kV) in facilities where power interruptions result in production losses exceeding $50,000/hour. The 12 RTD inputs monitor transformer health in real-time, triggering maintenance alerts before failures occur. Common applications: steel mills, automotive assembly, semiconductor fabs, and chemical processing plants with continuous operations.

Renewable Energy Generation Facilities
Provides step-up transformer protection (690V to 34.5kV) in wind farms and solar installations where revenue depends on maximum uptime. The relay's adaptive differential algorithm handles the dynamic loading patterns inherent to renewable generation, while Ethernet connectivity enables centralized monitoring across geographically distributed sites. Addresses challenge: coordinating protection with inverter-based resources and weak grid conditions.

Data Centers & Mission-Critical Infrastructure
Ensures 99.999% availability for UPS-backed distribution transformers serving Tier III/IV facilities. The relay's dual communication ports enable redundant network connections, while analog outputs integrate with BMS platforms for holistic facility management. Solves pain point: achieving sub-cycle fault detection without compromising selectivity in complex parallel transformer configurations.

Mining & Heavy Industry Operations
Withstands extreme conditions in underground mines, smelters, and offshore platforms where equipment exposure to dust, moisture, and vibration is unavoidable. The relay's sealed enclosure (IP52 front panel) and conformal-coated PCBs ensure reliable operation in corrosive atmospheres. Value delivered: reducing transformer replacement costs (averaging $250,000+ per unit) through early fault detection.

Technical Parameters & Selection Guide

Selection Criteria for Your Application:

Choose the 745-W2 configuration if: You're protecting 2-winding transformers, auto-transformers, or grounding transformers. For 3-winding applications, consider the 745-W3 variant.

The P5 communication option is essential when: Your facility requires IEC 61850 compliance, redundant Ethernet networks, or simultaneous connection to multiple SCADA masters. For basic Modbus-only applications, P1 may suffice.

Specify the L (12 RTD) option if: Your transformer has multiple winding sections, OLTC monitoring requirements, or ambient temperature compensation needs. Standard configurations include 6 RTD inputs.

Add the R (analog output) option when: Integrating with legacy control systems, PLCs, or chart recorders that require 4-20mA signals for load monitoring or temperature trending.

Extended Capabilities & Integration Options

SCADA & Substation Automation Integration
The relay's dual Ethernet ports support redundant network topologies (PRP, HSR) for high-availability applications. IEC 61850 Edition 2 compliance enables GOOSE messaging for peer-to-peer interlocking, while MMS services provide standardized data modeling. Configuration via IEC 61850 SCL files accelerates multi-vendor system integration and reduces engineering time by 50%.

Predictive Maintenance & Asset Management
Continuous monitoring of dissolved gas analysis (DGA) trends, partial discharge activity, and thermal aging indicators enables condition-based maintenance strategies. The relay calculates transformer loss-of-life based on IEEE/IEC thermal models, providing actionable insights for capital planning and outage scheduling.

Cybersecurity Features
Role-based access control (RBAC), encrypted communication (TLS 1.2), and audit logging meet NERC CIP compliance requirements. Supports secure firmware updates and certificate-based authentication for critical infrastructure protection.

Customization & Expansion
Flexible logic programming (FlexLogic™) with 512 virtual inputs/outputs enables custom protection schemes without external PLCs. Modular I/O expansion cards accommodate future requirements for additional RTDs, analog outputs, or communication ports.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for in-stock units | Custom configurations: 2-3 weeks
Warranty Coverage: 12 months comprehensive warranty covering manufacturing defects, component failures, and firmware issues
Technical Support: Lifetime access to application engineers for commissioning assistance, settings calculations, and troubleshooting
Documentation Package: Instruction manual, quick start guide, settings worksheet templates, AutoCAD panel cutout drawings, IEC 61850 ICD files

Commissioning Services Available:
→ On-site relay testing and calibration verification
→ Protection coordination studies and settings development
→ SCADA integration and communication testing
→ Operator training and knowledge transfer sessions

Spare Parts & Lifecycle Support:
Replacement modules, communication cards, and display assemblies available with same-day shipping. Firmware updates provided free of charge for the life of the product, ensuring compatibility with evolving grid codes and cybersecurity standards.

Frequently Asked Questions

How does the 745 relay differentiate between transformer inrush and internal faults?
The relay employs a multi-criteria blocking algorithm analyzing 2nd/5th harmonic content, waveform symmetry, and current magnitude. During energization, inrush currents contain 15-80% 2nd harmonic, which the relay detects to inhibit tripping. Internal faults produce minimal harmonics, allowing instantaneous operation. This approach achieves 99.9% security against false trips while maintaining <20ms operating time for genuine faults.

Can this relay protect transformers with on-load tap changers (OLTC)?
Yes. The adaptive differential characteristic automatically adjusts for tap position changes without requiring manual settings updates. The relay monitors tap changer position via digital inputs and compensates for ratio mismatches in real-time, maintaining protection sensitivity across the full tap range (typically ±10% to ±20%).

What communication protocols enable integration with existing SCADA systems?
The P5 option provides native support for Modbus TCP/RTU (master/slave), DNP3.0 Level 2 (serial and Ethernet), and IEC 61850 MMS/GOOSE. Multiple protocols can operate simultaneously on different ports, allowing gradual migration from legacy systems to modern architectures without service interruption.

How many RTD temperature sensors can be connected for winding monitoring?
The L configuration provides 12 independent RTD inputs supporting Pt100 or Pt1000 sensors in 3-wire configuration. Typical deployment: 4 RTDs for top-oil temperature, 6 RTDs for winding hotspots (2 per phase), and 2 RTDs for ambient/cooling system monitoring. Each input features individual alarm and trip thresholds.

Is the relay suitable for outdoor substation installations?
The relay is designed for indoor panel mounting with IP52 front panel protection. For outdoor applications, install in NEMA 4X or IP65-rated enclosures with environmental controls. The wide operating temperature range (-40°C to +85°C) and conformal-coated electronics ensure reliable operation in harsh climates when properly housed.

What analog output signals are available for integration with plant control systems?
The R option provides four isolated 4-20mA outputs programmable for any measured or calculated parameter: phase currents, differential current, winding temperatures, load percentage, power factor, or frequency. Outputs drive chart recorders, PLCs, or DCS systems with 12-bit resolution and 1% accuracy.

Why Partner with NINERMAS for Your Protection Relay Needs?

At NINERMAS COMPANY LIMITED, we specialize in delivering genuine GE Multilin protection relays backed by deep application expertise and responsive technical support. Every GE 745-W2-P5-G5-HI-A-L-R-E-H ships with factory calibration certificates, comprehensive documentation, and our 12-month warranty—ensuring your investment is protected from day one.

Our engineering team provides complimentary pre-sales consultation to verify relay suitability for your specific transformer configuration, system voltage, and protection coordination requirements. We assist with settings calculations, communication setup, and integration planning to accelerate commissioning and minimize downtime.

Beyond the 745 relay, we offer complete substation protection solutions including feeder relays, motor protection systems, generator relays, and power quality meters—enabling single-source procurement with coordinated technical support. Our inventory includes complementary GE Multilin products for comprehensive facility protection architectures.

Ready to protect your critical transformer assets? Contact our application specialists today for technical consultation, custom quotations, or to discuss your specific protection challenges. We're here to ensure your power systems operate safely, reliably, and efficiently.
