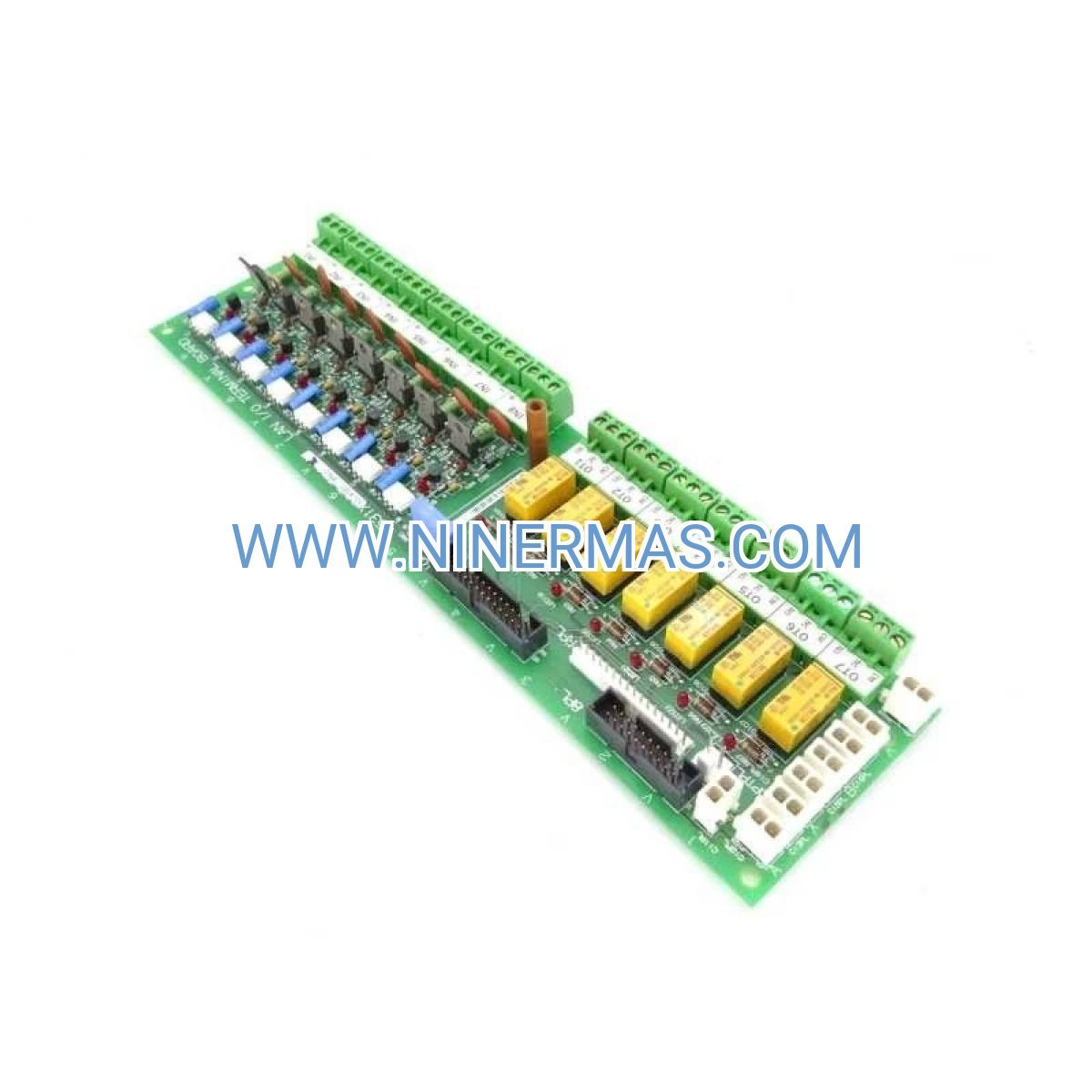

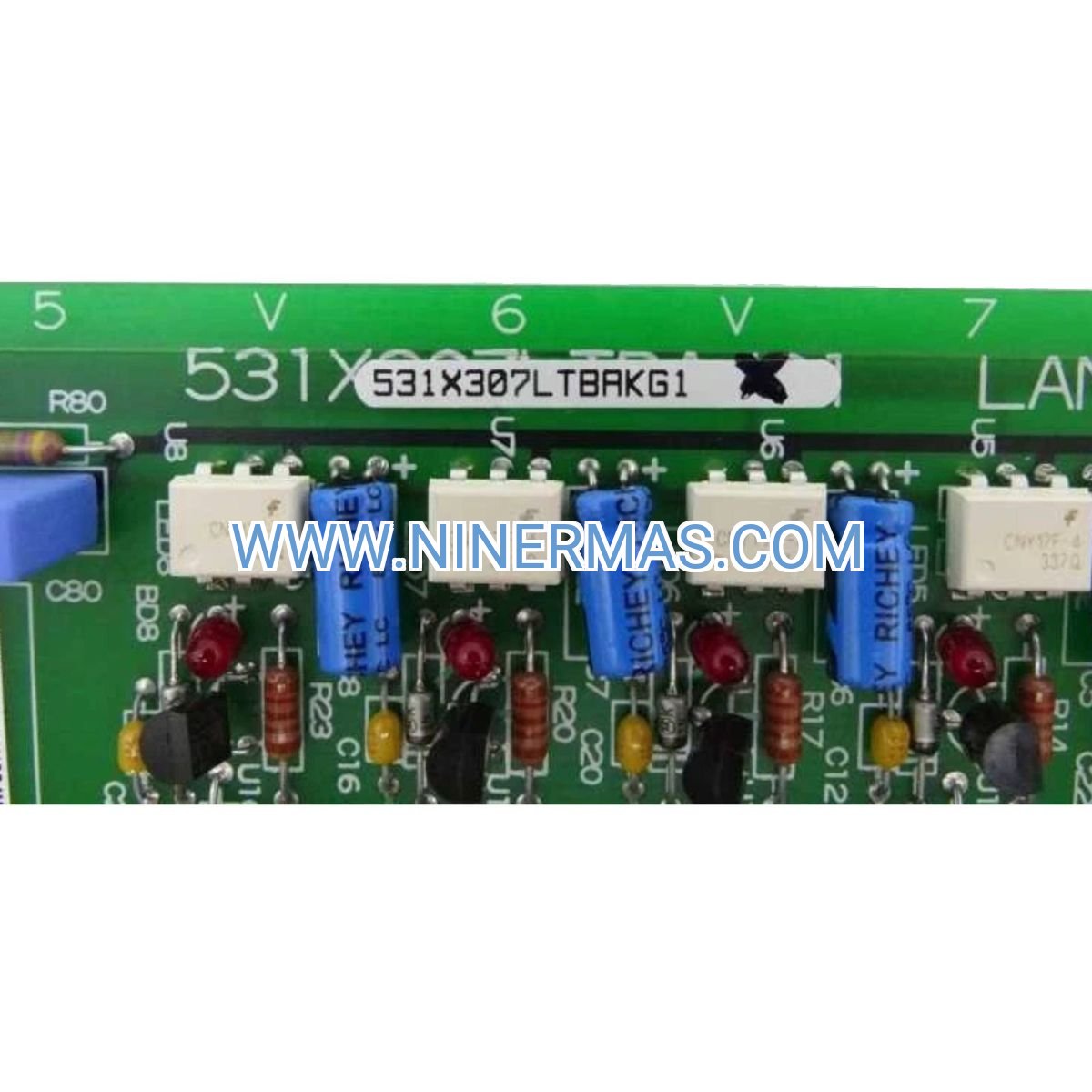

GE 531X307LTBAKG1 Low Voltage Signal Processing Board (Industrial-Grade Turbine Control Solution)

The GE 531X307LTBAKG1 Low Voltage Signal Processing Board is an industrial-grade control module engineered for General Electric's Mark VI Speedtronic turbine control architecture. Through precision analog-to-digital signal conversion and real-time data acquisition, this board enables continuous monitoring of critical turbine parameters—including temperature, pressure, vibration, and flow—ensuring safe, efficient operation across gas and steam turbine installations.

Designed for power generation facilities, combined-cycle plants, and industrial cogeneration systems, the 531X307LTBAKG1 addresses common challenges such as signal noise interference, sensor drift, and unplanned downtime caused by component failure. Its hot-swappable design and built-in diagnostics reduce maintenance windows and improve system availability, making it ideal for design engineers, plant operators, system integrators, and OEM service providers.

With factory calibration, EMI/RFI shielding, and seamless integration into existing Mark VI control cabinets, this board delivers reliable performance in demanding environments. Engineering teams can leverage our technical support for system configuration, compatibility verification, and custom integration planning. Contact our specialists to discuss your project requirements and receive tailored selection guidance.

Core Functions & Advantages

High-Precision Signal Conditioning
Processes low voltage analog signals from thermocouples, RTDs, pressure transducers, and vibration sensors with 12-bit resolution, ensuring accurate data for turbine protection algorithms and performance optimization. Minimizes signal degradation over long cable runs through differential input architecture.

Seamless Mark VI Ecosystem Integration
Direct backplane connectivity with Mark VI controllers, I/O terminal boards, and processor modules eliminates custom wiring and reduces commissioning time. Fully compatible with GE ToolboxST software for configuration, diagnostics, and firmware updates.

Enhanced System Reliability
Industrial-grade components rated for 0°C to 60°C operation withstand thermal cycling, humidity, and vibration typical in turbine control rooms. Conformal coating protects against dust and moisture ingress, extending service life in harsh power plant environments.

Reduced Maintenance Burden
Hot-swap capability in redundant configurations allows board replacement during operation without turbine shutdown, minimizing revenue loss. LED status indicators and self-test routines accelerate fault isolation and reduce mean time to repair (MTTR).

Comprehensive Protection Features
Integrated overvoltage protection, reverse polarity guards, and watchdog timers prevent damage from wiring errors or transient events. Galvanic isolation between signal inputs and control logic enhances noise immunity and personnel safety.

Intuitive Diagnostics & Monitoring
Real-time status reporting through ToolboxST interface displays signal quality, calibration drift, and fault codes. Historical event logging supports predictive maintenance strategies and root cause analysis for unplanned trips.

Typical Application Scenarios

This board serves critical roles in turbine control systems where signal accuracy, uptime, and safety are paramount:

Gas Turbine Combined-Cycle Power Plants
Processes exhaust temperature, compressor discharge pressure, and fuel flow signals in Frame 6, Frame 7, and LM-series gas turbines. Interfaces with Mark VI controllers to execute combustion tuning, emissions control, and load-following algorithms. Commonly deployed alongside terminal boards for multi-point temperature averaging and vibration monitoring in utility-scale installations.

Steam Turbine Control & Protection Systems
Monitors steam inlet conditions, bearing temperatures, and thrust position in reheat and non-reheat steam turbines. Provides input to overspeed protection logic and emergency trip systems, ensuring compliance with NFPA 85 and API 670 standards. Frequently paired with redundant processor boards in critical safety applications for nuclear and fossil-fuel power stations.

Industrial Cogeneration & District Heating
Supports turbine control in chemical plants, refineries, and district heating facilities where process steam extraction requires precise pressure regulation. Enables coordination between turbine governors and downstream process control systems via analog output modules, optimizing thermal efficiency and reducing fuel consumption.

Turbine Retrofit & Modernization Projects
Facilitates Mark VI control system upgrades on legacy Mark V or Mark IV turbines, providing enhanced signal processing capabilities without major mechanical modifications. Integrates with existing sensor infrastructure while enabling advanced diagnostics and remote monitoring features for aging fleet management.

Technical Parameters & Selection Guidance

To ensure optimal system performance, review the following specifications and selection criteria:

Selection Recommendations
When specifying the 531X307LTBAKG1 board, consider the following project parameters:

• Sensor Compatibility: Verify signal types (thermocouple, RTD, voltage, current) and ranges match board input specifications
• Channel Count: Determine total analog input points required; multiple boards may be needed for large turbine installations
• Redundancy Requirements: For critical applications, specify dual-board configurations with TMR (Triple Modular Redundant) voting logic
• Environmental Conditions: Confirm control room temperature, humidity, and vibration levels fall within operating limits
• System Architecture: Identify existing Mark VI controller models, I/O terminal boards, and software versions for compatibility verification

For assistance with system design, provide our engineering team with turbine model, sensor list, control cabinet layout, and project timeline. We will recommend optimal board quantities, compatible terminal boards, and integration best practices.

Extended Capabilities & System Integration

Advanced Diagnostic Features
ToolboxST software interface provides real-time signal trending, calibration status, and fault history. Supports remote monitoring via Ethernet connectivity for predictive maintenance and performance analysis. Alarm thresholds configurable for out-of-range signals, open circuits, and sensor failures.

Cybersecurity Considerations
When integrating into networked control systems, implement firewall rules, VLAN segmentation, and access controls per NERC CIP or IEC 62443 guidelines. Board firmware updates should follow change management procedures with version control and rollback capability.

Spare Parts Strategy
Recommend maintaining 10% spare inventory for critical boards in 24/7 power generation facilities. Shelf life exceeds 5 years when stored in controlled environments (15-25°C, <60% RH). Pre-configured spare boards reduce commissioning time during emergency replacements.

Delivery, Service & Quality Assurance

Lead Times & Logistics
In-stock units ship within 1-3 business days via DHL, FedEx, or UPS with full tracking and insurance. Custom configurations (firmware versions, calibration settings) require 5-10 business days. Bulk orders for multi-unit projects receive priority scheduling and consolidated shipping to reduce freight costs.

Warranty Coverage
All boards include a 12-month manufacturer warranty covering material defects and workmanship failures. Warranty terms include free replacement or repair, with expedited shipping for critical downtime situations. Extended warranty options available for long-term service agreements.

Technical Support Services
Our team provides pre-sales engineering consultation, installation guidance, and post-commissioning troubleshooting. Services include ToolboxST configuration assistance, signal calibration procedures, and integration with third-party DCS/SCADA systems. On-site commissioning support available in select regions (quoted separately).

Documentation Package
Each board ships with installation manual, wiring diagrams, ToolboxST configuration files, and calibration certificates. Additional resources include compatibility matrices, firmware release notes, and cybersecurity hardening guides available via customer portal.

Frequently Asked Questions (FAQ)

Q: How does the GE 531X307LTBAKG1 low voltage board interface with existing Mark VI controllers?
A: The board connects via the Mark VI backplane using standard card-edge connectors. No custom cabling required—simply insert into an available slot in the control cabinet, configure I/O mapping in ToolboxST software, and assign signal channels to controller logic. Backplane provides both power and high-speed data communication.

Q: What is the maximum number of analog input channels supported per board?
A: Channel count varies by board revision and configuration. Typical implementations support 8-16 differential analog inputs. For exact specifications, provide your board revision code (suffix letters after part number) or contact our technical team with your system requirements.

Q: Can this board achieve energy savings in turbine control applications?
A: While the board itself is a monitoring component, improved signal accuracy enables tighter control of combustion parameters, steam conditions, and load distribution—indirectly contributing to 2-5% efficiency gains in optimized systems. Actual savings depend on turbine type, operating profile, and control strategy implementation.

Q: What are the installation environment requirements for reliable operation?
A: Install in climate-controlled control rooms maintaining 0-60°C ambient temperature and <95% relative humidity (non-condensing). Ensure adequate ventilation in control cabinets to prevent heat buildup. Protection rating is IP20, requiring enclosed cabinet installation to prevent dust/moisture ingress. Avoid locations with excessive vibration (>0.5g) or corrosive atmospheres.

Q: Does the board support remote monitoring and data acquisition for predictive maintenance?
A: Yes, when integrated with Mark VI controllers connected to plant networks, signal data and diagnostic status are accessible via ToolboxST remote interface, OPC servers, or Modbus TCP gateways. Supports integration with condition monitoring systems for vibration analysis, thermal performance tracking, and anomaly detection algorithms.

Q: Is this board compatible with Mark VIe or Mark V turbine control systems?
A: The 531X307LTBAKG1 is specifically designed for Mark VI Speedtronic architecture. Mark VIe systems use different backplane standards and may require alternative part numbers. Mark V systems are not compatible due to different signal processing architectures. Contact our engineering team with your system details for cross-platform compatibility assessment and migration options.

Contact & Ordering Information

For detailed selection assistance, custom configurations, or technical inquiries, please provide the following information to our engineering team:

• Project name and application type (gas turbine, steam turbine, cogeneration, etc.)
• Turbine manufacturer and model (GE Frame 6, Siemens SGT-800, etc.)
• Existing control system (Mark VI controller models, software version)
• Sensor types and signal ranges (thermocouple types, RTD resistance, voltage/current levels)
• Total analog input points required
• Redundancy requirements (simplex, dual, TMR)
• Project timeline and delivery location

Our specialists will provide one-on-one selection recommendations, compatibility verification, pricing quotations, and integration support tailored to your specific application.
