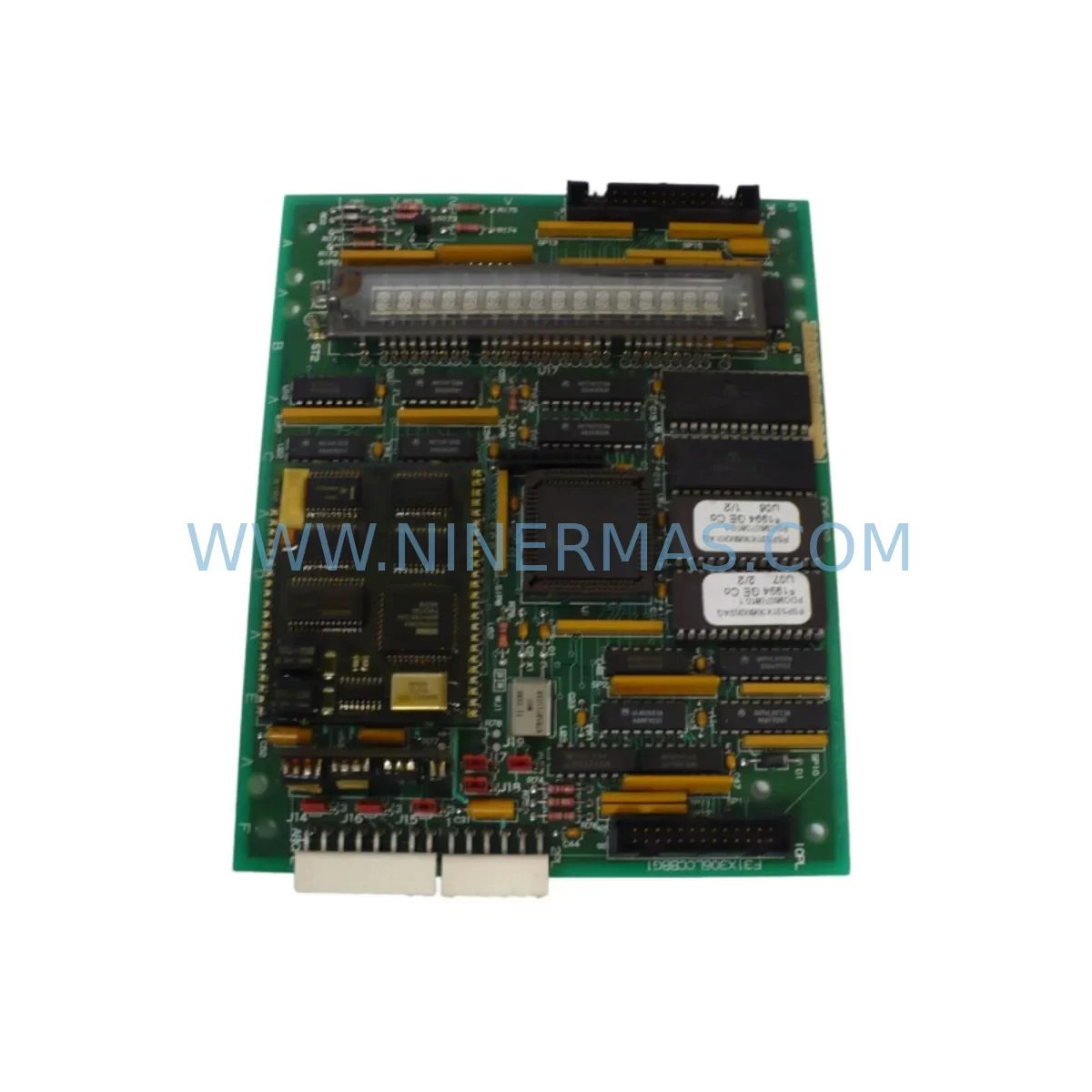

GE 531X306LCCBFM1 Retrofit-Compatible FM1 Board for Series Six

GE 531X306LCCBFM1 Retrofit-Compatible FM1 Board for Series Six Drive: Legacy System Compatibility & Smooth Upgrade

The GE 531X306LCCBFM1 is a retrofit-compatible FM1 feedback and control board designed for GE’s Series Six AC drive platform — one of the most widely deployed variable frequency drive systems in industrial automation history. As the Series Six platform reaches end-of-life and OEM support diminishes, facilities engineers and maintenance teams are increasingly challenged to source reliable replacement boards that maintain operational continuity without requiring full drive replacement. NINERMAS maintains verified stock of the 531X306LCCBFM1 to support exactly these retrofit and legacy system sustainment scenarios.

Whether you are managing a planned upgrade, responding to an unplanned board failure, or executing a phased modernization of your control infrastructure, the 531X306LCCBFM1 provides a direct drop-in replacement path that preserves your existing wiring, terminal layout, and drive configuration — minimizing engineering rework and reducing total downtime exposure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 531X306LCCBFM1 into an existing Series Six drive installation requires careful pre-replacement planning. Before removing the failed board, maintenance engineers should document the current DIP switch positions, jumper configurations, and any field-modified parameter settings stored in the drive’s memory. If the drive is connected to a GE Series Six power supply module or a shared DC bus arrangement, the bus voltage should be fully discharged and verified with a multimeter before any board handling begins.

Terminal wiring on the 531X306LCCBFM1 follows the standard Series Six I/O terminal block layout. Engineers should photograph or transcribe the existing wiring before disconnection, paying particular attention to analog speed reference inputs, digital run/stop command signals, fault relay outputs, and encoder or tachometer feedback connections. In applications where the drive interfaces with a GE Fanuc Series 90 PLC or a GE Mark V / Mark VI turbine control system, the signal wiring between the drive’s control terminals and the PLC’s analog output or digital output modules must be verified for correct polarity and signal range before re-energizing.

For facilities running multi-drive systems, the 531X306LCCBFM1 replacement should be coordinated with the broader drive network. In rack-mounted or cabinet-integrated installations, confirm that the replacement board’s physical dimensions are compatible with the existing drive chassis and that adjacent modules — such as the GE 531X307LTBAFM1 terminal board or the 531X301CCHAFM1 control board — are not damaged and are properly seated. In some legacy installations, the FM1 board interfaces directly with a 531X111PCHAJG1 power supply board; verify that the power supply output voltages are within specification before installing the replacement.

Where the existing system includes a GE Series Six HMI panel or an operator interface terminal connected via RS-232 or RS-485, confirm that the communication parameters — baud rate, parity, stop bits, and device address — are correctly configured on the replacement board before reconnecting the communication cable. In modernization projects where the HMI is being upgraded to a newer touchscreen panel, the 531X306LCCBFM1 can serve as a stable interim control board while the HMI migration is completed, avoiding the need to simultaneously replace both the drive board and the operator interface.

I/O expansion requirements should also be assessed during retrofit planning. If the application requires additional analog inputs for process feedback — such as pressure transducers, flow meters, or temperature sensors — confirm whether the existing 531X306LCCBFM1 I/O capacity is sufficient or whether supplementary I/O modules are needed. In some installations, a GE Series Six I/O expansion module or a signal isolator is used to condition 4–20 mA process signals before they reach the drive’s analog input terminals; these isolators should be tested and verified as part of the retrofit commissioning process.

Downtime Control During System Migration

Minimizing production downtime during a Series Six drive board replacement requires a structured approach to pre-staging, execution, and post-replacement verification. NINERMAS recommends the following sequence to protect program logic, maintain field control continuity, and reduce retrofit risk:

1. Pre-Replacement Preparation: Before scheduling the replacement window, obtain a verified replacement 531X306LCCBFM1 board from NINERMAS stock — all units are tested prior to shipment and covered by a 12-month warranty. Prepare a complete wiring diagram of the existing terminal connections, document all drive parameters using the drive’s keypad or a connected programming tool, and confirm that a qualified technician is available for on-site commissioning.

2. Controlled Shutdown: Coordinate the replacement with production scheduling to select the lowest-impact maintenance window. Follow the drive manufacturer’s recommended shutdown sequence: ramp the drive to zero speed, issue a stop command, wait for the motor to reach standstill, then isolate the drive from the incoming power supply using the upstream disconnect or circuit breaker. Verify zero voltage on the DC bus before opening the drive enclosure.

3. Board Swap and Wiring Verification: Remove the failed 531X306LCCBFM1 board, install the replacement, and reconnect all terminal wiring according to the documented wiring diagram. Verify DIP switch and jumper settings against the original configuration. Reconnect any communication cables to the HMI or PLC.

4. Power-Up and Commissioning: Re-energize the drive and verify that all fault indicators are clear. Restore the previously documented drive parameters. Perform a no-load test run to confirm correct speed reference response, feedback signal integrity, and fault relay operation before returning the drive to full production load.

By following this structured approach, most Series Six FM1 board replacements can be completed within a single planned maintenance shift, with full production resumption on the same day.

Retrofit Support FAQ

Q1: Is the GE 531X306LCCBFM1 a direct replacement for the original board in my Series Six drive?
A: Yes. The 531X306LCCBFM1 is designed as a direct replacement for the original FM1 feedback and control board in GE Series Six AC drives. The terminal layout, backplane interface, and board dimensions are consistent with the original specification, allowing a direct swap without modification to the drive chassis or wiring.

Q2: How do I verify compatibility before ordering?
A: Confirm the part number printed on your existing board matches 531X306LCCBFM1. Also verify the Series Six drive model number and the board’s position within the drive assembly. If you are uncertain, contact NINERMAS at sale@ninermas.com with your drive model number and existing board part number for compatibility confirmation before ordering.

Q3: What testing is performed before shipment?
A: All 531X306LCCBFM1 boards supplied by NINERMAS are functionally tested prior to shipment to verify board integrity and basic operational parameters. Each unit is covered by a 12-month warranty from the date of shipment. Test records are available upon request.

Q4: What is the typical lead time and stock availability?
A: NINERMAS maintains inventory of the 531X306LCCBFM1 to support urgent replacement requirements. Typical lead time for in-stock units is 1–3 business days for international shipment. Contact sale@ninermas.com or call +0086 187 5021 5667 to confirm current stock levels and shipping options for your location.
