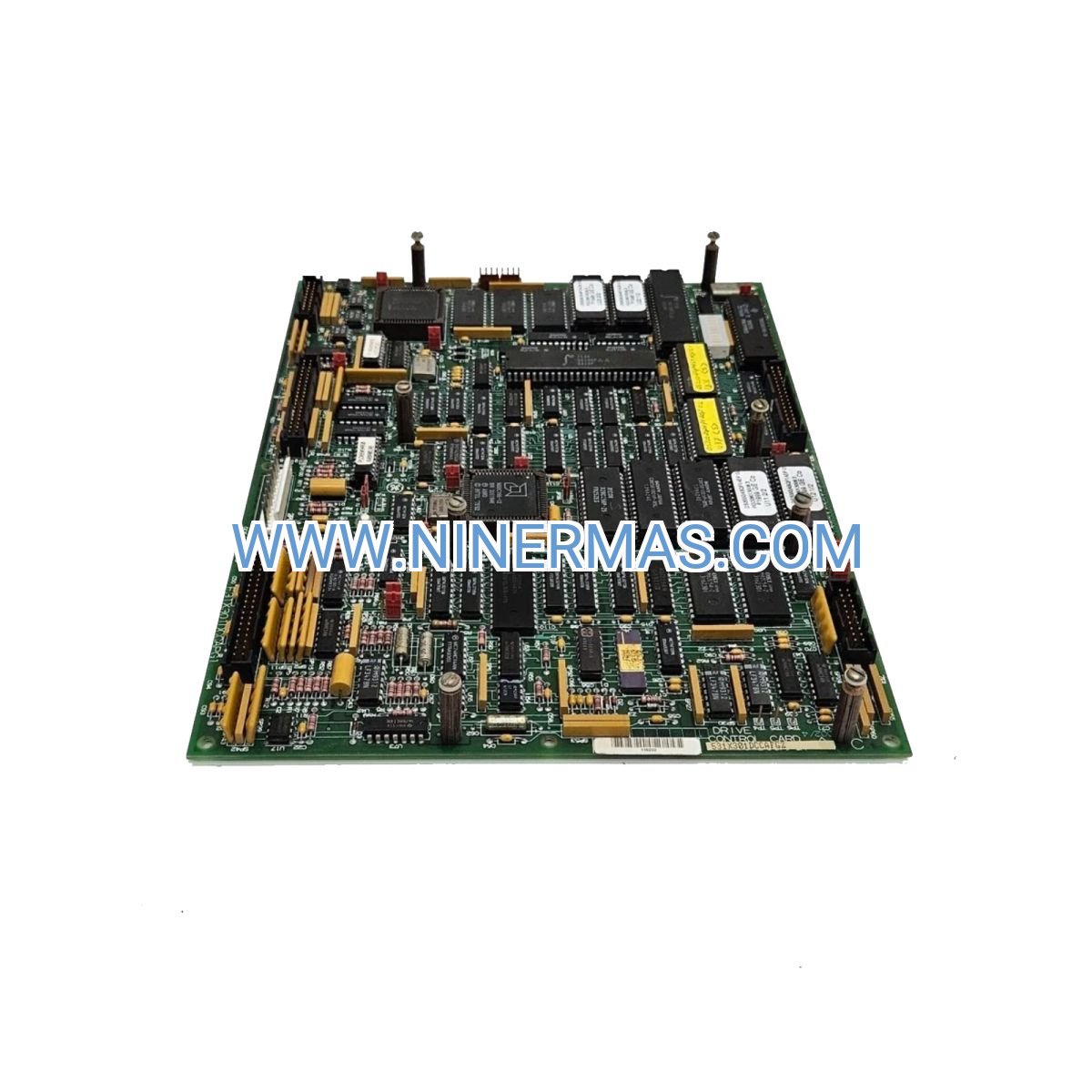

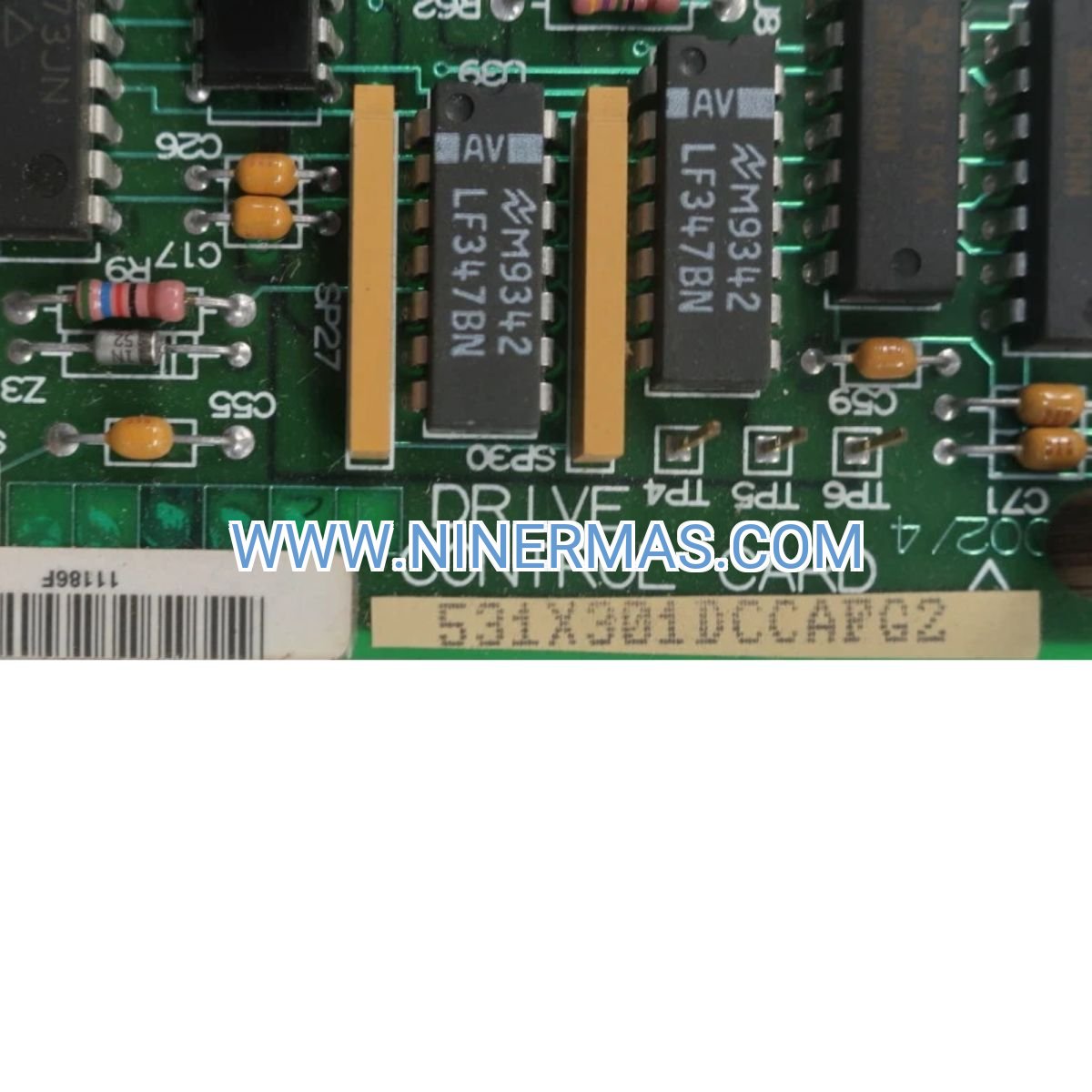

GE 531X301DCCAFG2 DC Drive Control Card (Industrial-Grade Motor Regulation)

The GE 531X301DCCAFG2 represents a proven solution for DC motor speed and torque management in industrial automation systems. Engineered by General Electric, this drive control card delivers precise PWM-based regulation for manufacturing lines, material handling equipment, and process control installations where consistent motor performance is non-negotiable.

Designed for integration with GE DC drive platforms, the 531X301DCCAFG2 addresses common challenges in motor control: speed drift under varying loads, torque inconsistency during acceleration, and inadequate fault protection. Target users include maintenance engineers upgrading legacy drive systems, OEMs building custom machinery, and plant operators seeking reliable replacement components for critical production equipment.

Key advantages include digital control precision that eliminates analog drift, comprehensive diagnostics that reduce unplanned downtime, and backward compatibility that simplifies retrofits without system redesign. The conformal-coated PCB construction ensures longevity in environments with temperature fluctuations, airborne contaminants, and vibration exposure.

Core Features & Benefits

✓ Digital PWM Speed Control
Maintains ±0.5% speed accuracy across 10-100% load variations, eliminating product quality issues caused by motor speed drift in winding, extrusion, and conveyor applications.

✓ Programmable Torque Limiting
Protects mechanical components from overload damage while enabling soft-start sequences that extend equipment lifespan and reduce peak power demand by up to 40%.

✓ Multi-Mode Feedback Compatibility
Supports encoder (incremental/absolute), tachometer, and armature voltage feedback—allowing engineers to select the optimal sensing method for each application without hardware changes.

✓ Real-Time Fault Diagnostics
Detects and reports overcurrent (>150% rated), overvoltage/undervoltage (±15% nominal), and thermal anomalies before component failure occurs, reducing emergency repair costs.

✓ Industrial Environmental Resilience
Operates reliably in 0-60°C ambient temperatures with 5-95% humidity tolerance; conformal coating resists moisture, dust, and chemical vapors common in manufacturing facilities.

✓ Drop-In Replacement Design
Direct compatibility with existing GE 531X drive chassis eliminates costly system redesigns—most installations complete in under 2 hours with standard parameter transfer.

Typical Application Scenarios

→ Packaging & Converting Lines
In high-speed packaging operations, the 531X301DCCAFG2 maintains precise web tension control for film wrappers, label applicators, and carton sealers. The card's torque regulation prevents material tearing during acceleration while its speed accuracy ensures consistent product spacing—critical for downstream vision inspection systems.

→ Metal Processing Equipment
Steel mills and fabrication shops deploy this control card in coil winding machines, slitting lines, and rolling mills where motor speed directly impacts product dimensional accuracy. The feedback flexibility allows integration with existing tachometer systems while providing upgrade paths to encoder-based precision.

→ Chemical Batch Processing
Mixer and agitator applications benefit from the card's torque control during viscosity changes throughout batch cycles. Pharmaceutical and food processing facilities value the diagnostic capabilities that support FDA 21 CFR Part 11 compliance through detailed fault logging.

→ Crane & Hoist Systems
Material handling installations require the regenerative braking support and smooth acceleration profiles this card provides. The overcurrent protection prevents motor damage during emergency stops while maintaining precise positioning for load placement.

→ Paper & Printing Production
Web handling systems in printing presses and paper mills use the 531X301DCCAFG2 for dancer roll control and section drive synchronization. The card's response time (<10ms) prevents web breaks during speed changes while maintaining ±0.3% speed matching between drive sections.

Technical Parameters & Selection Guide

Selection Criteria: Verify drive chassis model compatibility before ordering. For applications requiring speed accuracy better than ±0.5%, specify encoder feedback during installation. Environments exceeding 50°C ambient require additional cooling or chassis ventilation upgrades. Contact technical support for motor horsepower matching and parameter configuration assistance.

Extended Functions

Advanced Diagnostics Integration: The card supports RS-485 communication for integration with SCADA systems and plant-wide monitoring platforms. Diagnostic data includes real-time current draw, armature voltage, field voltage, and thermal status—enabling predictive maintenance strategies that reduce unplanned downtime by 30-50%.

Custom Parameter Profiles: Store up to 4 application-specific parameter sets for quick changeover between products or operating modes. Ideal for contract manufacturers running multiple SKUs on shared equipment or seasonal production variations.

Regenerative Braking Optimization: Configurable braking profiles allow engineers to balance stopping time against mechanical stress, extending brake component life while maintaining cycle time requirements.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 1-3 business days via express courier. Quantity orders (10+ units) typically fulfill within 5-7 business days. Custom testing or configuration services add 2-3 days to standard lead times.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and workmanship issues. Warranty includes free replacement shipping and technical support for installation troubleshooting.

Technical Support: Access to certified GE drive specialists for parameter configuration, fault diagnosis, and application engineering consultation. Support available via email, phone, and remote desktop assistance for complex integrations.

Documentation Package: Each card ships with installation quick-start guide, parameter reference sheet, and wiring diagrams. Complete technical manuals, CAD drawings, and compliance certificates available for download after purchase.

Frequently Asked Questions

Q: How do I verify compatibility with my existing GE DC drive chassis?
A: The 531X301DCCAFG2 fits standard GE 531X series drive chassis. Check your drive nameplate for model number—if it begins with "531X" and has available card slots, compatibility is confirmed. For non-standard configurations, provide your drive model number to our technical team for verification.

Q: What feedback resolution is required for ±0.5% speed accuracy?
A: Minimum 1024 PPR (pulses per revolution) encoder recommended for applications requiring ±0.5% regulation. Lower resolution encoders (512 PPR) achieve ±1% accuracy. Tachometer feedback typically provides ±2-3% regulation depending on motor characteristics.

Q: Can this card control both armature and field circuits?
A: The 531X301DCCAFG2 primarily controls armature circuits. Field control requires separate field supply modules available in the GE drive system. Consult drive system documentation for complete field control implementation.

Q: Is remote monitoring possible without additional hardware?
A: Basic status monitoring integrates through the drive's existing communication interface (typically RS-485). Advanced IoT connectivity requires adding communication gateway modules such as Ethernet/IP or Modbus TCP adapters to the drive chassis.

Q: What is the typical service life in continuous-duty applications?
A: Under normal industrial conditions (40°C average ambient, <80% humidity), expect 10-15 years of reliable operation. Harsh environments (high temperature, chemical exposure, excessive vibration) may reduce service life to 7-10 years. Regular inspection and cleaning extend component longevity.

Q: Do you offer installation and commissioning services?
A: While we provide comprehensive technical support remotely, on-site installation services are available through our certified partner network. Contact our sales team with your location and project scope for service provider recommendations and pricing.
