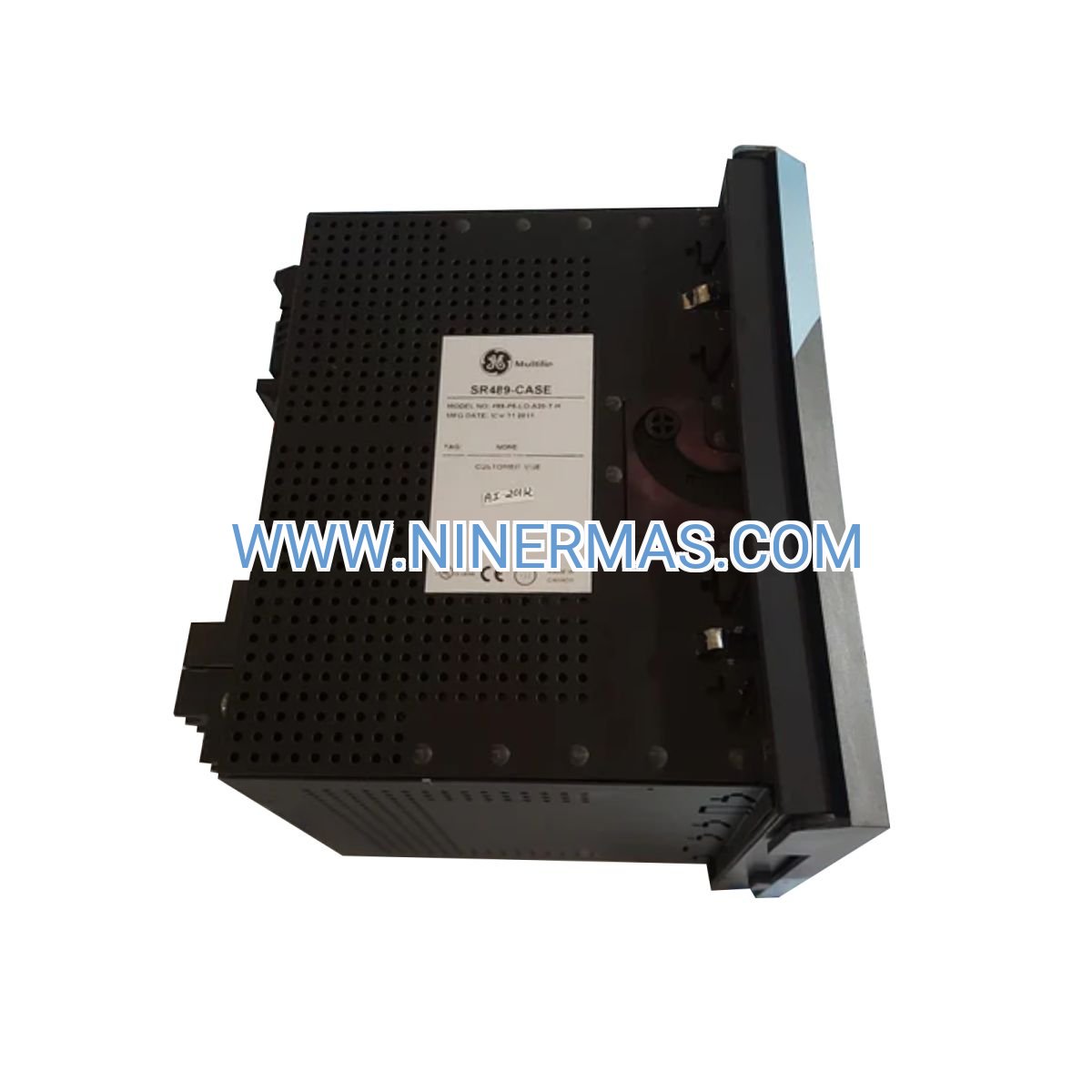

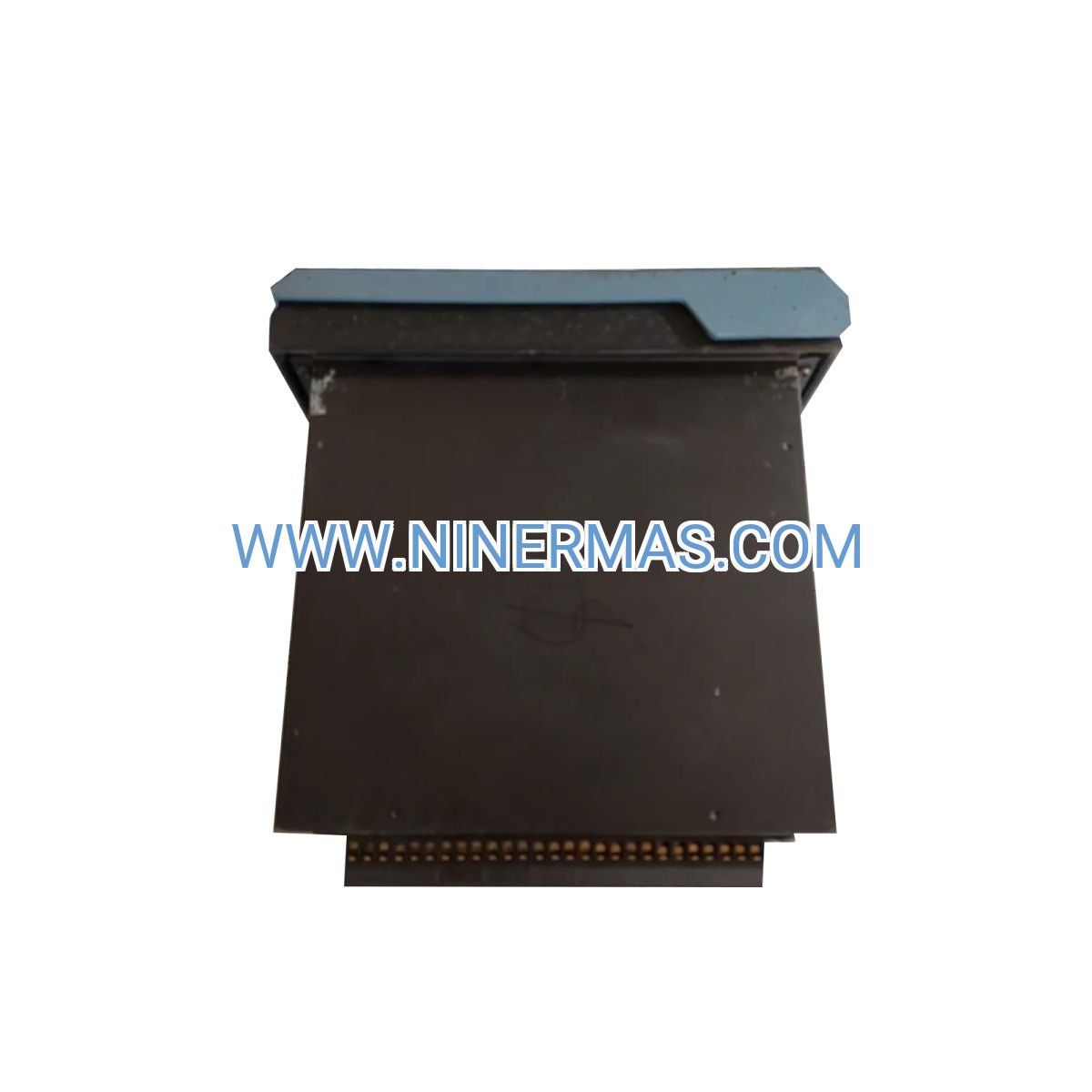

GE 489-P5-LO-A20-E-H Generator Protection Relay (Industrial-Grade Power Management System)

The GE 489-P5-LO-A20-E-H Generator Protection Relay is an industrial-grade control device designed for comprehensive protection and monitoring of synchronous and induction generators. Through advanced PLC-based logic, multi-element protection algorithms, and real-time metering capabilities, this relay delivers reliable fault detection, automated load management, and intelligent system diagnostics for mission-critical power generation applications.

Ideal for utility-scale power plants, industrial cogeneration systems, data center backup generation, and distributed energy resources (DER), the 489-P5-LO-A20-E-H addresses common operational challenges including voltage instability, mechanical stress from electrical faults, unplanned downtime due to late fault detection, and limited visibility into generator health metrics. The relay's conformal-coated 'H' variant ensures reliable operation in harsh industrial environments with temperature extremes, humidity, and corrosive atmospheres.

Featuring standardized protection configurations with extensive customization options, this relay offers dual-protocol communication (Modbus RTU + Ethernet TCP/IP), LCD operator interface with multi-language support, comprehensive event recording with time-stamped fault logs, and seamless integration with SCADA/DCS platforms. Suitable for design engineers, EPC contractors, system integrators, and facility maintenance teams. Contact our application engineers for customized protection schemes, CT/PT ratio calculations, and project-specific quotations.

Core Functions & Advantages

Multi-Element Differential Protection (87G)
Employs high-speed differential algorithms with restraint characteristics to detect internal generator faults (stator winding shorts, ground faults) within 16-33ms, isolating faults before catastrophic damage occurs. Configurable sensitivity settings accommodate various generator sizes from 500kVA to 50MVA.

Comprehensive Electrical & Mechanical Protection Suite
Integrates 15+ protection functions including reverse power (32), loss of excitation (40), unbalanced loading (46), phase/ground overcurrent (50/51), overvoltage/undervoltage (27/59), frequency deviation (81), and inadvertent energization (50/27). Reduces equipment damage costs by 40-60% compared to basic protection schemes.

Advanced Metering & Power Quality Monitoring
Provides real-time measurement of voltage, current, power (kW/kVAR/kVA), power factor, frequency, and total harmonic distortion (THD). Historical trending capabilities enable predictive maintenance strategies and optimize generator loading profiles for maximum fuel efficiency.

Dual-Protocol Industrial Communication
Supports simultaneous Modbus RTU (RS-485) and Ethernet Modbus TCP/IP connectivity, enabling integration with Allen-Bradley, Siemens, GE, and Schneider control systems. DNP3 protocol available via firmware upgrade for utility SCADA applications.

Intelligent Fault Diagnostics & Event Recording
Captures 512 time-stamped events with waveform recording (oscillography) for post-fault analysis. Built-in self-diagnostics continuously monitor relay health, CT/PT circuit integrity, and communication status, triggering maintenance alerts before failures occur.

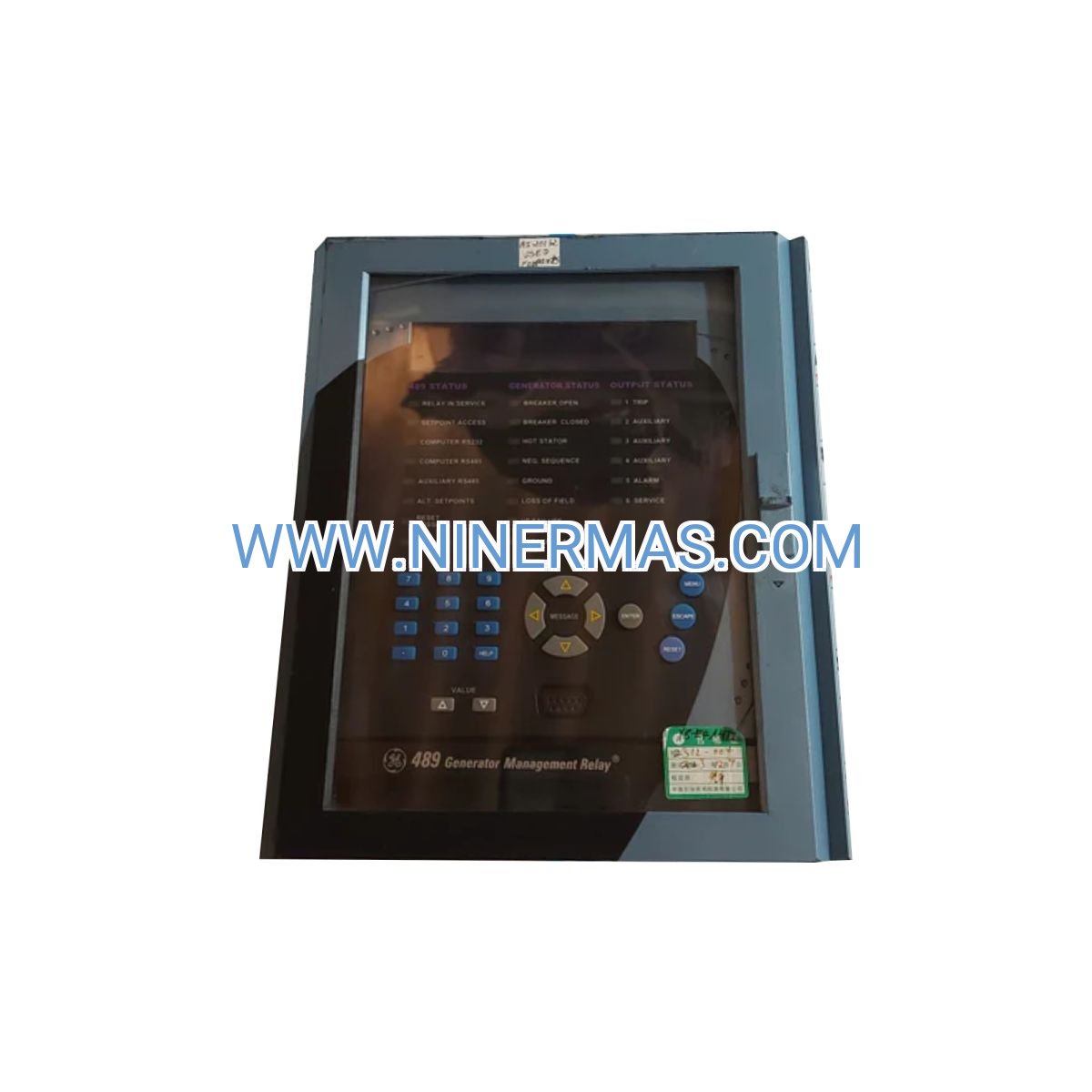

Operator-Friendly LCD Interface
Features backlit 40-character LCD display with intuitive menu navigation, supporting English and Chinese language options. Front-panel keypad allows on-site setpoint adjustments, meter reading, and event log retrieval without external tools.

Harsh Environment Reliability (Conformal Coating)
The 'H' designation indicates military-grade conformal coating protecting PCB assemblies from moisture, salt spray, chemical vapors, and fungal growth. Certified for operation in -40°C to +70°C ambient temperatures with 95% non-condensing humidity.

Typical Application Scenarios

This relay is engineered for installations demanding high reliability, continuous monitoring, and rapid fault response, particularly in:

Utility & Independent Power Plants
Provides primary protection for steam turbine generators, gas turbine generators, and combined-cycle units ranging from 5MW to 500MW. Meets IEEE C37.102 and IEC 60255 protection standards required by grid interconnection agreements. Coordinates with transformer differential relays and bus protection schemes for comprehensive substation protection.

Industrial Cogeneration & Combined Heat-Power (CHP) Systems
Protects reciprocating engine generators and micro-turbines in chemical plants, refineries, pulp & paper mills, and food processing facilities. Ensures generator synchronization stability during load transfers and maintains power quality for sensitive process equipment. Integrates with heat recovery steam generators (HRSG) control systems.

Data Centers & Mission-Critical Facilities
Safeguards diesel and natural gas standby generators supporting Tier III/IV data centers, hospitals, telecommunications hubs, and financial trading floors. Provides sub-second fault detection to minimize UPS battery discharge during utility outages. Supports N+1 and 2N redundant generator configurations with automatic load sharing.

Renewable Energy & Distributed Generation
Manages protection for biogas generators, landfill gas gensets, and synchronous condensers in wind/solar hybrid systems. Handles reverse power flow scenarios and grid synchronization challenges inherent in distributed energy resources (DER). Complies with IEEE 1547 anti-islanding and voltage ride-through requirements.

Marine & Offshore Power Generation
Conformal-coated variant withstands saltwater corrosion, vibration, and temperature cycling on offshore oil platforms, FPSO vessels, cruise ships, and naval vessels. Meets DNV-GL, ABS, and Lloyd's Register marine classification society requirements.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment selection, we provide standardized configurations with extensive customization capabilities. All specifications comply with ANSI/IEEE and IEC international standards.

Selection Recommendations:
When specifying the 489-P5-LO-A20-E-H relay, consider the following system parameters: generator rated capacity (kVA/MVA), voltage class and winding configuration (wye/delta), CT ratios and accuracy class (5P20 or 10P20 recommended for differential protection), PT ratios for voltage sensing, auxiliary power availability (AC or DC station battery), required communication protocols for SCADA integration, environmental conditions (temperature range, humidity, corrosive atmosphere presence), and panel cutout dimensions for retrofit installations.

For complex applications involving multiple generators, bus-tie configurations, or utility interconnection, our application engineers provide comprehensive protection coordination studies, relay setting calculations, and AutoCAD panel layout drawings. Submit your single-line diagram, generator nameplate data, and CT/PT specifications for customized recommendations.

Extended Functionality & System Integration

Programmable Logic & Automation
Built-in FlexLogic™ engine with 128 programmable logic equations enables custom protection schemes, automatic synchronization sequences, load shedding strategies, and interlocking logic without external PLCs. Supports Boolean operations, timers, counters, and analog comparators.

Synchro-Check & Auto-Synchronization
Integrated synchro-check function (ANSI 25) monitors voltage magnitude, phase angle, and frequency differences between generator and bus before closing breakers. Prevents damaging out-of-phase connections. Optional auto-sync module controls excitation and governor systems for fully automated paralleling.

Load Sharing & VAR Control
Active/reactive power droop control algorithms enable stable load sharing among multiple generators without communication links. Automatic voltage regulator (AVR) interface maintains power factor targets and prevents circulating currents in parallel operation.

Cybersecurity Features
Role-based access control with password protection (up to 10 user levels), encrypted Ethernet communication (TLS 1.2), event logging of configuration changes, and front-panel lockout prevent unauthorized modifications. Complies with NERC CIP cybersecurity standards for critical infrastructure.

Third-Party System Compatibility
Pre-configured Modbus register maps for Rockwell FactoryTalk, Siemens WinCC, Schneider Citect, and Wonderware InTouch SCADA platforms. DNP3 Level 2 compliance for utility dispatch centers. IEC 61850 MMS available in next-generation firmware.

Delivery, Service & Quality Assurance

Lead Time & Availability:
Standard catalog models (including 489-P5-LO-A20-E-H) ship within 3-5 business days from regional distribution centers. Custom-configured relays with specialized firmware or extended I/O require 2-3 weeks for factory programming and testing. Expedited service available for emergency replacements.

Warranty Coverage:
All GE Multilin 489 series relays include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs (up to 5 years) available for critical applications. Warranty includes firmware updates and technical support access.

Commissioning & Startup Support:
Remote commissioning assistance via video conference includes relay configuration file review, protection setting verification, and functional testing guidance. On-site commissioning services available in major metropolitan areas (quoted separately). Includes primary/secondary injection testing, CT polarity verification, and communication link validation.

Technical Documentation Package:
Each relay ships with comprehensive documentation including: installation manual with panel cutout templates and wiring diagrams, protection settings calculation worksheets, Modbus register mapping tables, AutoCAD DWG panel drawings, and quick-start configuration guide. Digital documentation library accessible via customer portal.

Training & Certification:
Complimentary access to online training modules covering relay operation, protection fundamentals, and troubleshooting procedures. Instructor-led workshops available quarterly at regional training centers. Certification programs for maintenance personnel and protection engineers.

Frequently Asked Questions (FAQ)

Q: How does the 489-P5-LO-A20-E-H differ from standard P1 or P3 protection classes?
A: The P5 protection class includes all features of lower tiers plus differential protection (87G), loss of excitation (40), 100% stator ground fault (64), and expanded metering with power quality analysis. P1 models offer basic overcurrent protection only, while P3 adds voltage and frequency elements. For comprehensive generator protection, P5 is the recommended minimum.

Q: Can this relay protect both synchronous generators and induction generators?
A: Yes, the 489-P5-LO-A20-E-H supports both generator types through selectable protection templates. Synchronous generator mode enables field-related protections (loss of excitation, over-excitation), while induction generator mode optimizes settings for wound-rotor and squirrel-cage machines common in wind turbines and small hydro applications.

Q: What is the maximum generator size this relay can protect?
A: The relay accommodates generators from 500 kVA to 50 MVA through CT/PT ratio scaling. For larger units (>50 MVA), multiple relays can be deployed in primary/backup configurations. The differential protection algorithm automatically compensates for CT saturation in high-fault current scenarios.

Q: Is the conformal coating necessary for indoor installations?
A: For climate-controlled indoor switchgear environments, the standard 'E' version (without conformal coating) is typically sufficient. The 'H' variant is recommended for coastal regions with salt air, industrial plants with chemical exposure, outdoor enclosures, or any location experiencing condensation. The coating adds minimal cost but significantly extends relay lifespan in harsh conditions.

Q: How do I integrate this relay with my existing Siemens/Allen-Bradley PLC system?
A: The A20 communication option provides both Modbus RTU (RS-485) and Ethernet Modbus TCP/IP. For Siemens S7 PLCs, use the Ethernet port with Modbus TCP driver. Allen-Bradley ControlLogix systems connect via Modbus RTU using 1756-MVI module or Ethernet using ProSoft gateway. Pre-built function blocks and register maps are available in our technical library to accelerate integration.

Q: Can I retrofit this relay into an existing panel with older electromechanical relays?
A: Yes, the 489 series uses industry-standard panel cutouts (1/4 DIN or 1/2 DIN depending on model). The universal 90-264V power supply eliminates the need for DC-DC converters in most retrofits. Existing CT and PT circuits can be reused if they meet accuracy requirements (typically 5P20 for CTs). Our retrofit guide provides detailed migration procedures from GE, ABB, Schweitzer, and Basler legacy relays.

Q: What cybersecurity measures are implemented to prevent unauthorized access?
A: The relay features multi-level password protection (read-only, operator, engineer, administrator), encrypted Ethernet communication using TLS 1.2, MAC address filtering, and comprehensive audit logging of all configuration changes with timestamps and user IDs. Front-panel access can be physically locked using optional security cover. For NERC CIP compliance, the relay supports role-based access control and 90-day password expiration policies.

Q: How long does relay configuration and commissioning typically take?
A: For standard applications with straightforward protection requirements, initial configuration using EnerVista 489 software takes 2-4 hours. On-site commissioning including CT polarity checks, secondary injection testing, and communication verification requires 4-8 hours depending on system complexity. Our QuickStart templates for common generator types (diesel, gas turbine, steam turbine) reduce configuration time by 50%.

Contact for Technical Selection & Quotation

To obtain detailed protection coordination studies, customized relay settings, or project-specific quotations, please provide the following information to our application engineering team:

• Project Overview: Facility name, location, and application type (utility, industrial, marine, etc.)
• Generator Specifications: Rated capacity (kVA/MVA), voltage class, winding configuration, manufacturer & model
• System Configuration: Single generator or parallel operation, bus-tie arrangement, utility interconnection
• CT/PT Ratios: Current transformer ratios and accuracy class, potential transformer ratios
• Auxiliary Power: Available station battery voltage (125V DC, 48V DC) or AC control power
• Communication Requirements: SCADA protocol (Modbus, DNP3), network architecture, cybersecurity requirements
• Environmental Conditions: Ambient temperature range, humidity levels, presence of corrosive atmospheres
• Delivery Timeline: Project schedule, commissioning date, expedited delivery requirements

Our protection engineers will respond within 24 hours with preliminary recommendations, followed by detailed protection setting calculations, single-line diagram markup, and comprehensive quotation including relay hardware, configuration services, and commissioning support.
