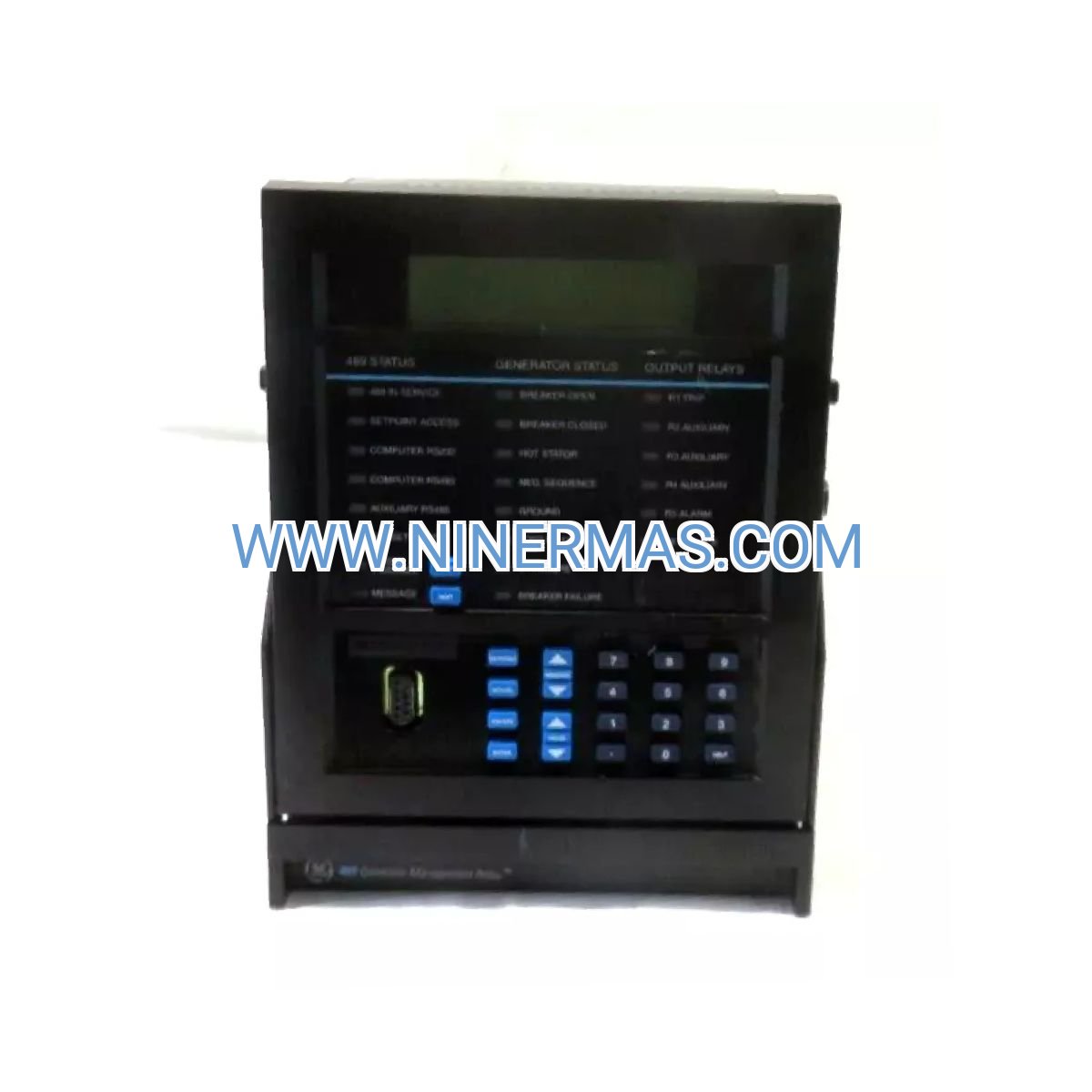

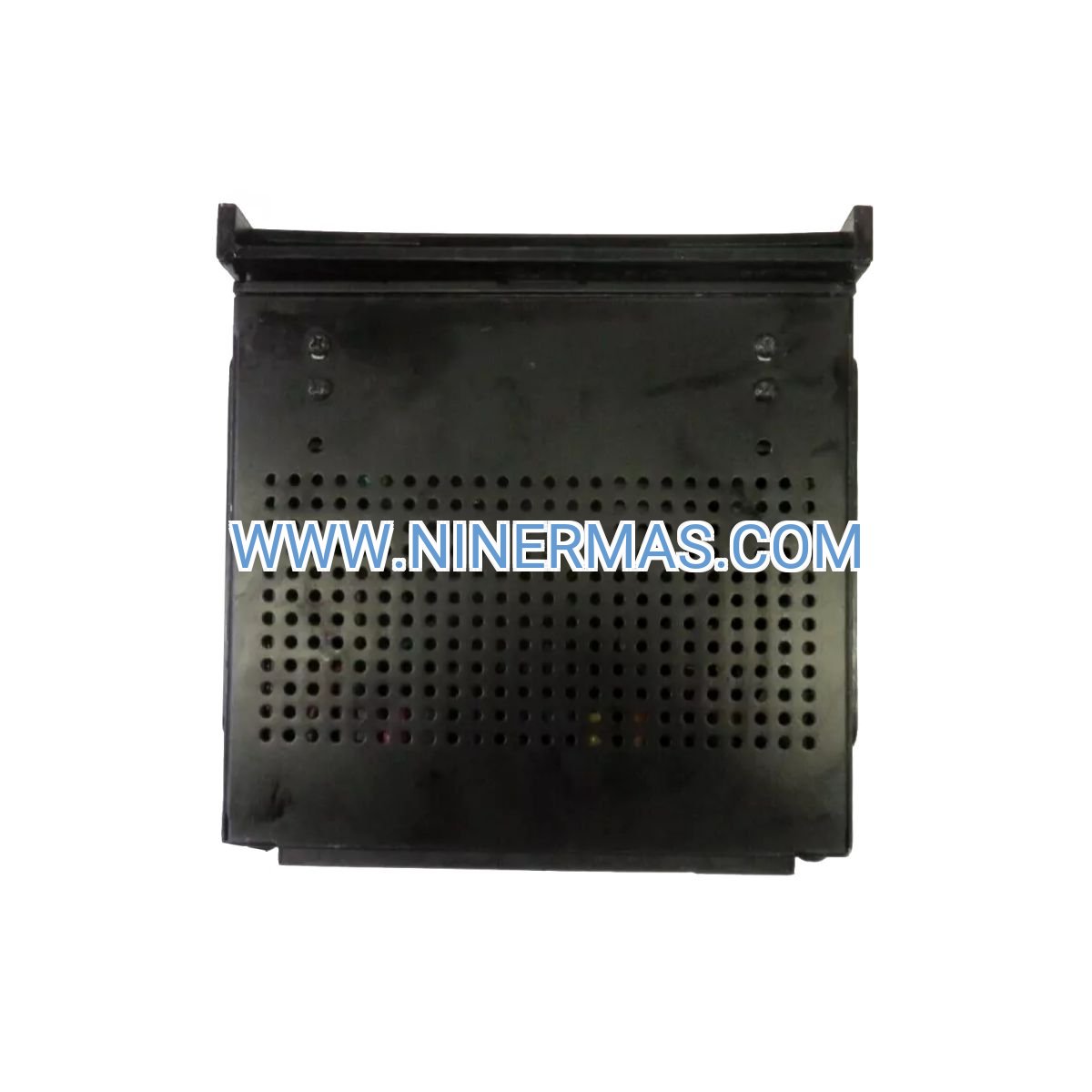

GE 489-P5-LO-A20-E Generator Protection Relay (Industrial-Grade Control System)

The GE 489-P5-LO-A20-E represents a mission-critical protection relay engineered for comprehensive generator management in demanding industrial environments. Designed for both synchronous and induction generators, this Multilin 489 series device integrates multi-function protection algorithms, real-time monitoring, and advanced diagnostics into a single compact platform.

Built to safeguard power generation assets in cogeneration facilities, emergency backup systems, and renewable energy installations, the relay delivers fail-safe operation through redundant protection layers and sub-cycle fault detection. Its robust construction withstands extreme temperatures from -40°C to +70°C, making it suitable for offshore platforms, marine vessels, and harsh industrial settings.

With 20 programmable digital inputs, 14 output relays, and dual-protocol communication (Modbus RTU/DNP 3.0), the 489-P5-LO-A20-E seamlessly integrates into existing SCADA infrastructures while providing standalone protection capabilities. The enhanced LCD display (LO configuration) offers intuitive local access to metering data, alarm status, and configuration parameters.

Core Protection Features & Technical Advantages

✓ Multi-Element Differential Protection (87G)
High-speed stator winding fault detection with percentage restraint characteristics prevents catastrophic generator damage. Dual-slope restraint curves adapt to CT saturation during external faults, eliminating nuisance trips while maintaining sensitivity to internal faults.

✓ Adaptive Overcurrent & Ground Fault Detection (50/51)
Time-overcurrent elements coordinate with upstream and downstream protective devices. Definite-time and inverse-time curves accommodate selective coordination in complex distribution networks, reducing system-wide outages during fault conditions.

✓ Comprehensive Voltage Monitoring (27/59)
Under-voltage and over-voltage protection with independent phase and residual voltage elements. Prevents generator operation outside safe voltage envelopes, protecting connected loads and extending insulation life.

✓ Frequency Deviation Protection (81O/U)
Over-frequency and under-frequency elements with adjustable time delays detect grid instability and islanding conditions. Critical for parallel operation with utility grids and load-shedding schemes.

✓ Reverse Power & Motoring Detection (32)
Identifies backfeed conditions when the generator consumes power instead of producing it. Prevents prime mover damage in steam turbine and diesel engine applications where motoring can cause mechanical failure.

✓ Loss of Excitation Protection (40)
Mho-circle impedance characteristics detect field winding failures and voltage regulator malfunctions. Prevents asynchronous operation that can overheat the rotor and damage the generator.

Industrial Application Scenarios

→ Combined Heat & Power (CHP) Facilities
In industrial cogeneration plants, the 489-P5-LO-A20-E manages synchronization with utility grids while monitoring thermal efficiency parameters. The relay's reverse power protection prevents costly grid backfeed during load transitions, while frequency protection enables seamless islanding during utility outages. Typical installations include chemical processing plants, pharmaceutical manufacturing, and district heating systems where continuous power availability is non-negotiable.

→ Mission-Critical Standby Power Systems
Data centers, hospitals, and telecommunications facilities depend on the relay's fast fault clearing to minimize generator downtime. Sub-cycle trip times for differential faults ensure backup generators remain available for subsequent start attempts. Integration with automatic transfer switches (ATS) and load bank testing systems validates readiness without disrupting critical operations.

→ Renewable Energy Generation
Hydroelectric and wind turbine installations leverage the relay's wide operating range and environmental resilience. The 489-P5-LO-A20-E coordinates with grid-tie inverters and power conditioning equipment to maintain IEEE 1547 compliance. RTD temperature monitoring tracks bearing temperatures in high-altitude wind installations where thermal management is critical.

→ Marine & Offshore Power Generation
Shipboard electrical systems and offshore oil platforms require protection devices that withstand vibration, humidity, and corrosive atmospheres. The relay's conformal-coated circuitry and extended temperature rating ensure reliable operation in engine rooms and unmanned offshore installations. Compliance with marine classification societies (ABS, DNV, Lloyd's) simplifies vessel certification.

→ Industrial Manufacturing & Process Control
Steel mills, mining operations, and wastewater treatment plants use the relay to protect on-site generation from process-induced power quality disturbances. Negative sequence protection (46) detects unbalanced loading from single-phase arc furnaces and large motor starts, preventing rotor overheating.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the P5 configuration when 12 RTD temperature inputs are required for comprehensive thermal monitoring. For applications requiring fewer RTD inputs, consider the P1 variant (6 RTD inputs). The LO display option provides cost-effective operation; upgrade to HI display models for enhanced visibility and additional programmable function keys.

Extended Functionality & System Integration

SCADA Connectivity & Remote Monitoring
Dual-protocol support enables integration with legacy Modbus RTU systems and modern DNP 3.0 SCADA platforms. Real-time data polling provides visibility into generator voltage, current, power factor, frequency, and energy production. Alarm notification via SCADA reduces response time to abnormal operating conditions.

Programmable Logic & Automation
Internal FlexLogic™ equations create custom protection schemes and interlocking sequences without external PLCs. Combine digital inputs, analog measurements, and protection element status to implement load-dependent setpoint adjustments, automatic synchronization sequences, and demand-response controls.

Power Quality Metering
Built-in power metering tracks kW, kVAR, kVA, power factor, and energy consumption (kWh). Harmonic analysis up to the 31st order identifies power quality issues caused by non-linear loads. Demand metering with configurable intervals supports utility billing verification and energy management programs.

Cybersecurity & Access Control
Password-protected configuration prevents unauthorized setpoint changes. Role-based access control separates operator, engineer, and administrator privileges. Event logging tracks all configuration changes with user identification and timestamps for audit compliance.

Delivery Timeline & Service Commitment

Standard Delivery: 5-7 business days for in-stock units via express courier (DHL, FedEx, UPS). Expedited 2-3 day shipping available for urgent replacements.

Custom Configuration: 10-14 business days for factory-configured units with customer-specific setpoints and communication parameters pre-loaded.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for critical applications.

Technical Support: Pre-sales application engineering assistance, post-sales configuration guidance, and troubleshooting support via phone and email. Remote commissioning support available via TeamViewer or similar platforms.

Documentation Package: Includes installation manual, configuration software (EnerVista 489 Setup), quick start guide, and AutoCAD panel cutout drawings. Protective relay coordination studies available upon request.

Frequently Asked Questions

How does the 489-P5-LO-A20-E differ from the SR489 series?
The SR489 is the previous-generation model with similar protection functions but lacks the enhanced communication capabilities and expanded I/O of the 489 series. The 489-P5-LO-A20-E offers 20 digital inputs versus 16 in the SR489, plus improved oscillography and event recording capacity.

Can this relay protect generators operating in parallel with the utility grid?
Yes, the relay includes synchronism check (25), reverse power (32), and frequency protection (81) elements specifically designed for grid-parallel operation. Directional overcurrent elements provide selective fault clearing in multi-source systems.

What configuration software is required for setup?
GE's EnerVista 489 Setup software (Windows-based, free download from GE Digital Energy website) provides graphical configuration, setpoint management, and real-time monitoring. USB or RS-485 connection to the relay's front communication port.

Is the relay suitable for generators with permanent magnet exciters?
Yes, the relay accommodates brushless excitation systems, permanent magnet generators (PMG), and static excitation. Loss of excitation protection can be disabled or adapted for PMG applications where field current monitoring is not applicable.

What is the maximum generator size this relay can protect?
The relay is suitable for generators from 100 kW to 10+ MW, limited primarily by CT and VT ratios rather than relay capability. Differential protection is typically applied to generators above 1 MVA; smaller units may use overcurrent-based protection schemes.

Does the relay support IEC 61850 communication?
The standard 489-P5-LO-A20-E includes Modbus RTU and DNP 3.0. IEC 61850 support requires the -E suffix variant with Ethernet communication module. Verify model suffix when ordering for substation automation applications.

Request Technical Consultation

Our application engineers provide complimentary pre-sales support to ensure proper relay selection and configuration for your specific generator protection requirements. Contact us with generator nameplate data (kVA rating, voltage, connection type) and protection objectives for personalized recommendations.

Ready to enhance your generator protection system? Add the GE 489-P5-LO-A20-E to your cart or contact our team for volume pricing and custom configuration services.
