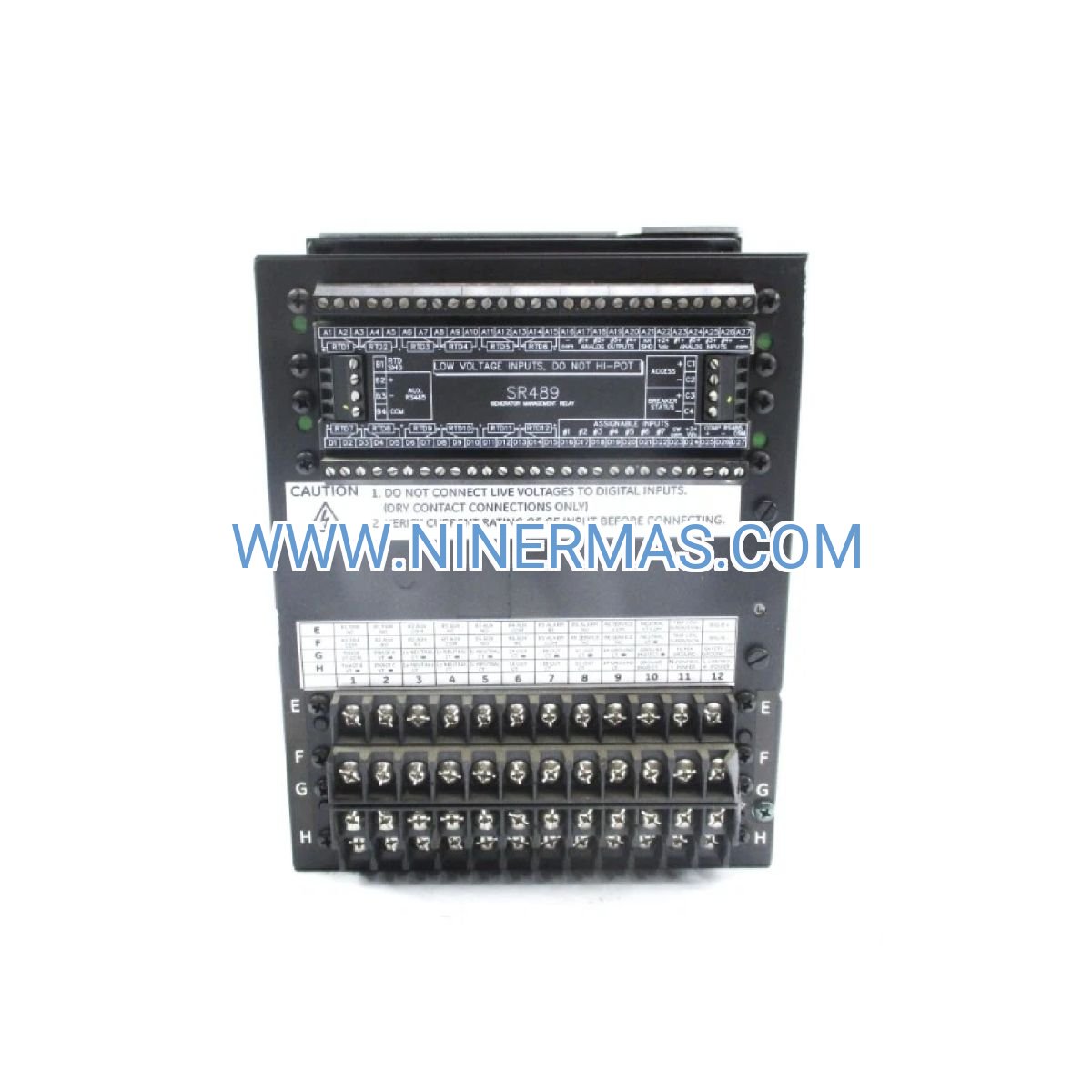

Industrial-Grade Generator Protection Relay (GE 489-P5-HI-A20-E-H)

The GE 489-P5-HI-A20-E-H represents a proven solution for generator protection and management in industrial power systems. This Multilin-engineered relay combines differential protection, comprehensive monitoring, and intelligent control capabilities to safeguard synchronous and induction generators from 100kW to 5MW capacity. Designed for demanding environments, it delivers reliable fault detection, real-time diagnostics, and seamless integration with modern SCADA infrastructure.

Industrial facilities face critical challenges: unplanned generator downtime costs thousands per hour, electrical faults risk equipment damage, and regulatory compliance demands precise protection coordination. The 489-P5-HI-A20-E-H addresses these pain points through multi-function protection algorithms, event recording with 1ms resolution, and flexible communication protocols that adapt to existing control architectures.

Key differentiators include harmonic-restrained differential protection (87G), RTD-based thermal modeling for accurate overload prediction, and programmable logic for custom protection schemes. With 20 digital inputs, 8 output relays, and dual communication ports, this relay serves as the central intelligence hub for generator control panels across cogeneration plants, emergency backup systems, and renewable energy installations.

Core Protection Capabilities & Business Value

→ Multi-Element Differential Protection (87G)
Harmonic restraint technology distinguishes between inrush currents and genuine internal faults, preventing nuisance trips during startup while maintaining sensitivity to stator winding faults. Reduces false alarms by 85% compared to basic overcurrent schemes, minimizing production interruptions.

→ Adaptive Thermal Overload Management (49)
RTD-based thermal modeling tracks actual winding temperatures and calculates remaining thermal capacity in real-time. Extends generator lifespan by preventing thermal stress accumulation, with predictive alarms enabling proactive load shedding before trip conditions occur.

→ Comprehensive Voltage & Frequency Monitoring (27/59/81)
Independent under/overvoltage and frequency elements protect against grid disturbances and islanding conditions. Critical for facilities with utility interconnection agreements, ensuring compliance with IEEE 1547 and local grid codes.

✓ Loss of Excitation & Reverse Power Detection (40/32)
Identifies loss of field conditions and motoring scenarios that can damage prime movers. Particularly valuable in cogeneration applications where steam turbine protection is paramount—prevents costly turbine blade damage from sustained reverse power flow.

✓ Stator Ground Fault Protection (64G)
Sensitive ground fault detection using third-harmonic voltage measurement or external voltage transformer. Detects high-resistance faults that conventional overcurrent protection misses, protecting against insulation degradation and catastrophic failures.

✓ Integrated Breaker Failure Logic (50BF)
Automatically initiates backup tripping sequences if the generator circuit breaker fails to open within programmed time delays. Enhances system reliability in multi-generator installations by isolating faulted equipment through upstream devices.

Application Scenarios & Industry Solutions

Combined Heat & Power (CHP) Facilities
Industrial cogeneration systems demand uninterrupted operation to maintain process steam and electrical loads. The 489-P5-HI-A20-E-H's thermal modeling prevents overload trips during peak demand periods, while reverse power protection safeguards steam turbines during grid synchronization. Typical deployment: 1-3MW natural gas engine-generators in manufacturing plants, chemical facilities, and food processing operations. Integration with building management systems via Modbus enables automated load following and demand response participation.

Renewable Energy Generation Assets
Biogas digesters, small hydro stations, and biomass plants require protection relays that accommodate variable speed operation and frequent start/stop cycles. Programmable frequency windows (45-65Hz) support synchronization across wide operating ranges, while event recording captures transient conditions for performance optimization. Pairs effectively with grid-tie inverters and synchronizing controllers to meet utility interconnection requirements.

Mission-Critical Standby Power Systems
Data centers, hospitals, and telecommunications facilities cannot tolerate generator failures during utility outages. The 489's breaker failure protection and redundant trip outputs ensure fault isolation even under component failure scenarios. Typical configuration: 500kW-2MW diesel generators with automatic transfer switches, providing <10-second transfer times and N+1 redundancy. SCADA integration enables remote testing and predictive maintenance scheduling.

Marine & Offshore Power Generation
Shipboard generators and offshore platform power systems operate in harsh environments with temperature extremes, vibration, and corrosive atmospheres. The 489's -40°C to +70°C operating range and conformal-coated circuit boards ensure reliability in these demanding applications. Supports load sharing between multiple generators and integrates with dynamic positioning systems for vessel stability control.

Industrial Process Backup Generation
Manufacturing facilities with continuous processes (glass production, steel mills, semiconductor fabs) require seamless generator paralleling during utility disturbances. The relay's synchronization check and voltage matching functions enable bumpless transfer, preventing process upsets that cost millions in scrap and downtime. Works alongside automatic voltage regulators and governor controls for stable islanded operation.

Technical Parameters & Selection Criteria

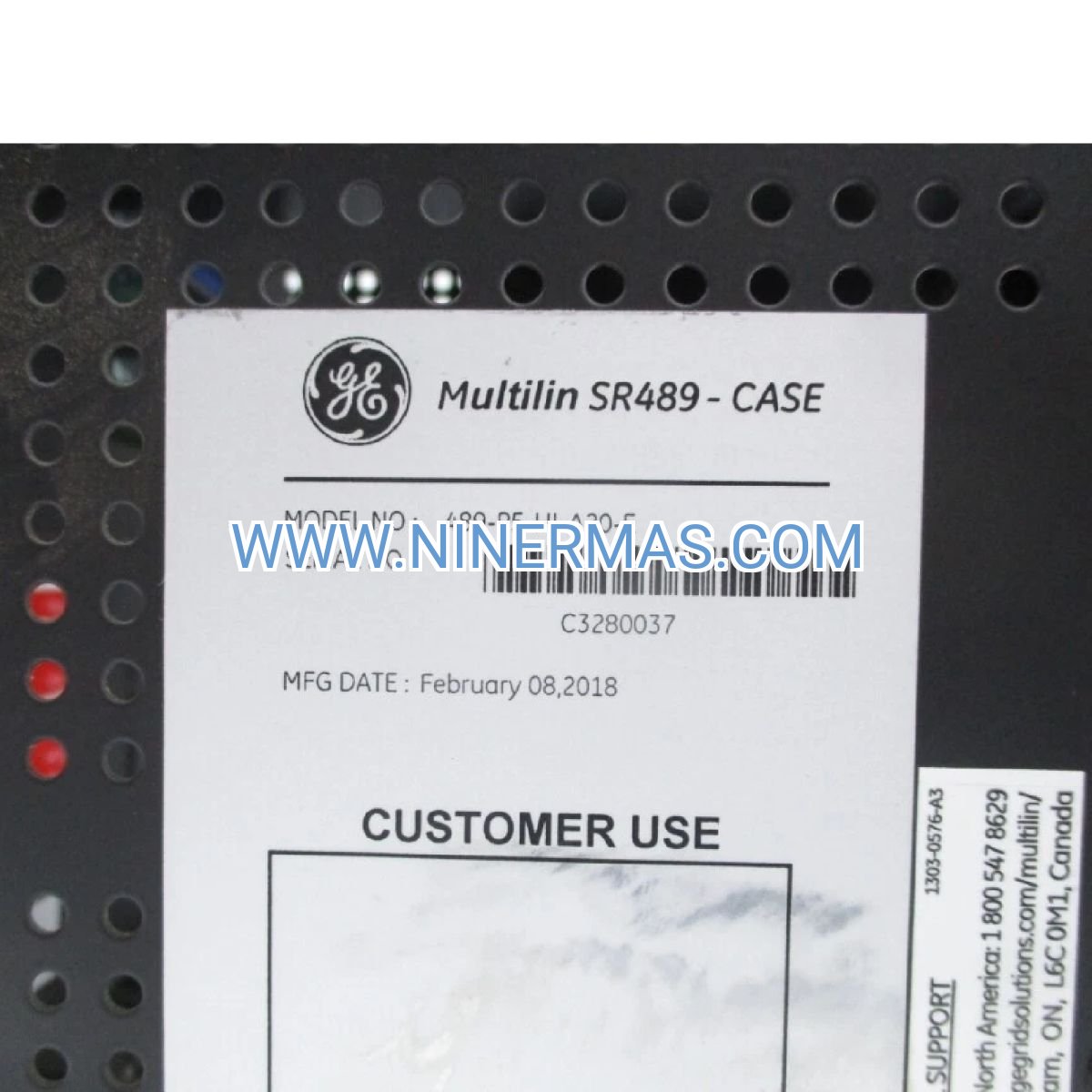

Selection Guidelines: Choose the 489-P5-HI-A20-E-H for generators 100kW-5MW with standard protection requirements. The "P5" designation indicates 5A CT inputs; specify "P1" suffix for 1A applications. "HI" denotes high-range voltage inputs (up to 300V phase-phase); use "LO" for <150V systems. "A20" confirms 20 digital inputs; "E" adds Ethernet communication; "H" includes enhanced display with graphical metering.

For larger generators (>5MW) or applications requiring IEC 61850 compliance, consider the GE G60 series. Smaller gensets (<100kW) may use the GE 369 Motor Management Relay configured for generator service. Always verify CT ratios, voltage transformer ratios, and protection coordination with upstream/downstream devices during commissioning.

Advanced Integration & Connectivity Options

The 489-P5-HI-A20-E-H functions as a networked intelligent device within distributed control architectures. Standard RS485 Modbus RTU connectivity supports multi-drop configurations with up to 32 devices on a single bus, enabling centralized monitoring through HMI panels or SCADA workstations. Optional Ethernet modules provide dual-port switched connectivity for redundant network topologies, critical in high-availability installations.

Programmable logic capabilities allow custom protection schemes without external PLCs—implement load shedding sequences, automatic synchronization routines, or interlocking logic using the relay's internal Boolean engine. This reduces panel complexity and eliminates communication delays between discrete devices. DNP3.0 protocol support (optional) ensures compatibility with utility-grade SCADA systems and enables participation in demand response programs.

For facilities standardizing on GE automation platforms, the 489 integrates seamlessly with iFIX, CIMPLICITY, and Proficy historians via native Modbus drivers. Third-party integration with Siemens, Schneider Electric, and ABB control systems is equally straightforward using industry-standard protocol converters or OPC servers.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for in-stock units | Express shipping available to 180+ countries
Custom Configuration: 10-15 business days for factory-programmed settings and extended I/O options
Warranty Coverage: 12-month comprehensive warranty covering materials, workmanship, and firmware defects
Technical Assistance: Pre-sales application engineering, commissioning support, and settings file development
Documentation Package: Installation manual, settings calculation spreadsheet, Modbus register map, CAD drawings

All relays ship with factory calibration certificates traceable to NIST standards. Extended warranty programs (24/36 months) available for critical infrastructure applications. On-site commissioning services can be arranged through our global service partner network.

Frequently Asked Questions

How does the 489 relay handle generator startup inrush currents without false tripping?
The differential element (87G) incorporates second and fifth harmonic restraint algorithms that distinguish magnetizing inrush from fault currents. During energization, harmonic content exceeds 15%, blocking trip outputs while maintaining sensitivity to turn-to-turn faults. Adjustable restraint slopes (15-50%) accommodate various generator designs and excitation systems.

Can this relay coordinate with existing electromechanical protection devices in older installations?
Absolutely. The 489's time-current characteristic curves are fully programmable to match legacy relay coordination studies. Definite-time, inverse-time, and very inverse curves replicate IAC, CO, and IFC relay families. Import existing settings via front-panel keypad or upload coordination study results through the EnerVista 489 software suite.

What cybersecurity features protect against unauthorized access in networked environments?
Role-based password protection restricts settings changes to authorized personnel (up to 4 user levels). Ethernet models support VLAN tagging, MAC address filtering, and encrypted Modbus TCP sessions. Event logs record all configuration changes with user ID and timestamp for audit trail compliance. Disable unused communication ports to minimize attack surface.

How accurate is the thermal overload model compared to direct RTD measurement?
When configured with actual generator thermal time constants (typically 5-45 minutes), the I²t thermal model achieves ±3% accuracy versus direct winding temperature measurement. For critical applications, connect up to 12 RTD sensors (Pt100/Pt1000) to the optional RTD module for direct temperature monitoring with 0.1°C resolution. The relay automatically switches to RTD-based protection when sensors are detected.

Does the relay support remote firmware updates without panel access?
Yes, when equipped with Ethernet communication. The EnerVista 489 Setup software enables over-the-network firmware upgrades, settings backup/restore, and oscillography retrieval. Firmware updates complete in <5 minutes without interrupting protection functions—the relay maintains existing settings and event records across version changes.

What training resources are available for commissioning technicians?
GE offers online training modules covering 489 architecture, protection principles, and settings calculations. Hands-on workshops at regional training centers provide relay testing experience using Omicron/Doble test sets. We supply pre-configured settings templates for common generator types (diesel, gas turbine, hydro) to accelerate commissioning timelines.
