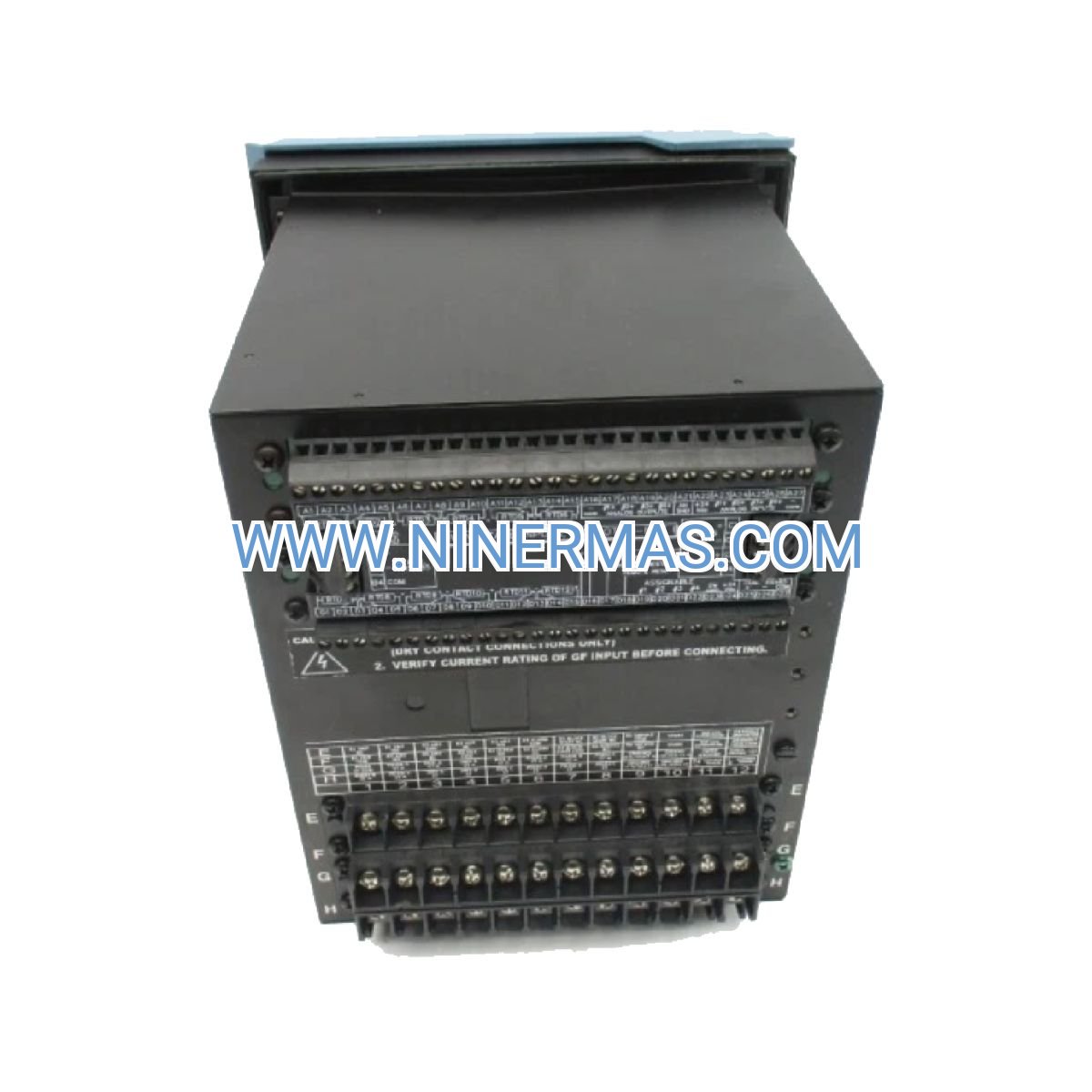

GE 469-P5-HI-A20-E-H Motor Management Relay (Industrial-Grade Motor Protection System)

The GE 469-P5-HI-A20-E-H Motor Management Relay is an industrial-grade motor protection and control device designed for medium to large three-phase motors operating in demanding industrial environments. Through advanced microprocessor-based protection algorithms, enhanced human-machine interface (HMI), and conformal coating technology, this relay delivers comprehensive motor monitoring, fault detection, and predictive maintenance capabilities that ensure continuous operation and minimize unplanned downtime.

Engineered for applications where motor reliability directly impacts production continuity, the 469-P5-HI-A20-E-H addresses critical challenges including thermal stress accumulation, phase imbalance conditions, ground fault hazards, mechanical jamming scenarios, and voltage disturbances. It serves process engineers, electrical contractors, OEM equipment manufacturers, and facility maintenance teams who require proven protection technology with intuitive diagnostics and flexible integration options.

With its ruggedized construction featuring conformal coating protection, 20 programmable output relays, dual-protocol communication (Modbus RTU/DNP 3.0), and enhanced graphical display, this relay combines field-proven reliability with modern connectivity. Contact our application engineers to receive customized protection settings, wiring diagrams, and integration guidance tailored to your specific motor parameters and operational requirements.

Core Functions & Advantages

Comprehensive Multi-Function Protection
Integrates 15+ protection elements including thermal overload with RTD compensation, phase current unbalance detection, ground fault sensitivity down to 5% rated current, locked rotor protection with adjustable time curves, undercurrent monitoring for loss-of-load detection, phase reversal/loss detection, and programmable under/overvoltage protection. This eliminates the need for multiple discrete relays, reducing panel space and wiring complexity by approximately 40% compared to traditional protection schemes.

Enhanced Diagnostic Interface
Features a high-resolution graphical HMI display (HI designation) with multi-language support, real-time phasor diagrams, event recording with millisecond timestamps, and guided troubleshooting menus. Maintenance personnel can identify fault root causes 60% faster compared to LED-only indicators, reducing mean time to repair (MTTR) and improving overall equipment effectiveness (OEE).

Conformal Coating for Harsh Environments
Factory-applied conformal coating (H suffix) provides IEC 60721-3-3 Class 3C2 environmental protection against moisture ingress, chemical vapors, salt spray, fungal growth, and temperature cycling from -40°C to +70°C. Field testing demonstrates 3-5 times extended service life in corrosive atmospheres typical of chemical processing, wastewater treatment, and coastal industrial facilities.

Flexible Output Configuration
Provides 20 Form-C relay outputs (A20 configuration) with individual programmability for trip functions, alarm conditions, auxiliary contacts, and remote indication. Supports complex control logic including sequential starting, automatic transfer schemes, and coordinated protection with upstream/downstream devices, accommodating sophisticated motor control architectures without external logic controllers.

Dual-Protocol Industrial Communication
Supports both Modbus RTU (RS-485) and DNP 3.0 protocols for seamless integration with SCADA systems, distributed control systems (DCS), and plant historians. Enables remote monitoring of 100+ parameters including real-time current/voltage values, power factor, energy consumption, thermal capacity used, and historical fault records, facilitating predictive maintenance strategies and energy management programs.

Thermal Model with RTD Integration
Utilizes sophisticated thermal replica algorithms that account for motor cooling characteristics, ambient temperature variations (via optional RTD inputs), load history, and starting duty cycles. Prevents nuisance trips during permissible overload conditions while providing reliable protection against insulation degradation, extending motor service life by 20-30% through optimized thermal management.

Typical Application Scenarios

This motor management relay is engineered for installations demanding high reliability, comprehensive diagnostics, and operation in challenging environmental conditions, particularly:

Chemical & Petrochemical Processing Plants
Protects critical process pumps, compressors, agitators, and extruders handling corrosive fluids or operating in classified hazardous areas. The conformal coating withstands exposure to acid fumes, solvent vapors, and high humidity, while advanced ground fault detection provides personnel safety in Class I Division 2 environments. Typical applications include reactor circulation pumps, distillation column feed pumps, and polymer extrusion drives ranging from 50 HP to 5000 HP.

Water & Wastewater Treatment Facilities
Ideal for protecting submersible pumps, aerator blowers, clarifier drives, and sludge dewatering equipment exposed to moisture, hydrogen sulfide, and temperature extremes. The relay's undercurrent protection detects dry-running pump conditions, while phase unbalance monitoring identifies cable degradation in buried installations. Supports municipal treatment plants, industrial pretreatment systems, and irrigation pumping stations with motors from 25 HP to 2500 HP.

Mining, Metals & Cement Production
Engineered for conveyor drives, crusher motors, ball mill drives, kiln fans, and material handling systems operating in dusty, high-vibration environments with wide temperature swings. Locked rotor protection with adjustable pickup prevents mechanical damage during material jams, while the enhanced display facilitates troubleshooting in remote locations. Common in underground mining ventilation, ore processing, steel rolling mills, and cement grinding circuits.

Power Generation & Substation Auxiliary Systems
Suitable for protecting boiler feed pumps, cooling tower fans, fuel handling equipment, and transformer cooling pumps in thermal, combined-cycle, and renewable energy facilities. DNP 3.0 communication enables integration with substation automation systems and coordination with transformer protection relays, feeder relays, and generator protection packages for comprehensive plant protection schemes.

Marine & Offshore Installations
Meets the demanding requirements of shipboard propulsion auxiliaries, offshore platform HVAC systems, ballast pumps, and drilling equipment where salt spray, vibration, and limited maintenance access necessitate maximum reliability. The conformal coating provides superior corrosion resistance, while the wide operating temperature range accommodates engine room and deck-mounted installations.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment specification, the following parameters define the standard configuration of the GE 469-P5-HI-A20-E-H motor management relay. Custom configurations are available to match specific project requirements.

Selection Considerations
When specifying the 469-P5-HI-A20-E-H motor management relay, engineering teams should evaluate the following application parameters to ensure optimal protection coordination and system integration:

• Motor Nameplate Data: Full-load current (FLA), service factor, locked rotor current (LRA), thermal time constant, and insulation class determine protection setpoint ranges
• Starting Method: Across-the-line, reduced voltage, soft starter, or VFD starting affects locked rotor and thermal model configuration
• Load Characteristics: Constant torque, variable torque, or cyclic duty influences thermal capacity settings and restart inhibit timers
• CT Specifications: Primary/secondary ratio, accuracy class (0.5 or 1.0), and burden rating must match relay input requirements
• Environmental Conditions: Ambient temperature range, presence of corrosive gases, humidity levels, and vibration exposure validate conformal coating necessity
• System Integration: SCADA protocol requirements, available I/O points, and coordination with upstream protective devices

For application-specific guidance, provide our engineering team with motor nameplate data, single-line diagrams, CT specifications, environmental conditions, and control sequence requirements. We will deliver customized setpoint recommendations, protection coordination studies, and wiring diagrams within 48 hours.

Advanced Integration Capabilities

Multi-Relay Coordination
The 469-P5-HI-A20-E-H integrates seamlessly within comprehensive motor protection architectures. For facilities managing multiple motor sizes, combine with the GE 369 series for smaller motors (5-200 HP), the 469 series for medium motors (50-2000 HP), and the GE M60 platform for large critical motors (500-10,000 HP), creating a standardized protection philosophy with unified communication protocols and consistent HMI navigation.

Substation Automation Integration
When deployed in industrial substations or power distribution systems, the relay's DNP 3.0 capability enables coordination with transformer protection relays (GE T60 series), feeder protection devices (GE MIFI/MIFII series), and universal relay platforms (GE UR series), facilitating centralized monitoring, event sequence analysis, and automated load shedding schemes through a unified SCADA interface.

Predictive Maintenance Programs
Leverage continuous monitoring of thermal capacity utilization, start accumulation counters, ground insulation resistance trends, and bearing temperature profiles (via RTD inputs) to implement condition-based maintenance strategies. Historical data trending identifies degradation patterns 3-6 months before failure, enabling planned maintenance windows and reducing emergency repair costs by 40-60%.

Energy Management Systems
Real-time power, energy, and power factor measurements support ISO 50001 energy management initiatives. Integration with plant energy management systems enables motor efficiency benchmarking, load profiling for demand response programs, and identification of oversized motors suitable for right-sizing or variable speed drive retrofits, typically yielding 15-25% energy savings.

Delivery, Service & Quality Assurance

Product Availability & Lead Times
Standard GE 469-P5-HI-A20-E-H configurations are maintained in stock for immediate shipment, with typical delivery of 3-5 business days for domestic orders and 7-12 business days for international shipments. Custom configurations requiring factory programming or special output arrangements have lead times of 4-6 weeks. Expedited processing is available for critical outage situations and emergency replacements.

Warranty Coverage
Every relay includes a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship under normal use and service conditions. Warranty coverage includes factory repair or replacement, return shipping, and technical support for troubleshooting suspected defects. Extended warranty programs up to 60 months are available for critical applications.

Technical Support Services
Our application engineering team provides complimentary pre-sale support including protection coordination studies, setpoint calculations, and integration guidance. Post-installation support includes remote commissioning assistance, firmware updates, and troubleshooting consultation. On-site commissioning services and training programs are available on a quoted basis for complex installations or multi-relay projects.

Documentation Package
Each relay ships with complete technical documentation including installation instructions, dimensional drawings, terminal connection diagrams, protection function descriptions, setpoint calculation worksheets, Modbus/DNP register maps, and quick-start commissioning guides. CAD drawings in DXF format and relay setting files are available for download to facilitate panel design and configuration management.

Quality Certifications
All products are sourced through authorized distribution channels with full traceability to GE manufacturing facilities. Each unit includes factory test reports, calibration certificates, and compliance documentation for UL 508, CSA C22.2 No. 14, CE marking (Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU), and IEC 60255 protective relay standards.

Frequently Asked Questions (FAQ)

Q: What is the primary advantage of the conformal coating (H suffix) on the 469-P5-HI-A20-E-H model?
A: The conformal coating provides a protective barrier against moisture, corrosive gases, salt spray, dust, and fungal growth, extending relay service life by 3-5 times in harsh industrial environments. It is essential for applications in chemical plants, wastewater facilities, marine installations, and outdoor enclosures where standard electronics would experience accelerated degradation. The coating meets IEC 60721-3-3 Class 3C2 environmental specifications and maintains performance across -40°C to +70°C operating temperatures.

Q: How many motors can a single 469-P5-HI-A20-E-H relay protect?
A: The relay is designed to protect one three-phase motor per unit. While the 20 output relays (A20 configuration) provide extensive signaling and control capabilities, the protection algorithms (thermal model, current unbalance, ground fault, etc.) are calibrated for a single motor's characteristics. For multi-motor applications, deploy one relay per motor to ensure accurate protection coordination and independent fault isolation.

Q: What communication protocols does this relay support for SCADA integration?
A: The 469-P5-HI-A20-E-H includes an RS-485 serial port supporting both Modbus RTU and DNP 3.0 protocols, selectable via configuration settings. Modbus RTU is widely used in industrial automation systems and building management platforms, while DNP 3.0 is preferred in utility substations and power generation facilities. Both protocols enable remote monitoring of real-time measurements, alarm status, protection settings, and event records. Communication parameters (baud rate, parity, slave address) are fully programmable to match existing network infrastructure.

Q: Can this relay be used with variable frequency drives (VFDs)?
A: Yes, but with important considerations. When protecting VFD-driven motors, disable or adjust voltage-based protection functions (under/overvoltage, phase reversal) as VFD output waveforms may cause nuisance trips. Thermal overload, ground fault, and undercurrent protection remain fully functional and valuable. For comprehensive VFD motor protection, consider installing the relay on the motor side of the VFD to monitor actual motor conditions, while the VFD's internal protections handle drive-side faults. Consult application notes for VFD-specific setpoint recommendations.

Q: What is the difference between the 469 series and the SR469 series motor management relays?
A: The SR469 series represents the next-generation platform with enhanced cybersecurity features (role-based access control, encrypted communications, audit logging), IEC 61850 protocol support for substation automation, and expanded memory for extended event recording. The 469 series offers proven field reliability with traditional Modbus/DNP protocols at a more economical price point. For new installations in critical infrastructure or facilities with cybersecurity mandates, the SR469 is recommended. For replacement applications or cost-sensitive projects, the 469 series provides excellent value.

Q: How does the enhanced HMI display (HI designation) improve operational efficiency?
A: The enhanced graphical display provides real-time phasor diagrams showing current magnitude and phase relationships, scrolling event logs with fault type and timestamp, trending graphs for thermal capacity and load current, and guided menus for setpoint adjustment. Compared to basic LED-only interfaces, maintenance personnel can diagnose fault root causes 60% faster, reducing troubleshooting time from hours to minutes. The multi-language support (English, Spanish, French, German, Portuguese, Chinese) facilitates operation in multinational facilities and reduces training requirements.

Q: What accessories or companion products are recommended for installation?
A: Essential accessories include appropriately rated current transformers (CTs) with 1A or 5A secondary outputs matching motor full-load current, potential transformers (PTs) if voltage monitoring is required for motors above 600V, and RTD temperature sensors (Pt100 or Pt1000) for bearing and winding temperature monitoring. For panel integration, consider DIN rail mounting kits, communication interface modules for protocol conversion, and surge suppression devices for installations in high-lightning areas. Consult our application engineers for complete bill-of-materials based on your specific motor and panel configuration.

Q: Is field programming required, or does the relay ship pre-configured?
A: The relay ships with factory default settings suitable for initial testing but requires field programming to match your specific motor parameters (full-load current, service factor, starting characteristics) and application requirements (protection setpoints, output relay assignments, communication addresses). Programming is performed via the front-panel HMI using intuitive menu navigation, or through PC-based software (EnerVista 469 Setup) for offline configuration and settings documentation. Typical commissioning time is 30-60 minutes per relay. We can provide pre-programmed relays for large projects when motor specifications are provided in advance.

Request Technical Consultation & Quotation

To receive customized application guidance, protection coordination studies, and competitive pricing for the GE 469-P5-HI-A20-E-H motor management relay, please provide our engineering team with the following project information:

• Motor Specifications: Nameplate voltage, full-load current (FLA), horsepower/kW rating, service factor, locked rotor current (LRA), motor type (induction/synchronous)
• Application Details: Driven equipment type (pump, fan, compressor, etc.), duty cycle (continuous/intermittent), starting method (DOL/soft start/VFD)
• Environmental Conditions: Ambient temperature range, presence of corrosive atmospheres, humidity levels, indoor/outdoor installation
• System Integration: SCADA protocol requirements (Modbus/DNP), required I/O points, coordination with existing protective devices
• Project Scope: Quantity required, delivery timeline, installation location, any special certifications needed

Our application engineers will respond within 24 business hours with tailored recommendations, protection setpoint calculations, wiring diagrams, and a detailed quotation including product pricing, applicable shipping costs, and estimated delivery schedule.
