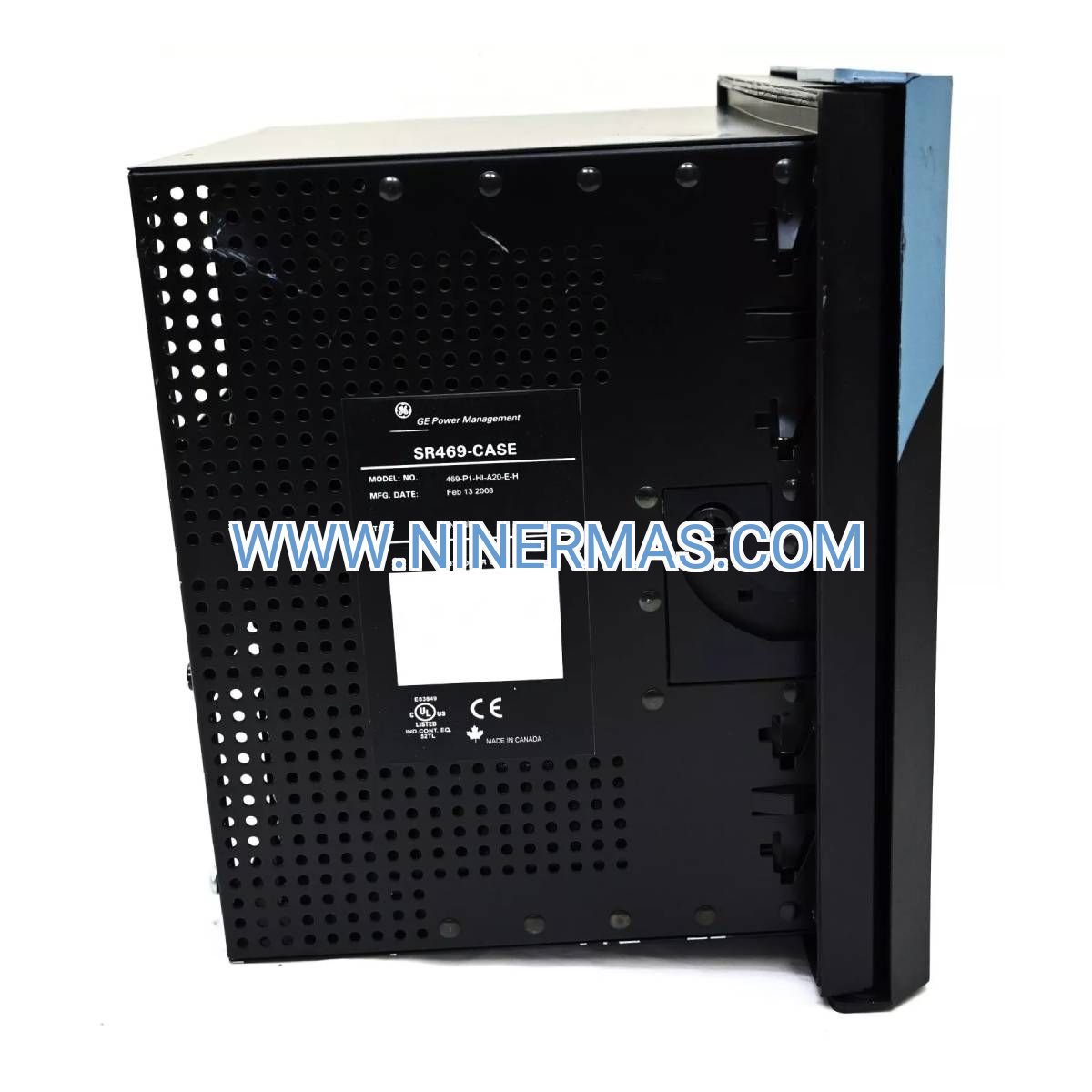

GE 469-P1-HI-A20-E Motor Management Relay (Industrial-Grade Motor Protection & Diagnostics)

The GE 469-P1-HI-A20-E represents a proven solution for comprehensive motor asset protection in mission-critical industrial environments. This Multilin 469 Series relay combines advanced thermal modeling, real-time diagnostics, and flexible communication protocols to safeguard motors from fractional to multi-thousand horsepower ratings.

Designed for facilities where unplanned downtime translates to significant operational losses, this relay addresses the core challenge of balancing motor longevity with production continuity. Plant engineers, maintenance managers, and automation integrators rely on the 469-P1-HI-A20-E to detect fault conditions before catastrophic failures occur, reducing emergency repair costs by up to 60% compared to traditional protection schemes.

Whether you're protecting critical pump motors in water treatment facilities, compressor drives in oil & gas operations, or conveyor systems in manufacturing plants, the 469-P1-HI-A20-E delivers the intelligence and reliability your operations demand. With 12 RTD temperature inputs, 8 programmable digital inputs, and 6 configurable output relays, this relay adapts to diverse motor protection architectures while maintaining compliance with IEEE and IEC protection standards.

Core Features & Business Value

→ Advanced Thermal Modeling with RTD Integration
Real-time thermal capacity calculation using 12 independent RTD channels prevents insulation degradation and extends motor service life by 25-40%. Direct bearing temperature monitoring enables predictive maintenance scheduling before failures occur.

→ Multi-Protocol Communication Architecture
Native Modbus RTU and DNP 3.0 support ensures seamless integration with SCADA systems, PLCs, and building management platforms. Reduce commissioning time by 30% through standardized communication interfaces compatible with major automation ecosystems.

→ Comprehensive Fault Detection Suite
Simultaneous monitoring of overcurrent, ground fault, phase imbalance, locked rotor, and voltage anomalies provides 360-degree motor protection. Configurable trip curves and time delays minimize nuisance trips while maintaining fast fault clearing for genuine hazards.

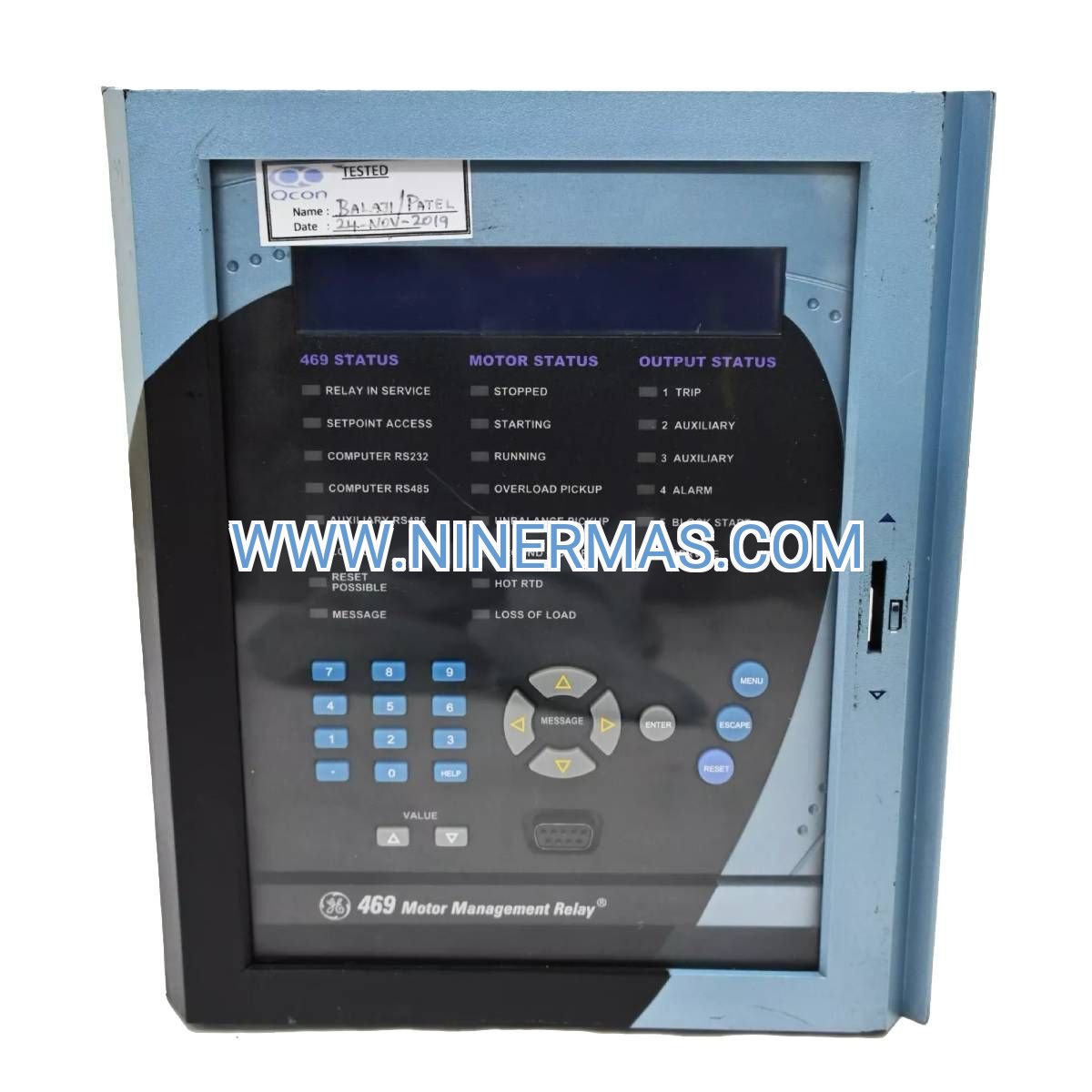

→ HMI Display with Event Recording
Integrated human-machine interface displays real-time operating parameters, alarm status, and historical event logs. Troubleshoot motor issues 50% faster with on-device access to fault waveforms and sequence-of-events records.

✓ Wide Input Voltage Range (90-264V AC/DC)
Universal power supply compatibility eliminates the need for external transformers in multi-voltage installations, reducing panel space requirements and simplifying spare parts inventory.

✓ Extended Operating Temperature (-40°C to +70°C)
Reliable operation in extreme climates—from Arctic pipeline stations to desert mining operations—without derating or auxiliary cooling systems.

Typical Application Scenarios

Water & Wastewater Treatment Plants
Challenge: Municipal wastewater pumps operate continuously under variable load conditions, with motor failures causing environmental compliance violations and costly emergency repairs.
Solution: The 469-P1-HI-A20-E's thermal overload protection adapts to duty cycle variations, while ground fault detection prevents insulation failures in wet environments. RTD monitoring of bearing temperatures enables condition-based maintenance, reducing unplanned outages by 70%.

Oil & Gas Compression Stations
Challenge: Remote compressor motors require protection systems that operate reliably without frequent site visits, while providing detailed diagnostics for troubleshooting.
Solution: DNP 3.0 communication enables remote monitoring via SCADA, while event recording captures fault sequences for post-incident analysis. Locked rotor protection prevents damage during startup failures in cold weather conditions.

Manufacturing Conveyor Systems
Challenge: Production line motors experience frequent starts/stops and mechanical jamming, requiring protection that distinguishes between normal inrush and genuine faults.
Solution: Adjustable locked rotor timers and stall detection algorithms prevent nuisance trips during normal operation while providing fast protection during mechanical jams. Phase loss detection prevents single-phasing damage in three-phase motor applications.

HVAC Chiller Motors
Challenge: Large chiller motors in commercial buildings require protection coordination with building automation systems and compliance with energy efficiency standards.
Solution: Modbus RTU integration with BMS platforms enables automated load shedding and demand response. Undervoltage/overvoltage protection maintains motor efficiency by preventing operation outside optimal voltage ranges.

Mining Ventilation Fans
Challenge: Underground ventilation motors operate in harsh environments with limited access for maintenance, requiring robust protection and early fault warning.
Solution: IP20 front panel protection withstands dust and vibration, while bearing temperature monitoring provides weeks of advance warning before bearing failures. Ground fault sensitivity detects insulation degradation in damp mine environments.

Technical Parameters & Selection Guide

Selection Criteria:

• For motors ≤500 HP with standard communication needs → 469-P1 series (this model)
• For Ethernet connectivity or IEC 61850 protocol → Consider 469-P5 variant
• For motors >1000 HP or requiring >12 RTD inputs → Evaluate GE M60 or 869 series
• For hazardous locations (Class I Div 2) → Install in NEMA 4X or explosion-proof enclosure

Extended Functions & IoT Integration

Predictive Maintenance Capabilities
Trend analysis of thermal capacity utilization, start counts, and bearing temperature profiles enables data-driven maintenance scheduling. Export historical data via Modbus for integration with CMMS platforms and predictive analytics software.

Custom Logic Programming
FlexiBLE™ logic engine allows creation of custom protection schemes, interlocks, and control sequences without external PLCs. Implement motor sequencing, load shedding, or automatic transfer schemes using built-in logic functions.

Remote Configuration & Diagnostics
EnerVista 469 Setup software enables remote parameter changes, firmware updates, and oscillography retrieval via RS485 connection. Reduce site visits by 80% through remote troubleshooting and configuration management.

Third-Party System Integration
Pre-configured Modbus register maps and DNP 3.0 point lists accelerate integration with Rockwell, Siemens, Schneider, and ABB automation platforms. Sample code and integration guides available for common SCADA systems.

Delivery Timeline & Service Guarantee

Standard Delivery: 3-5 business days for in-stock units via express courier with tracking. Secure packaging includes anti-static protection and shock-absorbing materials to ensure product integrity during transit.

Custom Configuration: Factory pre-programmed units available with 7-10 business day lead time. Provide motor nameplate data and protection requirements for turnkey configuration service.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty options (24/36 months) available for critical applications.

Technical Support: Unlimited phone and email support from GE-certified protection engineers. On-site commissioning and training services available in major industrial regions. Average response time: <2 hours for critical issues.

Documentation Package: Each relay ships with installation manual, quick start guide, Modbus register map, and EnerVista software download link. CAD drawings and protection coordination studies available upon request.

Frequently Asked Questions

What motor voltage ratings are compatible with the 469-P1-HI-A20-E relay?
The relay protects motors from 208V to 15kV through appropriate current transformer (CT) and potential transformer (PT) selection. The relay itself accepts 0-600V AC voltage inputs directly, with PT scaling for higher voltages. Most common applications include 480V, 600V, and 4160V motor systems.

How does thermal overload protection differ from traditional bimetallic overloads?
The 469's thermal model calculates motor temperature in real-time based on current, ambient temperature (via RTD), duty cycle, and service factor. This provides ±2% accuracy versus ±20% for bimetallic devices, preventing both nuisance trips and undetected overheating. The model also accounts for motor cooling during stopped periods.

Can I retrofit this relay into existing motor control centers?
Yes, the standard 1/4 DIN (96mm x 96mm) panel cutout matches most legacy relay footprints. Wiring terminals accept 14-6 AWG conductors compatible with existing CT/PT secondary circuits. Migration from electromechanical relays typically requires 1-2 hours per motor starter.

What is the power consumption of the relay during normal operation?
Maximum power consumption is 15W at 125V DC supply, with typical consumption around 8-10W. The wide input range (90-264V AC/DC) allows connection to existing control power circuits without additional transformers in most installations.

Does the relay require specialized software for configuration changes?
Basic parameter adjustments (trip setpoints, time delays) can be performed via the front panel HMI using a simple menu structure. Advanced features (custom logic, communication setup, oscillography) require EnerVista 469 Setup software, available as a free download from GE Digital Energy. Software connects via RS485 using standard USB-to-RS485 adapters.

How many event records can the relay store before overwriting?
The relay stores up to 512 time-stamped events in non-volatile memory, including fault type, magnitude, and pre/post-fault waveforms. Events are retained during power loss and can be downloaded via communication ports for long-term archiving. Oldest events are overwritten when memory is full.

Take Action: Protect Your Motor Assets Today

Don't wait for a catastrophic motor failure to impact your operations. The GE 469-P1-HI-A20-E Motor Management Relay provides the intelligence and reliability to safeguard your critical motor investments while reducing maintenance costs and extending equipment service life.

Ready to upgrade your motor protection? Contact our technical sales team at sale@ninermas.com or call +0086 187 5021 5667 to discuss your specific application requirements. Our engineers will help you select the optimal configuration and provide integration support to ensure seamless deployment.

Volume pricing available for multi-unit projects. Request a quote today for facilities requiring 5+ relays.
