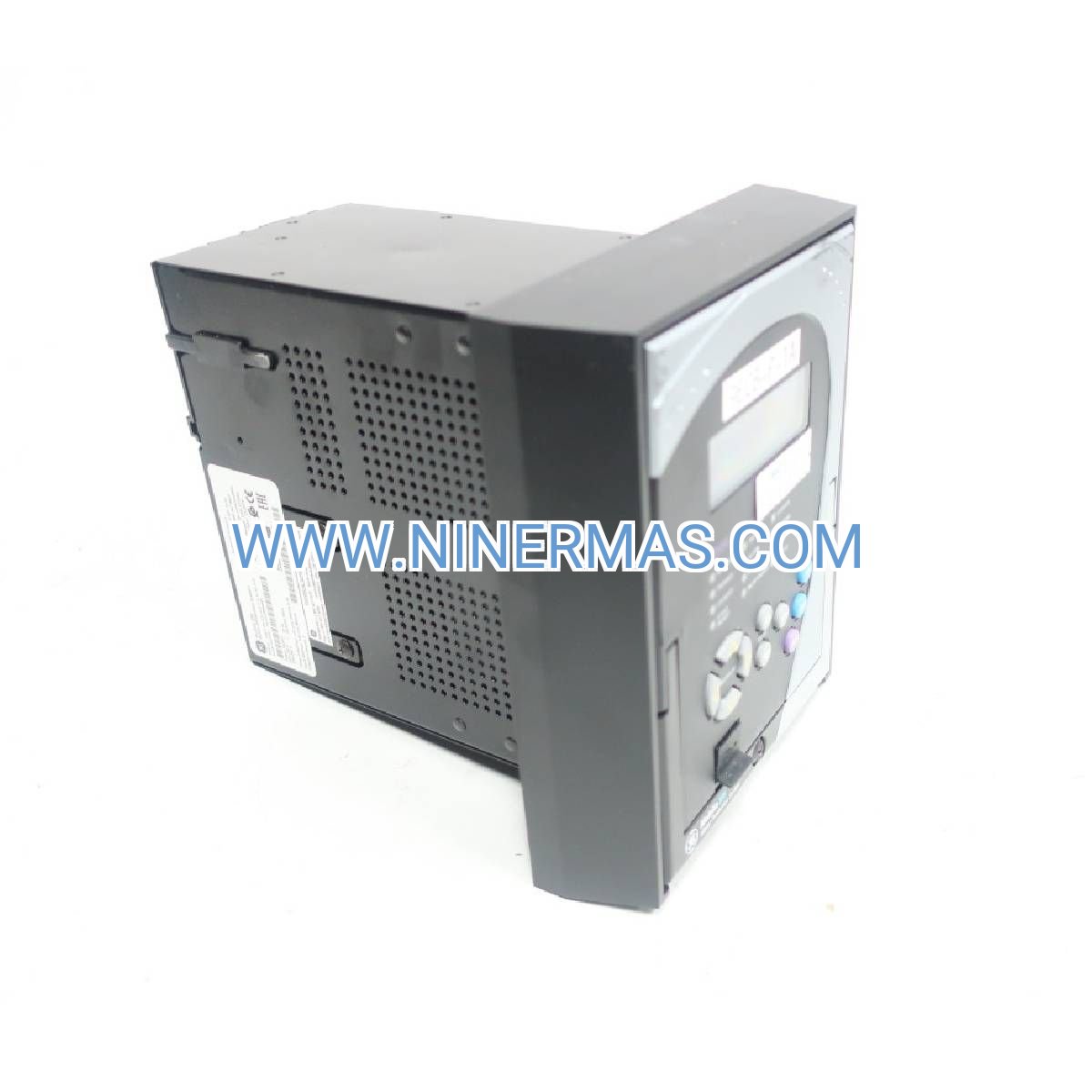

Industrial-Grade Feeder Protection Relay 399-E-P5-G1-H-E-S-N-P-3E-D-N (GE Multilin 350 Platform)

Safeguard your electrical distribution infrastructure with the GE Multilin 350 Series feeder protection relay—a microprocessor-based solution engineered for mission-critical power systems. This relay combines multi-function protection, real-time metering, and programmable logic in a single compact unit, eliminating the need for multiple discrete devices.

Designed for utilities, industrial plants, and commercial facilities managing medium-voltage feeders, the 399-E-P5-G1 model addresses the core challenge of unplanned outages caused by fault conditions. By detecting overcurrent, ground faults, and voltage anomalies within milliseconds, it isolates problems before they cascade into system-wide failures.

Key differentiators include adaptive protection settings that adjust to load conditions, comprehensive event logging with 1ms resolution, and field-proven reliability in harsh environments from -40°C to +70°C. The relay's modular architecture supports future expansion without requiring panel redesign.

Core Features & Benefits

→ Multi-Element Protection Suite
Integrated phase/ground overcurrent (ANSI 50/51), directional power (67), under/overvoltage (27/59), and frequency monitoring (81) eliminate coordination gaps between separate relays while reducing panel space by 60%.

→ Precision Metering & Diagnostics
Real-time measurement of voltage, current, power factor, and energy consumption with ±0.2% accuracy enables predictive maintenance strategies and validates billing-grade data without external meters.

→ Programmable Logic Controller
Built-in logic engine with 128 configurable equations automates load shedding, auto-transfer schemes, and interlocking sequences—reducing commissioning time by 30% compared to hardwired solutions.

✓ Dual Communication Ports
Simultaneous RS485 Modbus RTU and DNP3 protocol support allows local HMI connection while maintaining SCADA integration, ensuring uninterrupted remote monitoring during maintenance activities.

✓ Self-Diagnostic Monitoring
Continuous internal health checks with automatic alarm generation detect CT/VT circuit failures, memory errors, and power supply degradation before they compromise protection reliability.

✓ Cybersecurity-Ready Design
Role-based access control with password protection and event audit trails meet NERC CIP compliance requirements for critical infrastructure protection.

Application Scenarios

Manufacturing Facility Feeder Protection
In automotive assembly plants, the 399-E-P5-G1 protects 4.16kV feeders supplying robotic welding lines. When a phase-to-ground fault occurs in cable runs, directional overcurrent elements isolate the faulted section within 3 cycles, preventing production line shutdowns that cost $15,000 per hour.

Utility Substation Distribution Automation
Electric cooperatives deploy this relay in 12.47kV distribution substations to coordinate with upstream reclosers. The relay's voltage-controlled/voltage-restrained overcurrent curves adapt to system conditions, reducing nuisance trips during cold-load pickup by 85% while maintaining fault sensitivity.

Data Center Critical Power Monitoring
Tier III data centers use the 399-E-P5-G1 to monitor dual-fed UPS input feeders. Programmable load-shedding logic automatically disconnects non-essential HVAC loads when feeder current exceeds 90% capacity, preserving IT equipment uptime during utility transfer events.

Renewable Energy Integration
Solar farms integrate this relay at inverter collection points to detect reverse power flow and islanding conditions. The relay's synchro-check function (ANSI 25) prevents out-of-phase reclosing when reconnecting to the utility grid after maintenance.

Mining Operation Feeder Coordination
Underground mining operations require selective coordination between surface substations and underground distribution. The relay's time-current curve library includes IEC and IEEE standards, ensuring proper discrimination with downstream motor protection relays on conveyor systems.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 399-E-P5-G1 configuration when your application requires directional overcurrent protection (the "G1" suffix indicates ground directional element). For non-directional applications, consider the 350-E-P5 variant. Verify CT secondary ratings match existing infrastructure—the relay auto-detects 1A or 5A inputs during commissioning.

Extended Functions

SCADA Integration & IoT Connectivity
The relay's dual Ethernet option (when equipped with communication module) enables IEC 61850 GOOSE messaging for peer-to-peer protection schemes. Publish real-time data to cloud-based analytics platforms via Modbus TCP gateways for predictive maintenance algorithms.

Advanced Automation Capabilities
Implement automatic voltage regulation (AVR) coordination by linking relay outputs to capacitor bank controllers. Program seasonal load profiles that adjust protection settings based on calendar date and time-of-day, optimizing sensitivity during low-load periods.

Customization Options
Factory configuration services include pre-programmed settings files based on your one-line diagrams and coordination studies. Custom faceplates with site-specific labeling and multilingual displays (English/Spanish/French) available for international projects.

Delivery & Service Assurance

Lead Times: Standard configurations ship within 3-5 business days from our regional distribution centers. Custom-configured units with factory settings require 10-15 business days. Expedited 48-hour processing available for emergency replacements.

Warranty Coverage: Comprehensive 24-month manufacturer warranty covers defects in materials and workmanship. Extended 5-year protection plans available, including advance replacement and on-site calibration services.

Technical Support: Unlimited access to application engineers via phone/email during commissioning. Remote assistance for settings validation and troubleshooting included. On-site startup services available in North America, Europe, and Asia-Pacific regions.

Documentation Package: Each relay ships with instruction manual, quick-start guide, settings worksheet templates, and AutoCAD panel cutout drawings. Downloadable configuration software (EnerVista 350 Setup) includes simulation mode for offline testing.

Frequently Asked Questions

How does the 399-E-P5-G1 relay interface with existing protective relay systems?
The relay communicates via industry-standard Modbus RTU protocol over RS485, ensuring compatibility with legacy SCADA systems and modern substation automation platforms. It can share the same communication bus with GE UR Series, SEL, and Schweitzer relays using unique device addresses (1-247).

What current transformer ratios and accuracy classes are supported?
The relay accepts CT ratios from 1:1 to 7000:1 with secondary currents of 1A or 5A. Minimum recommended CT accuracy is Class C100 (10L100 per IEC) for protection functions. Metering accuracy improves with Class 0.3 CTs but is not mandatory for basic protection.

Can this relay reduce energy costs through demand monitoring?
Yes—the integrated kW/kVAR metering with 15-minute demand intervals enables utility demand charge management. Set programmable alarms at 85% and 95% of peak demand thresholds to trigger load-shedding sequences, potentially reducing monthly demand charges by 12-18%.

What installation requirements apply for panel mounting?
The relay requires a standard 1/4 DIN panel cutout (96mm x 96mm) with minimum 150mm depth behind the panel. Maintain 50mm clearance on all sides for ventilation. Torque CT/VT terminal screws to 0.5 Nm (4.5 lb-in) using 12-14 AWG wire with ferrules.

Does the relay support remote firmware updates?
Firmware upgrades are performed via the front-panel RS232 port or rear RS485 port using GE's EnerVista software. The process takes approximately 5 minutes and does not require removing the relay from service—settings are preserved in non-volatile memory during updates.

How do I verify proper operation after installation?
Perform secondary injection testing using a relay test set (e.g., Omicron CMC or Doble F6150). Apply 3-phase currents at 110% pickup to verify trip timing matches coordination study. Check voltage inputs with balanced 3-phase source at rated voltage. Validate communication by polling Modbus registers 30001-30050.
