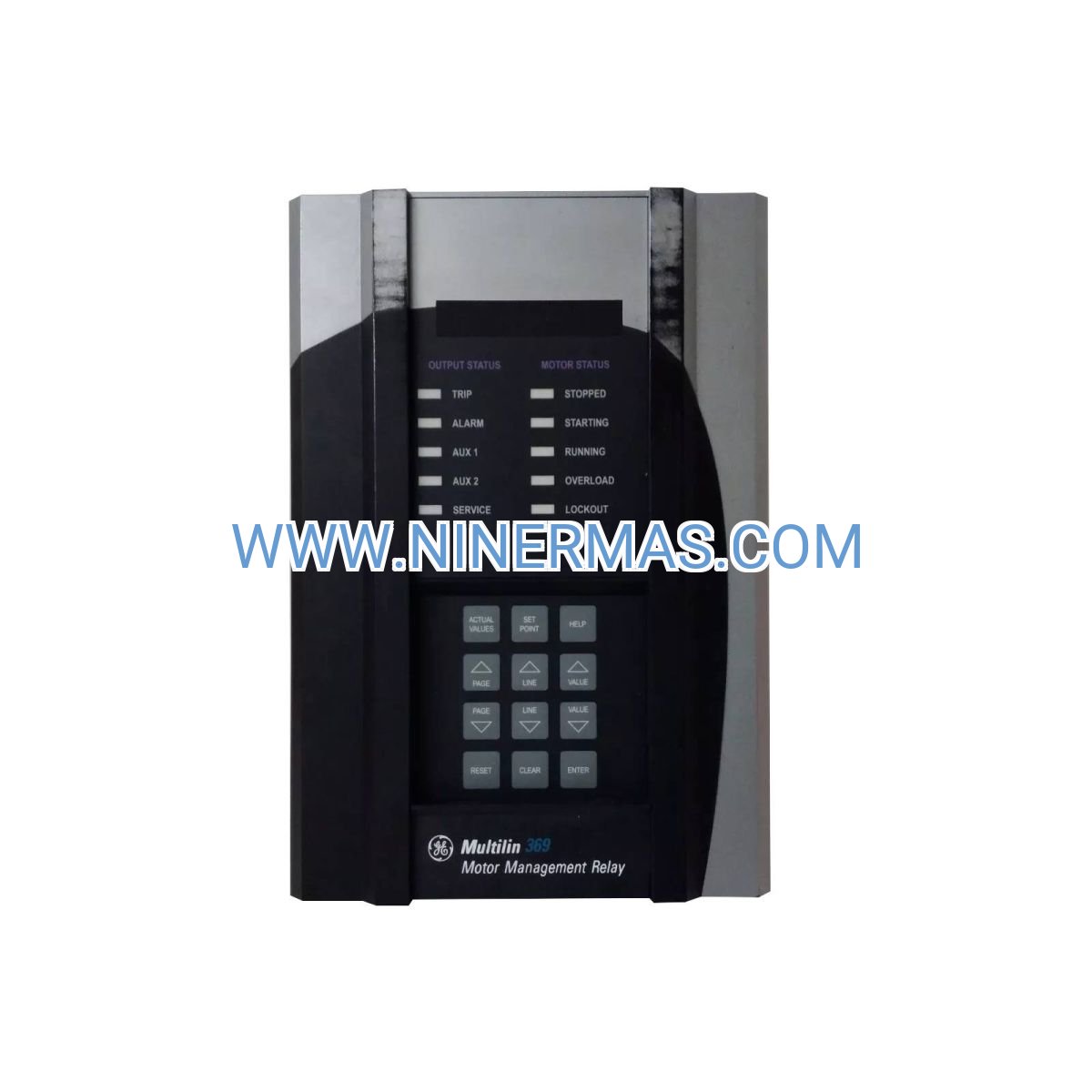

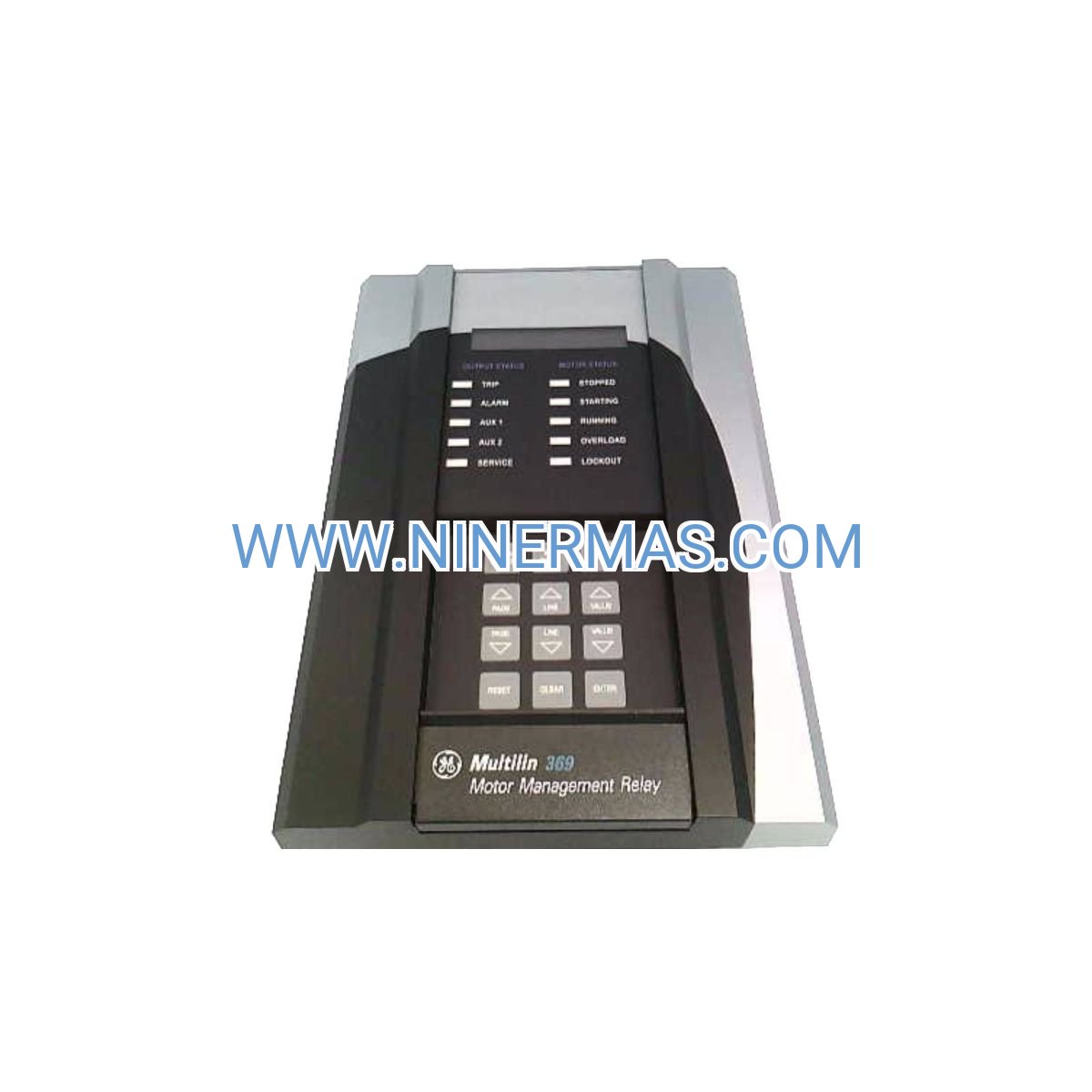

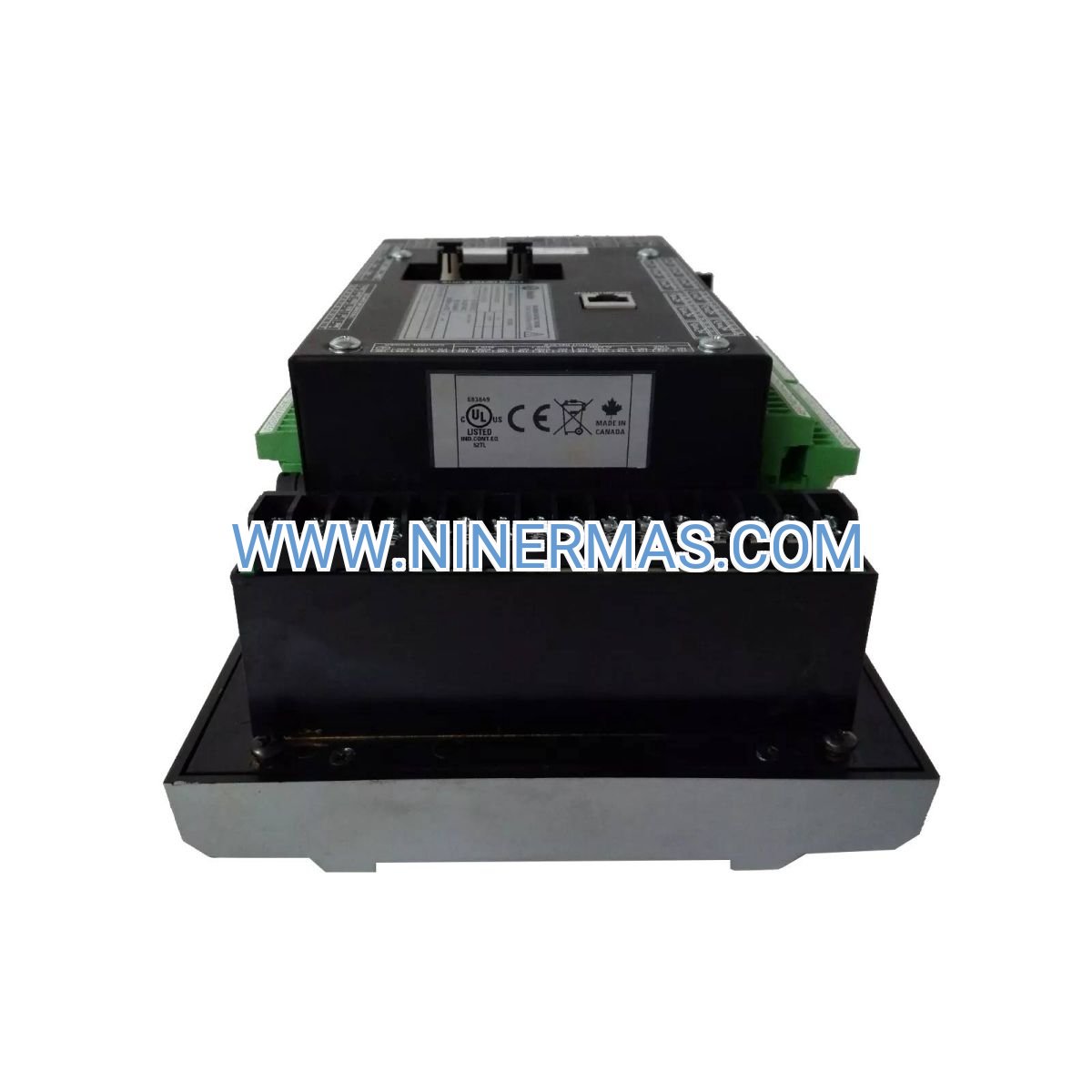

GE 369-HI-R-M-F-E-H-E Motor Relay (Industrial-Grade Multi-Point Temperature Monitoring)

Protect your most valuable rotating assets with the GE 369-HI-R-M-F-E-H-E motor management relay—a field-proven solution combining 12-channel RTD temperature surveillance, fiber optic connectivity, and comprehensive electrical fault detection. Designed for mission-critical motors in petrochemical, mining, water/wastewater, and power generation facilities where unplanned shutdowns cost thousands per hour.

This relay addresses three fundamental challenges: thermal damage from bearing failures, communication reliability in high-EMI environments, and the need for predictive maintenance data. Target users include plant engineers, maintenance managers, and system integrators responsible for motors rated 100 HP and above.

Key advantages include 40% faster fault detection versus legacy relays, immunity to electrical noise through fiber optic isolation, and integration with existing SCADA infrastructure via Modbus/DNP3 protocols—all in a UL/CSA/CE certified package backed by GE's industrial pedigree.

Core Features & Benefits

→ 12-Channel RTD Temperature Monitoring
Simultaneously track bearing, stator winding, and ambient temperatures across large motors. Enables early detection of thermal anomalies 6-8 hours before catastrophic failure, reducing unplanned downtime by up to 35%.

→ Fiber Optic Communication Interface
Eliminates ground loop issues and EMI susceptibility in high-voltage switchgear environments. Supports distances up to 2 km without signal degradation, ideal for distributed motor control architectures.

→ Multi-Function Electrical Protection
Integrated safeguards against locked rotor (stall), phase imbalance, ground fault, under/overvoltage, and thermal overload conditions. Replaces 4-6 discrete protection devices, simplifying panel design and reducing wiring costs by 20-30%.

✓ High-Intensity Backlit Display
Readable in direct sunlight or low-light conditions. Real-time display of current, voltage, power factor, and temperature trends accelerates troubleshooting during emergency response.

✓ Wide Operating Range (90-300 VAC/VDC)
Single relay design for global voltage standards. Reduces spare parts inventory and simplifies procurement for multi-site operations.

✓ Extreme Environment Rating (-40°C to +70°C)
Proven reliability in Arctic mining operations and Middle Eastern desert installations. Conformal-coated PCBs resist humidity, dust, and corrosive atmospheres.

Application Scenarios

Petrochemical Compressor Stations
Critical gas compression motors operating 24/7 require continuous thermal monitoring. The 369-HI-R-M-F-E-H-E's 12 RTD inputs monitor thrust bearing, radial bearing, and motor winding temperatures simultaneously, triggering alarms before bearing temperatures exceed safe thresholds. Fiber optic communication ensures reliable data transmission despite proximity to 13.8 kV switchgear.

Municipal Water Treatment Plants
Large pump motors (500-2000 HP) driving raw water intake and effluent discharge systems benefit from comprehensive protection against single-phasing, voltage sags during utility switching, and thermal overload during high-demand periods. Integration with plant SCADA via Modbus enables remote monitoring and automated load shedding.

Underground Mining Conveyor Systems
Conveyor drive motors in confined spaces with limited ventilation face accelerated thermal aging. RTD sensors embedded in motor windings and gearbox bearings feed real-time data to the relay, enabling predictive maintenance scheduling based on actual thermal stress rather than fixed time intervals—extending motor life by 15-25%.

Power Plant Auxiliary Systems
Boiler feed pumps, induced draft fans, and cooling tower motors require protection coordination with generator protection schemes. The 369 relay's programmable trip curves and communication capabilities integrate seamlessly with plant DCS systems, supporting compliance with NERC reliability standards.

Steel Mill Rolling Operations
Reversing motors in hot strip mills experience extreme thermal cycling and electrical stress. Phase unbalance protection prevents damage from utility supply asymmetry, while locked rotor detection safeguards against mechanical jams—critical in continuous production environments where downtime costs exceed $50,000/hour.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 369-HI-R-M-F-E-H-E when your application requires (1) more than 6 RTD temperature points, (2) fiber optic communication for EMI immunity, or (3) integration with existing GE Multilin protection ecosystems. For motors below 100 HP with basic protection needs, consider the GE 269 series. For feeder protection or transformer applications, evaluate the GE M60 platform.

Extended Functions

Predictive Maintenance Integration: Export historical temperature, current, and voltage data via Modbus to condition monitoring platforms. Trend analysis identifies gradual bearing degradation 30-60 days before failure, enabling scheduled maintenance during planned outages.

Load Profiling & Energy Management: Built-in power metering functions (kW, kVAR, kWh) support energy audits and demand response programs. Identify inefficient operating patterns and optimize motor loading for 5-10% energy savings.

Custom Protection Curves: Program thermal models matching specific motor thermal time constants. Accommodates high-inertia loads (flywheels, crushers) requiring extended acceleration times without nuisance tripping.

Multi-Language Display Support: Configure display text in English, Spanish, French, German, or Chinese—simplifying operation in multinational facilities and reducing training requirements for diverse workforces.

Delivery & Service Assurance

Lead Time: Standard configuration units ship within 3-5 business days from our regional distribution centers. Custom-configured relays (special CT ratios, protocol settings) require 7-10 business days for factory programming and testing.

Warranty Coverage: 12-month comprehensive warranty covering materials, workmanship, and firmware defects. Extended 36-month warranty available for critical infrastructure applications. Advance replacement service ensures <24-hour turnaround for emergency failures.

Technical Support: Access to GE-certified application engineers for protection coordination studies, CT sizing calculations, and SCADA integration assistance. Phone/email support available 8 AM - 6 PM EST, with emergency hotline for 24/7 critical issues.

Documentation Package: Each relay includes installation manual, quick-start guide, Modbus register map, DNP3 point list, AutoCAD panel cutout drawing, and sample protection settings for common motor types (pumps, fans, compressors).

Frequently Asked Questions

What fiber optic cable type is compatible with the 369-HI-R-M-F-E-H-E communication interface?
The relay accepts 62.5/125 µm multimode fiber with ST or SC connectors. Maximum transmission distance is 2 km at 1.25 Mbps data rate. For longer distances or single-mode fiber requirements, specify media converters during ordering.

Can I monitor motors with different voltage ratings using a single relay model?
Yes, the 90-300 VAC/VDC input range covers 120V, 208V, 240V, 480V, and 600V motor control circuits without hardware modifications. Configure voltage scaling parameters via front panel or software utility.

How does the thermal overload protection compare to traditional bimetallic overload relays?
The 369 relay uses RTD-based thermal modeling with ±1°C accuracy versus ±5-10°C for bimetallic devices. This precision reduces false trips by 60% while providing earlier warning of genuine thermal faults—critical for motors operating near rated capacity.

What installation clearances are required for proper ventilation?
Maintain 50mm (2 inches) clearance above and below the relay for convective cooling. Side-by-side mounting is acceptable with no spacing required. Ambient temperature inside the enclosure must not exceed 70°C for reliable operation.

Is the relay compatible with variable frequency drive (VFD) applications?
Yes, with firmware version 5.7x or later. Enable VFD mode to accommodate harmonic distortion and frequency variation. Note that some protection functions (phase unbalance, undervoltage) may require adjusted settings for VFD-fed motors.

What cybersecurity features protect the communication interface from unauthorized access?
The relay supports password-protected configuration access, Modbus function code filtering, and read-only register locking. For IEC 61850 implementations, role-based access control (RBAC) and TLS encryption are available in the -E (enhanced) firmware variant.

Request Your Protection System Quote

Safeguard your critical motor assets with proven GE Multilin technology. Contact our application specialists to discuss CT ratios, RTD sensor selection, and SCADA integration requirements for your specific installation. Volume pricing available for multi-unit projects and OEM partnerships.

Next Steps: Email your motor nameplate data (HP, voltage, FLA, service factor) and protection requirements to receive a customized relay configuration worksheet within 24 hours. Expedited shipping available for emergency replacements.
