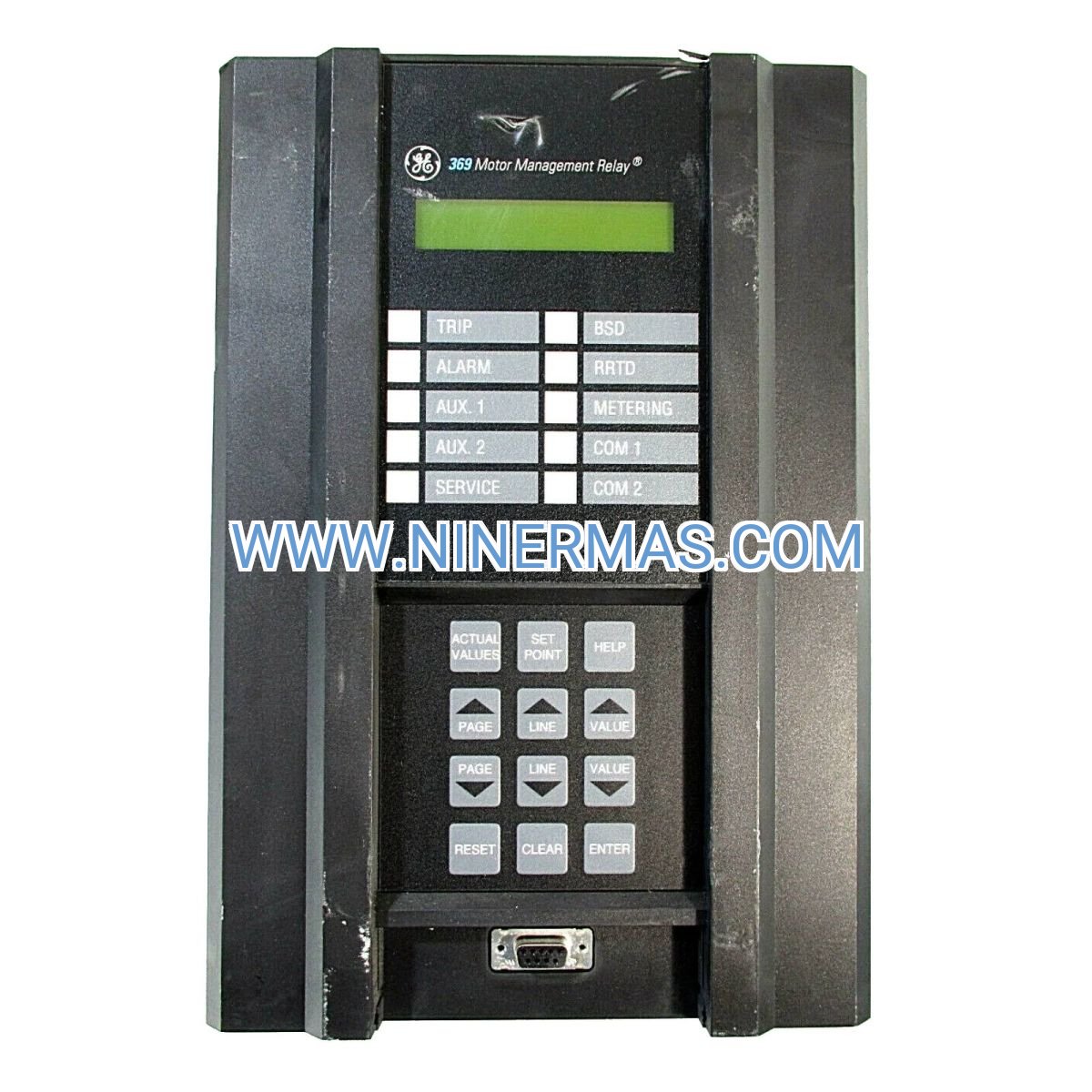

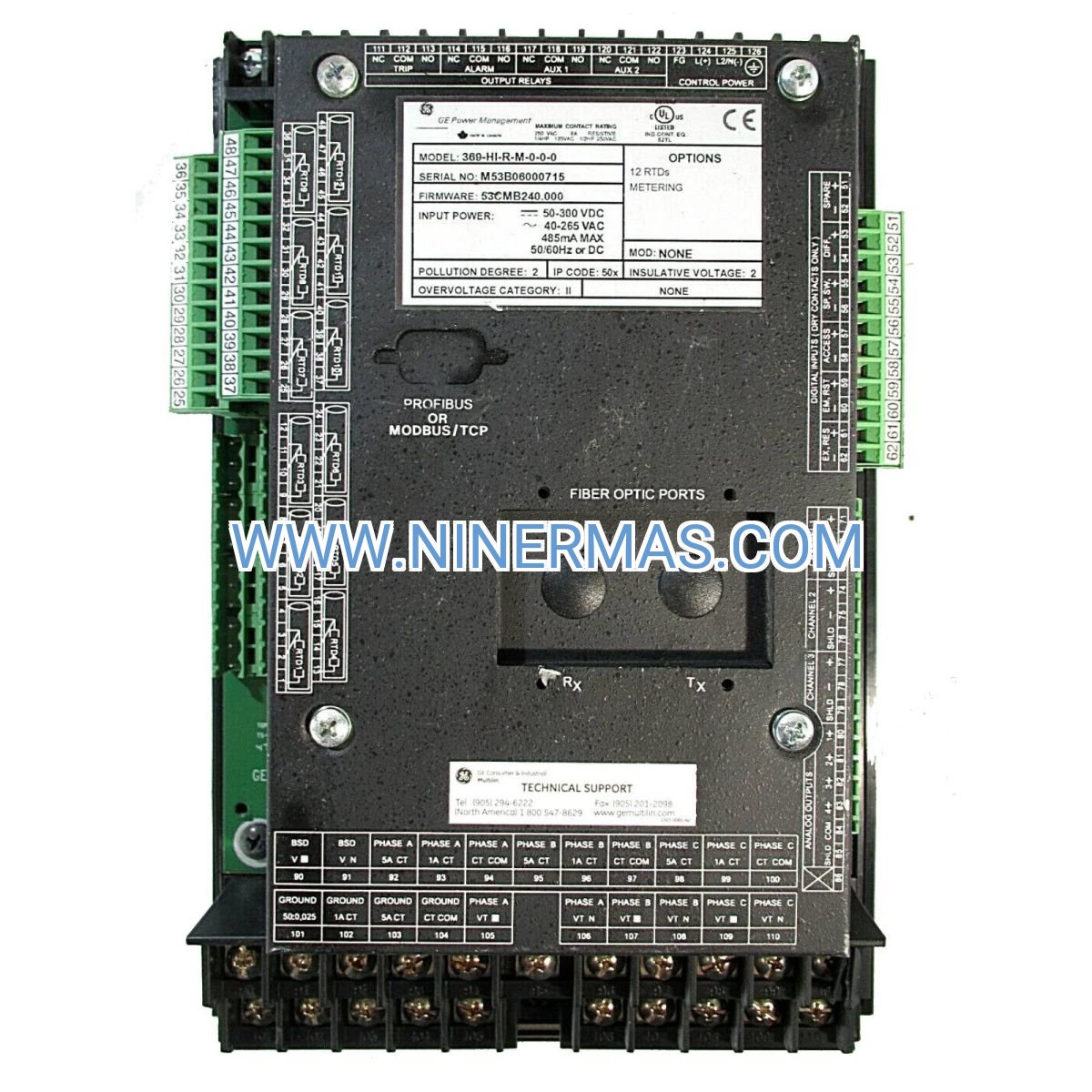

GE 369-HI-R-M-0-0 Digital Motor Protection Relay (Industrial-Grade Safeguard System)

The GE 369-HI-R-M-0-0 is an advanced digital motor protection relay engineered to deliver fail-safe protection, precision monitoring, and intelligent fault diagnostics for critical AC motor installations. Built on proven thermal modeling algorithms and equipped with comprehensive metering functions, this relay prevents unplanned downtime while extending motor service life across manufacturing, utilities, and process industries.

Designed for facilities managing motors from 1HP to 1500HP, the 369-HI-R-M-0-0 addresses the core challenge of balancing protection sensitivity with operational continuity. Traditional protection schemes often trip prematurely or fail to detect developing faults—this relay solves both problems through adaptive thermal tracking and multi-parameter monitoring.

Target users include plant engineers, maintenance managers, and automation integrators seeking reliable motor protection with seamless SCADA integration. Key advantages include: adaptive thermal modeling that learns motor behavior, comprehensive event logging for root cause analysis, Modbus RTU connectivity for real-time data access, and field-proven reliability in harsh industrial environments.

Core Features & Benefits

→ Adaptive Thermal Modeling Technology
Continuously calculates motor temperature based on load current, ambient conditions, and thermal history—prevents nuisance trips while ensuring protection integrity. Reduces false alarms by up to 40% compared to conventional overload relays.

→ Multi-Function Protection Suite
Integrates thermal overload, phase loss, undervoltage, overvoltage, ground fault, locked rotor, and undercurrent protection in a single device—eliminates need for multiple protection components, reducing panel space and wiring complexity.

→ Real-Time Metering & Diagnostics
Tracks voltage, current, power, power factor, and energy consumption with ±1% accuracy—enables predictive maintenance strategies and energy optimization. 40-character backlit LCD displays critical parameters at a glance.

→ Industrial Communication Protocol
Modbus RTU over RS485 supports multi-drop configurations (up to 32 devices)—seamlessly integrates with SCADA systems, PLCs, and building management platforms for centralized monitoring and control.

→ Comprehensive Event Recording
Captures up to 512 time-stamped events including faults, alarms, and operational changes—facilitates detailed fault analysis and compliance documentation. Non-volatile memory retains data during power loss.

→ Flexible Mounting & Installation
Panel mount or DIN rail options with wide operating temperature range (-40°C to +70°C)—adapts to diverse installation environments from climate-controlled facilities to outdoor enclosures.

Typical Application Scenarios

✓ Water & Wastewater Treatment Facilities
Scenario: Pump stations operating 24/7 with motors ranging from 50HP to 500HP
Pain Point: Unexpected pump failures cause service disruptions and regulatory compliance issues
Value Delivered: Adaptive thermal protection prevents motor burnout while event logging provides audit trails for regulatory reporting. Modbus integration enables remote monitoring of all pump stations from central control room.

✓ Manufacturing Production Lines
Scenario: Conveyor systems, mixers, and material handling equipment in continuous process operations
Pain Point: Motor failures halt entire production lines, resulting in costly downtime and missed delivery commitments
Value Delivered: Multi-parameter monitoring detects developing faults before catastrophic failure. Real-time alerts enable scheduled maintenance during planned downtime rather than emergency repairs.

✓ HVAC & Building Systems
Scenario: Chiller compressors, cooling tower fans, and air handling units in commercial facilities
Pain Point: Motor failures during peak demand periods compromise building comfort and tenant satisfaction
Value Delivered: Undervoltage and phase loss protection safeguards motors during utility disturbances. Energy metering identifies inefficient operation for optimization opportunities.

✓ Oil & Gas Processing
Scenario: Compressor drives and pump applications in hazardous area classifications
Pain Point: Motor failures in remote locations require expensive emergency service calls and extended downtime
Value Delivered: Ground fault protection prevents insulation failures in harsh environments. RS485 communication enables remote diagnostics, reducing site visits by 60%.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 369-HI-R-M-0-0 when you require comprehensive motor protection with SCADA integration for motors 1-1500HP. The enhanced display (HI) provides superior visibility for field troubleshooting, while the Modbus (M) option enables centralized monitoring. RTD input (R) allows direct motor winding temperature measurement for critical applications. For motors below 1HP or above 1500HP, consult factory for alternative models.

Extended Functions

IoT & Industry 4.0 Integration: The relay's Modbus RTU protocol enables seamless integration with modern IoT gateways and cloud-based monitoring platforms. Stream real-time motor performance data to predictive maintenance systems, enabling machine learning algorithms to identify failure patterns before they occur.

Advanced Configuration Options: Field-programmable settings allow customization of protection curves, alarm thresholds, and communication parameters without external tools. Password protection prevents unauthorized changes while maintaining accessibility for qualified personnel.

Customization Capabilities: Factory configuration services available for large installations requiring standardized settings across multiple units. Custom firmware options support specialized protection algorithms for unique motor applications including high-inertia loads and frequent start/stop cycles.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 1-2 business days. Custom-configured units require 7-10 business days for factory programming and testing.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Extended warranty options available for critical applications.

Technical Support: Dedicated application engineering team provides configuration assistance, integration guidance, and troubleshooting support. Phone and email support available during business hours with 4-hour response time commitment.

Documentation Package: Each relay includes installation manual, quick start guide, Modbus register map, and configuration software. CAD drawings and 3D models available for download to facilitate panel design.

Frequently Asked Questions

Q: How does the adaptive thermal model improve motor protection reliability?
A: The 369-HI-R-M-0-0 continuously tracks motor thermal state by analyzing load current patterns, ambient temperature, and cooling conditions. This dynamic approach prevents false trips during transient overloads while ensuring protection during sustained overload conditions—reducing nuisance trips by 40% compared to fixed-curve overload relays.

Q: Can this relay integrate with existing Allen-Bradley or Siemens PLC systems?
A: Yes, the Modbus RTU protocol is vendor-neutral and compatible with all major PLC brands including Allen-Bradley, Siemens, Schneider Electric, and Mitsubishi. Standard Modbus function codes enable read/write access to all relay parameters and metering values.

Q: What current transformer ratios are compatible with the 369-HI-R-M-0-0?
A: The relay accepts standard 5A secondary current transformers with primary ratios from 5:5 to 7500:5. Common ratios include 50:5, 100:5, 200:5, and 400:5. The relay automatically scales measurements based on programmed CT ratio, ensuring accurate protection across the full motor size range.

Q: Does the relay support remote reset after a trip condition?
A: Yes, trip conditions can be reset remotely via Modbus commands or locally using front panel controls. Programmable auto-reset functionality allows automatic restart after configurable time delays for unattended applications, with lockout after repeated trips to prevent motor damage.

Q: What is the typical installation time for the 369-HI-R-M-0-0 relay?
A: Experienced technicians typically complete installation in 2-3 hours including mounting, wiring, and basic configuration. The relay's intuitive menu structure and pre-configured default settings minimize commissioning time. Detailed wiring diagrams and terminal labels simplify field connections.

Q: How does ground fault protection work in ungrounded systems?
A: The relay monitors zero-sequence current to detect ground faults in both grounded and ungrounded systems. Sensitivity ranges from 5% to 100% of motor full-load current with adjustable time delays from 0.05 to 600 seconds, providing protection against insulation failures while avoiding false trips from capacitive charging currents.

Partner with Industrial Control Hub

Industrial Control Hub delivers premium industrial automation solutions backed by rigorous quality assurance and expert technical support. Every GE 369-HI-R-M-0-0 Motor Protection Relay undergoes comprehensive functional testing and inspection before shipment, ensuring reliable performance in your critical motor applications.

Our application engineering team provides pre-sale consultation to ensure proper relay selection, configuration guidance for optimal protection settings, and post-installation support for troubleshooting and optimization. We maintain extensive inventory of GE Multilin protection relays and complementary automation components to support your complete project requirements.

Ready to protect your critical motors? Contact our technical team today for application-specific recommendations, custom configuration services, or volume pricing for multi-unit installations. We're committed to your success with responsive support and reliable delivery.
