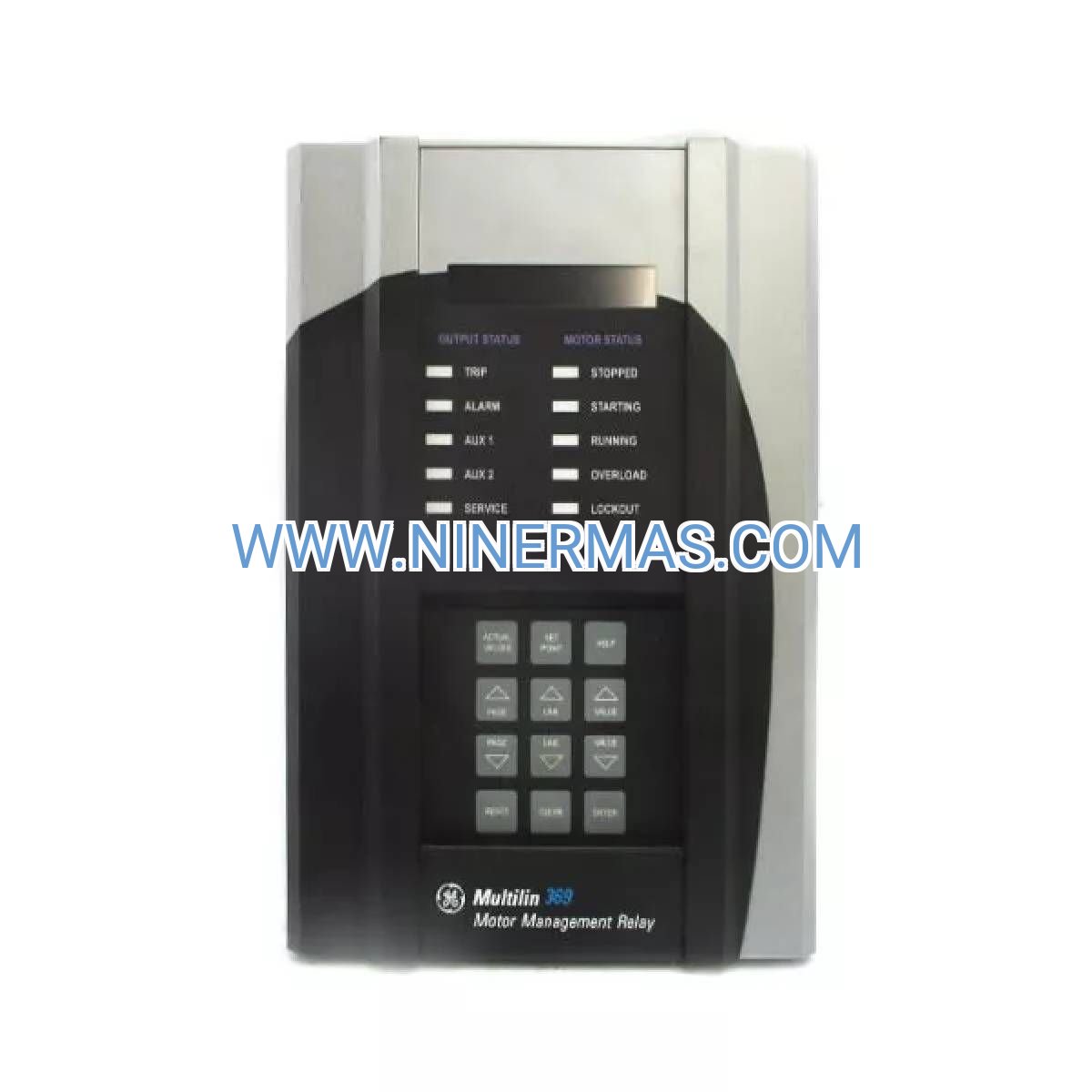

GE 369-HI-R-M-0-0-0-E Motor Management Relay (Industrial-Grade Protection Platform)

The GE 369-HI-R-M-0-0-0-E represents a comprehensive motor protection solution engineered for mission-critical 3-phase motor applications across industrial sectors. This relay platform integrates thermal modeling, real-time metering, and multi-point temperature surveillance into a unified control architecture designed to maximize asset uptime and prevent catastrophic motor failures.

Built on GE Multilin's proven protection algorithms, this relay addresses the operational challenges faced by facility managers and maintenance engineers: premature motor failures due to thermal stress, unplanned downtime from phase imbalances, and limited visibility into motor health conditions. The 12-channel RTD monitoring capability provides granular temperature data across motor windings, bearings, and ambient zones—enabling predictive maintenance strategies that reduce total cost of ownership.

Whether you're managing pumping stations, process lines, or material handling systems, the 369-HI-R-M-0-0-0-E delivers the protection intelligence and diagnostic depth required for high-reliability operations. Its Modbus RTU connectivity ensures seamless integration with existing SCADA infrastructure, while the intuitive 40-character LCD interface simplifies commissioning and troubleshooting workflows.

Core Protection Capabilities & Business Value

→ 12-Channel RTD Temperature Surveillance
Monitor stator windings, bearing housings, and ambient conditions simultaneously. Prevents thermal runaway conditions that account for 30% of motor failures, extending asset service life by 40-60% through early fault detection.

✓ Adaptive Thermal Overload Modeling
Dynamic thermal curves adjust protection thresholds based on actual motor loading and cooling conditions. Eliminates nuisance trips during legitimate startup transients while maintaining protection integrity during sustained overload events.

→ Phase Imbalance & Loss Detection
Real-time monitoring of voltage and current symmetry across all three phases. Detects single-phasing conditions within 50ms, preventing winding damage that can cost $15,000-$50,000 per motor replacement in industrial applications.

✓ Ground Fault & Earth Leakage Protection
Sensitive ground current monitoring protects personnel and equipment from insulation breakdown. Configurable trip thresholds accommodate various grounding schemes (solidly grounded, high-resistance grounded, ungrounded systems).

→ Locked Rotor & Stall Prevention
Distinguishes between normal starting current and mechanical jam conditions. Reduces mechanical damage to gearboxes and couplings by isolating motors within 2-5 seconds of rotor lock detection.

✓ Comprehensive Metering & Diagnostics
Tracks kW, kVAR, power factor, energy consumption, and motor starts. Provides data foundation for energy optimization programs and condition-based maintenance scheduling.

Industrial Application Scenarios

Water & Wastewater Treatment Facilities
Challenge: Large pump motors (200-500 HP) operating in continuous duty cycles require protection against bearing failures and winding overheating.
Solution: The 12 RTD inputs monitor both drive-end and non-drive-end bearings plus six stator winding points, providing early warning of thermal degradation. Modbus integration feeds temperature trends to plant SCADA for predictive maintenance scheduling.
Value: Reduces unplanned pump failures by 65%, avoiding emergency repair costs averaging $25,000 per incident.

Petrochemical Processing Plants
Challenge: Compressor and agitator motors in hazardous areas demand fail-safe protection with comprehensive fault logging for regulatory compliance.
Solution: Advanced event recording captures 512 time-stamped fault events with pre-fault and post-fault waveform data. Ground fault protection meets API 541 requirements for petroleum industry motors.
Value: Ensures compliance with safety standards while providing forensic data that reduces root-cause analysis time from days to hours.

Mining & Material Handling Operations
Challenge: Conveyor and crusher motors experience frequent starts, shock loads, and dusty environments that accelerate bearing wear.
Solution: Configurable restart delay and start inhibit functions prevent rapid cycling that damages motor contactors. RTD monitoring detects bearing temperature rise 4-8 hours before failure.
Value: Extends bearing service intervals by 30% and prevents production losses averaging $50,000 per hour in continuous mining operations.

Manufacturing & Production Lines
Challenge: Critical process motors require protection coordination with upstream circuit breakers and downstream load monitoring.
Solution: Programmable trip curves coordinate with 480V switchgear protection. Undercurrent monitoring detects broken belts, lost prime conditions, or product jams before mechanical damage occurs.
Value: Reduces mean time to repair (MTTR) by 40% through precise fault identification and isolation.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose the "M" variant (12 RTD inputs) for motors requiring comprehensive bearing and winding temperature monitoring
• Verify CT secondary rating matches relay input (1A or 5A)
• Confirm voltage input range accommodates your distribution system (480V, 600V, etc.)
• Ensure Modbus address space availability if integrating with existing networks
• Consider panel space: relay requires 96mm x 96mm cutout for flush mounting

Extended Functionality & System Integration

SCADA & HMI Connectivity
Modbus RTU register mapping provides access to 200+ data points including real-time currents, voltages, temperatures, power measurements, and alarm status. Compatible with Wonderware, Ignition, FactoryTalk, and other industrial HMI platforms.

Programmable Logic & Automation
Six configurable relay outputs can be mapped to any protection function, alarm condition, or metering threshold. Supports complex logic schemes such as "trip on high bearing temperature AND low flow" for pump protection applications.

Energy Management Integration
Accumulated energy registers (kWh) and demand metering (kW) enable integration with ISO 50001 energy management systems. Power factor monitoring identifies opportunities for capacitor bank optimization.

Predictive Maintenance Programs
Trend data from RTD inputs and thermal capacity usage feeds condition monitoring platforms. Supports transition from time-based to condition-based maintenance strategies, reducing maintenance costs by 20-35%.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for in-stock units | 4-6 weeks for factory-configured custom orders
Warranty Coverage: 12 months comprehensive warranty covering manufacturing defects and component failures
Technical Support: Pre-sales application engineering assistance, post-sales commissioning support, and troubleshooting guidance from certified GE Multilin specialists
Documentation Package: Includes installation manual, programming guide, Modbus register map, and AutoCAD panel cutout drawings

Frequently Asked Questions

What is the maximum motor horsepower rating for the GE 369-HI-R-M-0-0-0-E relay?
The relay protects motors from fractional HP up to 15,000 HP, limited only by the CT ratio selected. For motors above 800A full-load current, use CTs with 5A secondary and appropriate ratio (e.g., 1000:5 for 1000A motors).

Can this relay replace older GE Multilin 239 or 269 models in existing installations?
Yes, the 369 series offers backward compatibility with legacy GE motor protection relays. Panel cutout dimensions are identical (96mm x 96mm), and CT/PT wiring can be reused. Modbus register mapping differs, requiring SCADA tag updates during migration.

How does the thermal model account for motor cooling variations?
The relay uses a dual-element thermal model: one element tracks rotor heating (I²t), while the second monitors stator temperature via RTD inputs. Cooling time constants are programmable to match motor thermal characteristics, ensuring accurate protection across varying load profiles.

What RTD types are compatible with the 12 input channels?
The relay accepts 100Ω platinum RTDs (Pt100, alpha=0.00385) or 120Ω nickel RTDs. Three-wire RTD connections are standard, compensating for lead resistance errors. Temperature measurement range spans -50°C to +250°C with ±1°C accuracy.

Is remote reset capability available for unmanned facilities?
Yes, relay outputs can be configured for remote reset via Modbus commands or hardwired digital input. This feature is essential for pump stations, remote compressor sites, and other unattended installations where manual reset is impractical.

Does the relay support variable frequency drive (VFD) applications?
The 369 relay is optimized for across-the-line motor starting. For VFD-fed motors, consult GE Multilin application notes regarding harmonic filtering and CT placement to ensure accurate current measurement in the presence of PWM waveforms.

Secure Your Motor Assets Today

Unplanned motor failures cost industrial facilities an average of $50,000 per incident when accounting for emergency repairs, production losses, and expedited shipping. The GE 369-HI-R-M-0-0-0-E Motor Management Relay transforms your protection strategy from reactive to predictive—detecting fault conditions hours or days before catastrophic failure occurs.

Contact our automation specialists for application-specific configuration guidance, CT sizing recommendations, and integration support. Volume pricing available for multi-unit projects and OEM applications.

Request a technical datasheet or place your order now to protect your critical motor investments.
