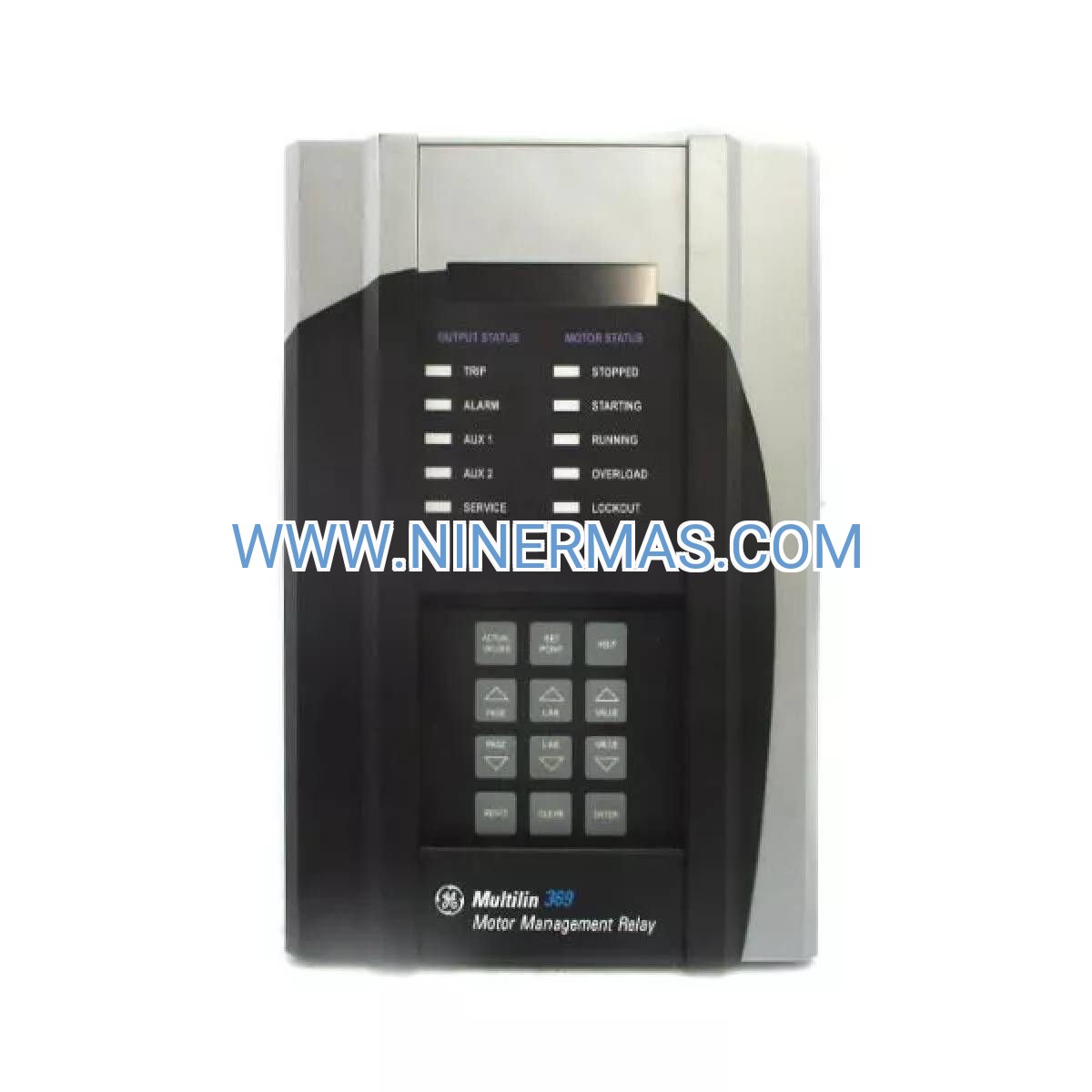

369-HI-R-M-0-0-0 Motor Protection Relay (Industrial-Grade Thermal & Electrical Safeguard)

Engineered for mission-critical motor assets, the GE 369-HI-R-M-0-0-0 combines precision RTD-based thermal modeling with multi-function electrical protection in a compact 1/2 DIN package. This Multilin 369 Series relay delivers real-time diagnostics and programmable trip logic, reducing unplanned downtime by up to 40% in medium-voltage motor applications. Designed for plant engineers who demand reliability, it integrates seamlessly into existing SCADA infrastructure via RS485 Modbus RTU.

Whether you're managing centrifugal pumps in water treatment facilities or conveyors in mining operations, this relay provides the intelligence needed to prevent catastrophic motor failures. With 12 dedicated RTD inputs and high-intensity LCD visibility, maintenance teams gain instant access to critical operating parameters—even in low-light industrial environments.

Backed by UL/CSA/CE certifications and a 12-month comprehensive warranty, the 369-HI-R-M-0-0-0 represents proven protection technology trusted across oil & gas, power generation, and heavy manufacturing sectors worldwide.

Core Protection Capabilities & Business Value

Each protection function translates directly into operational savings and asset longevity:

→ 12-Channel RTD Thermal Monitoring: Tracks winding and bearing temperatures with ±0.5°C accuracy, preventing thermal runaway conditions that account for 30% of motor failures. Reduces insurance claims and extends motor service life by 25-35%.

→ Phase Current Imbalance Detection: Identifies supply voltage asymmetry before it causes single-phasing damage. Automatically triggers alarms at user-defined thresholds (typically 5-10%), protecting against $50K+ motor rewind costs.

→ Ground Fault & Earth Leakage Protection: Detects insulation degradation as low as 5mA, preventing electrical fires and ensuring compliance with NFPA 70E safety standards. Critical for hazardous location installations.

✓ Locked Rotor & Stall Protection: Distinguishes between normal starting inrush and mechanical jam conditions within 2 seconds, preventing winding burnout during blocked rotor events.

✓ Programmable Trip Logic: Custom protection schemes adapt to specific motor characteristics—from soft-start equipped motors to high-inertia loads requiring extended acceleration times.

✓ Event Recording with Time Stamps: Stores last 40 trip events with waveform capture, enabling root cause analysis and predictive maintenance scheduling. Reduces mean time to repair (MTTR) by 60%.

Industry-Specific Application Scenarios

Municipal Water & Wastewater Treatment
Protects high-service pumps and aerators operating 24/7 in corrosive environments. The relay's extended temperature range (-40°C to +70°C) withstands outdoor pump house installations, while RTD monitoring prevents bearing failures caused by cavitation-induced vibration.

Mining & Mineral Processing
Safeguards SAG mill motors, conveyor drives, and crusher systems exposed to shock loads and dust ingress. Start inhibit functions prevent motor damage during material jams, while trip history aids compliance with mine safety regulations.

Petrochemical & Refining
Ensures continuous operation of compressor and pump motors handling volatile fluids. Ground fault sensitivity meets API 541 requirements for hazardous area motor protection, reducing explosion risks in Class I Division 2 locations.

Power Generation Facilities
Monitors auxiliary motors in coal-fired, gas turbine, and combined-cycle plants. Modbus integration enables centralized monitoring from distributed control systems (DCS), supporting predictive maintenance programs.

Food & Beverage Manufacturing
Protects mixer motors, conveyor systems, and refrigeration compressors in sanitary environments. Undervoltage protection prevents product spoilage during utility supply disturbances, while restart delay functions coordinate with process sequencing.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose this model when you need comprehensive RTD monitoring (12 channels) with Modbus communication. For applications requiring fewer RTD inputs (6 channels), consider the base 369-HI-0-M model. If Ethernet connectivity is essential, specify the 369-HI-R-M-0-0-0-H-E variant with embedded web server.

Advanced Integration & IoT Capabilities

SCADA System Integration: The relay's Modbus register map provides access to 200+ data points including real-time currents, voltages, power factor, and thermal capacity used. Poll rates up to 10Hz enable trending analysis for condition-based maintenance programs.

Predictive Maintenance Enablement: Export trip history and thermal aging data to cloud-based analytics platforms. Machine learning algorithms can identify degradation patterns 4-6 weeks before failure, optimizing spare parts inventory and maintenance scheduling.

Custom Protection Schemes: Built-in FlexLogic™ engine allows creation of AND/OR/NOT logic using any measured parameter. Example: Disable ground fault protection during motor starting to prevent nuisance trips, then re-enable after 10-second delay.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for critical outages (additional fees apply).

Custom Configuration: Factory pre-programmed relays with your specific settings ship within 7-10 business days. Provide motor nameplate data and protection requirements at time of order.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, firmware issues, and hardware failures. Advance replacement program minimizes downtime—receive replacement unit within 48 hours of claim approval.

Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and firmware updates. Remote commissioning support available via TeamViewer or similar platforms.

Documentation Package: Each relay includes installation manual, quick start guide, Modbus register map, and EnerVista 369 setup software (Windows-compatible). CAD drawings and relay coordination curves available for download.

Frequently Asked Questions

What is the maximum motor horsepower this relay can protect?
The 369-HI-R-M-0-0-0 protects motors from 50 HP to 5000 HP when used with appropriately sized current transformers (5A secondary standard). For motors above 5000 HP, consult factory for CT ratio recommendations to maintain 0.5% accuracy class.

Can I retrofit this relay into panels with electromechanical overload relays?
Yes—the standard 1/2 DIN cutout (92mm x 92mm) matches most legacy relay footprints. Existing CT secondaries (5A) connect directly; no panel rewiring required. Relay outputs are Form-C rated 10A, sufficient to drive most circuit breaker trip coils without interposing relays.

How does RTD-based protection improve upon traditional thermal overload relays?
Traditional bimetallic overloads estimate motor temperature using current alone, with ±15% accuracy. RTD sensors measure actual winding temperature with ±0.5°C precision, accounting for ambient conditions, cooling system effectiveness, and load history. This prevents both nuisance trips and undetected overheating.

Is the Modbus communication compatible with Allen-Bradley ControlLogix PLCs?
Absolutely. The relay's Modbus RTU protocol integrates with ControlLogix via 1756-MVI or ProSoft MVI56 communication modules. Sample ladder logic and register mapping files are available in our technical library to accelerate commissioning.

What happens if the relay loses auxiliary power during motor operation?
The relay features non-volatile memory that retains all settings and trip history during power loss. Upon restoration, it performs a self-test (2 seconds) then resumes monitoring. Optional battery backup maintains real-time clock accuracy during outages up to 72 hours.

Can I monitor multiple motors with a single relay?
No—each motor requires a dedicated protection relay for proper thermal modeling and selective tripping. However, up to 32 relays can share a single Modbus network, enabling centralized monitoring from one HMI or SCADA workstation.

Request Technical Consultation

Unsure which protection features your application requires? Our motor protection specialists provide complimentary application reviews. Submit your motor nameplate data, operating profile, and protection objectives—receive a customized relay configuration within 24 hours. Contact our team to schedule a consultation or request a detailed quotation for multi-unit projects.
