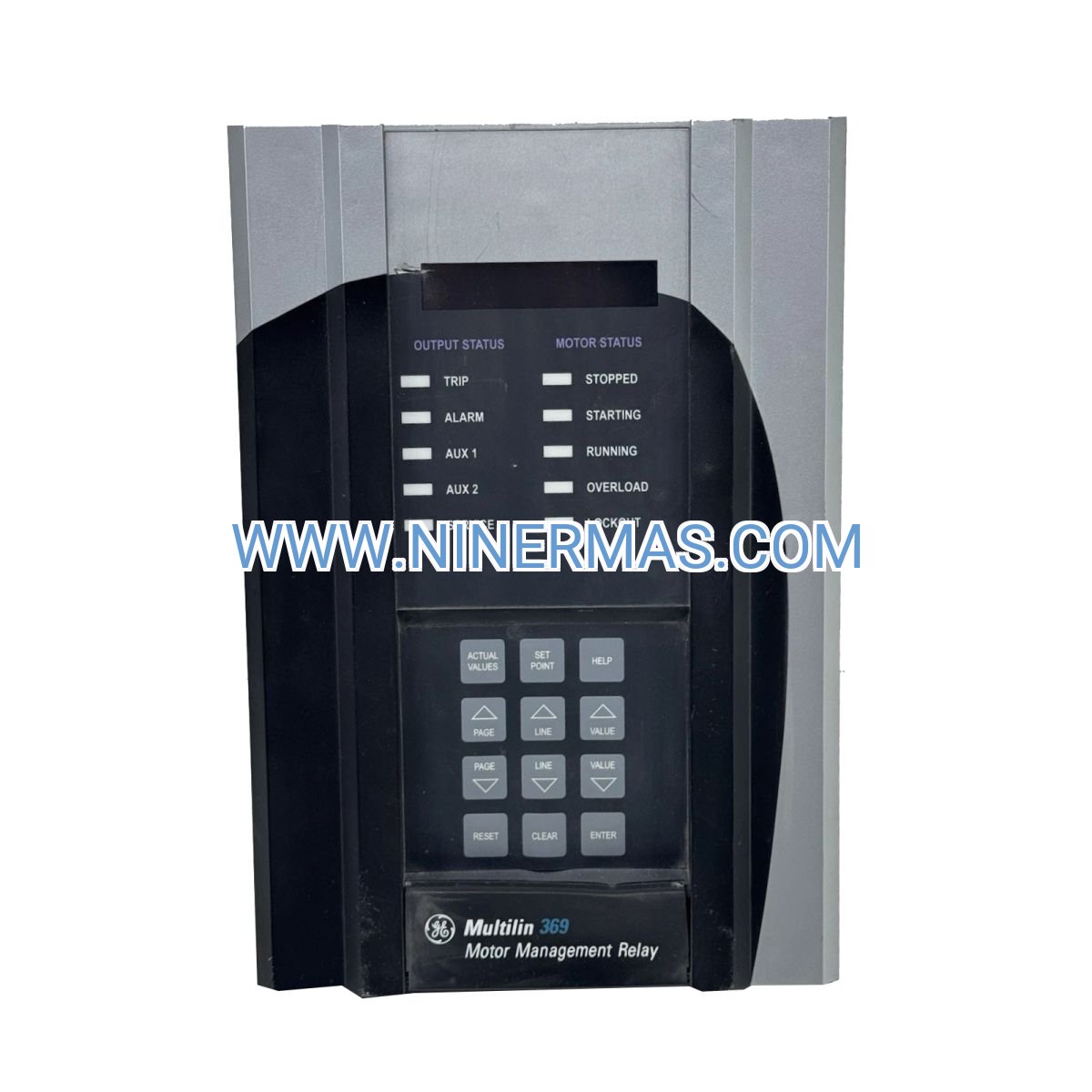

GE 369-HI-R-B-0-D-0-E Motor Management Relay (Industrial-Grade Motor Protection System)

The GE 369-HI-R-B-0-D-0-E Motor Management Relay is a professional-grade motor protection and control device designed for medium-voltage industrial motors. Through advanced microprocessor-based technology, PLC-compatible communication protocols, and intelligent thermal modeling algorithms, it delivers comprehensive motor protection, real-time condition monitoring, and predictive maintenance capabilities.

Ideal for petrochemical plants, water treatment facilities, mining operations, steel manufacturing, power generation stations, and heavy industrial environments where motor reliability is mission-critical. This relay helps solve common challenges including unexpected motor failures, thermal damage from overload conditions, costly unplanned downtime, inadequate fault diagnostics, and lack of remote monitoring visibility.

Leveraging field-proven protection algorithms, modular design architecture, and industry-standard communication interfaces, the GE 369-HI-R-B-0-D-0-E offers superior reliability, simplified integration with existing control systems, comprehensive data logging for maintenance optimization, and flexible configuration options. Suitable for consulting engineers, system integrators, OEM equipment manufacturers, plant maintenance teams, and end-user industrial facilities. Contact our application engineers for customized protection schemes and technical specifications.

Core Functions & Advantages

Intelligent Thermal Overload Protection
Utilizes advanced thermal modeling algorithms that continuously calculate motor temperature based on load current, ambient conditions, service factor, and cooling efficiency. Prevents insulation degradation and winding damage while allowing safe short-term overload operation during critical processes.

Multi-Function Motor Protection Suite
Integrated protection against phase loss, phase unbalance, ground fault, locked rotor, undervoltage, overvoltage, phase reversal, and undercurrent conditions. Reduces the need for multiple discrete protection devices, simplifying panel design and lowering installation costs.

Real-Time Monitoring & Diagnostics

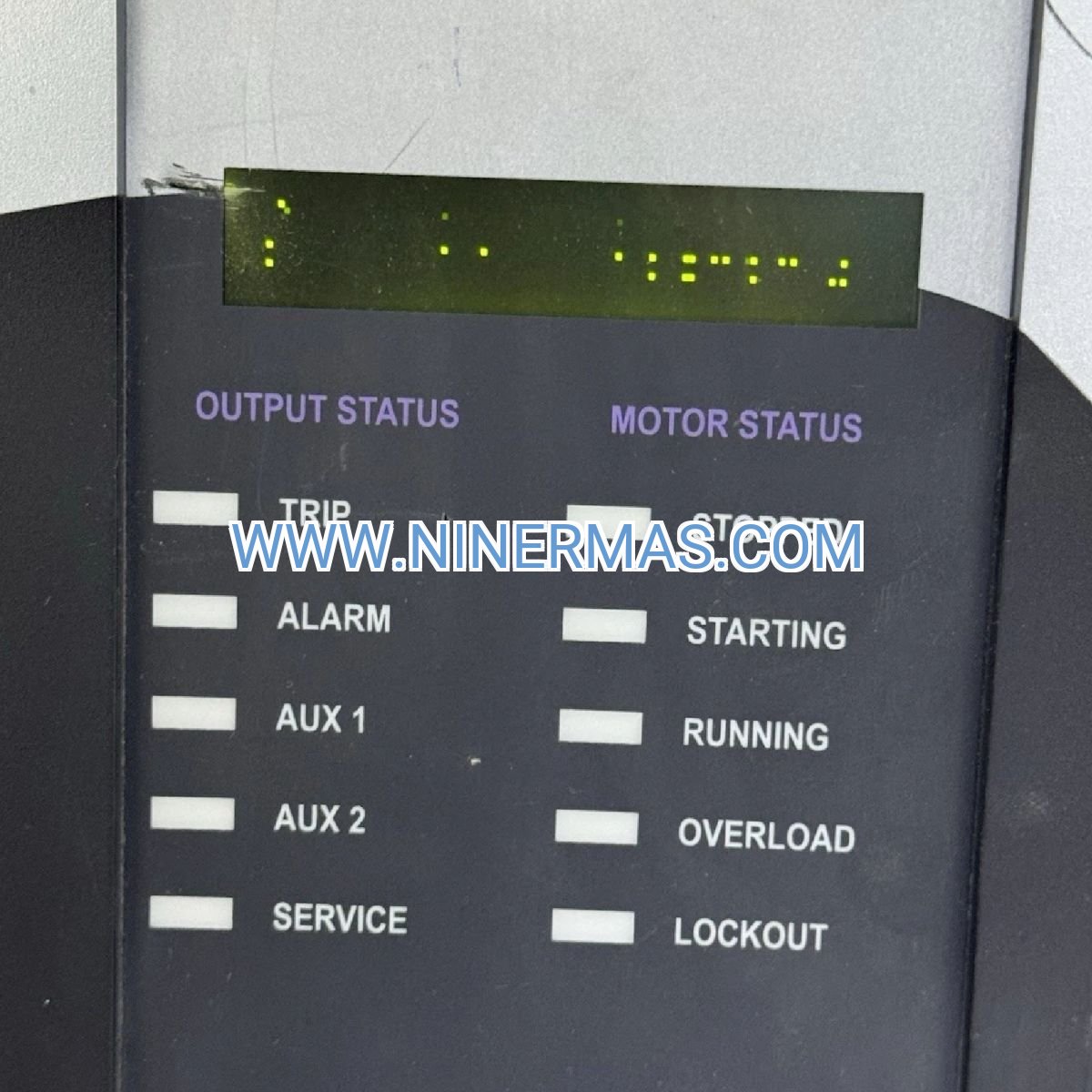

Continuous measurement of motor current, voltage, power factor, running hours, start counts, and thermal capacity utilization. The 40-character backlit LCD provides instant access to operational status, alarm conditions, and historical fault records without external tools.

SCADA Integration via RS485 Modbus
Seamless connectivity to supervisory control systems, PLCs, and HMI platforms through industry-standard Modbus RTU protocol. Enables centralized monitoring, remote parameter adjustment, automated alarm notification, and integration with plant-wide asset management systems.

Configurable Protection Curves & Alarms
Field-programmable trip characteristics, alarm thresholds, time delays, and reset modes allow precise adaptation to specific motor nameplate data, load profiles, and operational requirements. Supports both definite-time and inverse-time protection curves compliant with IEC and ANSI standards.

Robust Industrial Construction
Engineered for harsh environments with operating temperature range from -40°C to +70°C, high electromagnetic immunity, conformal-coated PCBs for moisture resistance, and vibration-resistant enclosure design. Certified to UL, CSA, CE, and IEC 61850 standards for global deployment.

Typical Application Scenarios

This motor management relay is engineered for applications demanding high reliability, continuous operation, and comprehensive motor asset protection, including:

Petrochemical & Refining Facilities
Protection of critical pumps, compressors, and agitators handling flammable or corrosive fluids where motor failure can trigger process shutdowns, safety incidents, or environmental releases. Supports hazardous area installations with appropriate enclosure ratings.

Water & Wastewater Treatment Plants
Reliable protection for high-power pumps, blowers, and clarifier drives operating 24/7 in municipal and industrial water systems. Thermal modeling prevents nuisance trips during seasonal temperature variations while maintaining protection integrity.

Mining & Mineral Processing
Rugged protection for conveyor drives, crushers, grinding mills, and ventilation fans exposed to dust, vibration, and extreme ambient conditions. Extended operating temperature range and shock-resistant construction ensure continuous operation in underground and surface mining environments.

Steel Mills & Metal Processing
High-performance protection for rolling mill drives, furnace fans, and material handling systems where motor failures disrupt production schedules and cause significant revenue loss. Fast fault detection and selective coordination minimize process interruptions.

Power Generation & Utilities
Critical protection for auxiliary motors in power plants including boiler feed pumps, cooling tower fans, coal pulverizers, and ash handling systems. Compliance with utility-grade protection standards and integration with plant DCS systems.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment selection, we provide comprehensive technical specifications for the GE 369-HI-R-B-0-D-0-E configuration:

Electrical Ratings: Voltage sensing: 2.3kV to 13.8kV (HI configuration) | Current inputs: 1A or 5A CT secondary (field selectable) | Control power: 90-300 VDC or 90-265 VAC, 50/60 Hz | Contact ratings: 10A @ 250VAC resistive load

Protection Functions: Thermal overload (RTD or CT-based), instantaneous overcurrent, ground fault (residual or zero-sequence), phase unbalance, phase loss, locked rotor, jam protection, undervoltage, overvoltage, underpower, start inhibit, excessive starts

Communication & Interface: RS485 Modbus RTU (up to 19200 baud) | Display: 40-character backlit LCD with 8-button keypad | Programming: Front panel or PC software via serial port | Event recorder: 512 events with time stamp

Physical Specifications: Mounting: Panel mount (1/4 DIN cutout: 92mm x 92mm) or rack mount option | Enclosure: NEMA 4X / IP65 front panel rating | Dimensions: 96mm W x 96mm H x 165mm D | Weight: 2.2 kg | Operating temperature: -40°C to +70°C | Storage temperature: -50°C to +85°C

Compliance & Certifications: UL 508 Listed | CSA C22.2 No. 14 | CE marked (Low Voltage Directive, EMC Directive) | IEC 61850 communication protocol | IEEE C37.96 transient immunity | ANSI/IEEE C37.90 surge withstand capability

Selection Recommendations: When specifying this relay, consider motor nameplate voltage and current ratings, CT ratio and accuracy class (recommend 0.5 or better for thermal protection), available control power source, required communication protocol and baud rate, environmental conditions including ambient temperature range and enclosure requirements, and integration with existing SCADA or DCS infrastructure. For complex applications involving multiple motors, variable frequency drives, or special protection coordination requirements, consult with our application engineering team. Provide motor data sheets, single-line diagrams, and protection coordination studies for optimized relay configuration.

Advanced Features & Customization Options

RTD Temperature Monitoring: Optional RTD inputs (Pt100 or Pt1000) for direct stator winding or bearing temperature measurement, providing the most accurate thermal protection for critical motors.

Programmable Logic Functions: Built-in logic gates and timers enable custom protection schemes, sequential control, and interlocking without external PLCs.

Metering & Power Quality: Precision measurement of RMS current, voltage, active/reactive/apparent power, power factor, frequency, and energy consumption for operational analysis and energy management.

Multi-Language Support: Display and alarm messages available in English, Spanish, French, German, Portuguese, and Chinese for global deployment.

Cybersecurity Features: Password-protected configuration, access level control, and audit trail logging to prevent unauthorized parameter changes and ensure compliance with industrial cybersecurity standards.

Delivery, Service & Quality Assurance

Standard catalog configurations ship from stock within 3-5 business days. Custom-configured relays with specific firmware versions, communication protocols, or factory settings require 10-15 business days lead time. All units undergo comprehensive factory testing including protection function verification, communication protocol validation, and environmental stress screening.

Each GE 369-HI-R-B-0-D-0-E relay includes a 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications. Technical support includes remote configuration assistance, on-site commissioning services (subject to location and project scope), firmware updates, and troubleshooting guidance. Complete documentation package provided: installation manual, wiring diagrams, protection setting guidelines, Modbus register map, and quick start guide.

Frequently Asked Questions (FAQ)

Q: How does the GE 369-HI-R-B-0-D-0-E motor management relay integrate with existing motor control centers?

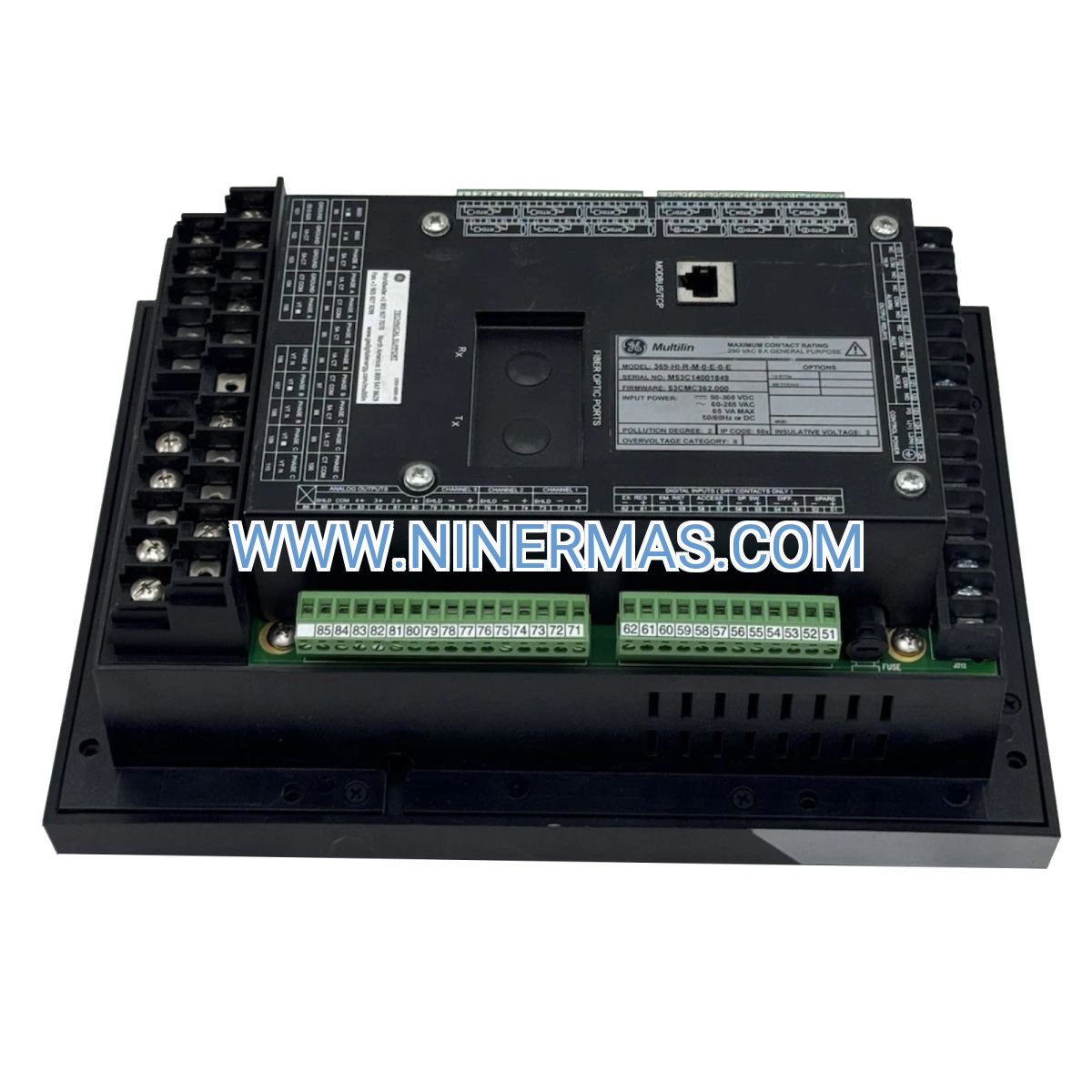

A: The relay features a standard 1/4 DIN panel cutout (92mm x 92mm) for drop-in installation in most motor control panels. Connection is made via rear-mounted screw terminals for CT inputs, voltage sensing, control power, and output contacts. The RS485 Modbus interface allows daisy-chain connection to SCADA systems without dedicated wiring for each relay.

Q: What is the maximum number of motors that can be monitored with one relay?
A: Each GE 369 relay is designed to protect and monitor a single three-phase motor. For multi-motor applications, individual relays are required for each motor to ensure selective protection and independent monitoring. Multiple relays can be networked via RS485 Modbus for centralized supervision.

Q: What energy savings can be achieved, and what conditions are necessary?
A: While the relay itself does not directly reduce energy consumption, its comprehensive monitoring capabilities enable identification of inefficient motor operation (low power factor, excessive starts, prolonged underload conditions). When combined with operational improvements or VFD retrofits, users typically achieve 15-30% energy reduction. Optimal results require baseline energy audits, load profiling, and process optimization.

Q: What are the environmental requirements for installation? What is the protection rating?
A: The relay operates reliably in ambient temperatures from -40°C to +70°C, suitable for outdoor installations with appropriate enclosures. The front panel meets NEMA 4X / IP65 rating, providing protection against dust, water spray, and corrosive atmospheres. For harsh environments, install in NEMA 12 or higher-rated enclosures. Avoid direct sunlight exposure and ensure adequate ventilation to prevent internal temperature rise.

Q: Does the relay support remote monitoring and data acquisition? Which protocols are compatible?
A: Yes, the GE 369-HI-R-B-0-D-0-E features RS485 Modbus RTU communication (configurable baud rates up to 19200 bps) for seamless integration with SCADA systems, PLCs, and industrial IoT gateways. The relay provides read access to real-time measurements, alarm status, protection settings, and event logs. Modbus register mapping documentation is included for custom integration projects.

Q: Can protection settings be modified remotely, or is on-site access required?
A: Protection parameters can be adjusted via the front-panel keypad or remotely using GE's EnerVista software over the RS485 Modbus connection. Remote configuration requires appropriate cybersecurity measures including password protection and access control. Critical settings can be locked to prevent unauthorized changes. For initial commissioning, on-site configuration is recommended to verify CT polarity, voltage phasing, and protection coordination.

Request Technical Support & Custom Solutions

To obtain detailed application engineering support, customized protection coordination studies, product quotations, or technical documentation, please provide the following information: project name and location, motor application and process description, motor nameplate data (voltage, current, power, service factor), CT ratio and voltage transformer ratio, control power availability (voltage and source), communication requirements (protocol, baud rate, network topology), environmental conditions (ambient temperature range, altitude, enclosure type), and any special protection or monitoring requirements.

Our certified application engineers will provide one-on-one consultation, protection setting recommendations, wiring diagrams, and competitive pricing within 24-48 hours.
