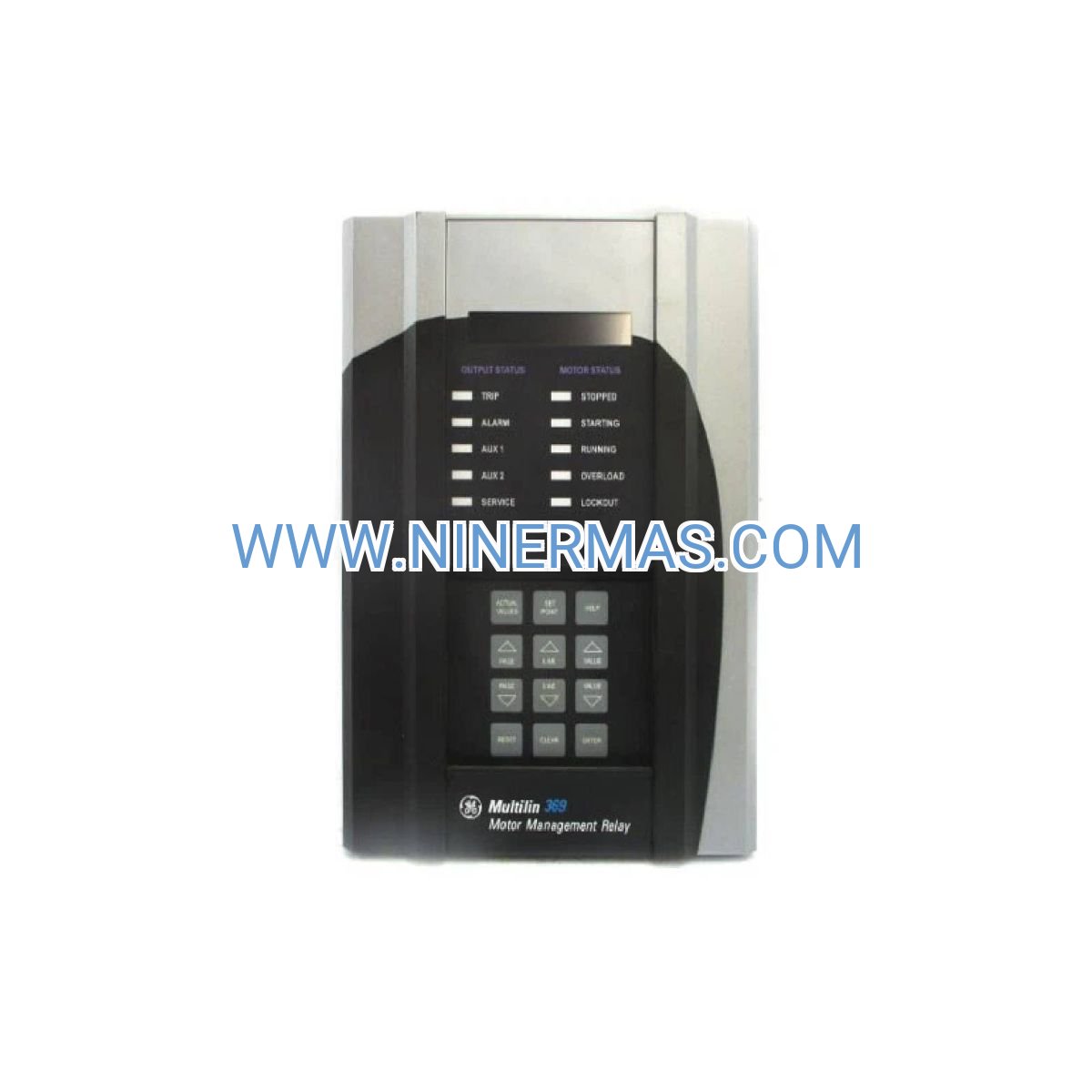

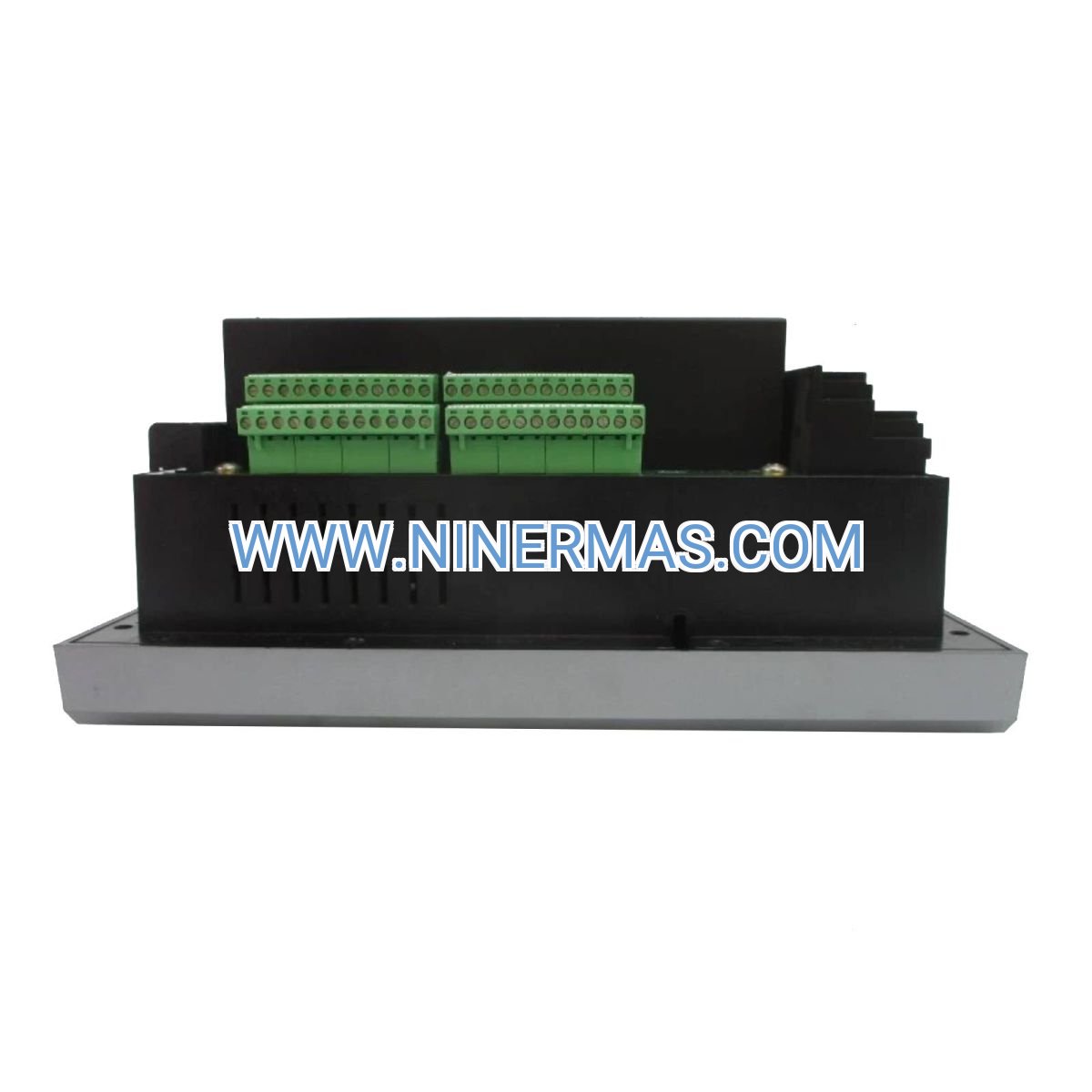

GE 369 Motor Protection Relay (Industrial-Grade Motor Management System)

The GE 369 Motor Protection Relay is an industrial control device designed for comprehensive protection, monitoring, and control of AC motors in demanding industrial and utility environments. Through advanced digital protection algorithms, thermal modeling, and real-time diagnostics, it delivers reliable motor safeguarding, operational efficiency, and predictive maintenance capabilities.

Ideal for applications requiring continuous motor operation—including pumps, compressors, fans, conveyors, and process machinery—this relay addresses critical challenges such as unexpected motor failures, costly downtime, thermal overload damage, and inadequate fault visibility. It provides multi-layered protection against overload, short circuit, ground fault, phase imbalance, and voltage anomalies.

Engineered with standardized configuration and flexible customization options, the GE 369 relay offers robust protection, seamless SCADA integration, intuitive diagnostics, and compliance with international standards. It serves design engineers, system integrators, OEM manufacturers, and facility maintenance teams. Contact our application engineers for tailored selection guidance and technical quotations.

Core Functions & Advantages

• Comprehensive Motor Protection Suite
  Integrates overload (49), overcurrent (50/51), ground fault (50N/51N), undervoltage (27), overvoltage (59), phase unbalance (46), and start frequency limiting (66) protection. Advanced thermal modeling prevents winding damage and extends motor service life.
• Real-Time Monitoring & Diagnostics
  Continuously measures three-phase current, voltage, power, frequency, and power factor. Built-in event recording and fault diagnostics enable rapid troubleshooting and reduce mean time to repair (MTTR).
• Flexible I/O & Control Logic
  Features 6 configurable binary inputs and 6 programmable output contacts, supporting custom control sequences, remote trip/reset, and auxiliary equipment interlocking for enhanced system reliability.
• Seamless Communication & Integration
  Equipped with RS-485 serial interface supporting Modbus RTU and DNP3 protocols, with optional Ethernet for IEC 61850 and Modbus TCP. Fully compatible with SCADA systems, DCS platforms, and GE EnerVista configuration software for centralized monitoring.
• Rugged Design & Wide Operating Range
  Operates reliably from -40°C to +85°C with IP54-rated front panel protection. Suitable for harsh industrial environments including mining, oil & gas, water treatment, and heavy manufacturing facilities.
• User-Friendly Interface & Configuration
  Front-panel display with intuitive navigation shows real-time status, alarms, and measured parameters. USB port enables quick on-site configuration and firmware updates via EnerVista software, minimizing commissioning time.

Typical Application Scenarios

This relay is engineered for environments demanding high motor reliability, continuous operation, and advanced fault detection, particularly in:

• Water & Wastewater Treatment Plants
  Protects critical pumps, blowers, and mixers in municipal water supply, sewage treatment, and industrial wastewater systems. Ensures uninterrupted operation and prevents costly process disruptions.
• Oil, Gas & Petrochemical Facilities
  Safeguards compressors, pumps, and fans in upstream, midstream, and downstream operations. Withstands extreme temperatures and hazardous area requirements while providing reliable fault isolation.
• Mining & Mineral Processing
  Monitors crushers, conveyors, mills, and ventilation fans in underground and surface mining operations. Reduces unplanned downtime and enhances worker safety through early fault detection.
• Manufacturing & Process Industries
  Supports motors in steel mills, cement plants, chemical processing, pulp & paper, and food production. Maintains production continuity and protects high-value equipment from thermal and electrical faults.
• Power Generation & Utilities
  Provides protection for auxiliary motors in power plants, substations, and renewable energy installations. Integrates with utility automation systems via DNP3 and IEC 61850 protocols.

Technical Parameters & Selection Guide

To facilitate engineering design and product selection, we provide standardized configuration options with customization available for project-specific requirements.

Selection Recommendations: When selecting a motor protection relay, consider motor rated current and voltage, CT/VT ratios, required protection functions, communication protocol requirements, power supply availability, and environmental conditions. For assistance, please provide motor nameplate data, application details, and system integration requirements—our engineers will recommend the optimal configuration.

Advanced Features & Customization

• Thermal Overload Modeling: Adaptive thermal protection based on motor cooling characteristics and load history
• Event & Fault Recording: Time-stamped event logs with waveform capture for post-fault analysis
• Programmable Logic: User-defined control equations for custom protection and automation schemes
• Multi-Language Display: Configurable interface supporting English, Chinese, and other languages
• Remote Monitoring: Real-time data access via SCADA, HMI, or cloud-based platforms
• Cybersecurity Features: Password protection, role-based access control, and secure communication protocols

Delivery, Service & Quality Assurance

Standard catalog models are typically available from stock with 3-5 business day shipping. Custom-configured units require 10-15 business days depending on specification complexity. Each relay includes a minimum 12-month manufacturer warranty covering defects in materials and workmanship.

Technical support includes remote configuration assistance, on-site commissioning services (region-dependent), and comprehensive documentation package. Complete electrical schematics, wiring diagrams, Modbus register maps, DNP3 point lists, and user manuals are provided with each unit to streamline installation and maintenance.

All products undergo rigorous factory testing per IEC 60255 standards, including protection accuracy verification, communication protocol validation, and environmental stress screening to ensure field reliability.

Frequently Asked Questions (FAQ)

Q: How does the GE 369 motor protection relay integrate with existing motor control systems?
A: The relay connects via industry-standard CT and VT inputs for current and voltage sensing. Control integration is achieved through programmable binary inputs/outputs and serial communication (Modbus RTU or DNP3). It can interface with PLCs, DCS systems, motor starters, and SCADA platforms. Confirm your CT/VT ratios, communication protocol, and control voltage requirements during selection.

Q: What is the maximum number of motors that can be monitored by a single relay?
A: Each GE 369 relay is designed to protect and monitor one three-phase AC motor. For multi-motor applications, individual relays are required per motor to ensure dedicated protection and accurate diagnostics. Centralized monitoring is achieved through networked communication.

Q: What energy savings or efficiency improvements can be expected?
A: While the relay itself does not directly reduce energy consumption, it prevents motor damage and unplanned downtime, which indirectly improves operational efficiency. By detecting phase imbalance, voltage anomalies, and overload conditions early, it helps maintain optimal motor performance and extends equipment lifespan, reducing total cost of ownership.

Q: What are the environmental and installation requirements?
A: The relay operates from -40°C to +85°C and features IP54 front panel protection, suitable for most industrial environments. It requires a clean, dry mounting location away from excessive vibration and electromagnetic interference. Standard 19" rack or panel mounting is supported. Ensure adequate ventilation and compliance with local electrical codes.

Q: Does the relay support remote monitoring and data acquisition?
A: Yes. The GE 369 supports Modbus RTU and DNP3 protocols over RS-485, enabling integration with SCADA systems, HMIs, and industrial IoT platforms. Optional Ethernet modules provide IEC 61850 and Modbus TCP connectivity for advanced substation automation and cloud-based monitoring solutions.

Q: What configuration software is required, and is training available?
A: Configuration is performed using GE's EnerVista software suite, available as a free download from GE Digital Energy. The software provides intuitive setup wizards, real-time monitoring, and event analysis tools. Technical training, application notes, and video tutorials are available through GE support channels and authorized distributors.

Request Technical Support & Quotation

For detailed selection assistance, custom configuration, or technical quotations, please provide the following information: project name and location, motor application and duty cycle, motor rated voltage/current/power, CT and VT ratios, required communication protocols, power supply specifications, and environmental conditions. Our application engineers will deliver personalized recommendations and competitive pricing within 24-48 hours.
