GE 350 Feeder Protection Relay (Industrial-Grade Power Distribution Control System)

The GE 350-L-P5-G5-H-E-E-N-N-1E-D-N Feeder Protection Relay is an industrial control device designed for comprehensive feeder circuit protection in electrical distribution systems. Through integrated microprocessor-based control, multi-function protection algorithms, and real-time monitoring capabilities, it delivers reliable overcurrent protection, voltage supervision, frequency monitoring, and directional fault detection.

Suitable for utility substations, industrial power distribution networks, generator feeder circuits, capacitor bank control systems, and critical infrastructure applications, this relay addresses challenges including uncoordinated protection schemes, delayed fault clearing, inadequate system visibility, communication protocol incompatibility, and high maintenance overhead from legacy electromechanical devices.

With standardized design and configurable protection settings, the GE 350 relay offers proven reliability, comprehensive protection coverage, simplified commissioning procedures, multi-protocol communication support, and retrofit compatibility with existing installations—making it ideal for consulting engineers, EPC contractors, system integrators, and facility maintenance teams. Contact our application engineers for protection coordination studies, relay setting calculations, and project-specific quotations.

Core Functions & Advantages

Multi-Function Protection Integration
Combines phase overcurrent (50/51), ground fault (50N/51N), overvoltage/undervoltage (59/27), and frequency (81O/U) protection elements in a single platform, reducing panel space requirements and simplifying protection coordination compared to discrete relay installations.

Flexible Curve Programming
Supports IEC and IEEE standard time-current curves with user-definable characteristics, enabling precise coordination with upstream circuit breakers and downstream protective devices to minimize nuisance tripping while ensuring selective fault isolation.

Advanced Communication Capabilities
Equipped with Modbus RTU and DNP3.0 protocol support for seamless integration with SCADA systems, substation automation platforms, and energy management systems, providing real-time data acquisition, remote control, and centralized alarm management.

Comprehensive Event Recording
Features high-resolution fault recording, sequence-of-events logging, and waveform capture functionality to support post-fault analysis, protection scheme validation, and regulatory compliance documentation, reducing troubleshooting time and improving system reliability.

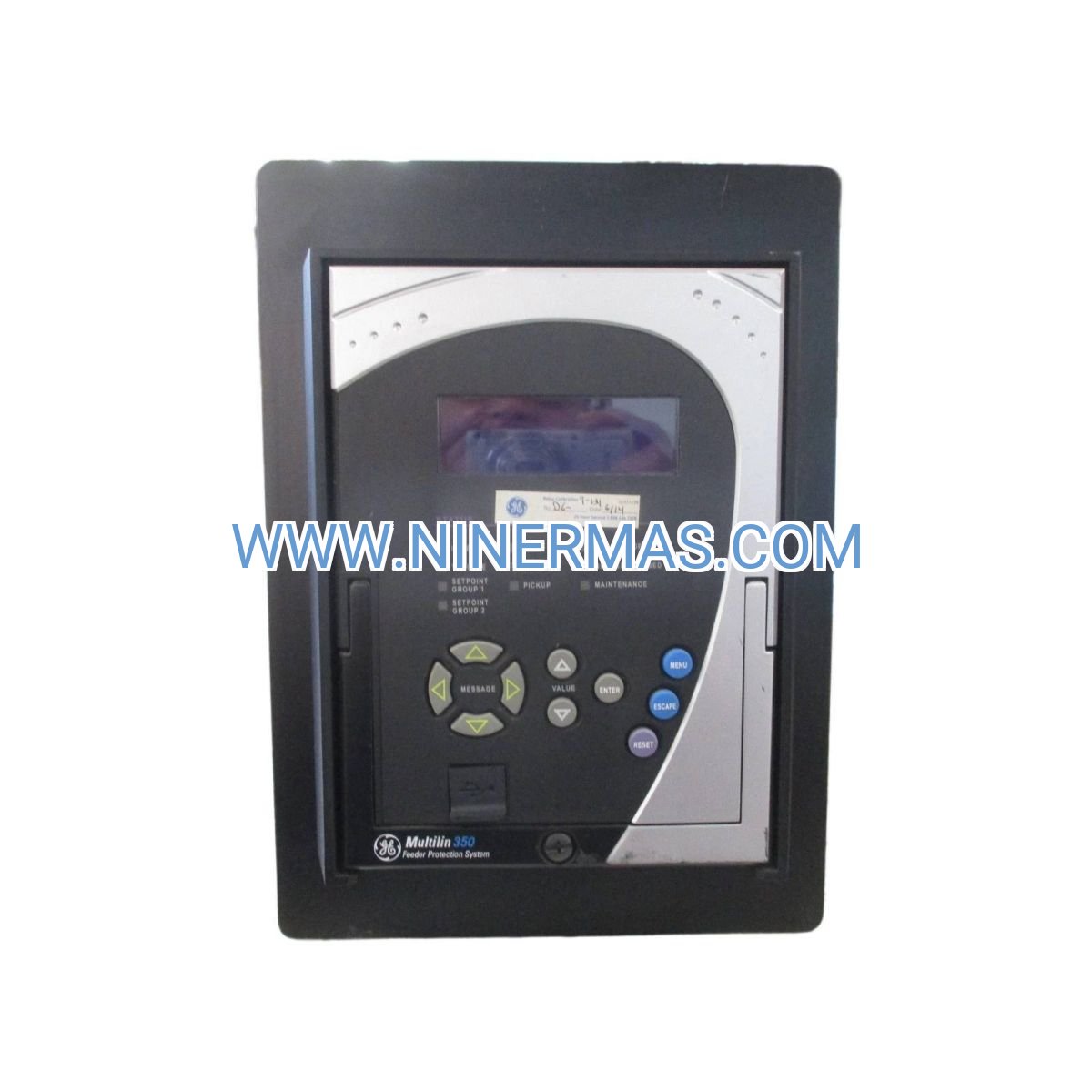

Intuitive Local Interface
Incorporates a 40-character backlit LCD display with keypad navigation, supporting bilingual menus (English/Chinese available on select models), real-time metering display, alarm status indication, and local setting adjustment without requiring external programming tools.

Robust Environmental Design
Engineered for -40°C to +85°C operating temperature range with conformal coating protection, meeting harsh industrial environment requirements including high humidity, vibration, and electromagnetic interference conditions typical in heavy industry and utility applications.

Typical Application Scenarios

This relay is designed for applications requiring high protection reliability, fast fault clearing speed, and comprehensive system monitoring, particularly in:

Utility Distribution Feeders
Provides primary and backup protection for medium-voltage distribution feeders in electric utility networks, coordinating with reclosers and sectionalizers to minimize outage duration and improve power quality for residential and commercial customers.

Industrial Plant Power Distribution
Protects main and tie feeders in manufacturing facilities, process plants, and data centers where unplanned downtime results in significant production losses, ensuring selective fault isolation while maintaining service continuity to critical loads.

Generator and Transformer Feeder Circuits
Serves as feeder protection in generator step-up transformer applications and auxiliary power systems, working in coordination with generator differential relays and transformer protection schemes to provide comprehensive equipment protection.

Renewable Energy Integration
Supports protection requirements for solar farm and wind turbine collector feeders, addressing bidirectional power flow, voltage regulation challenges, and grid code compliance in distributed generation interconnection projects.

Substation Automation Projects
Integrates into IEC 61850-based substation automation architectures (via protocol gateways) or legacy RTU-based systems, supporting centralized protection management, remote diagnostics, and predictive maintenance programs.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment selection, we provide standard configuration options with customization available for project-specific requirements:

Selection Recommendations:
When specifying the GE 350 relay, consider the following system parameters: feeder voltage class and fault current levels, CT/VT ratios and burden requirements, required protection functions and coordination study results, communication protocol and network architecture, auxiliary power availability and redundancy, panel cutout dimensions and depth clearance, environmental conditions including temperature and humidity extremes. For application engineering support, please provide single-line diagrams, protection coordination studies, and site-specific requirements—our technical team will recommend optimal configuration and provide detailed submittal documentation.

Extended Capabilities

Directional Protection Option
Optional directional overcurrent elements (67/67N) enable selective tripping in parallel feeder or loop distribution configurations, preventing false trips from reverse fault currents and improving system selectivity in complex network topologies.

Automatic Reclosing Control
Integrated reclosing logic (79) supports single-shot or multi-shot reclosing sequences with dead time and reclaim time programming, suitable for overhead distribution lines where temporary faults can be cleared through automatic re-energization.

Load Shedding & Demand Management
Programmable load shedding schemes based on frequency decay, voltage depression, or external contact inputs support emergency load reduction strategies during system disturbances or peak demand periods.

Metering & Power Quality Monitoring
Real-time measurement of voltage, current, power (kW/kVAR/kVA), power factor, frequency, and energy (kWh/kVARh) with min/max recording and demand calculation supports operational visibility and energy management initiatives.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog models typically ship within 2-4 weeks from stock; custom-configured units require 4-6 weeks for factory programming and testing.

Warranty Coverage: All GE 350 relays include a comprehensive 12-month manufacturer warranty covering material defects and workmanship failures under normal operating conditions.

Commissioning Support: Remote commissioning assistance via phone/email is provided at no charge; on-site startup and testing services are available on a quoted basis depending on project location and scope.

Technical Documentation: Each relay ships with complete instruction manual, protection function descriptions, communication protocol specifications, wiring diagrams, and setting calculation worksheets in PDF format.

Training & Certification: Factory-authorized training courses on GE Multilin relay programming, testing, and troubleshooting are available through regional training centers; contact us for schedules and enrollment.

Frequently Asked Questions (FAQ)

Q: How does the GE 350 feeder protection relay integrate with existing substation SCADA systems?
A: The relay supports industry-standard Modbus RTU and DNP3.0 protocols over RS-485 serial interface, ensuring compatibility with most RTU and gateway devices. Communication parameters (baud rate, parity, device address) are fully configurable through the front panel or PC-based software. For Ethernet connectivity, an optional communication module can be retrofitted to support Modbus TCP or DNP3.0 over TCP/IP.

Q: What CT and VT ratios are compatible with this relay model?
A: The relay accepts standard 1A or 5A secondary current inputs with programmable CT primary ratios from 1:1 to 50000:1, accommodating virtually all distribution feeder applications. Voltage inputs accept phase-phase voltages up to 240V AC or phase-neutral up to 140V AC, with programmable VT ratios supporting primary voltages from 120V to 765kV class systems. Always verify CT accuracy class and burden compatibility during engineering design.

Q: Can the GE 350 relay replace older electromechanical or solid-state relays in retrofit projects?
A: Yes, the GE 350 is specifically designed for retrofit applications with panel cutout dimensions compatible with many legacy relay footprints. The relay provides equivalent or superior protection performance compared to electromechanical devices while adding advanced features including programmable logic, event recording, communication capability, and self-diagnostics. Migration from time-dial settings to digital curve programming is straightforward using provided conversion tables.

Q: What is the typical power consumption and heat dissipation of this relay?
A: The GE 350 relay consumes approximately 15-20 watts under normal operating conditions, generating minimal heat dissipation suitable for enclosed panel installations without forced ventilation. The universal power supply input (48-250V DC or 120-240V AC) eliminates the need for external power converters in most applications, simplifying installation and improving reliability.

Q: Does this relay support IEC 61850 protocol for modern substation automation?
A: The GE 350 series natively supports Modbus and DNP3.0 protocols. For IEC 61850 integration, a protocol gateway or converter is required. Alternatively, consider GE's newer Universal Relay (UR series) or Multilin 8 series platforms which offer native IEC 61850 GOOSE and MMS support for greenfield substation automation projects.

Q: What testing and commissioning tools are required for relay setup and verification?
A: Basic commissioning can be performed using the relay's front panel interface for setting entry and functional testing. For comprehensive testing including time-current curve verification, transient simulation, and communication validation, a secondary injection test set (such as Omicron CMC or Doble F6) is recommended. GE provides free PC-based setting software (EnerVista 350 Setup) for offline setting file preparation and documentation.

Request Technical Support & Quotation

To receive detailed application engineering support, protection coordination analysis, or project quotation, please provide the following information: project name and location, application type (utility/industrial/commercial), system voltage and fault current levels, feeder configuration (radial/loop/parallel), CT/VT ratios and accuracy class, required protection functions and coordination requirements, communication protocol and network topology, quantity required and delivery schedule. Our protection engineers will provide customized relay configuration recommendations, setting calculation worksheets, and competitive pricing within 24-48 hours.
