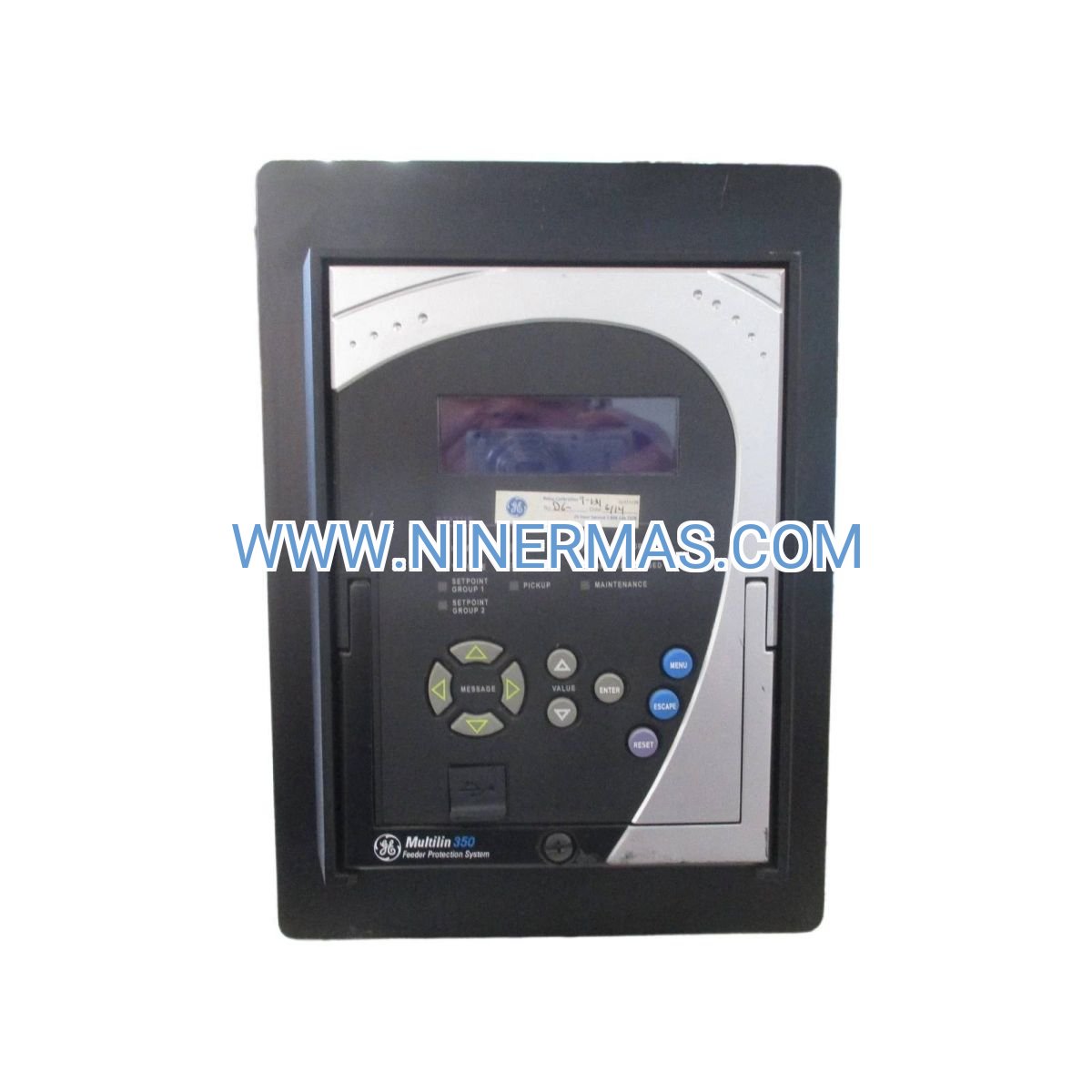

GE 350 Feeder Protection Relay (Industrial-Grade Power System Guardian)

The GE 350-E-P5-G5-H-E-E-N-N-SN-D-N represents a proven solution for medium-voltage feeder protection in demanding utility and industrial environments. Engineered by GE's Multilin division, this relay combines multi-stage overcurrent protection with comprehensive metering capabilities to safeguard critical power distribution infrastructure. Whether you're managing a utility substation, manufacturing facility, or renewable energy installation, the GE 350 delivers the reliability and precision required for mission-critical applications.

Designed for protection engineers and facility managers who demand uncompromising performance, this relay addresses the core challenge of selective fault isolation while maintaining system stability. Its flexible configuration options and proven protection algorithms make it the preferred choice for installations ranging from 4.16kV industrial feeders to 34.5kV utility distribution circuits.

With integrated communication protocols and intuitive programming interface, the GE 350 streamlines commissioning while providing the advanced functionality needed for modern grid automation. The relay's robust construction and wide operating temperature range ensure dependable operation in the harshest industrial environments.

Core Features & Benefits

✓ Multi-Stage Overcurrent Protection (ANSI 50/51)
Four independent time-overcurrent elements with definite-time, inverse-time, and instantaneous characteristics provide precise coordination with upstream and downstream devices, minimizing nuisance trips while ensuring rapid fault clearing.

✓ Advanced Ground Fault Detection (50N/51N)
Dedicated ground fault protection with sensitive settings down to 0.05A secondary detects high-impedance faults that conventional protection might miss, reducing equipment damage and improving personnel safety.

✓ Comprehensive Power Quality Monitoring
Real-time metering of voltage, current, power factor, harmonics, and energy consumption enables proactive maintenance and helps identify power quality issues before they impact operations, reducing unplanned downtime by up to 40%.

→ Flexible Communication Architecture
Dual communication ports (RS485 + Ethernet) with support for Modbus RTU/TCP, DNP3, and IEC 61850 protocols ensure seamless integration with existing SCADA systems and future-proof your substation automation infrastructure.

→ Intuitive Configuration & Diagnostics
Front-panel LCD display with multi-language support and PC-based EnerVista software simplify setup, reduce commissioning time by 50%, and provide comprehensive event analysis for faster troubleshooting.

→ Industrial-Grade Reliability
Operating temperature range of -40°C to +70°C, conformal coating on circuit boards, and rigorous EMI/RFI testing ensure dependable performance in harsh environments including outdoor substations, heavy industrial facilities, and marine applications.

Typical Application Scenarios

Utility Distribution Substations
In municipal and cooperative utility networks, the GE 350 protects medium-voltage feeders serving residential and commercial loads. The relay coordinates with upstream reclosers and downstream sectionalizers to isolate faults while maintaining service to unaffected areas. Its IEC 61850 compliance enables integration with modern substation automation systems, supporting remote monitoring and control initiatives that reduce truck rolls and improve restoration times.

Manufacturing & Process Industries
Chemical plants, refineries, and automotive manufacturing facilities rely on the GE 350 to protect critical production feeders. The relay's sensitive ground fault detection identifies insulation degradation before catastrophic failure occurs, while comprehensive metering supports energy management initiatives. Integration with plant DCS systems via Modbus enables coordinated load shedding during utility disturbances.

Data Centers & Mission-Critical Facilities
For facilities where downtime costs exceed $10,000 per minute, the GE 350 provides the selective coordination and rapid fault clearing essential for maintaining Tier III/IV availability standards. The relay's event recording and sequence-of-events capabilities support root cause analysis and continuous improvement of protection schemes.

Renewable Energy Integration
Solar farms and wind installations use the GE 350 to protect collector feeders and point-of-interconnection circuits. The relay's power quality monitoring detects harmonic distortion and voltage fluctuations that could violate utility interconnection agreements, while its flexible settings accommodate the unique protection requirements of inverter-based generation.

Mining & Heavy Industry
Open-pit mines, cement plants, and steel mills operate the GE 350 in extreme conditions with high fault currents and severe environmental exposure. The relay's robust construction and wide temperature range ensure reliable operation, while its arc flash reduction features help facilities comply with NFPA 70E requirements.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the GE 350 for your application, verify CT ratios match your system configuration (typical ratios: 50:5 to 3000:5). For systems requiring voltage-based protection elements (27/59), ensure VT secondaries are available. Consider Ethernet communication for installations requiring IEC 61850 GOOSE messaging or where fiber-optic isolation is needed. For outdoor or unheated enclosures, specify conformal coating option for enhanced environmental protection.

Extended Functions

SCADA Integration & Remote Access: The relay's dual Ethernet ports support redundant network topologies for high-availability SCADA systems. Web-based interface enables secure remote access for settings review and event retrieval without specialized software, reducing site visit requirements by 60%.

Arc Flash Mitigation: Optional high-speed tripping logic reduces arc flash incident energy by up to 80% when coordinated with upstream devices, helping facilities achieve NFPA 70E Category 1 or 2 PPE requirements and improving worker safety.

Demand Response Integration: Programmable logic and communication capabilities enable participation in utility demand response programs, with automated load shedding based on price signals or grid frequency deviations.

Cybersecurity Features: Role-based access control, encrypted communication options, and audit logging support compliance with NERC CIP requirements for critical infrastructure protection.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 3-5 business days from our regional distribution centers. Custom configurations or large quantities (10+ units) typically require 2-3 weeks. Expedited shipping available for emergency replacements.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for up to 5 years, including advance replacement and priority technical support.

Technical Support: Our application engineers provide pre-sales consultation, settings calculation assistance, and commissioning support. Post-installation support includes firmware updates, troubleshooting guidance, and protection coordination studies.

Documentation Package: Each relay ships with installation manual, quick-start guide, settings worksheet, and test report. Downloadable resources include CAD drawings, IEC 61850 ICD files, and EnerVista configuration software.

Frequently Asked Questions

How does the GE 350 compare to newer digital relay platforms?
While newer platforms offer touchscreen interfaces and advanced analytics, the GE 350 remains the preferred choice for many applications due to its proven reliability, straightforward configuration, and lower total cost of ownership. Its protection algorithms have been validated across millions of installed units worldwide, providing confidence for critical applications.

What communication protocols are supported for SCADA integration?
The relay supports Modbus RTU (RS485), Modbus TCP (Ethernet), DNP3 Level 2 (serial and TCP), and IEC 61850 Edition 1/2. This flexibility ensures compatibility with virtually all SCADA systems including GE iFIX, Schneider ClearSCADA, Siemens WinCC, and ABB MicroSCADA.

Can the relay be retrofitted into existing panels with limited depth?
The GE 350 requires 185mm mounting depth behind the panel. For shallow panels, consider surface-mounting the relay or using a panel extension kit. Our technical team can provide dimensional drawings and mounting recommendations for retrofit applications.

What is the typical configuration time for a standard feeder application?
Experienced technicians typically complete basic configuration in 30-45 minutes using the front panel or EnerVista software. Complex applications with custom logic or extensive communication setup may require 2-3 hours. We provide pre-configured settings files for common applications to accelerate commissioning.

Does the relay support redundant protection schemes?
Yes, the GE 350 can be configured for primary or backup protection roles. For critical feeders, deploy two relays with independent CT cores and trip circuits. The relay's peer-to-peer communication capability enables coordinated tripping and alarm annunciation between redundant units.

What cybersecurity measures are implemented?
The relay supports password-protected access with multiple user privilege levels, HTTPS encryption for web interface, and SNMPv3 for secure monitoring. For high-security installations, disable unused communication ports and implement network segmentation per IEC 62351 guidelines.

Partner with Industrial Control Hub

As a specialized distributor of premium industrial automation and power protection equipment, Industrial Control Hub delivers genuine GE Multilin products backed by expert technical support. Our team of licensed professional engineers provides application assistance, protection coordination studies, and commissioning services to ensure optimal system performance.

Every GE 350 relay we supply undergoes incoming inspection and functional testing before shipment, guaranteeing you receive factory-fresh equipment ready for immediate deployment. Our inventory management system ensures rapid fulfillment, while our global logistics network supports installations worldwide.

Ready to protect your critical power infrastructure? Contact our application specialists today for technical consultation, competitive pricing, and fast delivery. We're here to help you select the right protection solution for your specific requirements.
