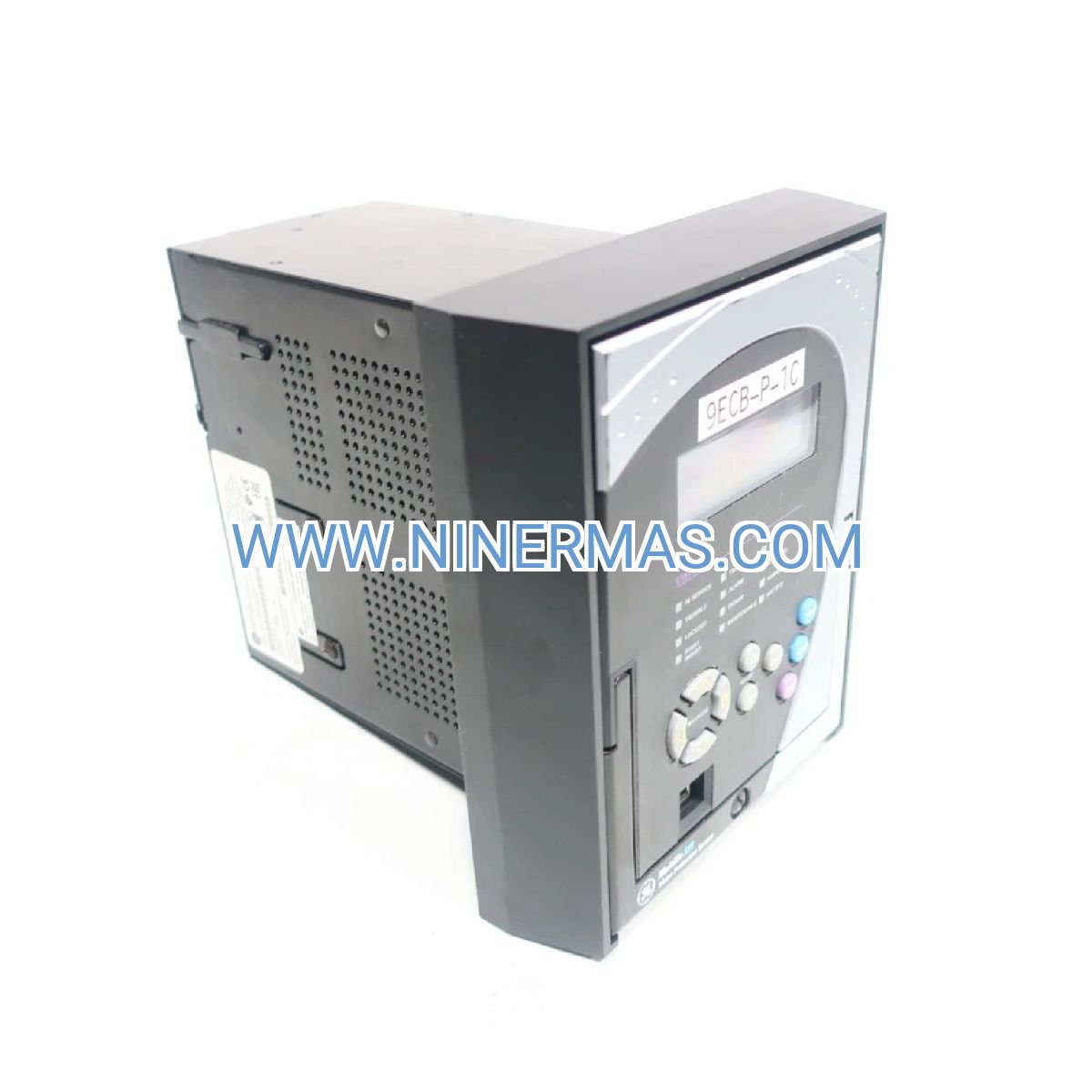

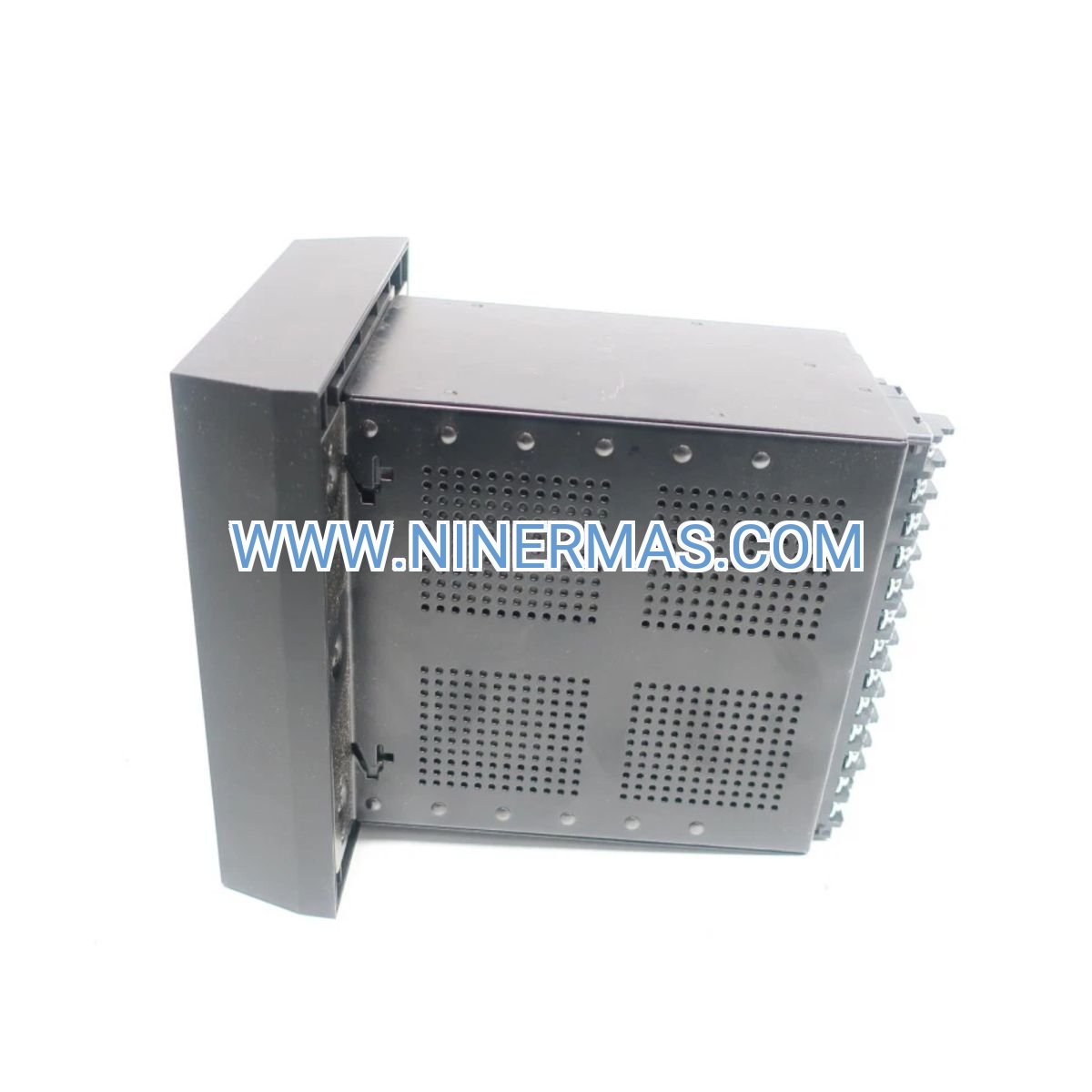

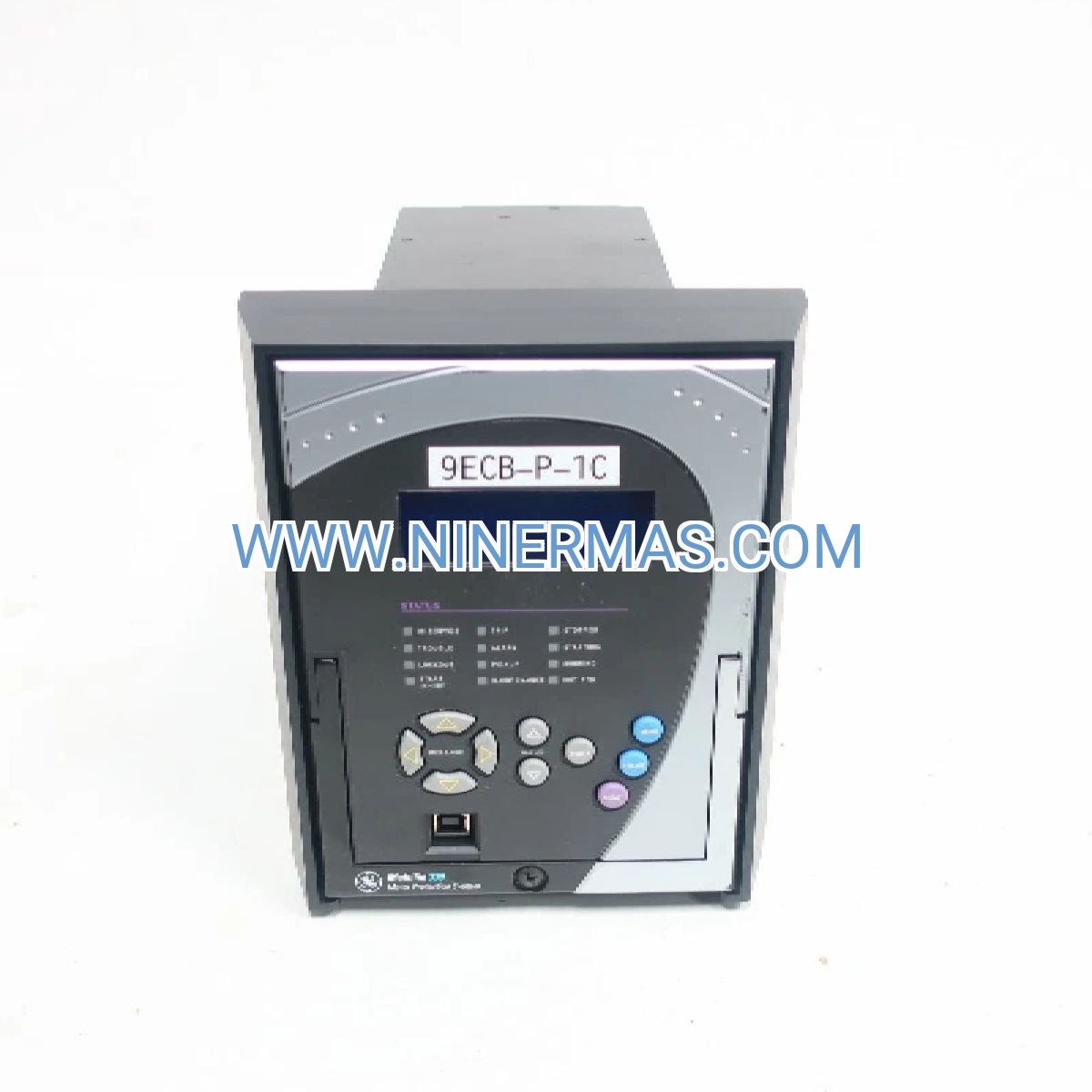

GE Multilin 339 Motor Protection Relay (Industrial-Grade Motor Safeguarding System)

The GE Multilin 339 Motor Protection Relay is an industrial-grade control device designed for comprehensive motor protection in medium-voltage applications. Through advanced microprocessor-based algorithms, PLC-compatible logic, and multi-function protection capabilities, it delivers real-time motor safeguarding, fault detection, and intelligent monitoring for critical industrial assets.

Ideal for high-rise building HVAC systems, municipal water treatment facilities, industrial process equipment, and mining operations, this relay addresses common challenges including thermal overload, phase imbalance, ground faults, locked rotor conditions, and bearing temperature anomalies. It helps eliminate unplanned downtime, reduces maintenance costs, minimizes motor damage risks, and ensures continuous operation in mission-critical environments.

Built on standardized design principles with flexible configuration options, the GE 339 relay offers exceptional reliability, seamless SCADA integration, user-friendly HMI interface, and comprehensive diagnostic capabilities. Suitable for consulting engineers, system integrators, OEM equipment manufacturers, and end-user facility teams. Contact our application engineers for customized protection schemes and technical quotations.

Core Functions & Advantages

Adaptive Thermal Overload Protection
Utilizes thermal modeling algorithms with adjustable I²t curves to continuously calculate motor thermal capacity. Prevents winding damage from sustained overcurrent while allowing safe short-term overloads during startup transients, extending motor service life by up to 40% compared to conventional thermal relays.

Comprehensive Fault Detection Suite
Integrates overload, undercurrent, phase loss, phase reversal, ground fault, locked rotor, and stall protection in a single device. Multi-layer protection architecture reduces installation complexity and eliminates the need for multiple discrete protection components, lowering total system cost by 25-35%.

Intelligent Multi-Motor Coordination
Supports automatic motor rotation scheduling, duty-standby switching, and cascade trip logic for multi-pump or multi-compressor installations. Balances runtime across parallel motors, extends equipment lifespan, and ensures high system availability with seamless failover capabilities.

Direct Temperature Monitoring
Accommodates up to 12 RTD (PT100/PT1000) inputs for direct measurement of motor winding, bearing housing, and ambient temperatures. Provides early warning of thermal degradation, lubrication failures, and cooling system malfunctions before catastrophic failure occurs.

Industrial Communication Protocols
Equipped with Modbus RTU and DNP3.0 interfaces for integration with DCS, SCADA, and building management systems. Enables remote monitoring, centralized alarm management, predictive maintenance analytics, and seamless data exchange with enterprise asset management platforms.

Intuitive Operator Interface
Features backlit LCD display with multi-language menu navigation (English/Chinese/Spanish), real-time parameter display, event logging with timestamp, and password-protected configuration access. Reduces operator training time and simplifies troubleshooting during fault conditions.

Typical Application Scenarios

This relay is engineered for applications demanding high reliability, continuous operation, and advanced motor diagnostics, particularly in:

Industrial Process & Manufacturing
Protects motors driving conveyors, mixers, extruders, compressors, and centrifuges in chemical processing, food & beverage, pharmaceutical, and discrete manufacturing facilities. Ensures production continuity by preventing motor failures that could halt entire production lines, with typical payback periods under 18 months through avoided downtime costs.

Water & Wastewater Infrastructure
Safeguards pump motors in municipal water distribution, wastewater lift stations, treatment plant aeration systems, and irrigation networks. Adapts to variable system pressure and flow demands, prevents dry-run damage through undercurrent detection, and integrates with telemetry systems for remote facility management.

HVAC & Building Systems
Monitors chiller compressor motors, cooling tower fans, boiler feed pumps, and air handling unit drives in commercial buildings, hospitals, data centers, and institutional facilities. Provides building automation system integration for energy management and predictive maintenance scheduling.

Mining & Mineral Processing
Delivers robust protection for crusher motors, grinding mill drives, conveyor systems, and slurry pumps operating in harsh, high-vibration environments. Withstands extreme temperature ranges (-40°C to +70°C), electrical noise, and mechanical shock typical of mining operations.

Oil, Gas & Petrochemical
Ensures safe operation of pipeline compressor motors, refinery pump drives, and offshore platform equipment in hazardous classified areas. Supports integration with safety instrumented systems (SIS) and emergency shutdown logic for compliance with IEC 61508 functional safety standards.

Technical Parameters & Selection Guide

To facilitate engineering design and product selection, we offer standardized configurations with customization options for project-specific requirements:

Selection Recommendations
When specifying the GE 339 relay, consider the following application parameters: motor full-load current (FLA) and service factor, starting current profile and duration, CT ratio and accuracy class, required protection functions and setpoint ranges, RTD quantity and temperature thresholds, communication protocol requirements, and available panel space. For complex installations involving multiple motors, variable frequency drives, or soft starters, consult with our application engineers who can provide detailed protection coordination studies, CT sizing calculations, and customized configuration files.

Advanced Configuration Options

VFD Integration Mode
When deployed with variable frequency drives, the relay can be configured for VFD-compatible protection with adjustable speed-dependent thermal curves, harmonic filtering for accurate current measurement, and coordinated trip logic to prevent nuisance trips during acceleration/deceleration ramps.

Soft Starter Coordination
Supports extended pickup delays and current-limiting algorithms for soft starter applications, preventing false trips during controlled voltage ramp-up while maintaining full protection during run mode.

Multi-Language HMI Customization
Display menus and alarm messages can be configured in English, Simplified Chinese, Spanish, French, or German to match operator language preferences and reduce training requirements in multinational facilities.

Predictive Maintenance Analytics
Optional data logging captures motor starting profiles, thermal capacity utilization trends, and fault event history for condition-based maintenance scheduling and remaining useful life estimation.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog configurations ship within 3-5 business days from stock. Custom-configured units with specific firmware, faceplate labeling, or factory testing require 10-15 business days. Expedited processing available for critical outage situations.

Warranty Coverage: All GE 339 motor protection relays include a comprehensive 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 5 years with optional advance replacement service.

Technical Support: Complimentary pre-sales application engineering assistance including protection coordination studies, CT sizing verification, and configuration file development. Post-installation support includes remote commissioning assistance, firmware updates, and troubleshooting guidance via phone, email, or web conference.

Documentation Package: Each relay ships with complete technical documentation including installation manual, wiring diagrams, protection function descriptions, Modbus/DNP3 register maps, configuration software (GE EnerVista 339 Setup), and AutoCAD panel cutout drawings for seamless integration into electrical design packages.

Factory Testing: All units undergo 100% functional testing including protection element calibration, contact verification, communication protocol validation, and 72-hour burn-in at elevated temperature. Test reports available upon request for quality assurance documentation.

Frequently Asked Questions (FAQ)

Q: How does the GE 339 motor protection relay differ from traditional thermal overload relays?
A: Unlike bimetallic thermal overloads that respond only to current magnitude, the GE 339 uses microprocessor-based thermal modeling that accounts for motor thermal time constants, ambient temperature compensation, service factor, and starting duty cycles. This provides more accurate protection, reduces nuisance trips by 60-80%, and enables remote monitoring capabilities not possible with electromechanical devices.

Q: Can this relay protect motors controlled by variable frequency drives?
A: Yes, the GE 339 is fully compatible with VFD applications when configured appropriately. Key considerations include: installing CTs on the motor side (not drive output), enabling harmonic filtering to ensure accurate RMS current measurement, adjusting thermal curves for reduced cooling at low speeds, and coordinating trip settings with drive overload protection to ensure proper selectivity.

Q: What is the maximum number of RTD temperature sensors supported?
A: The 339-E-P5-G5-H-E-S-N-N-3E-D-N configuration supports up to 12 RTD inputs. Typical applications use 6 RTDs for a three-phase motor (2 per phase winding) plus 2-4 additional sensors for bearing temperatures and 1-2 for ambient monitoring. Each RTD channel has independent alarm and trip thresholds.

Q: How do I integrate this relay with my existing SCADA system?
A: The relay provides RS-485 serial communication supporting both Modbus RTU and DNP3.0 protocols. Connection requires a two-wire shielded twisted pair cable (Belden 9841 or equivalent) terminated with 120-ohm resistors at network endpoints. Communication parameters (baud rate, parity, slave address) are user-configurable. Complete Modbus register maps and DNP3 point lists are provided in the technical manual for SCADA integration.

Q: What are the typical energy savings achieved with this protection relay?
A: While the relay itself doesn't directly reduce energy consumption, it enables energy savings through: prevention of motor damage that would require replacement with less-efficient rebuilt units (5-8% efficiency loss typical), early detection of mechanical problems (misalignment, bearing wear) that increase motor load by 10-15%, and integration with energy management systems to optimize motor loading and identify oversized motors suitable for downsizing.

Q: Is this relay suitable for hazardous area (Class I Div 2) installations?
A: The relay itself is designed for control room or non-hazardous area panel mounting. For hazardous locations, install the relay in a purged/pressurized enclosure rated for the area classification, or mount in a safe area with only intrinsically safe wiring (through appropriate barriers) extending into the hazardous zone for RTD connections.

Q: Can I retrofit this relay to replace an older GE Multilin 269 or 369 relay?
A: Yes, the GE 339 can replace legacy 269 series relays with minimal panel modifications, as it uses the same 96×96mm panel cutout. When upgrading from 369 series relays, verify that the 339 provides all required protection functions, as the 369 offers some advanced features (power metering, sequence of events recording) not available in the 339 platform. Our technical team can provide detailed migration guides and configuration file conversion assistance.

Request Technical Support & Quotation

To receive detailed application engineering support, customized protection coordination studies, or project quotations, please provide the following information to our technical sales team:

• Project name and application description (pump, compressor, conveyor, etc.)
• Motor nameplate data: voltage, horsepower/kW, full-load current, service factor, starting method
• Current transformer specifications: ratio, accuracy class, burden rating
• Required protection functions and any specific setpoint requirements
• RTD quantity, type (PT100/PT1000), and monitoring locations
• Communication requirements: protocol (Modbus/DNP3), network topology, SCADA system type
• Environmental conditions: ambient temperature range, enclosure rating, mounting constraints
• Quantity required and desired delivery schedule

Our application engineers will respond within 24 hours with technical recommendations, configuration proposals, and competitive pricing tailored to your specific requirements.
