GE 336A4940DNP516TX Industrial Ethernet Switch – Ruggedized Network Solution for Mark VIe Turbine Control

The GE 336A4940DNP516TX is a 16-port industrial-grade Ethernet switch designed for mission-critical turbine control and power generation networks. Leveraging advanced switching technology and redundancy protocols, it ensures deterministic communication, sub-50ms failover, and 24/7 reliability in harsh industrial environments. This switch serves as the backbone for GE Mark VIe distributed control architectures, connecting I/O modules, controllers, HMI stations, and protection systems into a unified, high-availability network.

Ideal for gas turbine control systems, steam turbine monitoring networks, combined-cycle power plants, and industrial DCS infrastructures, the 336A4940DNP516TX addresses challenges such as network latency, single-point failures, electromagnetic interference, and extreme temperature fluctuations. It is trusted by design institutes, EPC contractors, system integrators, and plant operators seeking proven, field-tested networking equipment.

Through standardized design and flexible configuration options, this switch delivers fast deployment, simplified maintenance, broad protocol compatibility, and seamless integration with existing GE control platforms. Contact our application engineers for customized network topology design, selection assistance, and technical quotations.

Core Features & Advantages

High-Density Port Configuration

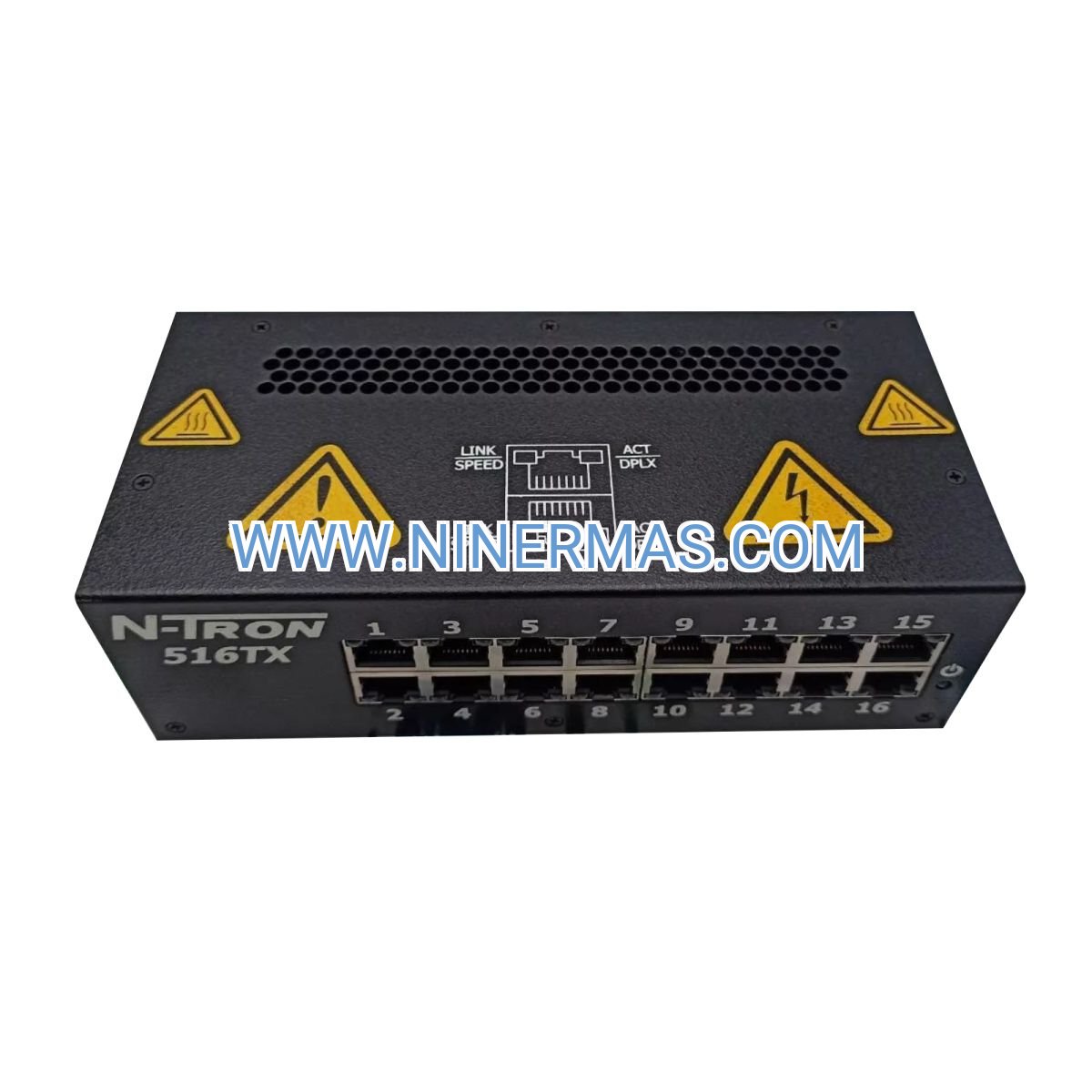

Equipped with 16 x 10/100 Mbps Fast Ethernet ports, the switch accommodates multiple I/O packs, controller modules, and HMI workstations within a single compact unit, reducing cabinet space and wiring complexity.

Industrial-Grade Reliability
Operates continuously across -40°C to +70°C ambient temperatures with fanless convection cooling, eliminating moving parts and achieving MTBF exceeding 200,000 hours for long-term, maintenance-free operation.

Advanced Redundancy Protocols
Supports Rapid Spanning Tree Protocol (RSTP), Media Redundancy Protocol (MRP), and ring/star/mesh topologies, enabling automatic failover within 50 milliseconds to maintain uninterrupted control system communication during cable breaks or port failures.

Multi-Protocol Support
Natively compatible with EtherNet/IP, Modbus TCP/IP, and IEEE 802.3 standards, facilitating integration with multi-vendor automation equipment, SCADA systems, and third-party monitoring devices without protocol conversion overhead.

Comprehensive Protection Mechanisms
Incorporates broadcast storm control, port-based VLAN segmentation, QoS prioritization, and surge protection to safeguard against network congestion, unauthorized access, and electrical transients common in power generation facilities.

Simplified Configuration & Diagnostics
Managed via GE ToolboxST software, web-based GUI, or SNMP, offering real-time port status monitoring, traffic statistics, alarm logging, and remote firmware updates to minimize commissioning time and troubleshooting effort.

Typical Application Scenarios

This switch is engineered for environments demanding high availability, deterministic performance, and environmental resilience:

Gas & Steam Turbine Control Networks
Serves as the primary Ethernet backbone in GE Mark VIe turbine control systems, interconnecting controller modules, analog/digital I/O packs, vibration monitors, and protection relays to ensure coordinated turbine startup, load control, and emergency shutdown sequences.

Combined-Cycle Power Plant Automation
Links distributed control nodes across gas turbines, heat recovery steam generators (HRSG), and steam turbines, enabling plant-wide data exchange, synchronized control logic execution, and centralized operator interface access.

Industrial DCS & SCADA Integration
Bridges field-level automation devices with supervisory control systems in oil & gas processing, chemical manufacturing, and water treatment plants, supporting real-time data acquisition, alarm management, and historical trending.

Substation Automation & Protection Systems
Facilitates IEC 61850-compliant communication between intelligent electronic devices (IEDs), bay controllers, and station-level HMIs in electrical substations, ensuring fast fault detection and coordinated protection schemes.

Technical Parameters & Selection Guide

To assist design engineers and procurement teams, we provide key specifications for system planning and compatibility verification:

Selection Recommendations
When specifying the 336A4940DNP516TX, consider the following project parameters: total number of networked devices (I/O modules, controllers, HMIs), required network redundancy topology (ring, star, or mesh), ambient temperature range at installation site, available DC power supply voltage, cabinet space constraints, and hazardous area classification (if applicable). For systems exceeding 16 nodes or requiring fiber optic uplinks, consult our engineering team for multi-switch architecture design and fiber media converter recommendations.

Extended Capabilities

VLAN Segmentation for Traffic Isolation
Supports up to 256 port-based and 802.1Q tagged VLANs, enabling logical separation of control traffic, diagnostic traffic, and enterprise network traffic to enhance security and reduce broadcast domain size.

Quality of Service (QoS) Prioritization
Implements IEEE 802.1p priority tagging and Differentiated Services Code Point (DSCP) marking to guarantee low-latency delivery of time-critical control messages over shared network infrastructure.

Port Mirroring for Network Analysis
Allows real-time traffic replication to a designated monitoring port for protocol analysis, troubleshooting, and cybersecurity auditing without disrupting live operations.

SNMP v1/v2c/v3 Management
Enables integration with enterprise network management systems (NMS) for centralized monitoring, automated alarm notification, and configuration backup across distributed installations.

Delivery, Service & Quality Assurance

Lead Time
Standard catalog units typically ship within 3-5 business days from stock. Custom-configured switches with pre-loaded firmware or specialized labeling require 7-10 business days. Expedited shipping options available upon request.

Warranty Coverage
All GE 336A4940DNP516TX switches include a comprehensive 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty plans (24/36 months) and advance replacement services are available for critical infrastructure projects.

Technical Support
Our certified GE automation specialists provide pre-sales application consulting, network topology design review, commissioning assistance (remote or on-site, region-dependent), and post-sales troubleshooting support. Support hours: Monday-Friday, 8:00 AM - 6:00 PM CST.

Documentation Package
Each switch ships with complete technical documentation including installation manual, quick start guide, electrical wiring diagrams, ToolboxST configuration instructions, and RoHS/REACH compliance certificates. CAD drawings (DXF/STEP) and 3D models available for download.

Frequently Asked Questions (FAQ)

Q: Is the GE 336A4940DNP516TX compatible with legacy Mark VI turbine control systems?
A: While optimized for Mark VIe architectures, this switch can interface with Mark VI systems when used with appropriate communication gateways and firmware compatibility verification. Contact our technical team to confirm interoperability for your specific Mark VI revision.

Q: What redundancy topology provides the fastest failover time?
A: Media Redundancy Protocol (MRP) in ring topology typically achieves failover within 20-50 milliseconds, faster than RSTP (1-2 seconds). For ultra-critical applications, consider dual-ring or mesh configurations with MRP for sub-20ms recovery.

Q: Can this switch operate in hazardous area Zone 1 or Division 1 locations?
A: The switch is certified for ATEX Zone 2 and IECEx Group II Category 3 when installed in approved non-metallic or purged enclosures. For Zone 1/Division 1 deployment, it must be housed in explosion-proof or intrinsically safe enclosures with proper certification documentation.

Q: What is the maximum network diameter supported in a ring topology?
A: Using standard Cat5e/Cat6 copper cabling, each segment supports up to 100 meters. In a 16-switch ring, total diameter can reach 1.6 km. For extended distances, integrate fiber optic media converters to achieve 2-40 km spans per segment.

Q: Does the switch require specialized configuration software or can it be managed via standard tools?
A: Primary configuration is performed through GE ToolboxST (recommended for Mark VIe integration). Alternative management methods include embedded web server (HTTPS), command-line interface (Telnet/SSH), and SNMP-based NMS platforms. No proprietary dongles or licenses required.

Q: How many switches can be cascaded in a single network segment?
A: Network topology design should limit cascaded switch depth to 3-4 hops to maintain deterministic latency. For larger installations, implement a hierarchical star topology with core/distribution/access layers rather than linear cascading.

Request Technical Consultation

To receive a customized network design proposal, detailed quotation, or application-specific selection guidance, please provide the following project information:

• Project name and application type (turbine control, DCS, SCADA, etc.)
• Total number of networked devices and device types (I/O modules, controllers, HMIs, etc.)
• Required redundancy level (single, dual-ring, mesh)
• Installation environment (indoor/outdoor, temperature range, hazardous area classification)
• Available power supply (voltage, redundancy requirements)
• Preferred delivery timeline and quantity

Our application engineers will respond within 24 hours with tailored recommendations, compatibility verification, and commercial terms.
