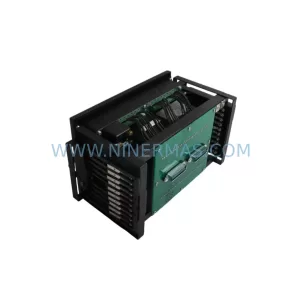

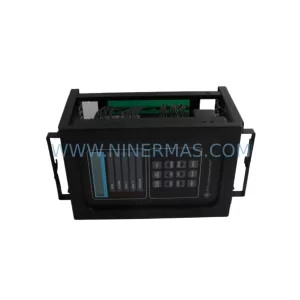

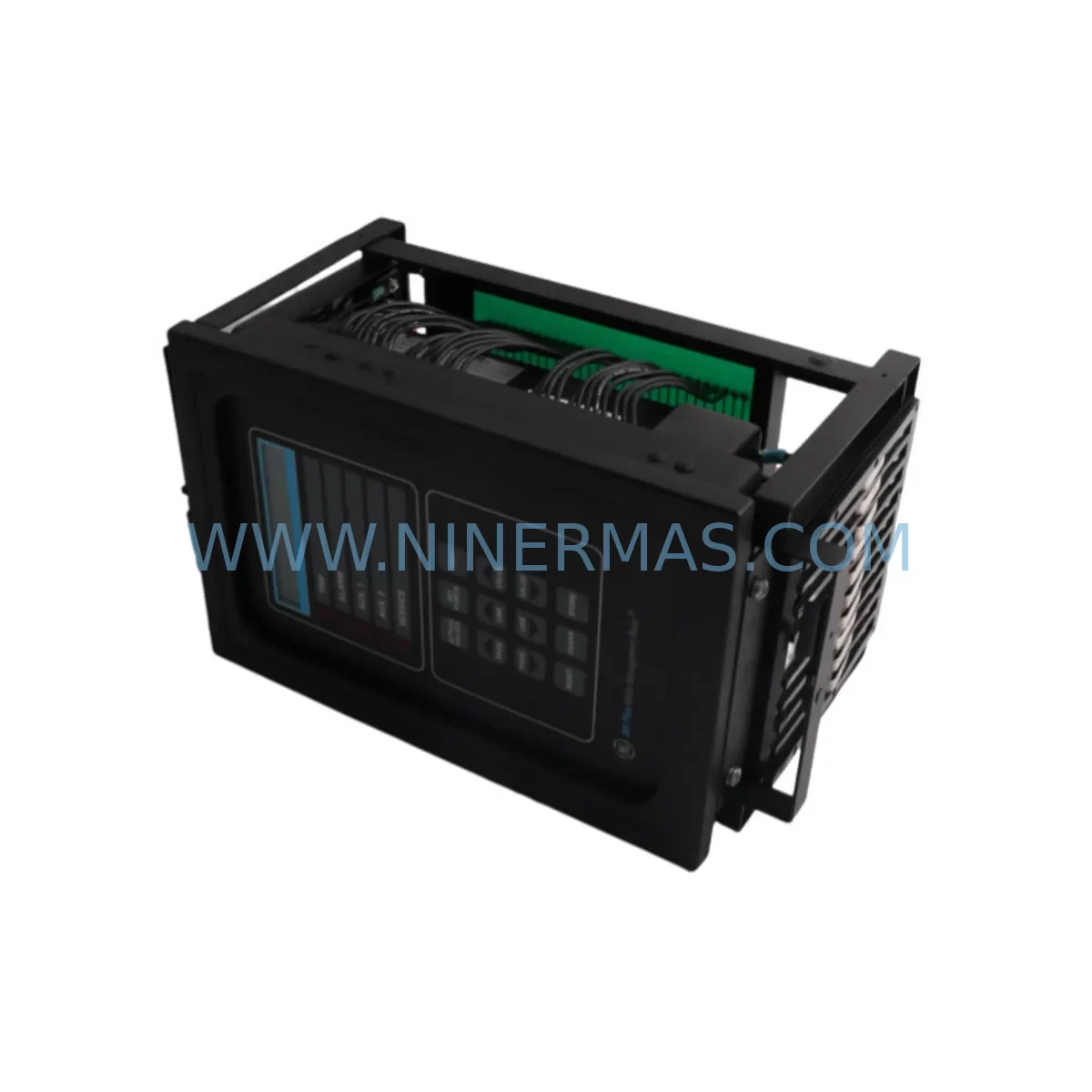

The GE 269P-DO-278-100P-HI is a dedicated digital output module engineered for the GE Multilin 269 Plus Motor Protection Relay platform — one of the most widely deployed motor management systems in continuous process industries worldwide. Designed to operate reliably in high-electromagnetic-interference environments, dusty substations, humid pump stations, and thermally stressed motor control centers, this module delivers deterministic output switching that is essential for safety-critical interlock circuits, emergency shutdown sequences, and protective tripping functions. When a motor protection relay must act within milliseconds to prevent catastrophic equipment failure, the integrity of every digital output channel is non-negotiable. The 269P-DO-278-100P-HI is built to that standard.

At NINERMAS, every 269P-DO-278-100P-HI unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and dispatched with a 12-month warranty covering manufacturing defects and operational failures under normal industrial service conditions. Our inventory is maintained to support urgent spare-parts requirements, planned maintenance windows, and long-term retrofit programs for aging Multilin 269 Plus installations.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a motor control center (MCC) or switchgear panel housing a GE Multilin 269 Plus relay, the 269P-DO-278-100P-HI digital output module is the final execution layer between protective logic and field devices. When the 269 Plus detects an overcurrent, ground fault, thermal overload, or phase imbalance condition, it is the digital output contacts that physically open the contactor coil circuit or trigger the emergency shutdown relay. Any degradation in output contact integrity — caused by contact welding, coil voltage fluctuation, or EMI-induced false triggering — directly translates into a failure to trip or a spurious trip, both of which carry severe safety and production consequences.

A robust protection architecture around the 269P-DO-278-100P-HI typically includes the GE Multilin 269 Plus host relay itself, which provides the core motor protection algorithms including thermal model, current unbalance, and locked rotor detection. Paired with the GE 269P-AI Analog Input module, the system gains additional process variable monitoring capability — allowing operators to correlate motor electrical parameters with process pressure or flow signals in real time. For applications where winding and bearing temperature monitoring is critical, the GE 269P-RTD Temperature Input module feeds RTD data directly into the 269 Plus thermal model, enabling pre-fault temperature trending that reduces unplanned shutdowns.

In larger motor management architectures, the 269P-DO-278-100P-HI often operates alongside the GE Multilin 469 Motor Management Relay — deployed on medium-voltage motors where arc flash energy and fault current levels demand higher-class protection. For feeder and bus protection in the same substation, the GE Multilin 750/760 Feeder Protection Relay provides coordinated overcurrent and distance protection, ensuring that a fault on a downstream motor circuit does not cascade into a bus-level outage. Where generator sets are part of the power island, the GE Multilin 489 Generator Protection Relay handles differential, loss-of-excitation, and reverse power protection, completing the protection chain from generation to load.

On the PLC and control system side, facilities running GE automation infrastructure may also maintain spares for the GE IC695 RX3i PLC CPU and I/O modules, which often share the same control cabinet space as the Multilin relay family. In turbine-driven applications, GE IS200 Speedtronic Mark VI control modules govern turbine sequencing and safety shutdown, and their digital output cards face similar reliability demands to the 269P-DO-278-100P-HI in terms of contact integrity under high-vibration, high-temperature conditions. Maintaining a coordinated spare-parts inventory across all these components — relay modules, PLC I/O cards, and turbine control boards — is the foundation of a zero-unplanned-downtime maintenance strategy.

Surge protection at the cabinet terminal strip, using DIN-rail-mounted surge protective devices rated for the 100–240 VAC HI range, further safeguards the 269P-DO-278-100P-HI output contacts from transient overvoltages generated by inductive load switching — a common failure mechanism in motor control environments. Combined with proper cable shielding, grounding, and periodic contact resistance testing, this layered approach maximizes the operational lifespan of the digital output module and the overall reliability of the motor protection system.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process units such as crude distillation, hydrocracking, and compressor trains, the 269P-DO-278-100P-HI enables the 269 Plus relay to execute emergency shutdown (ESD) commands with the contact reliability required by IEC 61511 functional safety standards. Motor-driven pumps and compressors in hazardous areas depend on deterministic tripping to prevent overpressure, fire, and explosion scenarios.

Power Generation and Transmission: Coal, gas, and hydroelectric power stations deploy GE Multilin 269 Plus relays on auxiliary motor circuits — cooling water pumps, forced draft fans, and fuel oil transfer pumps. The 269P-DO-278-100P-HI digital output module ensures that protective trip commands reach the motor contactor or circuit breaker within the relay’s specified operate time, maintaining unit availability and preventing thermal damage to critical auxiliary equipment.

Mining and Mineral Processing: Underground and surface mining operations subject motor protection equipment to extreme dust ingress, vibration from blasting and heavy machinery, and wide ambient temperature swings. The 269P-DO-278-100P-HI’s robust contact design and optical isolation maintain output integrity in these conditions, protecting conveyor drives, crusher motors, and ventilation fan circuits from control system-induced failures.

Water and Wastewater Treatment: Pump stations and treatment facilities operate 24/7 with minimal on-site staffing. The 269P-DO-278-100P-HI supports remote trip and alarm output functions that integrate with SCADA systems, enabling operators to respond to motor fault conditions from a central control room without requiring immediate field intervention.

Metallurgy and Steel Production: Electric arc furnaces, rolling mill drives, and ladle transfer cars generate severe electromagnetic interference that can corrupt digital output signals in lesser-quality modules. The EMC-hardened design of the 269P-DO-278-100P-HI, compliant with IEC 61000-4 immunity standards, ensures reliable output switching even in the presence of high-frequency conducted and radiated interference from variable frequency drives and thyristor converters.

Safety and Quality FAQ

Q1: Does the 269P-DO-278-100P-HI come with a warranty, and what does it cover?
Yes. Every unit supplied by NINERMAS carries a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, component failures, and functional non-conformance under normal industrial operating conditions. Units that fail within the warranty period are replaced or repaired at no additional cost to the customer.

Q2: What pre-shipment testing is performed on each unit?
Each 269P-DO-278-100P-HI undergoes functional verification testing prior to dispatch. This includes output contact continuity and resistance measurement, isolation voltage testing between logic and output circuits, and operational verification of all output channels. A test record is maintained for traceability purposes.

Q3: Is this module compatible with all variants of the GE Multilin 269 Plus relay?
The 269P-DO-278-100P-HI is designed for the GE Multilin 269 Plus (269P) relay platform. Compatibility depends on the specific relay chassis revision and firmware version. NINERMAS recommends confirming the host relay model and revision before ordering. Our technical team can assist with compatibility verification based on your existing relay nameplate data.

Q4: Can NINERMAS support long-term supply for this end-of-life component?
Yes. NINERMAS specializes in maintaining inventory for legacy and end-of-life industrial automation components, including the GE Multilin 269 Plus series. We work with procurement teams and maintenance planners to establish reserved inventory agreements and long-term supply contracts, ensuring that critical spare parts remain available for the operational life of your installed equipment base.
