Fuji Electric 2MBI1400VXB-120P-50 Service-Ready Spare Part

Fuji Electric 2MBI1400VXB-120P-50 Service-Ready Spare Part: Spare Replacement & Downtime Risk Control

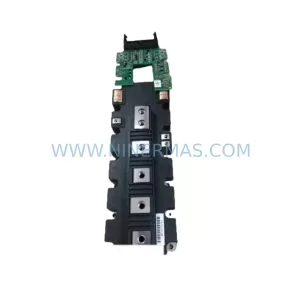

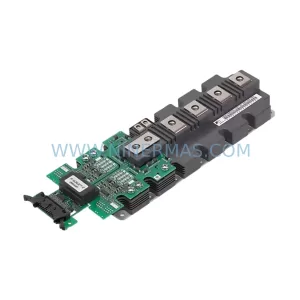

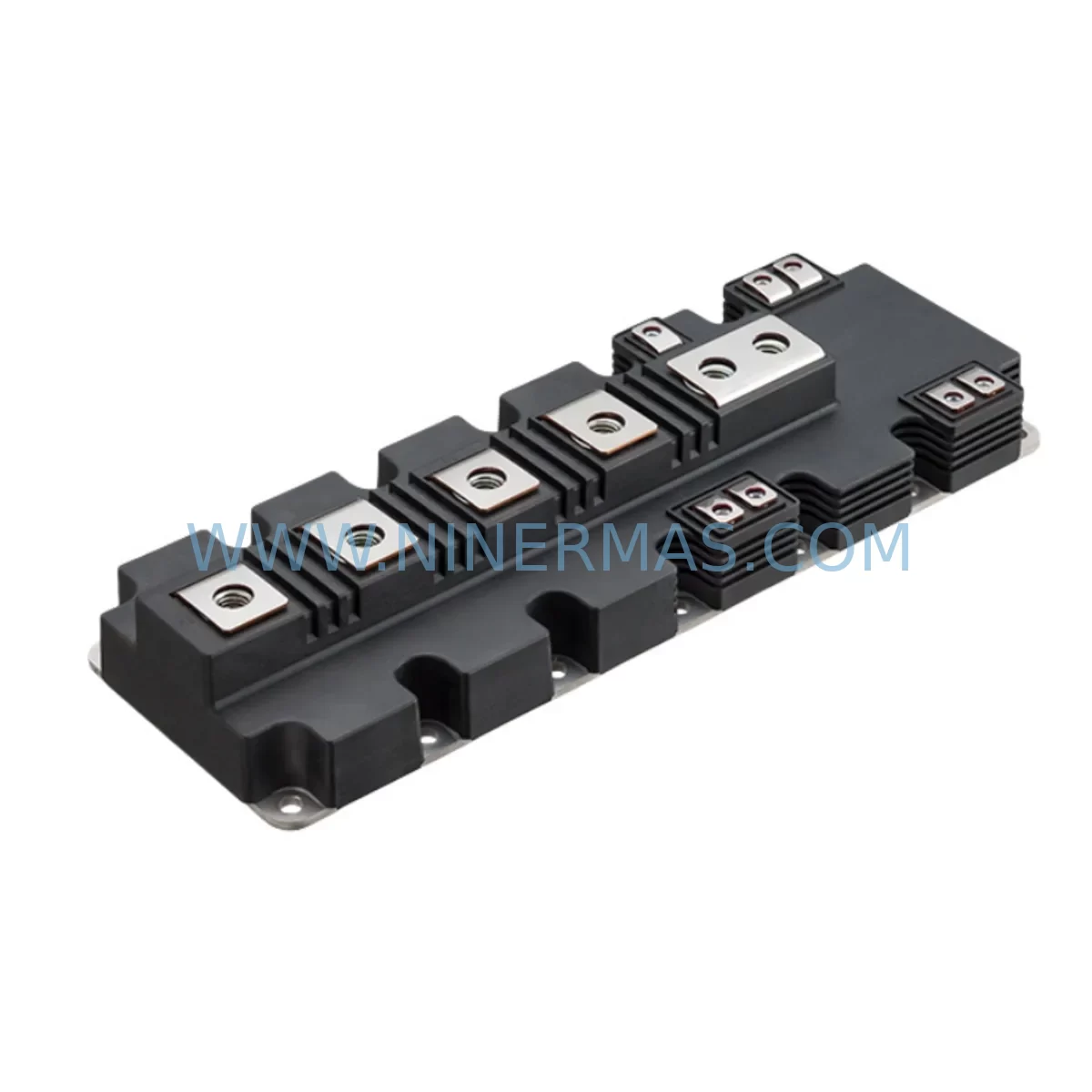

The Fuji Electric 2MBI1400VXB-120P-50 (ABB part reference 3AXD50000711888) is a high-current IGBT module engineered for demanding industrial drive applications. Rated at 1400A / 1200V, this dual-switch IGBT module is a critical power switching component in ABB ACS series variable frequency drives, including the ACS880, ACS580, and ACS800 platform families. When this module fails — whether due to thermal overstress, gate drive fault, or end-of-life degradation — the entire drive train stops, and production downtime begins immediately. Maintaining a service-ready spare of the 2MBI1400VXB-120P-50 in your parts inventory is one of the most effective strategies for minimizing mean time to repair (MTTR) in high-power motor control applications.

At NINERMAS, every unit is sourced from verified supply channels, pre-shipment tested for gate threshold voltage, collector-emitter leakage, and thermal resistance, and shipped with full documentation. Our 12-month warranty covers manufacturing defects and ensures your maintenance team can install with confidence.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 2MBI1400VXB-120P-50 is rarely an isolated task. In a well-structured preventive maintenance program, the IGBT module swap is the trigger for a broader inspection of the entire power conversion cabinet. Maintenance engineers should treat this replacement as an opportunity to audit the full drive stack and associated electrical infrastructure.

Begin with the ABB ACS880 gate driver board — the AGDR-81C or equivalent — which interfaces directly with the IGBT gate terminals. A failed IGBT module frequently damages the gate driver due to reverse voltage spikes; replacing the module without inspecting the gate driver risks immediate re-failure. Similarly, the DC bus capacitor bank should be checked for capacitance loss and ESR drift, as capacitor degradation is a common root cause of IGBT overstress.

On the AC input side, inspect the input line reactor and EMC filter module for signs of overheating or insulation breakdown. The 24VDC auxiliary power supply module — which powers the control board, fan circuits, and I/O interfaces — should be load-tested, as a sagging auxiliary rail can cause erratic gate drive behavior that mimics IGBT failure. Check the ACS880 control unit (BCU) for fault log history; recurring overcurrent or short-circuit faults prior to module failure often indicate upstream wiring issues or motor insulation breakdown rather than a component defect.

For I/O integrity, verify the FIO-01 or FDIO-01 I/O extension module connections and confirm that all analog and digital signal references are within specification. Loose terminal blocks on the XTCE terminal rail or corroded signal wiring can introduce noise that triggers nuisance trips and accelerates IGBT thermal cycling. If the drive communicates over PROFIBUS or EtherNet/IP, inspect the FPBA-01 or FENA-21 fieldbus adapter for secure seating and firmware version compatibility after the module replacement.

In multi-drive installations, also check the common DC bus connection bars and fuse assemblies — particularly the semiconductor protection fuses rated for the 1400A module current class. A blown fuse that went undetected can leave one phase unprotected and cause asymmetric loading on the replacement module. Finally, review the drive cooling fan assembly and heatsink thermal paste condition; inadequate thermal interface is the leading cause of premature IGBT failure in retrofit scenarios.

Procurement engineers should note that the 2MBI1400VXB-120P-50 is a long-lead item in spot markets. Maintaining a minimum of one spare unit per drive line — or two units for critical production assets — is strongly recommended. NINERMAS supports long-term supply agreements with guaranteed lead times and consistent batch traceability.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the ACS drive, discharge the DC bus capacitors fully (verify with a calibrated voltmeter — bus voltage must be below 50VDC before contact), and apply LOTO per site safety procedures.

Step 2 — Module Removal: Disconnect gate driver ribbon cables and power bus bars from the existing 2MBI1400VXB-120P-50. Note torque values for bus bar bolts (typically 10–14 Nm for M8 copper bus connections). Remove the module from the heatsink, clean the heatsink surface, and inspect for hot spots or discoloration.

Step 3 — Thermal Interface Preparation: Apply a thin, even layer of high-performance thermal compound (e.g., Shin-Etsu X-23 or equivalent) to the module base. Do not use silicone pads as a substitute — direct compound contact is required for the thermal resistance specification to be met.

Step 4 — Module Installation: Seat the new 2MBI1400VXB-120P-50 onto the heatsink, torque mounting screws evenly in a cross pattern to the specified value. Reconnect bus bars and gate driver cables. Verify polarity and connector orientation against the drive’s wiring diagram.

Step 5 — Pre-Power Verification: Before energizing, use a megohmmeter to verify insulation resistance between the DC bus and chassis ground. Confirm gate driver supply voltage is present and stable. Check that all fault reset conditions are met on the BCU control panel.

Step 6 — Commissioning: Power up the drive in local control mode at reduced load. Monitor heatsink temperature, output current balance across phases, and gate drive fault signals for the first 30 minutes of operation. Log the commissioning data for the maintenance record.

This workflow is compatible with legacy ACS800 installations being upgraded to ACS880 topology, where the 2MBI1400VXB-120P-50 serves as a direct form-fit-function replacement, preserving the existing heatsink and bus bar geometry and eliminating the need for cabinet redesign.

Spare Parts Support FAQ

Q1: Is the 2MBI1400VXB-120P-50 a direct replacement for the ABB 3AXD50000711888?
Yes. The ABB part number 3AXD50000711888 is ABB’s internal procurement reference for the Fuji Electric 2MBI1400VXB-120P-50. The module is identical in electrical specification, mechanical footprint, and gate drive interface. No firmware changes or parameter adjustments are required in the ACS drive after replacement.

Q2: What is the warranty coverage and what does it include?
NINERMAS provides a 12-month warranty from the date of shipment. Coverage includes manufacturing defects, gate drive failure under normal operating conditions, and premature collector-emitter breakdown. Warranty claims require the original invoice and a brief fault description. Units damaged by incorrect installation, overvoltage events beyond rated VCES, or improper thermal interface are not covered under warranty.

Q3: How do you verify the module before shipment?
Every 2MBI1400VXB-120P-50 unit undergoes pre-shipment electrical testing including gate threshold voltage (VGE(th)), collector-emitter leakage current (ICES), and static thermal resistance verification. Units are packed in anti-static foam with desiccant and shipped in double-wall cartons. A test report is available upon request for critical applications.

Q4: Can NINERMAS support long-term or blanket purchase orders for this module?
Yes. NINERMAS supports long-term supply agreements, blanket POs, and consignment stock arrangements for the 2MBI1400VXB-120P-50 and related Fuji Electric IGBT modules. We maintain batch traceability records and can provide consistent supply for multi-year maintenance contracts. Contact our team to discuss volume pricing and lead time guarantees.
