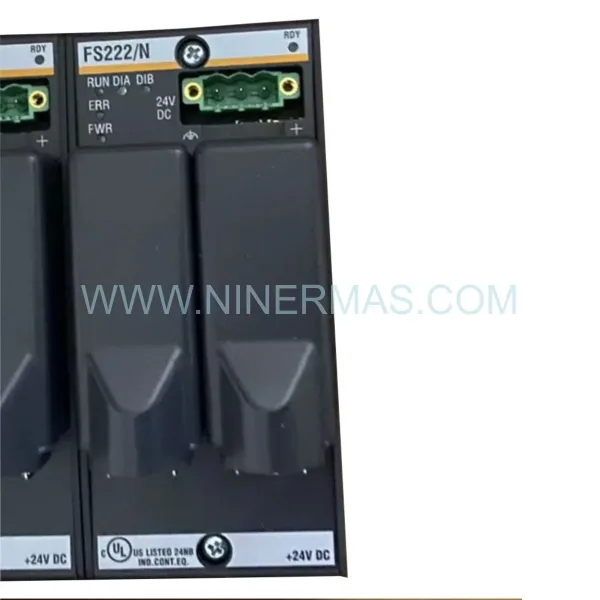

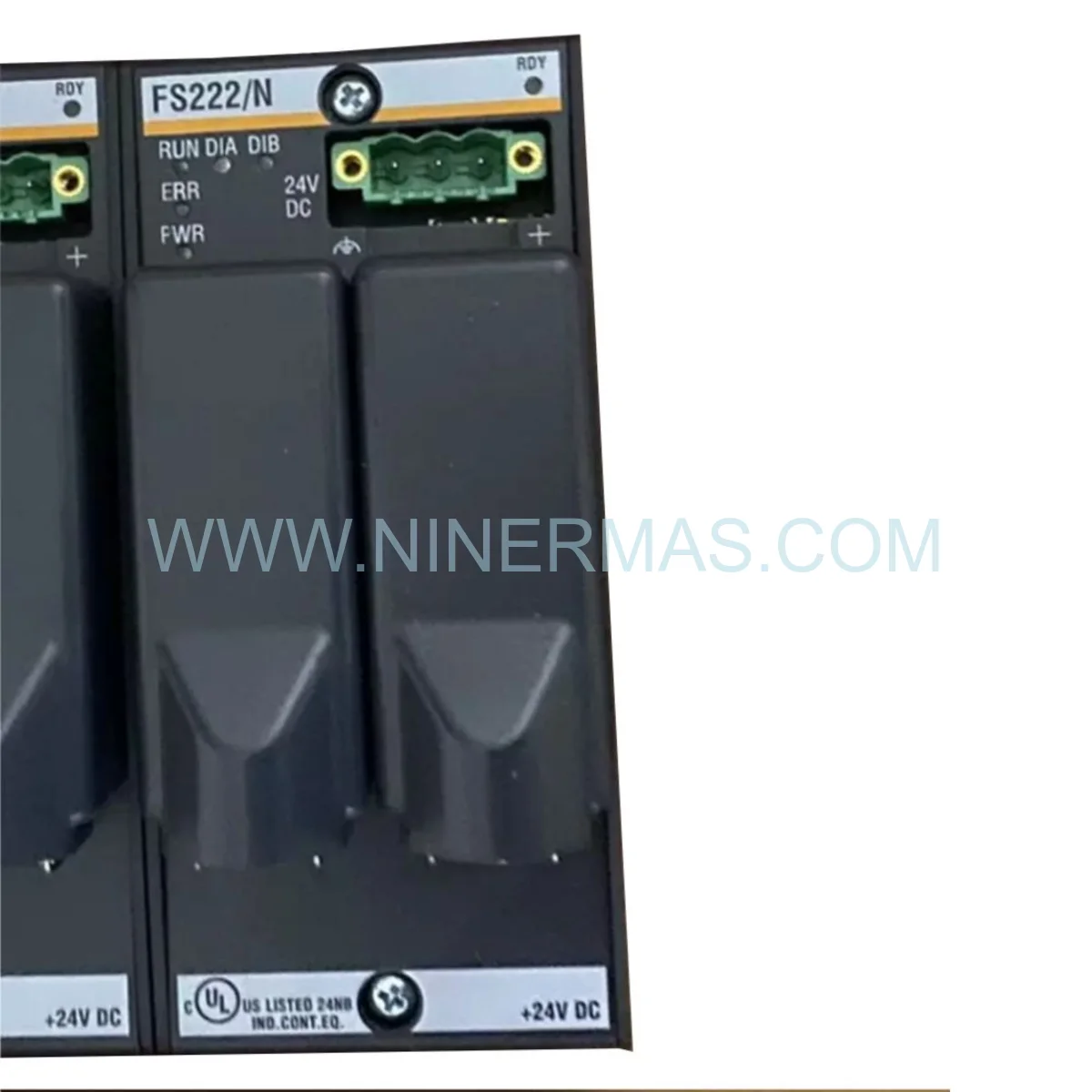

BACHMANN FS222/N FASTBUS Slave Module (Industrial-Grade Fiber Optic I/O Interface)

The BACHMANN FS222/N is an industrial-grade FASTBUS slave module engineered for distributed I/O architectures in process automation and manufacturing control systems. Featuring dual fiber optic interfaces and an integrated 18.25W power supply, this module enables reliable long-distance communication up to 2000 meters while maintaining minimal signal latency. Designed for harsh industrial environments, the FS222/N supports up to 15 distributed substations through robust multimode fiber connections with LC or Harting PushPull® connectors.

Built for system integrators and automation engineers who demand reliable distributed control, this FASTBUS slave eliminates the need for external power supplies at remote I/O locations. The module's flexible connectivity options and ColdClimate variants make it ideal for outdoor installations, remote monitoring stations, and extended production lines where traditional copper-based communication falls short.

With proven performance in chemical processing, water treatment, and manufacturing facilities worldwide, the FS222/N delivers enterprise-grade reliability with simplified installation and reduced total cost of ownership through integrated power distribution and minimal infrastructure requirements.

Core Features & Benefits

✓ Dual Fiber Optic Ports – Two independent FO interfaces support redundant ring topologies or linear daisy-chain configurations, ensuring communication continuity even during cable failures or maintenance operations.

✓ Extended Transmission Range – Multimode fiber connectivity reaches 2000 meters between stations with total system length up to 2300m, eliminating repeaters and reducing infrastructure costs in large facilities.

✓ Integrated Power Supply (18.25W) – Built-in power distribution delivers 3000mA at +5V, 250mA at +15V, and 200mA at -15V, powering entire I/O substations without external PSUs and reducing cabinet space requirements by 40%.

✓ Industrial-Grade Connectivity – Choose between LC patch cables for standard installations or Harting PushPull® connectors for vibration-prone environments, providing IP67-rated connections when paired with appropriate adapters.

✓ Minimal Signal Delay – Optimized protocol stack ensures sub-millisecond latency for time-critical control loops, supporting high-speed packaging lines, robotic cells, and safety-rated emergency shutdown systems.

✓ ColdClimate Variants Available – Extended temperature models operate reliably from -30°C to +60°C with condensation tolerance, ideal for outdoor enclosures, refrigerated warehouses, and unheated production areas.

Typical Application Scenarios

→ Chemical Processing Plants
Distribute I/O modules across reactor zones, tank farms, and loading stations separated by safety distances. The FS222/N's fiber optic isolation eliminates ground loop issues and lightning strike risks common in outdoor installations, while the integrated power supply reduces explosion-proof enclosure requirements.

→ Water & Wastewater Treatment
Connect remote pump stations, clarifiers, and filtration units across sprawling treatment facilities. Long-distance fiber communication maintains reliable control even when substations are located 1500+ meters from the main control room, reducing copper cable costs by 60-75%.

→ Automotive Manufacturing Lines
Link robotic welding cells, paint booths, and assembly stations in extended production lines. The module's minimal latency supports synchronized multi-axis motion control, while dual fiber ports enable redundant communication for zero-downtime operations.

→ Food & Beverage Production
Deploy I/O substations in refrigerated zones, high-humidity packaging areas, and outdoor loading docks. ColdClimate models withstand temperature cycling and condensation, maintaining communication integrity during washdown procedures and seasonal temperature swings.

→ Mining & Material Handling
Extend control systems to conveyor transfer points, crusher stations, and stockpile monitoring locations. Fiber optic communication eliminates EMI interference from VFDs and heavy machinery, while the rugged design withstands dust, vibration, and temperature extremes.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the FS222/N when you need a FASTBUS slave module with integrated power supply for remote I/O substations. If your application requires distances beyond 2000m, consider single-mode fiber variants. For installations with extreme temperature cycling or outdoor exposure, specify ColdClimate models during ordering. Pair with FM221 or FM222 master modules depending on whether you need single or dual fiber redundancy at the controller level.

Extended Functions

Redundant Ring Topology – Deploy dual fiber ports in ring configurations for automatic failover. When one fiber path fails, communication automatically reroutes through the alternate path within milliseconds, ensuring continuous operation in mission-critical applications.

Hot-Swap Capability – Replace I/O modules on the substation bus without powering down the entire system. The integrated power supply maintains stable voltage during module insertion/removal, reducing maintenance downtime by 70%.

Diagnostic LEDs – Front-panel indicators display power status, fiber link quality, and communication errors at a glance. Simplifies troubleshooting during commissioning and reduces mean-time-to-repair during service calls.

Adapter Compatibility – Use optional adapters to convert LC connectors to Harting PushPull® industrial connectors for IP67-rated outdoor installations or high-vibration environments where standard patch cables may loosen over time.

Delivery & Service Assurance

Lead Time: Standard models ship within 3-5 business days from stock. ColdClimate variants and custom configurations require 2-3 weeks for factory preparation. Expedited shipping available for urgent project requirements.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Direct access to BACHMANN-certified application engineers for system design assistance, troubleshooting, and integration guidance. Remote diagnostic support available during commissioning.

Documentation: Each module ships with installation manual, fiber optic cable specifications, wiring diagrams, and GSD/EDS files for PLC integration. CAD drawings and 3D STEP models available for download.

Frequently Asked Questions

Q: What fiber optic cable type should I use with the FS222/N module?
A: The module supports both 50/125 μm and 62.5/125 μm multimode fiber with LC connectors. For distances up to 2000m, standard OM2 or OM3 grade fiber provides adequate performance. Ensure cables are rated for industrial environments if routing through cable trays or outdoor conduit.

Q: How many I/O modules can the integrated power supply support?
A: The 18.25W power supply typically supports 8-12 standard I/O modules depending on their individual power consumption. High-density analog modules or modules with relay outputs may reduce this count. Calculate total substation power draw and ensure it remains below 18W for reliable operation.

Q: Can I mix standard and ColdClimate modules in the same FASTBUS network?
A: Yes, standard and ColdClimate modules are fully compatible and can coexist on the same fiber optic network. Use ColdClimate variants only where environmental conditions require condensation tolerance to optimize project costs.

Q: What is the maximum number of distributed substations I can connect?
A: The FASTBUS system supports up to 16 stations total, with a maximum of 10 stations per fiber line. When using dual-port modules in ring topology, you can achieve full 16-station capacity with redundant communication paths.

Q: Does the module support remote monitoring and diagnostics?
A: Yes, the FS222/N provides diagnostic data to the FASTBUS master module, which can be accessed through your PLC or SCADA system. Monitor fiber link quality, power supply status, and communication errors in real-time for predictive maintenance.

Q: What installation requirements are needed for outdoor applications?
A: For outdoor installations, mount the module in a NEMA 4X or IP65-rated enclosure with adequate ventilation. Use ColdClimate models for temperature extremes, and specify Harting PushPull® connectors with IP67-rated adapters for fiber connections. Ensure proper grounding and surge protection on the 24VDC power input.

Get Started with Distributed I/O

Ready to extend your control system across your facility? Contact our automation specialists for application-specific guidance, fiber optic cable recommendations, and system architecture design. Request a detailed quotation including master modules, fiber cables, and installation accessories tailored to your project requirements.

Need technical specifications or integration support? Our engineering team can provide GSD files, wiring diagrams, and commissioning assistance to ensure seamless integration with your existing BACHMANN or third-party PLC systems.
