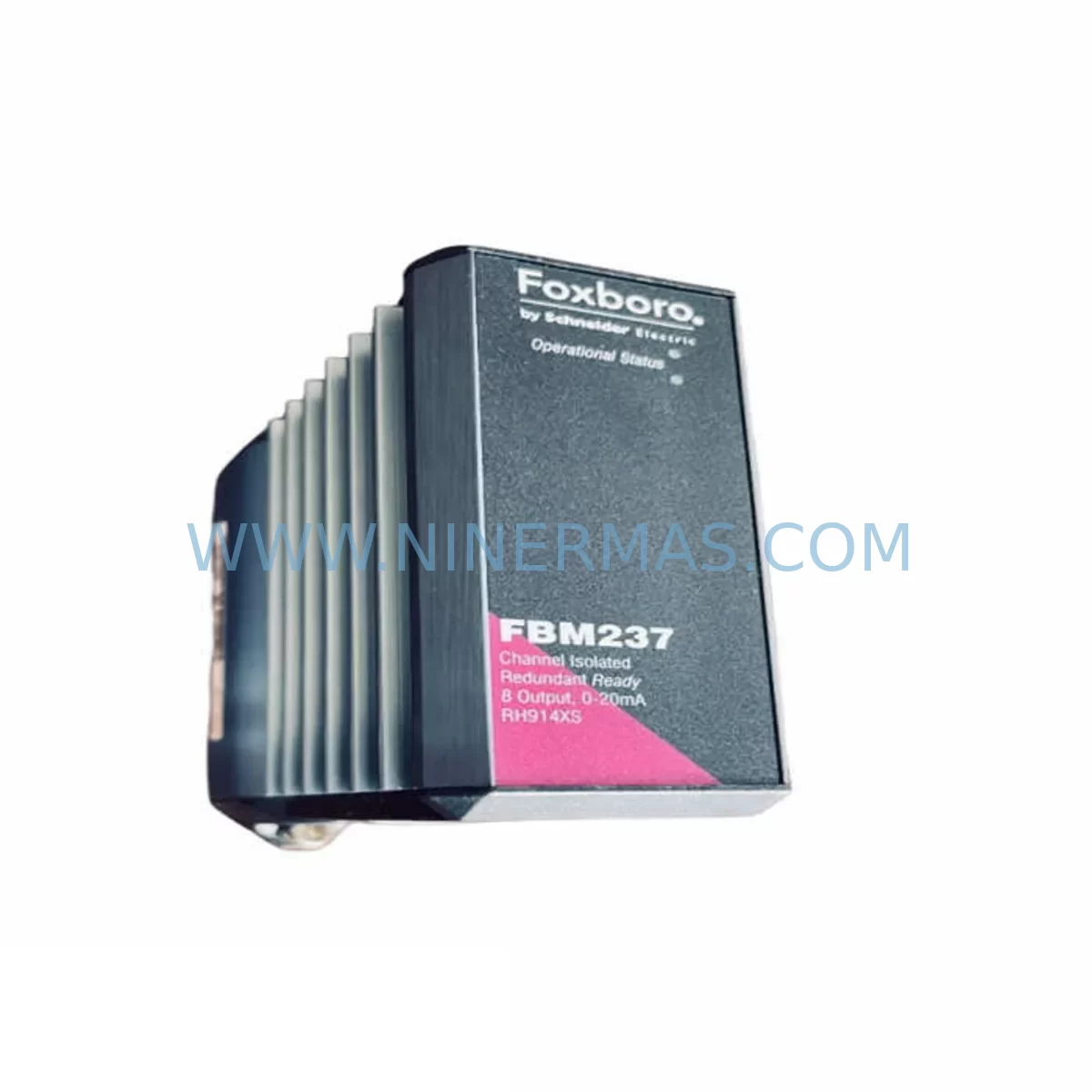

Foxboro FBM237 RH914XS Retrofit-Compatible I/A Series Module

Foxboro FBM237 RH914XS Retrofit-Compatible I/A Series Module: Legacy System Compatibility & Smooth Upgrade

The Foxboro FBM237 RH914XS is a field-proven I/O module designed for the Foxboro I/A Series Distributed Control System (DCS). As legacy automation infrastructure ages and original equipment manufacturers discontinue support for older hardware, the FBM237 RH914XS has become a critical component in retrofit programs, spare parts lifecycle extension, and control system modernization projects across process industries including oil & gas, chemical, power generation, and pulp & paper.

NINERMAS maintains verified in-stock inventory of the FBM237 RH914XS to support urgent replacement needs, planned shutdowns, and long-term procurement agreements. Each unit ships with a 12-month warranty and undergoes pre-shipment functional testing to ensure compatibility with your existing I/A Series infrastructure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the FBM237 RH914XS within an operating I/A Series DCS environment requires careful pre-engineering to avoid unplanned downtime and signal disruption. The retrofit process typically begins with a full audit of the existing rack assembly, including identification of the FBM baseplate model and confirming that the replacement module’s hardware revision (RH914XS) is compatible with the installed firmware version on the Foxboro CP60 or CP270 controller processor.

Field termination is a critical checkpoint. Most I/A Series installations use dedicated Field Termination Assemblies (FTAs) — such as the FBM237-compatible FTA models — which connect field wiring to the FBM via a ribbon cable or direct backplane connection. Before removing the legacy module, engineers should photograph and document all terminal assignments, verify signal types (AI, AO, DI, DO), and confirm that the existing FTA can be reused without rewiring. In cases where the FTA is also discontinued or damaged, a compatible replacement FTA must be sourced simultaneously to avoid extended outages.

Power budget verification is equally important. The I/A Series rack power supply — often a Foxboro FPS series unit — must have sufficient headroom to support the replacement FBM237 RH914XS alongside other active modules in the same rack. If the rack is near capacity, a power supply upgrade or load redistribution across multiple racks may be required before the new module is installed.

For systems running Foxboro IACC (I/A Series Application Control Engine) or legacy AW51/AW70 Workstations, the module address and block configuration must be pre-loaded using the Foxboro Control Configurator tool. Engineers should export the existing compound and block database before any hardware swap to preserve program logic. After installation, the new FBM237 RH914XS must be downloaded with the correct configuration and verified online before field loops are re-energized.

Communication link integrity should be validated at the Nodebus level. If the system uses a Foxboro FBM Nodebus Extender or fiber optic Nodebus segment, the replacement module must be confirmed as compatible with the installed Nodebus topology. In multi-drop configurations, the module’s Nodebus address must not conflict with other FBMs on the same segment.

For I/O expansion or system modernization projects that go beyond a simple like-for-like swap, the FBM237 RH914XS is often deployed alongside Foxboro FBM201 (analog input), FBM204 (analog output), FBM217 (digital input), and FBM220 (digital output) modules to build out a complete I/O complement within the same rack. Signal isolators — such as MTL or P+F signal conditioning modules — may be required when field devices operate at non-standard signal levels or when ATEX/IECEx isolation is mandated by site safety requirements.

HMI display verification is the final step before returning the loop to automatic control. Operators should confirm that all associated Foxboro SCADA or DeltaV Operate displays (in hybrid migration scenarios) correctly reflect the new module’s I/O points, alarm limits, and engineering unit scaling. Any discrepancies in HMI tag mapping must be resolved before the system is handed back to operations.

Downtime Control During System Migration

Minimizing production impact during an FBM237 RH914XS replacement requires a structured hot-swap or controlled shutdown strategy. For non-redundant FBM configurations, the recommended approach is to schedule the swap during a planned maintenance window, pre-stage the replacement module with the correct configuration downloaded offline, and execute the physical swap within a defined time window — typically under 30 minutes for an experienced field engineer.

Where process criticality demands continuous operation, engineers should evaluate whether the affected loops can be placed in manual mode at the DCS operator station or at the field device level (e.g., placing control valves in manual via local handwheels or positioner bypass). This preserves field control continuity while the FBM is replaced and re-commissioned.

Original program logic is protected by exporting the full compound database from the Foxboro Control Configurator prior to any hardware change. The exported database serves as both a backup and a reference for post-swap verification. After the new FBM237 RH914XS is installed and downloaded, a point-by-point loop check — including signal injection at the field terminal and verification at the operator display — confirms that all I/O channels are functioning correctly before the loops are returned to automatic.

For large-scale migration projects involving multiple FBM replacements across several racks, a phased approach — replacing one rack section per maintenance window — significantly reduces cumulative risk and allows the operations team to validate each phase before proceeding. NINERMAS can support phased procurement schedules with reserved inventory allocations to ensure parts availability aligns with your project timeline.

Retrofit Support FAQ

Q1: Is the Foxboro FBM237 RH914XS a direct drop-in replacement for other FBM237 hardware revisions?
The RH914XS suffix denotes a specific hardware revision of the FBM237. In most I/A Series installations, it is compatible with the same baseplate slot and FTA as earlier FBM237 revisions. However, customers should verify the firmware version on their CP controller and confirm that the installed Control Configurator version supports the RH914XS revision before installation. NINERMAS provides pre-shipment documentation to assist with compatibility verification.

Q2: What commissioning steps are required after installing the FBM237 RH914XS?
After physical installation, the module must be assigned the correct Nodebus address and downloaded with the existing compound/block configuration via the Foxboro Control Configurator. A loop integrity check — including signal injection and HMI display verification — should be performed for each I/O channel. Communication link status should be confirmed at the Nodebus level before returning loops to automatic control.

Q3: Can the existing Field Termination Assembly (FTA) be reused with the replacement FBM237 RH914XS?
In the majority of cases, yes. The FTA connects to the FBM via a standard ribbon cable or backplane interface, and the field wiring terminations remain undisturbed during the FBM swap. Customers should inspect the FTA for physical damage, verify terminal tightness, and confirm that the FTA model is listed as compatible with the FBM237 RH914XS in the Foxboro hardware compatibility matrix.

Q4: What warranty and inventory support does NINERMAS provide for the FBM237 RH914XS?
NINERMAS supplies the Foxboro FBM237 RH914XS with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing. For customers with ongoing maintenance programs or multi-site deployments, NINERMAS offers reserved inventory agreements to guarantee parts availability over extended project timelines. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss long-term supply arrangements.
