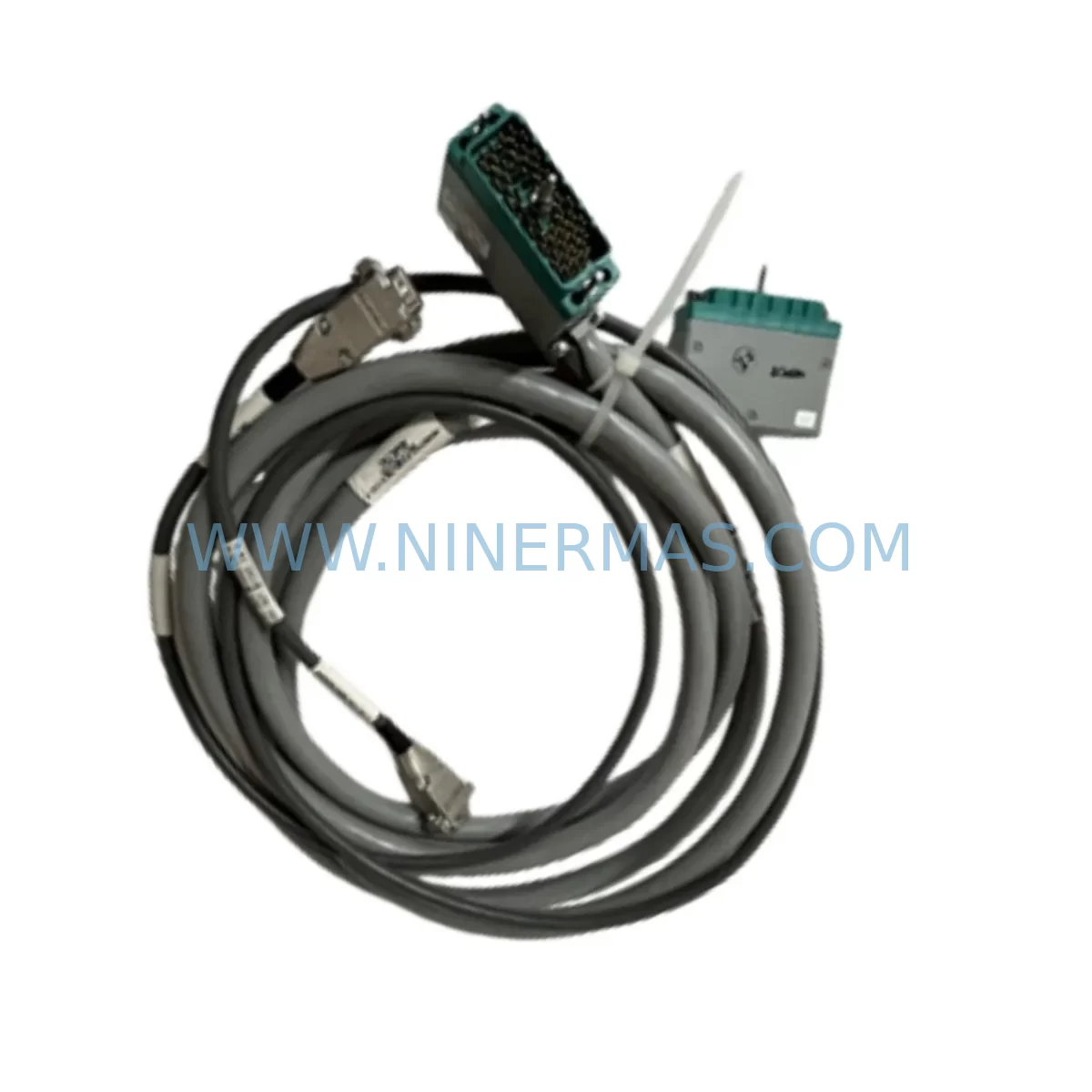

The Foxboro 4000188-310 is a purpose-built cable assembly designed for the FT4 Series instrumentation and control platform. As legacy Foxboro systems continue to operate in refineries, chemical plants, power generation facilities, and process manufacturing environments, the demand for reliable, drop-in compatible spare cables has never been greater. This cable serves as a direct retrofit solution for aging control architectures where original wiring harnesses have degraded, been discontinued, or are no longer available through standard distribution channels.

When planning a retrofit or spare-parts replenishment around the 4000188-310, engineers must carefully verify several critical parameters before installation. The cable’s connector pinout and termination type must match the target I/O module or field device interface — particularly when integrating with Foxboro FBM (Field Bus Module) cards such as the FBM201, FBM202, or FBM207, which are commonly found in legacy I/A Series and Evo control cabinets. Confirm that the cable length and routing path are compatible with the existing control cabinet layout, as installation space in older marshalling panels is often constrained.

Power supply compatibility is another key consideration. The 4000188-310 is typically used in conjunction with 24 VDC-powered field instrument loops. Before replacement, verify that the existing power supply module — such as a Foxboro FPS or equivalent DIN-rail power unit — can sustain the loop current requirements after the cable swap. Any increase in cable resistance due to length changes or connector aging should be factored into the loop budget calculation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 4000188-310 into an existing automation system requires a structured approach to retrofit planning. Begin by auditing the current cable routing from the field junction box to the I/O termination assembly. In many legacy Foxboro I/A Series installations, cables are routed through shared conduit with other signal wires, making it essential to label and isolate the 4000188-310 circuit before removal.

When the target system includes a Foxboro CP60 or CP270 controller communicating over a Nodebus or Mesh Control Network (MCN), confirm that the cable replacement does not interrupt the communication path between the controller and its associated FBM modules. In distributed control architectures, even a brief signal interruption on a critical I/O channel can trigger process alarms or cause the DCS to enter a degraded control state.

For systems undergoing a broader migration — for example, transitioning from a legacy Foxboro I/A Series to the Foxboro Evo platform — the 4000188-310 cable may be reused if the new FBM module maintains backward-compatible connector geometry. However, engineers should cross-reference the Evo FBM module’s wiring diagram against the original termination drawing to confirm pin-for-pin compatibility. In some cases, a transition terminal block or adapter plate may be required to bridge the old and new connector standards.

During cabinet upgrades, it is common to simultaneously replace the backplane or I/O base unit. If the existing rack is a Foxboro FBM baseplate, verify that the new baseplate accepts the same cable connector without modification. Similarly, if the project involves adding an I/O expansion module — such as an additional FBM204 or FBM237 — the cable routing plan must account for the new module’s position within the rack and the additional cable length required.

Communication protocol migration is another area where the 4000188-310 plays a supporting role. In plants transitioning from 4–20 mA analog loops to HART digital communication or Foundation Fieldbus, the cable’s shielding and conductor specifications must meet the higher-frequency signal integrity requirements of the new protocol. Confirm that the cable’s capacitance per unit length and shield coverage percentage are within the fieldbus segment design guidelines.

For HMI integration, ensure that any tag reassignment or I/O address remapping performed during the cable replacement is reflected in the DCS configuration database and the corresponding HMI faceplates. Failure to update the HMI display after a physical cable change can result in operators monitoring incorrect process values, which poses a safety risk in high-consequence process environments.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing the 4000188-310 in a live production environment. The recommended approach is to perform the cable replacement during a scheduled maintenance window, with the affected I/O channel placed in manual control mode at the DCS workstation before any physical work begins. This ensures that the control loop continues to operate at its last known setpoint while the cable is disconnected.

Before removing the original cable, photograph the existing termination arrangement and record the wire labels, terminal numbers, and shield grounding points. This documentation serves as the reference for reinstallation and significantly reduces the risk of miswiring during the retrofit. Use a continuity tester to verify each conductor’s path from the field device to the I/O module terminal after the new cable is installed, and perform an insulation resistance test to confirm that no ground faults have been introduced.

Once the cable is reinstalled, restore the I/O channel to automatic control mode and monitor the process variable for stability over a minimum observation period of 15 minutes. If the signal exhibits noise, offset, or instability, inspect the shield grounding connection and verify that the cable is not routed in close proximity to high-voltage power conductors or variable frequency drives, which are common sources of electromagnetic interference in industrial control cabinets.

For critical process loops — such as those controlling reactor temperature, pressure relief, or flow to a safety instrumented system — coordinate the cable replacement with the plant’s safety management team and ensure that the SIS bypass procedure is followed if the affected loop is part of a safety function. Document the replacement in the plant’s maintenance management system and update the as-built wiring drawings to reflect the new cable installation.

NINERMAS maintains ready stock of the Foxboro 4000188-310 and can provide same-week dispatch for urgent retrofit and breakdown requirements. All units are subject to pre-shipment functional testing and are covered by a 12-month warranty from the date of delivery.

Retrofit Support FAQ

Q1: Is the Foxboro 4000188-310 a direct replacement for the original OEM cable in FT4 Series applications?
A: Yes. The 4000188-310 is designed as a direct retrofit replacement for the original Foxboro FT4 Series cable assembly. It maintains the same connector type, conductor configuration, and electrical specifications as the OEM part, allowing installation without modification to the existing termination hardware.

Q2: What commissioning steps are required after installing the 4000188-310?
A: After installation, perform a point-to-point continuity check on all conductors, verify shield grounding at the designated single-point ground, and conduct an insulation resistance test at 500 VDC. Restore the I/O channel to automatic mode at the DCS and confirm that the process variable reading matches the field instrument’s local display before returning the loop to service.

Q3: Can this cable be used in systems that have been upgraded from analog to HART communication?
A: In most cases, yes. The 4000188-310’s conductor and shielding specifications are compatible with HART superimposed digital communication on a standard 4–20 mA loop. However, verify that the cable’s capacitance per unit length does not exceed the HART segment design limit for the specific field device and host system combination in use.

Q4: What is the warranty coverage and how quickly can stock be dispatched?
A: All Foxboro 4000188-310 cables supplied by NINERMAS are covered by a 12-month warranty from the date of delivery. Units are pre-tested prior to shipment. In-stock orders are typically dispatched within 3–5 business days, with expedited options available for urgent breakdown and retrofit requirements. Contact our team for current inventory status and lead time confirmation.
