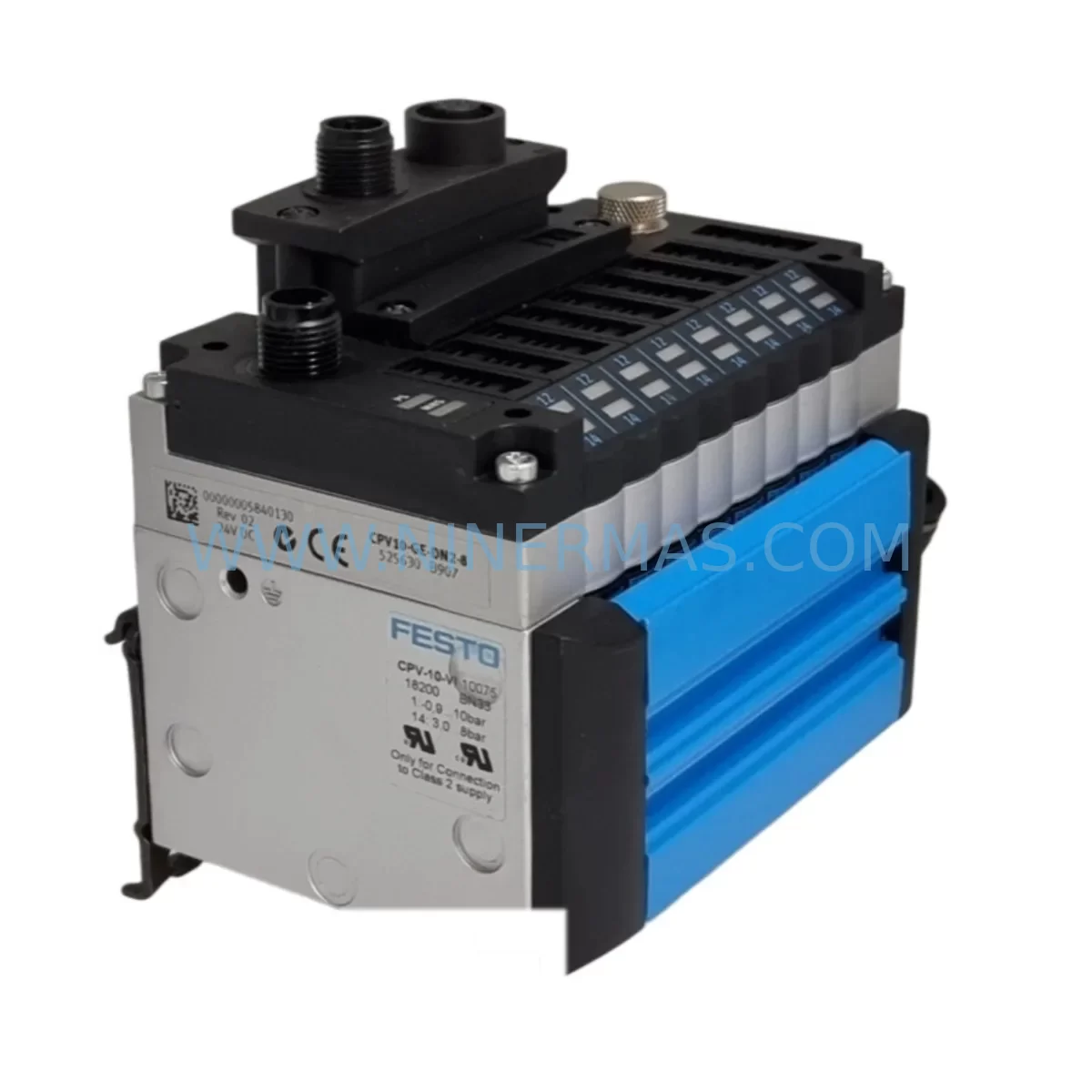

The Festo CPV10-GE-DN2-8 (Part No. 525630) is a DeviceNet fieldbus node designed for integration with the Festo CPV10 compact valve terminal series. In industrial automation environments — from automotive assembly lines to food and beverage processing — this node serves as the critical communication bridge between the PLC/DCS control layer and the pneumatic valve manifold. When this component fails or degrades, the entire valve terminal loses network visibility, triggering unplanned downtime that can cascade across a production cell within minutes.

For maintenance engineers managing aging pneumatic control systems, stocking a verified replacement of the CPV10-GE-DN2-8 is not optional — it is a fundamental element of any credible spare parts strategy. NINERMAS supplies this unit as a service-ready spare, pre-tested and shipped with full documentation, supporting rapid field replacement without the lead times associated with OEM procurement channels.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CPV10-GE-DN2-8 fieldbus node is flagged during a control cabinet inspection or fails during a fault isolation routine, experienced maintenance engineers know that the node itself is rarely the only component that warrants attention. A DeviceNet communication fault on the CPV10 terminal often points to broader issues in the electrical and pneumatic circuit that must be addressed simultaneously to prevent repeat failures.

Begin by verifying the 24 V DC bus power supply feeding the DeviceNet segment — a sagging or noisy supply is a common root cause of intermittent node dropouts. Check the DeviceNet trunk cable and drop cable termination resistors (120 Ω at each end of the segment); missing or degraded termination is frequently overlooked during rapid fault response. Inspect the CPV10-VI valve island solenoid coils for short circuits or ground faults, as a shorted coil can pull down the node’s internal logic supply and cause false communication errors.

For sites running Festo valve terminals alongside Siemens or Allen-Bradley PLCs, confirm that the DeviceNet scanner module (such as a Siemens CP 343-2 or Rockwell 1756-DNB) has the correct EDS file loaded and that the node address (MAC ID) on the replacement CPV10-GE-DN2-8 is set to match the original configuration before reconnecting to the network. Address conflicts on a DeviceNet segment will prevent all nodes from communicating.

During annual maintenance shutdowns, it is best practice to simultaneously inspect the CPV10 end plate and sub-base seals, the pilot exhaust silencers, and the manual override buttons on each valve slice. If the system includes a Festo CPV10-AP-… pressure supply plate, verify its integrated pressure gauge and check valve function. For multi-zone systems, the CPV14 or CPV18 series fieldbus nodes serving adjacent valve terminals should be included in the same inspection cycle to standardize spare parts across the facility.

Procurement engineers should also consider stocking the associated Festo NEBV-series DeviceNet cordset for the Sub-D9 connector, as connector wear and cable fatigue are leading causes of intermittent faults that are misdiagnosed as node failures. A 24 V DC DIN rail power supply rated for the full DeviceNet segment load, along with a set of Phoenix Contact or Weidmüller terminal blocks for the field wiring side, rounds out a complete spare kit for this circuit. Where signal isolation is required between the DeviceNet segment and the control panel, a galvanic isolator or DeviceNet repeater should be included in the maintenance inventory.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Switch the DeviceNet segment to offline mode from the PLC scanner. De-energize the 24 V DC bus power supply for the affected segment. Lock out / tag out per site LOTO procedure.

Step 2 — Document the existing configuration: Record the MAC ID (node address) set on the rotary switches of the existing CPV10-GE-DN2-8. Photograph the cable routing and connector orientation before disconnection.

Step 3 — Remove the failed node: Disconnect the DeviceNet Sub-D9 connector and the 24 V DC auxiliary power connector (if fitted). Slide the node off the CPV10 end plate. Inspect the mating connector pins on the valve terminal for corrosion or mechanical damage.

Step 4 — Configure the replacement unit: Set the MAC ID rotary switches on the new CPV10-GE-DN2-8 to match the documented address. Verify the baud rate DIP switch setting matches the segment configuration (typically 125 kbps, 250 kbps, or 500 kbps).

Step 5 — Install and reconnect: Seat the replacement node firmly onto the CPV10 end plate. Reconnect the DeviceNet trunk drop cable and auxiliary power. Restore bus power and bring the scanner back online.

Step 6 — Verify and commission: Confirm the node appears in the scanner’s device list with the correct MAC ID and no fault indicators. Perform a functional test of all 8 valve outputs from the PLC. Log the replacement in the site maintenance management system (CMMS) and update the spare parts inventory.

This workflow minimizes mean time to repair (MTTR) and ensures the replacement is fully validated before the production line is restarted. NINERMAS ships each CPV10-GE-DN2-8 with a pre-shipment test report, reducing the risk of installing a defective unit during a time-critical recovery.
