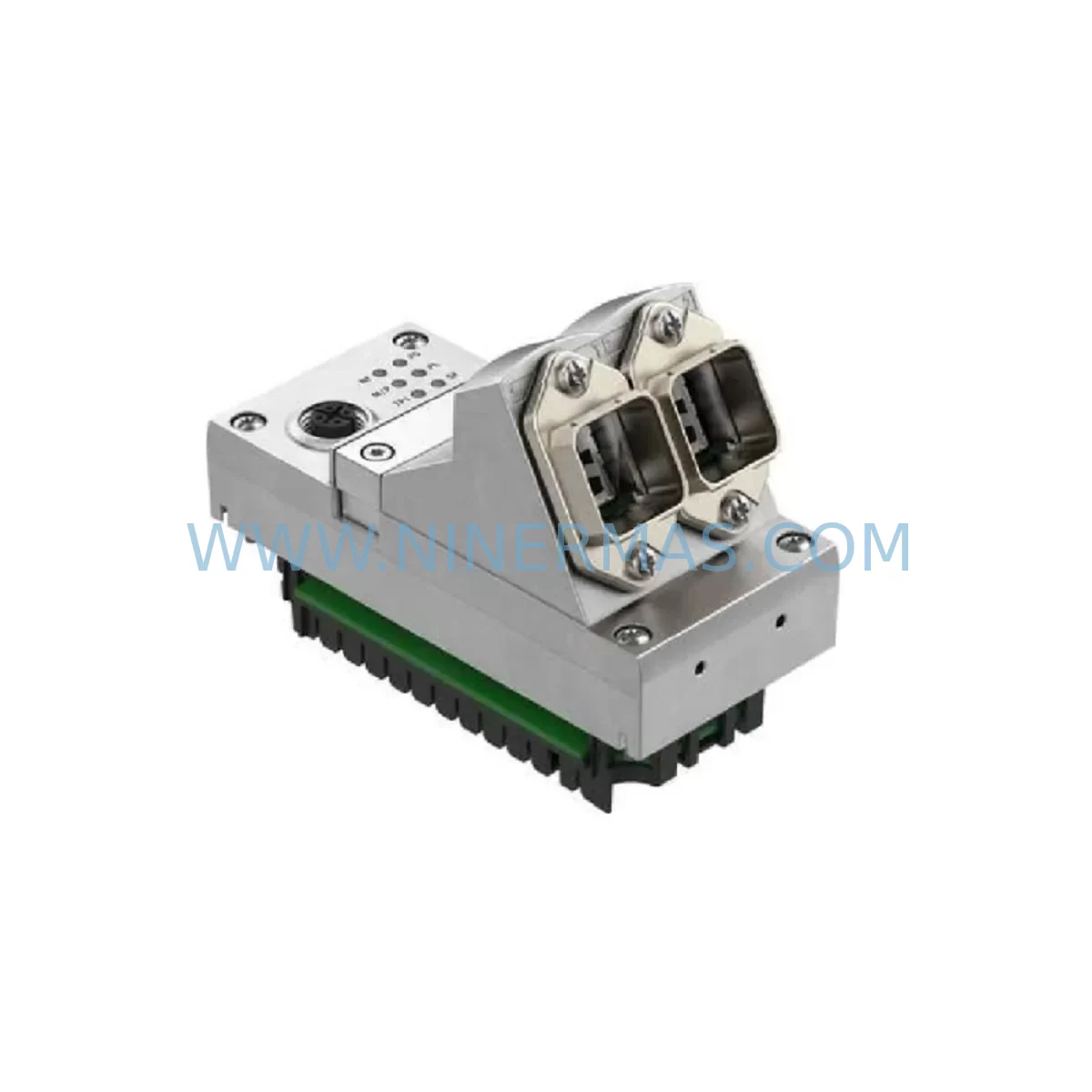

FESTO CPX-SB-LT-WELD-SA Service-Ready Spare Part

FESTO CPX-SB-LT-WELD-SA Service-Ready Spare Part: Welding Safety Bus Node for Downtime-Critical Replacement

The FESTO CPX-SB-LT-WELD-SA is an original spare part safety bus node designed for integration within the FESTO CPX compact performance extension terminal platform. Purpose-built for ruggedized welding automation environments, this module provides safety-rated communication between the CPX terminal and welding process controllers, enabling reliable fault isolation, safe-state signaling, and deterministic I/O response in high-cycle resistance welding and arc welding cells. For maintenance engineers managing aging welding lines or PLC-controlled robotic cells, stocking the CPX-SB-LT-WELD-SA as a ready-to-deploy spare is a fundamental downtime risk mitigation strategy.

End-of-life and long-lead-time components in welding safety circuits represent one of the highest unplanned downtime risks in discrete manufacturing. A failed safety bus node can halt an entire welding cell, triggering cascading production losses across downstream assembly stations. The CPX-SB-LT-WELD-SA is engineered to slot directly into existing CPX terminal racks without firmware reconfiguration in most standard deployments, making it one of the fastest field-replaceable units in the CPX safety architecture. Procurement engineers sourcing this module should verify the CPX terminal generation, bus protocol variant (AS-Interface Safety at Work or equivalent), and firmware revision compatibility before deployment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the CPX-SB-LT-WELD-SA in a live welding cell, a disciplined maintenance workflow requires more than a like-for-like module swap. The safety bus node sits at the intersection of pneumatic valve control, safety I/O, and welding process signaling — meaning adjacent components must be inspected and verified before the cell is returned to production.

Begin with the CPX terminal power supply module (such as the CPX-P or CPX-GE-EV-S variants): verify that bus supply voltage is stable at 24 V DC and that no voltage dips are present under load. A degraded power module is a common root cause of intermittent safety bus faults that are misdiagnosed as node failures. Next, inspect the CPX-FEC field bus node or CPX-CEC control and communication module — these upstream controllers manage the safety handshake with the CPX-SB-LT-WELD-SA and must be running compatible firmware.

Check all CPX I/O modules in the same terminal rack, particularly digital input modules connected to weld-gun position sensors, electrode force sensors, and door interlock switches. A shorted input channel on an adjacent I/O module can generate spurious safety faults that appear to originate from the bus node. Similarly, inspect CPX valve terminal manifolds (VTSA or MPA series) for solenoid coil resistance and verify that no coil has developed a short to ground — a common failure mode in high-temperature welding environments.

For the safety circuit itself, test the AS-Interface safety monitor (e.g., Bihl+Wiedemann or equivalent ASi safety monitor) that supervises the CPX-SB-LT-WELD-SA’s safe-state outputs. Confirm that the monitor’s configuration checksum matches the installed safety program. Inspect safety relay modules in the control cabinet — particularly those handling E-stop, light curtain, and two-hand control inputs — for contact wear and coil resistance drift.

Review the 24 V DC industrial power supply (SITOP, Phoenix Contact QUINT, or equivalent) feeding the CPX terminal. Measure output ripple under load; excessive ripple can cause false safety trips in bus-powered nodes. Check terminal blocks and DIN rail wiring for loose ferrules, especially on safety-rated circuits where connection resistance directly affects diagnostic coverage. Inspect signal isolators on any analog weld-quality feedback signals (current, voltage, force) routed through the CPX system — degraded isolation can introduce ground loops that corrupt safety bus communication.

Finally, verify the HMI or operator panel (e.g., FESTO CDPX or third-party panel PC) displays correct safety status after module replacement, and confirm that the PROFIBUS DP, PROFINET, or EtherNet/IP fieldbus connection to the upstream PLC (Siemens S7-300/400/1500 or equivalent) re-establishes cleanly without requiring a full cold restart of the safety program.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Obtain the CPX terminal type plate data (order code, serial number, firmware version). Cross-reference the CPX-SB-LT-WELD-SA order code against the terminal’s hardware configuration file. Confirm the replacement module’s hardware revision matches or supersedes the installed unit.

Step 2 — Safe isolation: Follow LOTO (Lockout/Tagout) procedures. De-energize the CPX terminal bus power and pneumatic supply. Discharge any residual pressure in the valve manifold before opening the terminal housing.

Step 3 — Module extraction: Release the CPX module locking mechanism (tool-free on most CPX generations). Slide the CPX-SB-LT-WELD-SA out of the terminal rail. Note the slot position — the safety bus node must be reinstalled in the same slot or the safety configuration must be re-taught to the ASi safety monitor.

Step 4 — Replacement and re-commissioning: Insert the new CPX-SB-LT-WELD-SA into the correct slot. Restore bus power. Observe the module’s LED diagnostic indicators: a steady green on the ASi bus LED and no flashing red on the safety LED confirms correct initialization. If the safety monitor requires re-teaching, follow the monitor’s address assignment and code sequence procedure.

Step 5 — Functional test before production restart: Trigger each safety input (E-stop, door interlock, light curtain) individually and verify that the CPX-SB-LT-WELD-SA correctly transitions to safe state and recovers on reset. Log the test results in the maintenance record before releasing the cell to production.

This workflow minimizes mean time to repair (MTTR) and ensures that the replacement does not introduce new failure modes. Keeping a pre-configured CPX-SB-LT-WELD-SA in the on-site spare parts cabinet — alongside a spare CPX power module and a spare ASi safety monitor — reduces unplanned downtime from hours to under 30 minutes.

Spare Parts Support FAQ

Q1: Is the CPX-SB-LT-WELD-SA compatible with all FESTO CPX terminal generations?
The CPX-SB-LT-WELD-SA is designed for the FESTO CPX modular terminal platform. Compatibility depends on the specific CPX terminal generation (CPX-CEC, CPX-FEC, or bus-node-based configurations) and the installed firmware version. Always verify the hardware revision and order code suffix against your terminal’s configuration documentation before ordering. NINERMAS can assist with compatibility verification based on your terminal’s type plate data.

Q2: What pre-shipment testing is performed on the CPX-SB-LT-WELD-SA?
Every CPX-SB-LT-WELD-SA unit dispatched by NINERMAS undergoes functional verification prior to shipment, including bus communication initialization testing and visual inspection for physical damage. Units are packed in ESD-safe anti-static packaging with moisture barrier protection to ensure integrity during international transit. A 12-month warranty covering manufacturing defects and functional failure under normal operating conditions is included with every unit.

Q3: How should the CPX-SB-LT-WELD-SA be included in a long-term spare parts strategy for welding lines?
For welding lines with 5+ years of remaining planned service life, we recommend maintaining a minimum of one CPX-SB-LT-WELD-SA per welding cell as an on-site hot spare, with a secondary unit held at the central maintenance warehouse. Given that FESTO CPX components are subject to product lifecycle transitions, early procurement of multi-year buffer stock is advisable for lines where the CPX platform is not scheduled for replacement. NINERMAS supports long-term supply agreements and can provide volume pricing for multi-unit procurement.

Q4: What is the lead time and can expedited delivery be arranged for emergency breakdowns?
NINERMAS maintains stock of high-demand CPX series components including the CPX-SB-LT-WELD-SA to support emergency breakdown scenarios. Standard international delivery is 5–10 business days depending on destination. Expedited air freight options are available for critical downtime situations. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and arrange priority dispatch.
