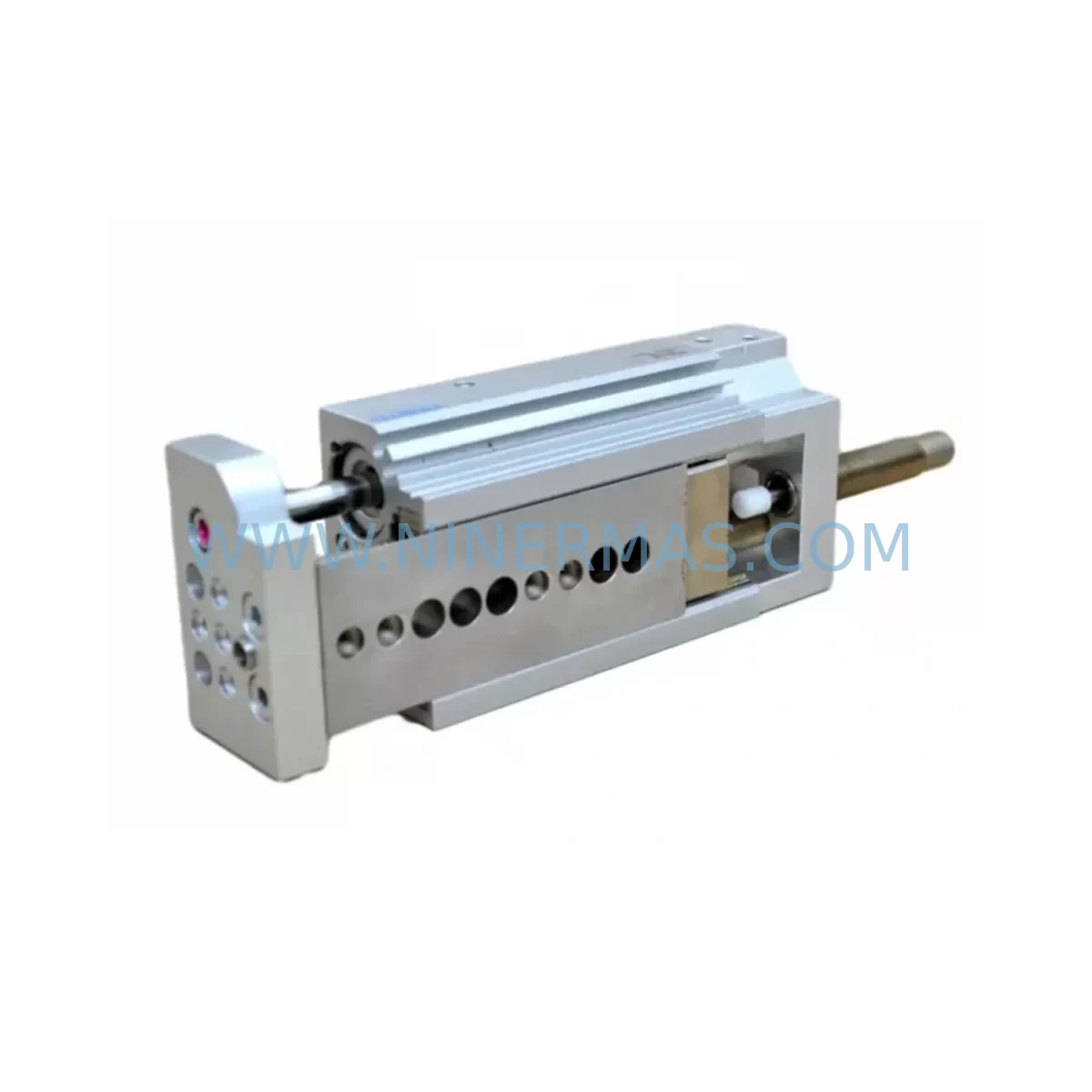

The FESTO 544122, model DGSL-16-80-Y3A, is a ruggedized pneumatic mini slide module engineered for demanding industrial environments where reliability, precision, and long service life are non-negotiable. Designed as part of FESTO’s DGSL series of compact linear actuators, this unit delivers consistent stroke performance in applications ranging from automated assembly lines and pick-and-place stations to robotic end-of-arm tooling and conveyor divert systems. With cross-reference part numbers including ES1D12-000007-11, AVB417-X0030, 2EA00E182C, 4S001-065, and MSE182C, this module serves as a verified replacement for multiple legacy configurations across FESTO-equipped production cells.

For maintenance engineers managing aging pneumatic systems, sourcing a pre-tested, service-ready DGSL-16-80-Y3A eliminates the uncertainty of unplanned downtime. NINERMAS maintains stock of this module with full pre-shipment functional testing and a 12-month warranty, ensuring that your replacement unit arrives ready for immediate installation without additional bench validation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a FESTO DGSL-16-80-Y3A slide module is identified as a failure point during routine inspection or unplanned breakdown, experienced maintenance engineers know that the replacement process rarely ends with the slide alone. A thorough site assessment should include inspection of the associated FESTO VUVG or MHE solenoid valve that drives the actuator, as valve coil degradation or spool wear frequently contributes to erratic slide behavior before the slide itself fails mechanically.

The pneumatic supply circuit feeding the DGSL-16-80-Y3A should be checked for pressure consistency using an inline pressure gauge or FESTO SDE1 pressure sensor. Contaminated or moisture-laden air supply is a leading cause of premature seal wear in DGSL series actuators, making the upstream FESTO MS series filter-regulator-lubricator (FRL) unit a critical inspection point during any DGSL replacement event.

Downstream of the slide, the mechanical coupling interface — whether connected to a gripper jaw, a divert arm, or a tooling plate — should be inspected for wear on the T-slot nut connections and guide rail alignment. Misalignment at the load attachment point accelerates side-load wear on the DGSL’s internal guide bushings, shortening service intervals. If the application uses a FESTO HGPT or DHPS parallel gripper mounted to the slide, the gripper’s jaw inserts and proximity sensor flags should be replaced simultaneously to avoid a secondary failure within the same maintenance window.

For systems using FESTO CPX or CEC control terminals to manage the pneumatic circuit, the I/O module addressing and valve island configuration should be verified after slide replacement to confirm that the new unit’s end-position sensors — typically FESTO SME-8 or SMT-8 reed switches — are correctly mapped to the PLC input register. Incorrect sensor wiring or address conflicts can cause the control system to misread slide position, triggering fault states or unsafe motion sequences.

In control cabinet environments, the 24 VDC supply rail feeding the solenoid valve coils and proximity sensors should be load-tested to confirm adequate current capacity after adding any replacement components. A FESTO CAPC or equivalent power distribution module should be inspected for terminal corrosion, particularly in high-humidity or coolant-splash zones where the DGSL-16-80-Y3A’s Y3A ruggedized designation is most relevant. Fuse holders and terminal blocks on the 24 V branch circuit should be checked for discoloration or heat damage as part of the same maintenance cycle.

Where the DGSL-16-80-Y3A is integrated into a FESTO Handling Guide Online (HGOL) or multi-axis gantry system, the associated FESTO DGCI or DGPL linear drive units on adjacent axes should be inspected for guide rail wear and end-cushion condition. Replacing one axis module while leaving adjacent axes in degraded condition is a common cause of repeat failures within 60–90 days of initial repair.

Site Replacement Workflow

Replacing the FESTO 544122 DGSL-16-80-Y3A on a live production line requires a structured approach to minimize downtime and avoid secondary damage to connected components. Begin by isolating the pneumatic supply to the affected circuit using the upstream lockout valve — do not rely solely on the solenoid valve de-energization to depressurize the actuator. Verify zero pressure at the slide’s port connections before loosening any fittings.

Document the existing tubing routing and port assignments (typically port 1 and port 2 for extend/retract) before disconnecting push-in fittings. FESTO QS series push-in fittings can be reused if undamaged, but any fitting showing cracking, deformation, or contamination should be replaced with new QS-6 or QS-8 equivalents to prevent post-repair leaks.

Remove the slide from its mounting surface by releasing the T-slot bolts or flange screws. Inspect the mounting surface for flatness — a warped or corroded mounting plate will induce binding in the new slide’s guide system. Clean the mounting surface and apply a light film of anti-corrosion compound if the environment warrants it.

Install the replacement DGSL-16-80-Y3A, torque fasteners to FESTO specification, and reconnect pneumatic tubing. Before energizing the solenoid valve, perform a manual stroke test by briefly applying regulated air pressure (start at 2 bar) to confirm free movement and correct end-position sensor triggering. Verify that the SME-8 or SMT-8 sensors on the new slide are correctly positioned and generating the expected PLC input signals before returning the circuit to automatic mode.

Log the replacement in the site maintenance record with the new unit’s serial number, installation date, and pre-installation test results. This documentation supports warranty claims and provides the baseline for the next planned inspection interval — typically 12 months or per the OEM’s recommended service cycle for the DGSL series in the specific duty cycle and environment.

Spare Parts Support FAQ

Q1: Is the FESTO 544122 DGSL-16-80-Y3A compatible with my existing DGSL series pneumatic circuit without modification?
A: Yes. The DGSL-16-80-Y3A is a direct form-fit-function replacement within the DGSL series for the same bore (16 mm) and stroke (80 mm) specification. Port locations, mounting hole patterns, and sensor slot positions are consistent with the DGSL series standard. Cross-reference part numbers ES1D12-000007-11, AVB417-X0030, and 2EA00E182C confirm compatibility across multiple OEM configurations. Always verify the Y3A ruggedized variant designation matches your application’s environmental requirements before installation.

Q2: What pre-shipment testing does NINERMAS perform on the DGSL-16-80-Y3A before dispatch?
A: Every unit undergoes functional stroke testing under regulated air pressure to verify smooth, full-range travel in both extend and retract directions. Seal integrity is confirmed by pressure hold test at rated operating pressure. End-position sensor mounting slots are inspected for dimensional conformance. Units that do not pass all test criteria are not shipped. A test record is available upon request for quality-critical applications.

Q3: Can NINERMAS supply the DGSL-16-80-Y3A for long-term maintenance contracts or scheduled annual overhauls?
A: Yes. NINERMAS supports long-term supply agreements for maintenance teams managing multiple FESTO-equipped production lines. Reserved inventory arrangements are available for high-volume or time-critical applications. Contact our team at sale@ninermas.com to discuss lead time commitments, quantity pricing, and scheduled delivery programs aligned with your annual maintenance calendar.

Q4: What is covered under the 12-month warranty for the FESTO 544122 DGSL-16-80-Y3A?
A: The 12-month warranty covers manufacturing defects, seal failure under normal operating conditions, and dimensional non-conformance identified upon installation. Warranty claims require the unit to have been installed per FESTO’s published installation guidelines and operated within the specified pressure and temperature range. Damage resulting from contaminated air supply, excessive side-loading, or improper mounting is not covered. NINERMAS will arrange replacement or credit for valid warranty claims with minimal administrative delay.
