ENTEK 6682 C6682 Spare Part for Industrial Maintenance

ENTEK 6682 C6682 Spare Part for Industrial Maintenance

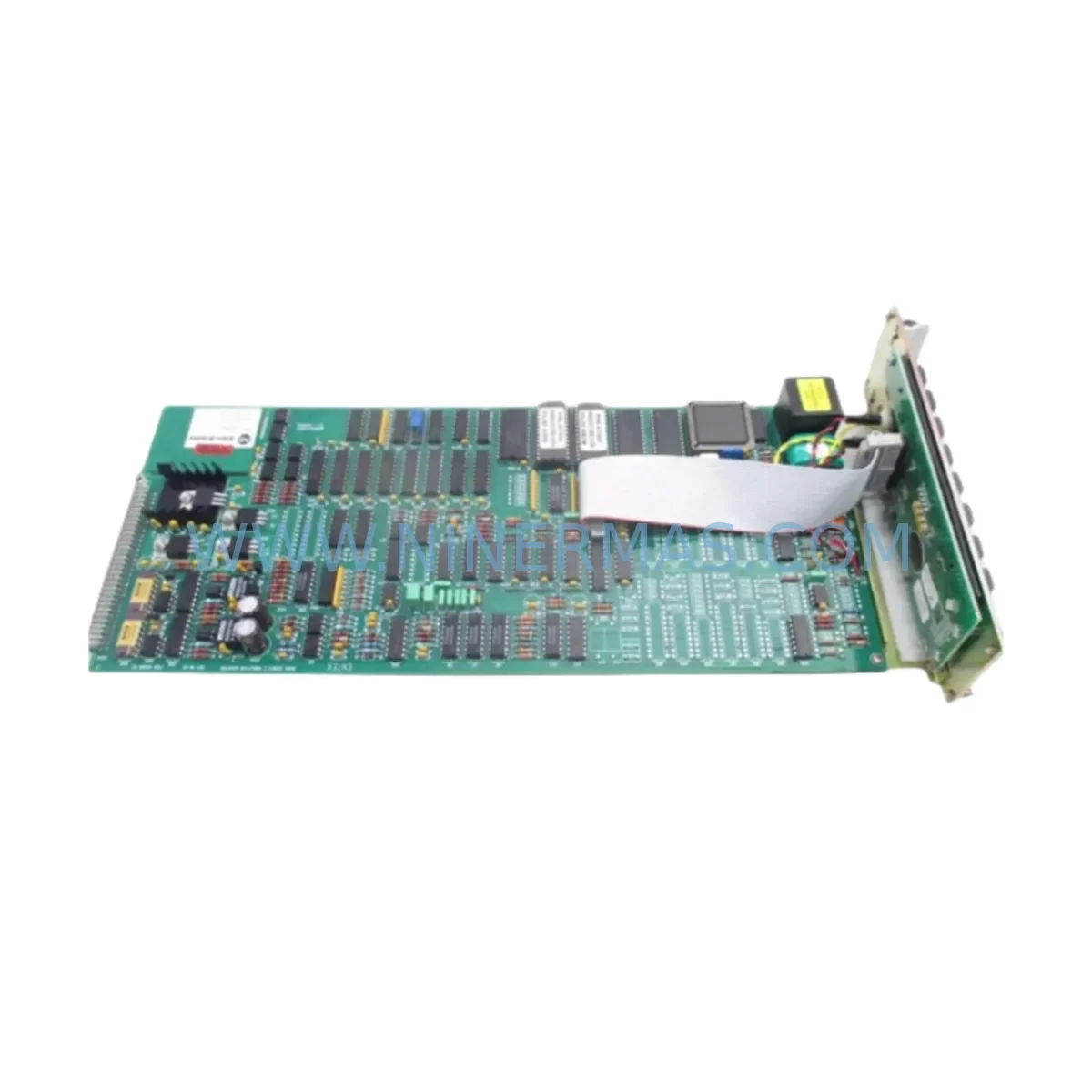

The ENTEK 6682 (C6682) is a ruggedized position monitor engineered for continuous operation in harsh industrial environments. As a critical spare part in rotating machinery protection systems, the C6682 delivers reliable shaft position measurement across petrochemical, power generation, oil & gas, and heavy manufacturing facilities. When a position monitor fails or degrades, the risk of undetected shaft displacement, bearing damage, and unplanned shutdown escalates rapidly. Maintaining a service-ready ENTEK 6682 C6682 in your spare parts inventory is a fundamental element of any proactive maintenance strategy.

At NINERMAS, every ENTEK 6682 C6682 unit is pre-shipment tested, documented, and dispatched under a 12-month warranty. Our long-term supply program ensures availability for legacy ENTEK systems that may no longer be supported through OEM channels, giving maintenance engineers and procurement teams a dependable source for lifecycle extension.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The ENTEK 6682 C6682 position monitor does not operate in isolation. It is one node in a broader machinery protection architecture, and a disciplined maintenance plan must account for all interdependent components to prevent cascading failures and maximize uptime.

When replacing or inspecting the C6682, maintenance engineers should simultaneously verify the condition of the ENTEK 6600 series rack power supply, which provides regulated DC voltage to all installed monitor modules. A degraded or undersized power supply can introduce measurement drift and false alarms even when the monitor card itself is serviceable. Alongside the power supply, the ENTEK 6500 series I/O terminal boards and associated field wiring should be inspected for corrosion, loose terminations, and insulation breakdown — particularly in high-humidity or chemically aggressive environments.

The proximity probe system feeding the C6682 deserves equal attention. The eddy-current proximity probe, extension cable, and Proximitor® sensor (or ENTEK-compatible equivalent) form a matched system; replacing only the monitor card without verifying probe gap, cable continuity, and driver output voltage will not restore measurement accuracy. Probe tip condition, target surface finish, and gap distance must all be confirmed during any C6682 replacement event.

At the relay output side, interposing relay modules and terminal blocks connected to the C6682 alarm contacts should be tested for contact resistance and coil integrity. Relay contact degradation is a common and often overlooked failure mode that can prevent alarm signals from reaching the DCS or safety system. Similarly, signal isolators or barriers installed between the monitor output and the control system input should be checked for calibration drift.

For facilities running ENTEK 6000 series systems integrated with a DCS or PLC, the communication interface module — whether Modbus RTU, ENTEK proprietary serial, or a gateway device — should be confirmed operational after any card replacement. Configuration parameters, scaling factors, and alarm setpoints stored in the monitor or the communication module may require re-entry following a card swap.

Annual inspection routines should also include the ENTEK backplane and card cage connectors. Gold-plated edge connectors can oxidize over years of service, increasing contact resistance and causing intermittent signal loss. Cleaning with appropriate contact cleaner and verifying seating torque on all modules is a low-cost step that significantly extends system reliability. Finally, panel-mount fuses and circuit breakers protecting the monitor rack supply rails should be tested and replaced on a scheduled basis rather than reactively.

Site Replacement Workflow

Replacing the ENTEK 6682 C6682 in a live facility requires a structured approach to minimize downtime and avoid introducing new faults during the swap.

Step 1 — Pre-Replacement Verification: Confirm the replacement C6682 unit has been tested and matches the original configuration. Record existing alarm setpoints, scale factors, and relay assignments from the installed unit or the system documentation before removal.

Step 2 — Safe Isolation: Coordinate with operations to place the associated machinery in a safe state or bypass mode. Inhibit alarms at the DCS or safety system to prevent spurious trips during the card swap. Follow site-specific LOTO (Lockout/Tagout) procedures for the control cabinet.

Step 3 — Module Removal and Inspection: Extract the failed C6682 module from the rack. Inspect the backplane connector for bent pins, debris, or corrosion. Clean the connector slot before installing the replacement unit.

Step 4 — Installation and Configuration: Seat the replacement ENTEK 6682 C6682 firmly into the rack slot. Restore all configuration parameters — gap voltage reference, full-scale range, alarm thresholds, and relay logic — to match the original or updated setpoints.

Step 5 — Functional Verification: With the proximity probe system reconnected, verify DC gap voltage is within the linear range of the probe system. Confirm 4–20 mA output corresponds correctly to shaft position. Test alarm relay operation by simulating an out-of-range condition.

Step 6 — Return to Service: Remove alarm inhibits, restore DCS monitoring, and document the replacement in the maintenance management system (CMMS). Log the replaced unit’s serial number, installation date, and warranty start date for future reference.

This structured workflow reduces mean time to repair (MTTR), prevents configuration errors, and ensures the replacement C6682 performs to specification from the moment the machine returns to service.

Spare Parts Support FAQ

Q1: Is the ENTEK 6682 C6682 available for legacy systems that are no longer in OEM production?
Yes. NINERMAS maintains stock of ENTEK 6000 series components specifically to support lifecycle extension programs. Many facilities continue to operate ENTEK-based machinery protection systems well beyond the OEM’s active production period. Our long-term supply program provides a reliable source for these components, with each unit pre-shipment tested and covered by a 12-month warranty.

Q2: How do I verify compatibility between the C6682 and my existing ENTEK rack and probe system?
Compatibility depends on three factors: rack series (ENTEK 6000 series card cage), probe system type (eddy-current proximity probe with compatible Proximitor driver), and firmware or configuration revision. Please provide your rack model, existing monitor part numbers, and probe system details when enquiring. Our technical team will confirm compatibility before shipment.

Q3: What does pre-shipment testing cover for the ENTEK 6682 C6682?
Each unit undergoes functional verification including power-up self-test, DC gap voltage input response, 4–20 mA output linearity check, and relay contact continuity test. Units that do not meet specification are not dispatched. A test record is available upon request and accompanies the shipment documentation.

Q4: What is the warranty policy and what does it cover?
All ENTEK 6682 C6682 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or environmental conditions outside the module’s rated specification. Warranty claims are handled directly by NINERMAS with prompt replacement or repair.
