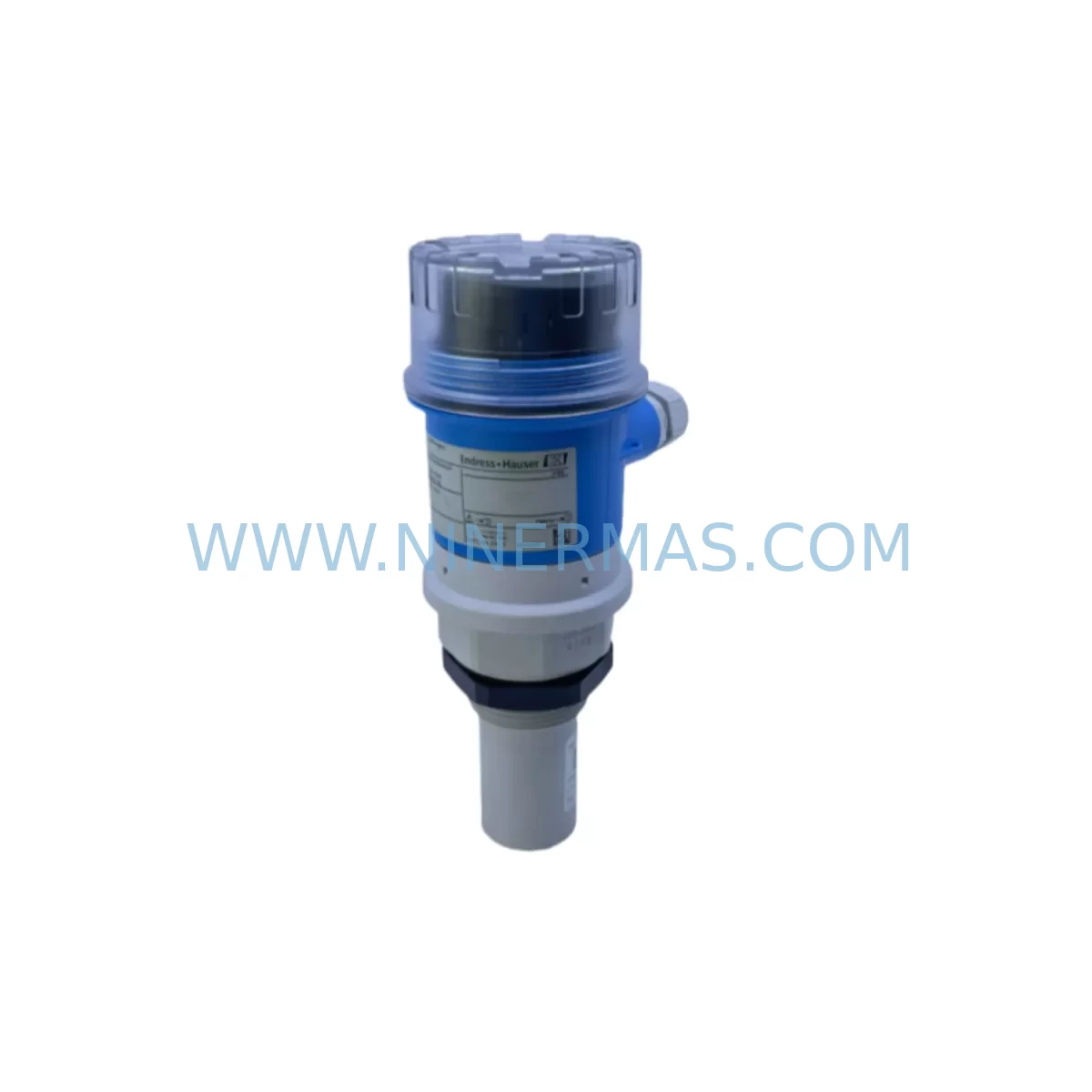

Endress+Hauser FMU30-AAHEAAGGF Retrofit Radar Level Transmitter

Endress+Hauser FMU30-AAHEAAGGF Retrofit Radar Level Transmitter: Legacy-Compatible Upgrade for Existing Automation Systems

The Endress+Hauser FMU30-AAHEAAGGF is a non-contact radar level transmitter from the Micropilot FMU30 series, engineered for continuous level measurement of liquids, pastes, and slurries in process vessels, storage tanks, and open channels. As a retrofit-compatible spare, the FMU30-AAHEAAGGF is a direct replacement candidate for aging or discontinued level measurement devices across a wide range of industrial automation environments — including chemical processing, water and wastewater treatment, food and beverage production, and bulk storage facilities.

When legacy level transmitters reach end-of-life or become unavailable through OEM channels, the FMU30-AAHEAAGGF provides a reliable, field-proven upgrade path. Its 26 GHz FMCW radar technology delivers high measurement accuracy independent of dust, vapour, foam, or temperature fluctuations — conditions that frequently compromise older ultrasonic or guided-wave radar devices. For facilities managing ageing control infrastructure, this unit represents a low-risk, high-compatibility modernisation option that minimises engineering rework and preserves existing wiring and mounting configurations wherever possible.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a legacy level transmitter in an operating plant requires careful pre-engineering to avoid unplanned downtime and signal disruption. When integrating the FMU30-AAHEAAGGF into an existing control loop, the first step is to audit the current field wiring from the transmitter head back to the marshalling cabinet or DCS I/O card. Most legacy 4–20 mA installations use standard twisted-pair cable with a Zener barrier or galvanic isolator at the safe-area boundary. The FMU30-AAHEAAGGF is loop-powered and draws less than 3.6 mA at idle, making it compatible with the majority of existing intrinsic safety barriers — including the Endress+Hauser RN221N and equivalent units from other manufacturers.

At the DCS or PLC level, the FMU30-AAHEAAGGF connects to standard analogue input cards. If the existing system uses a Siemens S7-300 or S7-400 series controller with SM 331 analogue input modules, no hardware changes are required — the 4–20 mA signal maps directly to the existing channel configuration. For systems migrating from a Siemens S7-300 platform to a newer S7-1500 series, the ET 200SP distributed I/O system with AI 4xI 2-4 wire ST input modules provides a compatible analogue input path while enabling PROFINET communication back to the CPU. Similarly, installations using Rockwell Automation ControlLogix or CompactLogix platforms with 1756-IF16 or 1769-IF4 analogue input modules will accept the FMU30-AAHEAAGGF signal without modification.

For facilities operating Endress+Hauser Liquiline CM44x or Memograph M RSG45 data managers, the FMU30-AAHEAAGGF integrates natively via HART, enabling remote parameter access and diagnostic trending without additional gateways. Where HART communication is not currently utilised, a HART modem such as the Endress+Hauser Commubox FXA195 or a Pepperl+Fuchs HiDMux2700 HART multiplexer can be added to the loop to enable digital access for commissioning and ongoing asset management.

In control cabinet environments, verify that the existing terminal blocks — typically Phoenix Contact or Weidmüller spring-cage or screw-type terminals — are rated for the loop current and cable cross-section. If the cabinet includes a Siemens SITOP PSU100S or equivalent 24 V DC power supply feeding the transmitter loop, confirm that the supply has sufficient current headroom after accounting for all connected field devices. For installations with multiple transmitters on a shared bus, a Pepperl+Fuchs KFD2-STC4-Ex1 signal conditioner can be used to isolate the FMU30-AAHEAAGGF loop from adjacent channels and prevent ground loop interference.

Where the existing installation includes an HMI panel — such as a Siemens SIMATIC HMI TP700 Comfort or a Weintek MT8000 series — the level tag associated with the legacy transmitter should be verified in the HMI project before cutover. The engineering unit scaling (0–100% or engineering units in metres or millimetres) must match the FMU30-AAHEAAGGF’s configured output range. If the HMI communicates directly with the DCS or PLC via PROFIBUS DP or PROFINET, no changes to the communication link are required — only the analogue input scaling and alarm setpoints need to be reviewed and updated in the controller programme.

Downtime Control During System Migration

Minimising process downtime during a level transmitter replacement is a primary concern for plant engineers and maintenance teams. The FMU30-AAHEAAGGF supports a structured hot-swap procedure that, in many installations, allows the replacement to be completed within a single maintenance window of two to four hours without requiring a full process shutdown.

The recommended approach is to pre-configure the FMU30-AAHEAAGGF off-line using the Endress+Hauser FieldCare device configuration software and a Commubox FXA195 USB-to-HART adapter before the maintenance window begins. The device parameters — including measuring range, damping, empty and full calibration points, and output current limits — should be transferred from the existing device’s documentation or read directly from the legacy unit using FieldCare prior to removal. This eliminates the need for on-site parameter entry during the cutover and reduces the risk of configuration errors under time pressure.

During the physical swap, the existing field cable should be labelled and photographed before disconnection. The FMU30-AAHEAAGGF uses a standard M20 cable entry and accepts the same cable cross-sections as the majority of legacy Endress+Hauser and third-party transmitters. Once the unit is mounted and wired, a loop check should be performed from the marshalling cabinet to confirm signal continuity and correct polarity before the DCS input is re-enabled. The HART signal can be verified using a Fluke 789 ProcessMeter or equivalent loop calibrator to confirm that the 4–20 mA output tracks correctly across the measurement range.

For critical process loops where even brief signal interruption is unacceptable, a temporary bypass using a portable level gauge or an independent ultrasonic level sensor can maintain process visibility during the cutover. Once the FMU30-AAHEAAGGF is confirmed operational and the DCS alarm limits are reinstated, the bypass can be removed and the loop returned to automatic control. All configuration changes and as-built wiring records should be updated in the plant’s document management system before the maintenance window is closed.

Retrofit Support FAQ

Q1: Is the FMU30-AAHEAAGGF a direct drop-in replacement for the FMU30-AAHEAAGGE or other FMU30 suffix variants?
A: The FMU30 product family uses an order code structure where each character position defines a specific hardware or approval option. The FMU30-AAHEAAGGF and FMU30-AAHEAAGGE differ in one suffix position, which typically corresponds to a specific approval, display, or communication option. Before substituting one suffix variant for another, compare the order code matrix in the Endress+Hauser FMU30 Technical Information document (TI00189F) to confirm that the functional and approval requirements of your installation are met. NINERMAS can assist with order code cross-referencing prior to shipment.

Q2: What commissioning steps are required after installing the FMU30-AAHEAAGGF in place of a legacy ultrasonic transmitter?
A: When replacing an ultrasonic device (such as an FDU91 or FDU93 sensor paired with a Prosonic M FMU40 transmitter) with the FMU30-AAHEAAGGF radar unit, the primary commissioning steps are: (1) set the empty distance (E) and full distance (F) to match the vessel geometry; (2) run the mapping function to suppress fixed echoes from internal vessel structures such as agitators, heating coils, or inlet pipes; (3) verify the output current at the DCS analogue input card against a known reference level; and (4) confirm that HART communication is established if digital access is required. The entire commissioning sequence can typically be completed in under 60 minutes using the local display or FieldCare software.

Q3: Does NINERMAS provide pre-shipment testing and what does the 12-month warranty cover?
A: Yes. All FMU30-AAHEAAGGF units supplied by NINERMAS undergo pre-shipment functional inspection to verify that the device powers up correctly, the output signal is within specification, and the HART communication responds to standard commands. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of delivery. It does not cover damage resulting from incorrect installation, overvoltage, or operation outside the specified process conditions. Warranty claims are supported directly by NINERMAS with replacement or repair turnaround coordinated to minimise plant downtime.

Q4: Can the FMU30-AAHEAAGGF be used in applications where the legacy device was installed in a hazardous area?
A: The FMU30-AAHEAAGGF is available with ATEX, IECEx, and FM hazardous area approvals depending on the order code suffix. Before installing in a Zone 1, Zone 2, Division 1, or Division 2 classified area, confirm that the unit’s Ex certification matches the area classification and that the associated apparatus (barriers, isolators, and cable) is correctly selected and documented. Do not install a non-Ex rated unit in a classified hazardous area. NINERMAS can confirm the Ex approval status of the specific unit prior to shipment and provide the relevant certificate documentation on request.
